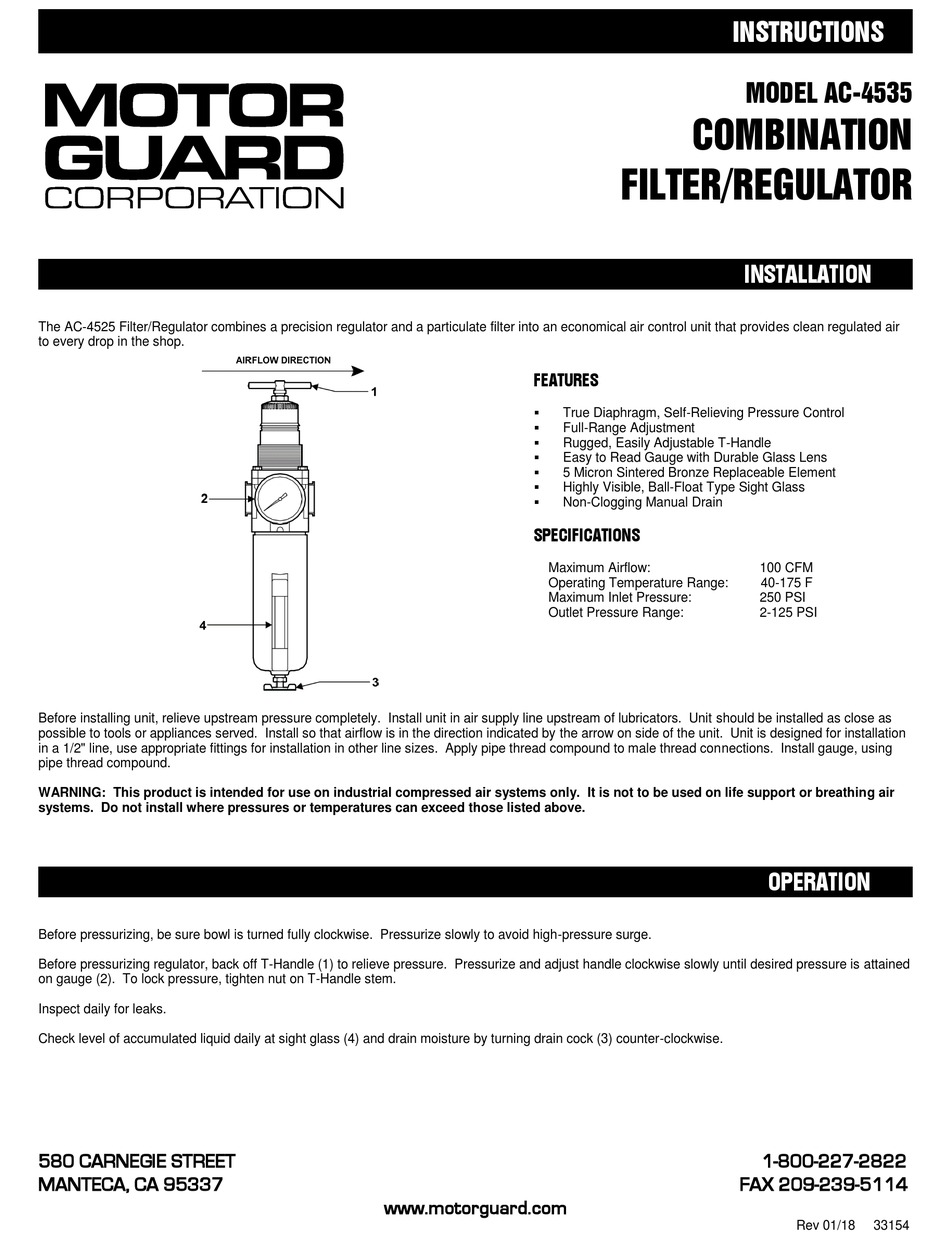

Motor Guard AC-4535 Instructions

The AC-4525 Filter/Regulator combines a precision regulator and a particulate filter into an economical air control unit that provides clean regulated air
to every drop in the shop.
Before installing unit, relieve upstream pressure completely. Install unit in air supply line upstream of lubricators. Unit should be installed as close as
possible to tools or appliances served. Install so that airflow is in the direction indicated by the arrow on side of the unit. Unit is designed for installation
in a 1/2" line, use appropriate fittings for installation in other line sizes. Apply pipe thread compound to male thread connections. Install gauge, using
pipe thread compound.
WARNING: This product is intended for use on industrial compressed air systems only. It is not to be used on life support or breathing air
systems. Do not install where pressures or temperatures can exceed those listed above.
Before pressurizing, be sure bowl is turned fully clockwise. Pressurize slowly to avoid high-pressure surge.
Before pressurizing regulator, back off T-Handle (1) to relieve pressure. Pressurize and adjust handle clockwise slowly until desired pressure is attained
on gauge (2). To lock pressure, tighten nut on T-Handle stem.
Inspect daily for leaks.
Check level of accumulated liquid daily at sight glass (4) and drain moisture by turning drain cock (3) counter-clockwise.
580 CARNEGIE STREET
MANTECA, CA 95337
FEATURES

True Diaphragm, Self-Relieving Pressure Control

Full-Range Adjustment

Rugged, Easily Adjustable T-Handle

Easy to Read Gauge with Durable Glass Lens

5 Micron Sintered Bronze Replaceable Element

Highly Visible, Ball-Float Type Sight Glass

Non-Clogging Manual Drain
SPECIFICATIONS
Maximum Airflow:
Operating Temperature Range:
Maximum Inlet Pressure:
Outlet Pressure Range:
www.motorguard.com
INSTRUCTIONS
MODEL AC-4535
COMBINATION
FILTER/REGULATOR
INSTALLATION
100 CFM
40-175 F
250 PSI
2-125 PSI
OPERATION
1-800-227-2822
FAX 209-239-5114
Rev 01/18
.
.
.
33154
