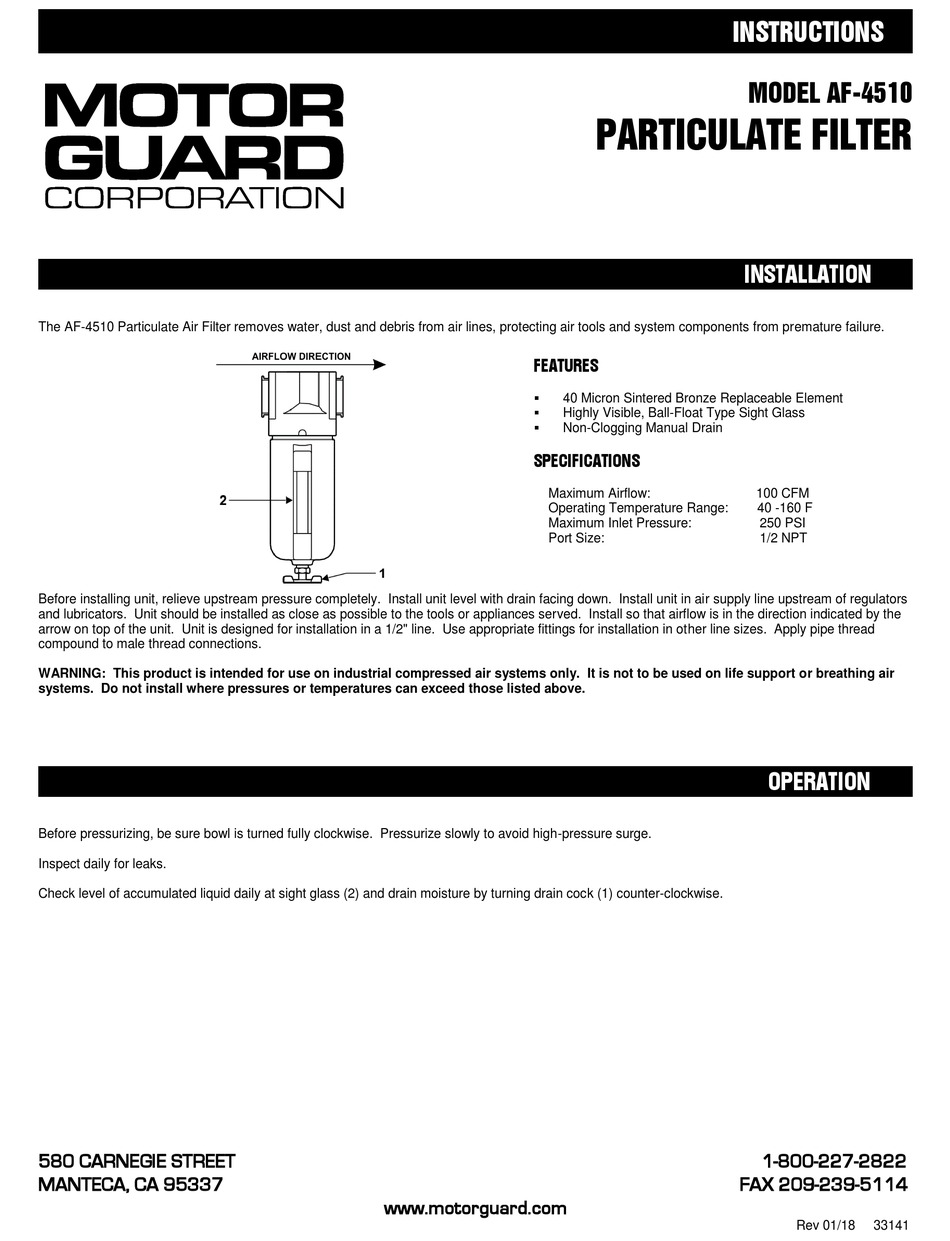

Motor Guard AF-4510 Instructions

The AF-4510 Particulate Air Filter removes water, dust and debris from air lines, protecting air tools and system components from premature failure.
Before installing unit, relieve upstream pressure completely. Install unit level with drain facing down. Install unit in air supply line upstream of regulators
and lubricators. Unit should be installed as close as possible to the tools or appliances served. Install so that airflow is in the direction indicated by the
arrow on top of the unit. Unit is designed for installation in a 1/2" line. Use appropriate fittings for installation in other line sizes. Apply pipe thread
compound to male thread connections.
WARNING: This product is intended for use on industrial compressed air systems only. It is not to be used on life support or breathing air
systems. Do not install where pressures or temperatures can exceed those listed above.
Before pressurizing, be sure bowl is turned fully clockwise. Pressurize slowly to avoid high-pressure surge.
Inspect daily for leaks.
Check level of accumulated liquid daily at sight glass (2) and drain moisture by turning drain cock (1) counter-clockwise.
580 CARNEGIE STREET
MANTECA, CA 95337

FEATURES


40 Micron Sintered Bronze Replaceable Element

Highly Visible, Ball-Float Type Sight Glass

Non-Clogging Manual Drain

SPECIFICATIONS

Maximum Airflow:
Operating Temperature Range:
Maximum Inlet Pressure:
Port Size:
www.motorguard.com
INSTRUCTIONS
MODEL AF-4510
PARTICULATE FILTER

INSTALLATION

100 CFM
40 -160 F
250 PSI
1/2 NPT

OPERATION

1-800-227-2822
FAX 209-239-5114
.
.
.
Rev 01/18 33141
