Summary of Contents for Huvema HU W1300X4,5

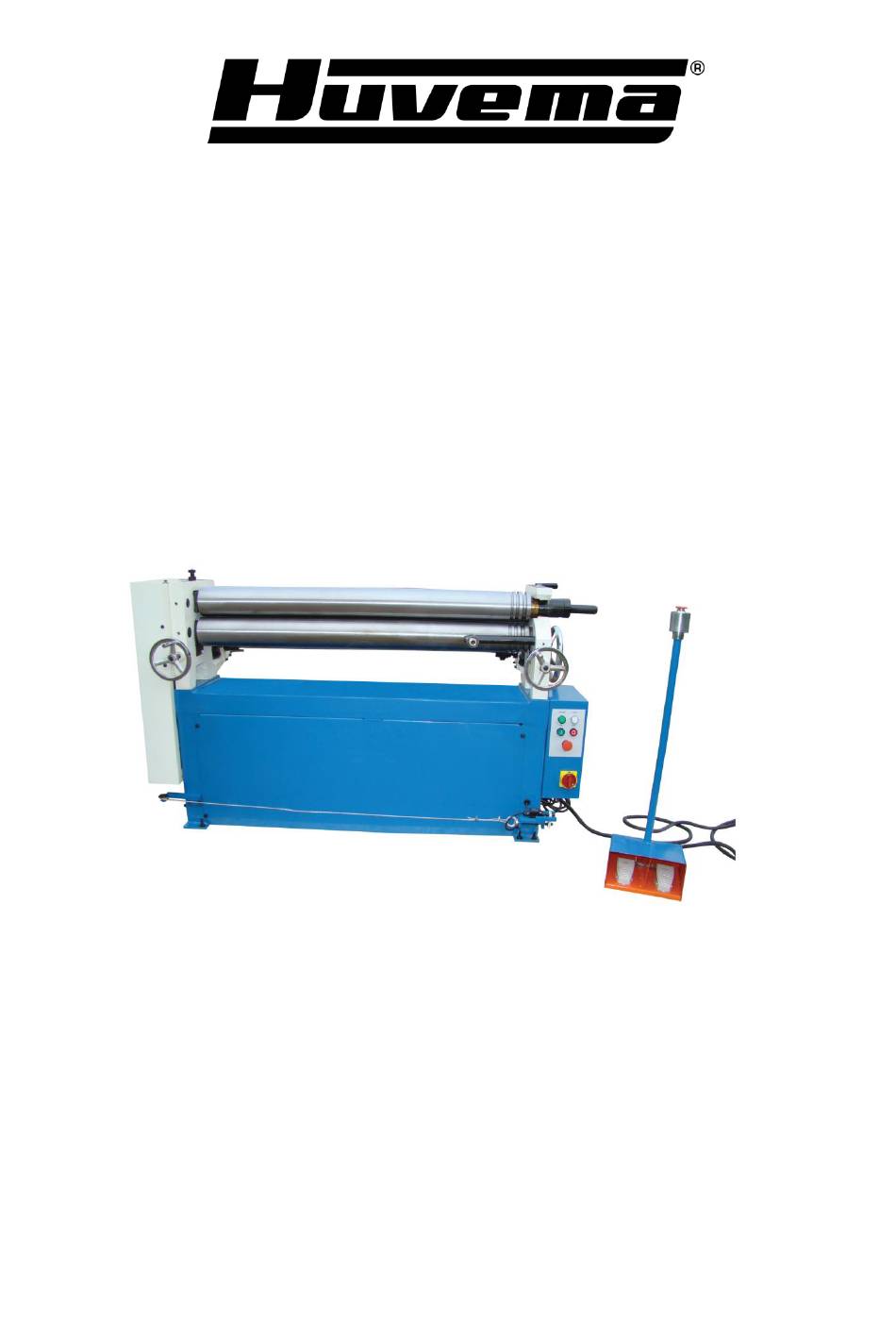

- Page 1 ELECTRIC SLIP ROLL MACHINE Model: HU W1300X4,5 Operation manual...
-
Page 2: Table Of Contents
Table of contents I MAIN SPECIFICATION II SAFETY INSTRUCTIONS III OPERATION INSTRUCTIONS IV ELECTRIC SYSTEM V PARTS DRAWING AND PARTS LIST... -
Page 3: I Main Specification
I MAIN SPECIFICATION MODEL HU W1300X4,5 Max rolling width 1300mm Max rolling thickness 4.5mm Rolling diameter 120mm Rotate speed 22rpm Motor Power 2.2kW Overall dimension 181x64x105cm Weight 660kg II SAFETY INSTRUCTIONS Save this manual You will need the manual for the safety warnings and precautions, assembly instructions, operating and maintenance procedures, parts list and diagram. - Page 4 machine. 4) Keep guards in place and in proper working order. Do not operate the machine with guards removed. 5) Avoid dangerous working environments. Do not use stationary machine tools in wet or damp locations. Keep work areas clean and well lighted 6) Avoid accidental starting.
-
Page 5: Operation Instructions
machine is leveled by level gauge. ·Cleaning: Use a liquid solvent such as kerosene or white spirit to remove the protective coating and any dirt from the up-painted surface of the machine. Don’t disturb any moving parts until all surface has been cleaned. 4. - Page 6 10) Down the idle roller as soon as the material has been pre-bend at the end side of frontal and rear to be the expected diameter.(Drawing No.7) 11) Raise the idle roller step by step when the upper roller and bottom roller to form the material to be circular between frontal and rear end-side.(Drawing No.8 &...
- Page 7 3. ADJUSTING THE CLAMPING (BOTTOM) ROLLER & PINCHING(IDLE) ROLLER 1) The adjusting hand wheel mounted on the right-hand side frame of the machine construction can adjust the bottom roller to clamp material tightly. 2) The hand wheel is mounted on right-hand side frame of machine construction enable the operator to raise or lower the idle (pinch) roll, so the correct gap between the upper and idle (pinch) rolls may be obtained to feed the designed stock into the machine.
- Page 8 6. ILLUSTRATION / OPERATION OF SIMULTANEOUS CLAMPING ROLLER...
-
Page 9: Electric System
IV ELECTRIC SYSTEM 1, Preparation :The consumer should prepare a 10A power switch. Connect 3x4 mm 1x4mm yellow/green with the power switch. The earth-line should be connected with the earth-plate. 2, Operation of the machine Combine the breaker in the electric appliance box and turn right the power switch. At this time the indicator lighted, which means the machine had been connected with power correctly. - Page 10 Symbol Name Symbol Name Power switch Indicator light Breaker Lash-up switch Transformer Motor Alternating contactor...
-
Page 11: Parts Drawing And Parts List
V PARTS DRAWING AND PARTS LIST... - Page 12 Part # Description Q’ty Part # Description Q’ty Protecting Cover Fixed Shaft Hex Bolt M6X10 Right frame Bolt M12X30 Pitch (idle) roller Sleeve Big gear Adjusting block Small gear Oli cup Bushing Bolt Washer Nut M20 Shaft Left frame Block plate Supporting plate Hex Bolt M6X16 Hex Bolt M8X25...
- Page 13 Limited block motor Sliding sleeve Hex bolt M16X35 Lower (clamping)roller Spring washer 16 Adjusting block Bolt M16X40 Sleeve Washer 16 Plate for motor stand Small chain wheel Nut M12 Locking Bolt M8X16 Bolt M12X30 Block plate Nut M16...
- Page 14 (in accordance with supplement II, section 1A of the Machinery Directive) Industrie & Handelsonderneming Huberts bv, Kennedylaan 14, 5466 AA Veghel, the Netherlands, in the capacity of importer, is to be held responsible for declaring that the Huvema machine: Roller HU W 1300x4,5...
