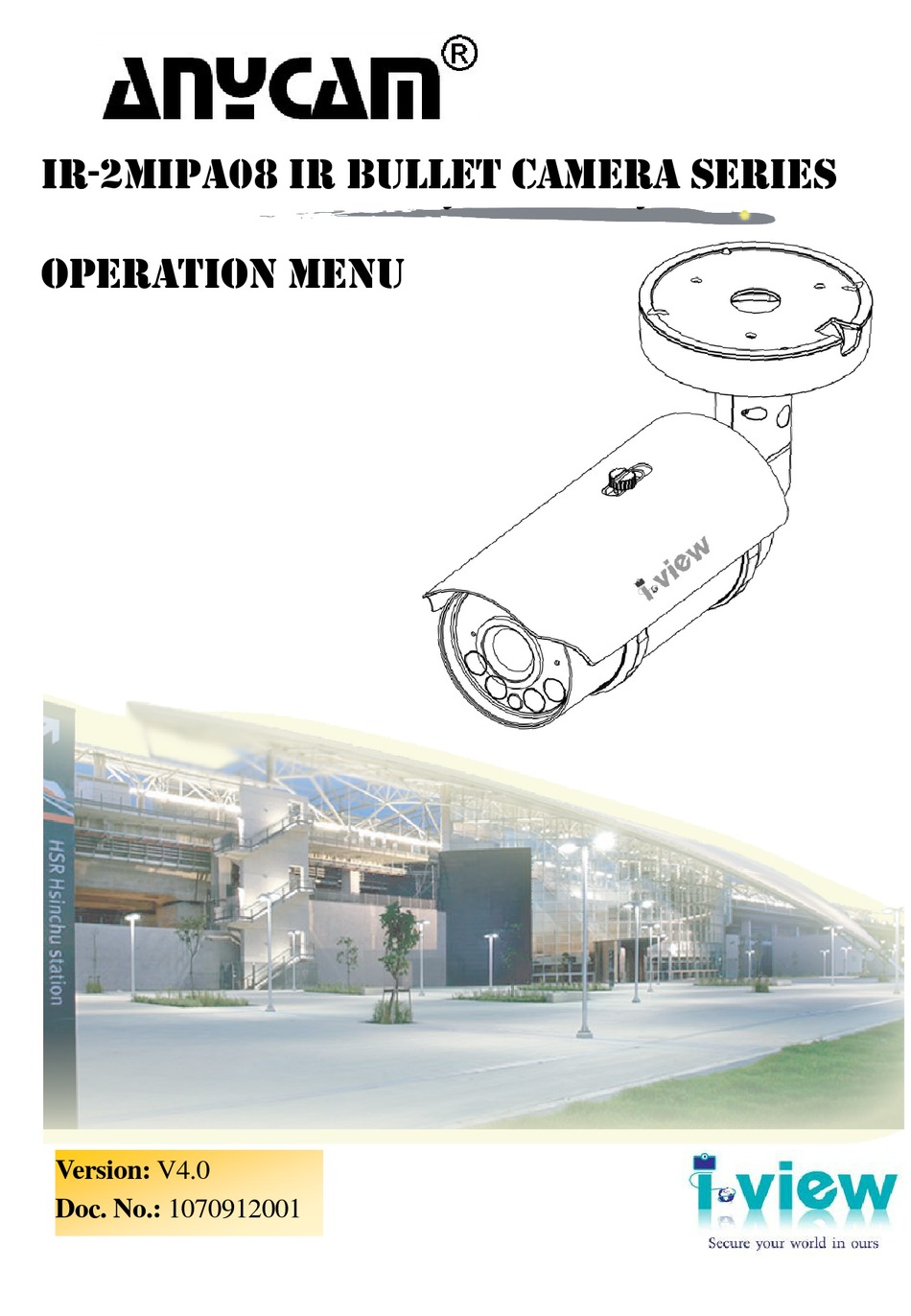

5/3/2-MEGA PIXELS NETWORK CAMERA

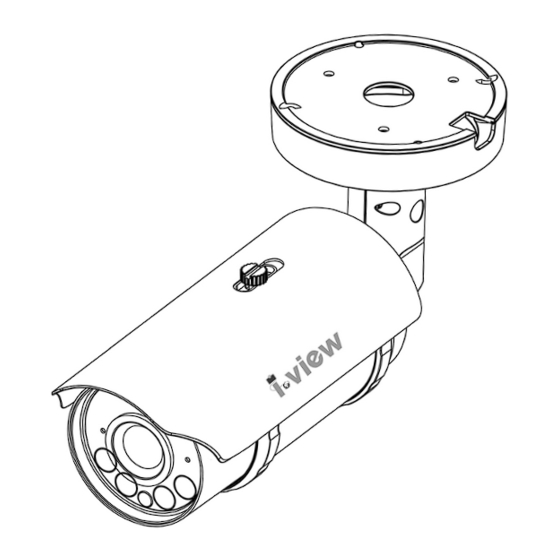

IR-2MIPA08 IR BULLET CAMERA SERIES
OPERATION MENU
Version: V4.0
Doc. No.: 1070912001

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IR-2MIPA08 Series and is the answer not in the manual?

Questions and answers

Related Manuals for ANYCAM IR-2MIPA08 Series

Summary of Contents for ANYCAM IR-2MIPA08 Series

  • Page 1 5/3/2-MEGA PIXELS NETWORK CAMERA IR-2MIPA08 IR BULLET CAMERA SERIES OPERATION MENU Version: V4.0 Doc. No.: 1070912001...
  • Page 2 Safety information This symbol indicates that dangerous voltage consisting a risk of electric shock is present within this unit. Megapixels This exclamation point symbol is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.
  • Page 3 filled with water on top of the camera. Doing so may cause personal injury due to fire, electric shock, or falling objects. 7. If any unusual smells or smoke come from the unit, stop using the product. In such case, immediately disconnect the power source and contact the service center.
  • Page 4 IMPORTANT SAFETY INSTRUCTIONS Read these instructions. Keep these instructions. Heed all warnings. Follow all instructions. Do not use this apparatus near water. Clean only with dry cloth. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. Do not install near any heat sources such as radiators, heat registers, or other apparatus (Including amplifiers) that produce heat.
  • Page 5 SAFETY INFORMATION FCC STATEMENT This device complies with part 15 of the FCC Rules. Operation is subject to the following conditions: 1. This device may not cause harmful interference, and 2. This device must accept any interference received including interference that may cause undesired operation.
  • Page 6 NOTE: Tips and additional information to aid in completing a task. Trademark I-View, e-Witness, @-Witness Pro, u-Witness XP, x-Witness, FreeView Pro, AnyCam, PDAVirw and MobileView are registered trademarks of I-View Communication Inc. Microsoft, Windows 95, 98, ME, Windows2000, XP, Vista, 7 and 8 are registered trademarks of Microsoft Corporation.

  • Page 7: Table Of Contents

    Table of Contents Chapter 1. Introduction ---------------------------------------------------------------------------------------- 8 1-1. Highlights of your new Network IP Camera ------------------------------------------------ 8 1-2. Packaging Contents --------------------------------------------------------------------------- 12 Product Dimension ---------------------------------------------------------------------------- 12  1-3. Product Parts Description -------------------------------------------------------------------- 13 Chapter 2. Camera Installation------------------------------------------------------------------------------ 15 2-1. Wall Mount installation ----------------------------------------------------------------------- 15 Chapter 3.

  • Page 8: Chapter 1. Introduction

    Chapter 1. Introduction 1-1. Highlights of your new Network IP Camera Congratulates on purchasing this IVA (Intelligent Video Analytic) 2 Mega pixels network IP Bullet Camera! This IP Camera provides 2-Mega pixels high-resolution video quality, with its advanced megapixel lens; you can view remote images in more detail than conventional close-circuit cameras. Other highlights of this network IP Camera include: Onvif compliant and RTSP protocol support.
  • Page 9 IR-2MIPA08 Series System Platform: High performance SoC CPU; Linux Embedded O.S. Image Device 1/2.8" 2 M pixels (1920x 1080 pixels) SONY progressive CMOS sensor. . Video Setting Compression: Video: 16KM ~ 32M bits/sec (CBR/VBR configurable) H.265MP/H.264 HP/MP/BP, M-JPEG; Audio: G.711 - low/a-low Codec (64K sample rate) μ...
  • Page 10 Configure Import/Export parameters, Restore, Default setup Audio Setting G.711 - Low audio encoding and decoding; μ 2-way audio; External Microphone input; Speaker output. 2Vp-p audio input and audio output with 600 impedance. Ω IVA Functions (Optional) Object Counting, Unattended /Missing Object, Loitering, Tripwire Detection. Smart Motion detection, Color Cast, Lose Focus, Image Expose, Image Dark, Video Loss, Video Occlusion , Network Failed, IP address Conflict, Illegal Access, Object Detection Network...
  • Page 11 IR Illuminators: 4 pieces VCSELIR LED Illuminators. IR Cut: Built on removable IR-cut filter for day & night function. Storage Micro SD slot for SD/SDHC card storage; Support Prerecording and Post recording; Network failed start recording on SD card, SD card failed indicator. Backup/Restore to device configuration file to FTP/SMTP server.

  • Page 12: Packaging Contents

    1-2. Packaging Contents Please check the contents of your new Network IP Camera when you unpack the package. If any item is missing, please contact your dealer of purchase for help. The package includes the following items: Network IP Camera x 1ea Bundle NVR &...

  • Page 13: Product Parts Description

    1-3. Product Parts Description Top cover Safety cable Sunshield cover Lens Mount panel Focus screw Zoom screw IR Sensor IR LED SD Card slot Front side items description: Sunshield cover: It protects the camera from the direct sunlight. IR LED: These infrared LED’s are controlled by the illumination sensor. Illumination Sensor: Detects incoming light to control the IRLED.
  • Page 14 Cables: (Item 4 ~6 for Full function model only) Audio in: Plug microphone into RCA audio in port (Red color). Audio out: Plug speaker into RCA audio out. (White color). RJ-45 Female connector (Waterproof): Plug to RJ-45 connector (Male) to extent the transmission distance via UTP cable;...

  • Page 15: Chapter 2. Camera Installation

    Chapter 2. Camera Installation 2-1. Wall Mount installation Wall Mount installation Fix the camera This camera is waterproof and in compliance with the IP66 spec, but the jack connected to the external cable is not. You are recommended to install this product below the edge of eaves to prevent the cable from being externally exposed.
  • Page 16 Adjust camera angle from bracket mount (Please refer the photo as below) 1) Use the Hexagon wrench to loosen the bolt and to rotate the bracket to suitable position. 2) Adjust horizontal, vertical or rotate camera body angle of the camera. 3) Use the Hexagon wrench to tighten a bolt after adjusting the camera.
  • Page 17 How to open the top cover and adjust the Lens (No need for Motorized Lens Model) 1. Remove the sunshield. 2. Push the front cover and move the ring with anti-clockwise direction to move the front cover. Remove the ring and front cover 1.

  • Page 18: Chapter 3. Running Ip Camera By Witness Pro Nvr Software

    Chapter 3. Running IP Camera by Witness Pro NVR software 3-1. Network Deployment General Connection (without PoE) 1. Connect RJ45 Ethernet cable to a switch. Use a Category 5 Cross Cable when your network camera is directly connected to PC. 2.

  • Page 19: Install Witness Pro Nvr Software

    3-2. Install Witness Pro NVR software You can use your new Network IP Camera by its web user interface v There is a NVR software CD comes with IP camera which allow you run 32/64 channels IP cameras on a PC. Please follow the steps below to complete the installation of Witness Pro NVR software.
  • Page 20 Step 5. Click the “Browse” button to install into a different directory, otherwise click on the “Next” button to install the software into the proposed director. Fig. 1-3-1.5 Installation Step 6. Select “No, I will restart my computer later” and press on the “Finish” button to exit. Fig.

  • Page 21: Setting Ip Camera For Witness Pro Nvr Software

    3-3. Setting IP camera for Witness Pro NVR software When you first time run the Witness Pro NVR program and there is no IP camera setting on the system, so the NVR will pop up the “ezSetup “ program for the IP cameras configuration. This setup window may differ greatly depending on your NVR model.
  • Page 22 for this IP camera individually. Install video codec: Install the video codec of this IP camera when you connect IP camera at first time, if the IP camera cannot show the video on the screen. The detail setting of Fig A diagram description as below: Discover: Click “Discover”...
  • Page 23 2. Setup the parameters of Individual IP camera Fig D This section will allow you setup the parameters for individual IP camera for I-View’s and the other brand. Disable channel: This will disable the selected channel when enable this function.
  • Page 24 Install video codec: Install the video codec of this IP camera when you connect IP camera at first time, if the IP camera cannot display the video on the screen. Vendor & Model: Select the correct brand and model for the connected IP camera. You also can select “Onvif”...
  • Page 25 Dual streaming mode allows display multi video and save a huge CPU loading. Condition (AWB): Choice the parameters to suit for the camera install location. Reboot: Click this icon will reboot the IP camera. Setup: Click this icon for detail setting of IP camera (refer to I-View’s IP camera; maybe there are some difference setting diagram when used difference models);...
  • Page 26 :Click this icon to save the video clips from SD card to HDD of your PC. c. Search: Click this icon and the search time period from SD card. The video clips information will list on the table list. You can playback the video clips of SD card without download them.

  • Page 27: Chapter 4. Accessing Ie, Chrome, Safari And Firefox Browser

    Chapter 4. Accessing IE, Chrome, Safari and Firefox Browser You can use your new Network IP Camera by its web user interface via IE, Chrome, Safari and Firefox. You must know the IP address of IP Camera before you can connect to it. The IP Camera will use DHCP server on your local network to obtain an IP address automatically by default.

  • Page 28: Install Plug-In On Ie, Chrome, Safari And Firefox Browser

    If you have several network connections, please disable connections that are not connected to IP camera, otherwise the IP Search Tool.exe program may fail to search IP camera. 4-1. Install Plug-in on IE, Chrome, Safari and Firefox Browser | You can connect to the IP camera by Internet Explorer or other web browsers for remote viewing by entering IP address in address bar.

  • Page 29: Using Rtsp Players

    For security reason, it will pop up change password message when you log in and pass the checking. Click " Ok" to set up a new password for next time login, press " Cancel" icon to ignore this message. 4-2. Using RTSP Players To view the video streaming media using RTSP players, you can use one of the following players that support RTSP streaming such as Quick Time Player, Real Player, VLC media player...

  • Page 30: The Function Description Of Live Window

    4-3. The Function Description of Live Window After Plug-in is installed, you should be able to see the live video from IP camera as below. 3 4 5 10 11 Zoom In(Out): Press and drag the left button from top left (bottom right) to bottom right (top left) to zoom in (out) for the motorized Lens.
  • Page 31 Control Panel function description For Motorized Lens model only. Press “+” for Zoom in, Focus near and enlarge IRIS. Press “-” for Zoom out, Focus far and smaller IRIS. Press “+” to increase the valueof “Brightness /Contract “. Press “-” to decrease the valueof “Brightness /Contract “ Click become to default setting.
  • Page 32 Event Type: The icon will be flash when event is triggered. Click this icon will show the event table diagram as below. Show Smart Detection Rule: Check it the setting status of Smart detection will display on the screen. Show Smart Detection Result: Check it the event result of Smart detection will pop up on the screen. : The icon on the top, the function description as below: The icon will change to red color when motion detection is triggered.

  • Page 33: The Function Description Of Setup Window

    4-4. The Function Description of Setup Window Click “ Setup “ icon to start setup the parameters of IP camera. You can configure basic IP camera settings like data transfer protocol and data storage folder…etc. Device Information: Information: Click this button to check the current Mac number, Firmware version, model, and also allow you entry the camera name on the “Device name:”...
  • Page 34 PTZ Setting: Click this button to setup the PTZ setting parameters. Time Setting: Click this button to setup the time clock, NTP and DST time zone. Time setting: Click the Device time section to adjust the Date/Time, then click the “Timing” to finish the time clock adjustment.
  • Page 35 Check “ Enable DST” icon and then select the DST period and DST bias time. Save: Check “ Save “ icon to set up the setting parameters. Audio Settings: Click this button to setup the Time stamp and Text OSD position. Audio Source: Select the audio source from Mic in or Line in.
  • Page 36 Display Settings: Click this button to setup the Time stamp and Text OSD position. Name: Check “ Show” icon and entry the device name or location to show the text on the screen. Main/Sub/Third Stream OSD: Choose the size of name front which want to show on the main /Sub/Third stream.
  • Page 37 Video Parameters: Click this button to setup Resolution, Frame rate, Bit rate…ect. Day & Night Mode: • Mode: There are Auto/External trigger/Color/B &W modes. Auto mode: Switch color and B&W video that detects by the image sensor. External Trigger: Switch color and B&W video that detects by the IR sensor. Color: Select this model the video always keep on the color video.
  • Page 38 • WDR: There are Off/ Low/ Mid/ High modes selectable. The default setting is off. • 3DNR: There are Low/ Mid/ Mid High/High modes selectable. The default setting is Low. • Sharpness: Setup the sharpness of video color, the high value will get more sharpness color. •...
  • Page 39 Off: Select the Off mode; the IR LED will be turned off. Save : Click the Save icon to setup the parameters. ROI Setting : ROI (Region of Interest) encoding is used to enhance the quality of images which are specified in advance.
  • Page 40 Following the steps as below to setup the motion detection function.. 1. Check ”Enable” and select the value of sensitivity. The high value will get more sensitivity. 2. Setup the date from drop of week section (Default whole week), and select the time period. You can select multi period per day.
  • Page 41 drag the left button of Mouse to setup the detection areas. You can setup multi region area number for each camera. Click “Clear” bottom to clear the current detective areas. 4. Specify the notify method (Such as Trigger alarm output, move PTZ camera position, notify via email) when an event occur.
  • Page 42 Target Count: Click this button to setup Target count function. Enable: Enable or disable the target counting function. Arming Schedule: Arm schedule of enable Target count. Check/Uncheck from Monday to Sunday, each date can has its own trigger period. Area Setting: Click “ Drawing “ icon, then press and drag the left Mouse button to setup the trigger line from Area Setting.
  • Page 43 Interval: Set the counting time interval, when it is more than the time interval, the flow counter will reset and enter into next counting period automatically. The maximum is 3600 seconds; 0= Ignore. Threshold: Set the upper limit value for target counting, the alarm will be triggered automatically when the value is more than the setting.
  • Page 44 Object Left/Lost: Click this button to setup object left and object lost detection function. Enable: Enable or disable the object left and object lost detection function. Arming Schedule: Arm schedule of enable object left and object lost detection. Check/Uncheck from Monday to Sunday, each date can has its own trigger period. Area Setting: Click “...
  • Page 45 automatically when the value is more than the setting. Email: Check “Email” and once the event triggers that it will send Email to setting email address. Alarm Output: Check “Alarm output” and once the event triggers, the camera will linkage to alarm output.
  • Page 46 Clear: Click Clear to delete all detection regions Detection Area: To add new Detection Area (Max. 4 regions) and each line can setup individual corresponding parameters. Detection Type: There are “Target Entry”, “Target Lave”, “ Target Enter/Leave” and “Target Loiter” modes, and choose one for the detection type.
  • Page 47 Audio Exception: Click this button to setup Audio exception detection. Enable: Enable or disable the function of audio exception detection. Audio Exception: There are 4 audio exception detection- Baby cry, Gunshots, Screaming and Explosions on these section. Each audio has 4 levels (Off/Low/Mid/High). The system will be triggered when detect these 4 kinds audio.
  • Page 48 Line Crossing: Click this button to setup triple wire detection function. Enable: Enable or disable the line cross detection function. Arming Schedule: Arm schedule of enable area detection. Check/Uncheck from Monday to Sunday, each date can has its own trigger period. Area Setting: Click “...
  • Page 49 Alarm Output: Check “Alarm output” and once the event triggers, the camera will linkage to alarm output. PTZ: Check “PTZ” and once the event triggers, the camera will linkage PTZ camera to move the assign Preset point. Preset: Setup the Preset point for the PTZ camera move to when the event is triggered. Save: Click “Save”...
  • Page 50 ration is smaller than the setting value, the system will ignore the target which motion trigger. 5. Specify the notify method (Such as Trigger alarm output, move PTZ camera position, notify via email) when an event occur. 6. Click Save to change the setting. VQD (Video Quality Diagnose): Click this button to setup Video quality detection function.
  • Page 51 PTZ: Check “PTZ” and once the event triggers, the camera will linkage PTZ camera to move the assign Preset point. Preset: Setup the Preset point for the PTZ camera move to when the event is triggered. Save: Click “Save” icon to store the setting. Face Detection (Option): Click this button to setup the parameters.
  • Page 52 7. Check “ FullJPEG “ icon will snapshot the best quality. 8. Face Quality Threshold: Setup the value threshold of face detection, less the setting value will ignore the image. 9. Capture Quality: Setup the value threshold of snapshot image quality, less the setting value will get poor image quality, but file size will be less.
  • Page 53 2. Enter the Static IP, Subnet mask, Default router, and Primary DNS provided by your ISP Subnet mask: This is used to determine if the destination is in the same subnet The default value is 2 55.255.255.0”. “ 3. Configure the NIC settings, including the IPv4 (IPv6) Address, IPv4(IPv6) Subnet Mask and IPv4(IPv6) Default Gateway.
  • Page 54 real-time stream, it needs to verify the user name and password. RTMP Port: Use domain name to access and login device need mapping RTMP, The default port is1935. Video Plan: Click this button to setup the recording schedule for the deference event. Video Mode: Click this button to setup recording mode.
  • Page 55 Management Platform: Click this button to setup Server program. This function for the System Integrator only. AntsWebServer: Enable this program for the Internet Browser viewing. Fseye: Enable this program for the App of Mobile phone or Pad remote access. I8S: Enable this program for the SDK function. TelnetServer: For email server application.
  • Page 56 the stream at the same time by requesting a copy from the multicast group address Therefore, enabling multicast can effectively save Internet bandwidth. The ports can be changed to values between 1025 and 65535. The multicast RTP port must be an even number and the multicast RTCP port number is the multicast RTP port number plus one, and thus is always odd.
  • Page 57 4. Entry the standby domain which you had been applied. 5. Click “Save” icon to complete the parameters settings. 6. You can enable/disable the DDNS from the” Status” section. UPnP Settings: Click this button to setup UPuP function.. 1. Click “ Add “ icon to setp UPnP function. . 2.
  • Page 58 Enable UPnP port forwarding: To access the Network Camera from the Internet, select this option to allow the Network Camera to open ports on the router automatically so that video streams can be sent out from a LAN. To utilize of this feature, make sure that your router supports UPnP and it is activate.
  • Page 59 FTP Settings: Click this button to setup the FTP server which you want to save the video clips, Email and snapshot file. Alarm Input: Click this button to setup the alarm input parameters.
  • Page 60 Enable: Check “ Handle” icon to enable the alarm input function. Alarm input: This IP camera support 2 alarm input ports. Select the alarm input port. Alarm in name: You can define the alarm input name or location. Trigger: Setup the alarm input mode (Normal Close / Normal Open) of trigger single. Arming Schedule: Arm schedule of enable alarm input detection.
  • Page 61 Exception Settings: Click this button to setup the alarm output trigger of exception event. Exception Type: There are Network Discounted/ IP Address Conflict/ Illegal Access/ HDD Full/HDD (SD) Error, there are 5 exception types. Alarm Output: Entry the value alarm output trigger period. The alarm output will keep on sending the signal of each trigger.
  • Page 62 System Update: Click this button to update the newest Firmware. You can visit www.i-view.com.tw to find put the newest Firmware when needed. File: Click “ Browse” icon to select the new Firmware file. Please save the Firmware at the C:\ or E:\ path directory to avoid the update failed.
  • Page 63 Restore: Click this button to restore the parameters setting. . Export Config: Export and store the existing configuration. Import Config: Restore the configuration to the IP camera. Restore: Restore the parameters as default setting, choose the difference items to back to default. Reboot: Reboot the IP Camera.
  • Page 64 Developer: This section for the software developer or system integrator use only. The detail information please contact to i-View Communication Inc. Support@i-view.com.tw...

  • Page 65: The Function Description Of File Window

    4-5. The Function Description of File Window Click “ File “ Section to playback the video clips or snapshot file of IP camera from the SD card or HDD of PC. The File Management interface as shown in the follow figure. Entry the specify period and then click “...

  • Page 66: The Function Description Of Log Window

    Playback function description Play: Click button to playback the video clip. Stop: Click button to stop the playback the video clip. Decrease speed – Decrease the speed of playback. Increase speed – Increase the speed of playback. Copy video clip – Copy current video clip to a specified location for archiving or distribution. Snapshot –...

  • Page 67: Chapter 5. Troubleshooting

    Chapter 5. Troubleshooting Before you send this IP Camera back to your dealer when you found this IP Camera is not working properly, please checks the table as below to save your time. Problem description Possible solution(s) Can’t connect to IP Camera Check the IP address and port number is correct or not Make sure the entry User name/Password is correct.
