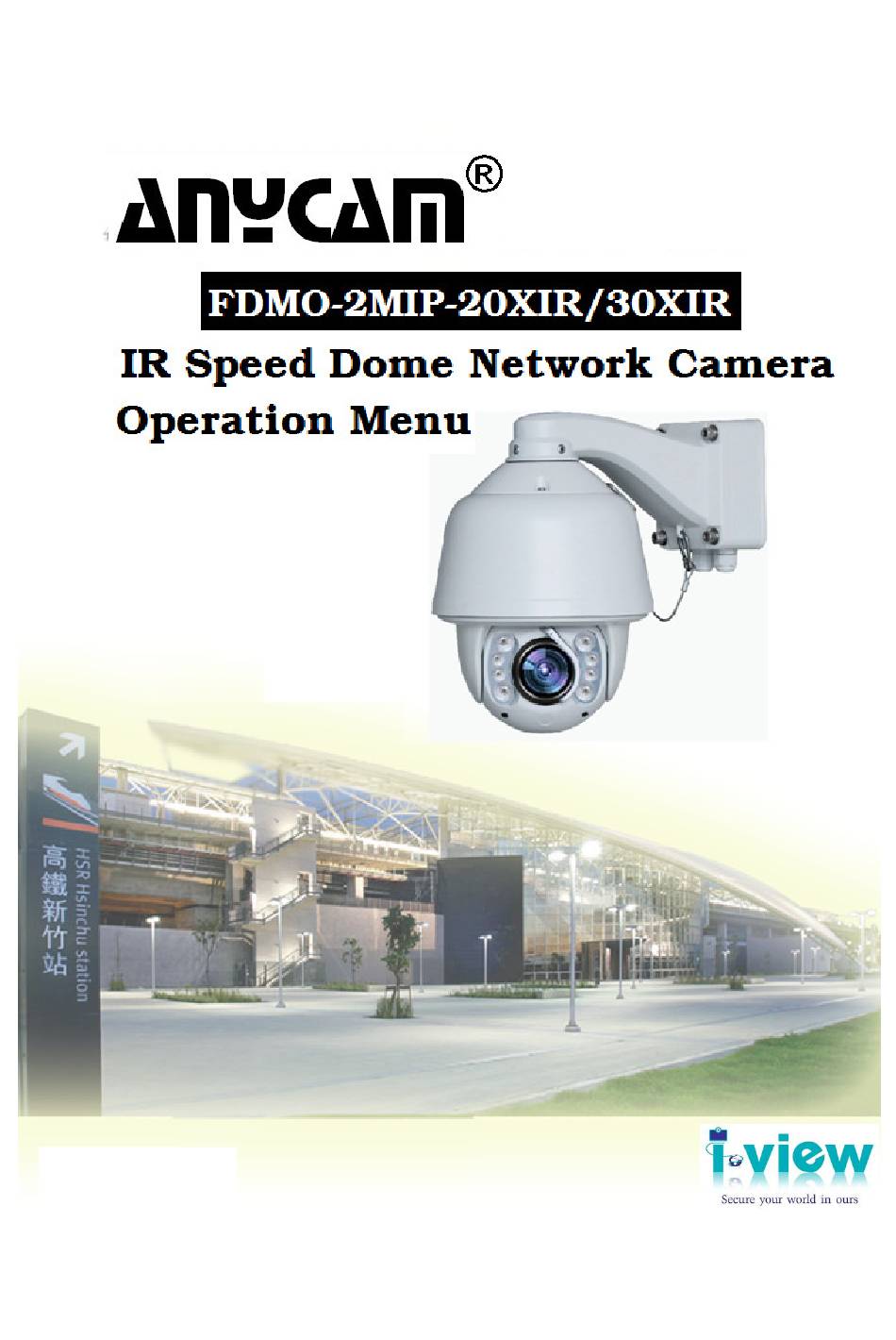

ANYCAM FDMO-2MIP-20XIR Operation Menu

Ir speed dome network camera
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Version: V1.2.
Doc. No: 2015050701

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FDMO-2MIP-20XIR and is the answer not in the manual?

Questions and answers

Related Manuals for ANYCAM FDMO-2MIP-20XIR

Summary of Contents for ANYCAM FDMO-2MIP-20XIR

  • Page 1 Version: V1.2. Doc. No: 2015050701...

  • Page 2: Table Of Contents

    Table of Contents 0. Safety Information …………………………………………………..2 1. Features ……………………………………………………………….7 Main Features …………………………………………………7 Integrated Super Speed PTZ Rotator ……………………… 8 Built-in High Definition Day/Night Camera………………… 8 All-weather Outdoor Design ………………………………… 8 Function Instructions …………………………………………8 2. Technical Specification……………………………………………..9 2-1. Specification…………………………………………………… 15 2-2.

  • Page 3: Safety Information

    Safety information This symbol indicates that dangerous voltage consisting a risk of electric shock is present within this unit. This exclamation point symbol is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.
  • Page 4 or containers filled with water on top of the camera. Doing so may cause personal injury due to fire, electric shock, or falling objects. 7. If any unusual smells or smoke come from the unit, stop using the product. In such case, immediately disconnect the power source and contact the service center.
  • Page 5 IMPORTANT SAFETY INSTRUCTIONS Read these instructions. Keep these instructions. Heed all warnings. Follow all instructions. Do not use this apparatus near water. Clean only with dry cloth. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. Do not install near any heat sources such as radiators, heat registers, or other apparatus (Including amplifiers) that produce heat.
  • Page 6 SAFETY INFORMATION FCC STATEMENT This device complies with part 15 of the FCC Rules. Operation is subject to the following conditions: This device may not cause harmful interference, and This device must accept any interference received including interference that may cause undesired operation. CAUTION This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of FCC Rules.
  • Page 7 NOTE: Tips and additional information to aid in completing a task. Trademark I-View, FastCam III, @-Witness Pro, FreeView Pro, AnyCam, AnyNet and MobileView are registered trademarks of I-View Communication Inc. Microsoft, Windows Windows2000, XP, Vista, 7 and 8 are registered trademarks of Microsoft Corporation.

  • Page 8: Features

    1. Features Main Features 1080p HD SONY Exmor CMOS Sensor. 30 fps @ 1080p Full HD. 20x Optical Zoom Lens and 12x Digital zoom; total 240x zoom. WDR for unparalleled visibility in high contrast environments. Built-in Micro SD Card Slot for On-board Storage. Support H.264 main/Low/Base line profile, and MJPEG Compression.

  • Page 9: Integrated Super Speed Ptz Rotator

    1.2 Integrated Super Speed PTZ Rotator Delicate stepping motor, stable, sensitive and accurate 360° Pan and 90° Tilt range (auto-flip) without blind area Step less speed change, auto zoom/speed matching Near / far IR Light auto matches camera zoom in/out 1.3 Built-in High Definition Day/Night Camera Auto iris, auto back light compensation Auto/manual white balance...
  • Page 10 The dome can store up to 220 presets. Auto Scan Users can set up the left and right boundaries by control keyboard. Then speed dome can scan between these boundaries. It supports up to 8 groups of scanning paths. Cruising Track The preset position can be programmed to be recalled in a set of sequences.
  • Page 11 Coordinates and Directions Display User can define the dome’s direction of due north, which will help to show up the exact moving directions on screen. And zone title is supported to display when the dome moves to the specified zone. Auto Tracking The dome will automatically fix and track the moving object according to the user’s setup via OSD.
  • Page 12 Note: This feature varies depending on speed dome models. Power On Memory The dome supports the power on memory capability with the predefined resume time. It allows the dome to resume its previous position after power is restored. Scheduled Task A time task is a preconfigured action that can be performed automatically at a specific date and time.

  • Page 13: Technical Specification

    2. Technical Specifications 2.1 Specification 1/2.8’’ SONY Exmor™ CMOS sensor Image Sensor: Effective Pixels: 1920(H)x1080(V) Signal System: PAL/NTSC Less than 1.7 lx (F1.6, 50 IRE), 0.5 lx in Minimum Illumination: High Sensitivity Mode, 0 lux with IR ON Auto/Manual/ATW/Indoor/Outdoor/Daylight White Balance: lamp/Sodium lamp Gain Control: Auto/Manual/Max.
  • Page 14 (Vair-speed) Preset Speed /S (high speed) / 35 /S (Vari-speed) Presets 220 / +/-0.1 Number/Accuracy The dome will rotate back to preset position Guard Location after a period of vacant time. Number of Preset: 8 auto scan tracks, user-defined left and right Auto Scan boundaries and scan speed 8 cruising tracks, each cruising tracks has 32...
  • Page 15 60Hz: 30 fps (1920×1080), 30 fps (320x240) Image Compression: H.264 Baseline/Main/High profile; MJPEG Support 5% areas of image ROI encoding: Audio Compression: G.711ulaw/G.711alaw IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, Protocols: NTP, RTSP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE Simultaneous Users: Up to 8 users...

  • Page 16: Packaging Contents

    2.2 Packaging Contents Please check the contents of your new Network IP Speed dome Camera when you unpack the package. The package includes the following items: Network IP Speed Dome Camera x 1ea Bundle NVR & CMS software CD x 1ea User manual x 1ea Switching Power Adapter.

  • Page 17: Cable Description

    2.4 Cable Description 1) Network port: Plug the RJ-45 LAN cable. The Green LED on for power OK; Green LED flash for communication; Yellow LED on for power OK. 2) Power cable: Connect the DC12V Switching power adapter. 3) BNC cable: Provide composite video signal for lens focus adjustment. 4) Audio in (Yellow): Plug in Microphone for audio input.

  • Page 18: Installation Guide

    3. Installation Guide 3.1 Specification Installation Method The IR speed dome could be installed in wall-mount and pedant-mount Wall Mount Pendant Mount...

  • Page 19: Installation Procedures

    3.2 Installation Procedures Wall-mount Installation Procedures: 1) Take out the bracket from the package (as shown), mark the installation hole positions on the wall referencing to the bottom of bracket. 2) Drill the hole and install 4 pieces of M8 expansion bolt into the hole. The wall and ceiling must be thick enough to install the expansion bolts and can bear 4 times the weight of the dome camera itself.
  • Page 20 2) Drill the hole and install 4 pieces of M8 expansion bolt into the hole. 3) Take out the IR speed dome and put the cables through the sockets on the bottom of the pendant bracket. Use M5 screws to fix the bracket and dome body.

  • Page 21: Network Deployment

    3.3 Network Deployment General Connection (without PoE) IP PTZ Camera 1. Connect RJ45 Ethernet cable to a switch. Use a Category 5 Cross Cable when your network camera is directly connected to PC. 2. Connect the power cable from the Network Camera to a power outlet. 3.

  • Page 22: Running Ip Camera By Witness Pro Nvr Software

    4. Running IP Camera by Witness Pro NVR software 4.1 Install Witness Pro NVR software You can use your new Network IP Camera by its web user interface v There is a NVR software CD comes with IP camera which allow you run 32/64 channels IP cameras on a PC.

  • Page 23: Setting Ip Camera For Witness Pro Nvr Software

    4.2 Setting IP camera for Witness Pro NVR software When you first time run the Witness Pro NVR program and there is no IP camera setting on the system, so the NVR will pop up the “ezSetup “ program for the IP cameras configuration. This setup window may differ greatly depending on your NVR model.
  • Page 24 The detail setting of Fig A diagram description as below: Discover: Click “Discover” icon to research the IP address of system. Auto configure section- Click this icon to configure the selected IP cameras to NVR’s channel automatically. Please refer the diagram shown as above Fig B.
  • Page 25 2. Setup the parameters of Individual IP camera Fig D This section will allow you setup the parameters for individual IP camera for I-View’s and the other brand. Disable channel: This will disable the selected channel when enable this function. Install video codec: Install the video codec of this IP camera when you connect IP camera at first time, if the IP camera cannot display the video on the screen.
  • Page 26 compliant from: http://www.onvif.org. Click “ Onvif setup “ icon to setup the parameters or entry RTSP command code directly which you want to run on the Hybrid DVR or NVR. Compress: Select the suitable codec for video recording and transmission. Recording resolution: Select the resolution for video recording and display.
  • Page 27 Setup: Click this icon for detail setting of IP camera (refer to I-View’s IP camera; maybe there are some difference setting diagram when used difference models); you may not need to I.E. Browser for the detail IP camera setting. Please refer the diagram as below: OSD setup: Click this icon to configure the Time stamp format, Time stamp position and Camera Title position.
  • Page 28 description as below: Increase speed – Increase the speed of playback. Decrease speed – Decrease the speed of playback.. Normal speed – Adjust the playback speed to normal. Play – Play video. Pause – Pause video. Stop – Stop video. Previous frame –...

  • Page 29: Running Ip Camera By I.e. Browser

    5 Running IP Camera by I.E. Browser You can use your new Network IP Camera by its web user interface via I.E. web browser. The requirements for viewing IP camera are as below: OS: Microsoft Windows 2000/XP/Vista/7/8. Browser: IE6 or above. Cell phone: 3GPP player.

  • Page 30: Install Activex Plug-In On I.e. Browser

    Step 2. Press “Search “button to search for all IP Cameras on your local network. Step 3. If you need to change IP address, double click the Mouse on the selected IP Camera and then change the IP address and Gateway IP, then click the “OK”...
  • Page 31 If you connect to IP Camera first time, you’ll see the following message; this message prompts you that you need to install ActiveX plug-in before you can see the video from IP Camera. IE 8 and earlier version: Right click the indication bar and click: “Install This Add-on for All Users on This Computer…”...
  • Page 32 IE 10 version: Click ‘Install’ button located at the bottom of I.E. to install ActiveX plug-in. You need to do the process as below: Click “Internet options” section, then choice “ Security “ tab >> “ Trusted sites “ and change the bar to “Low”. Click “ Sites “ to add the trusted site for this IP camera.

  • Page 33: The Function Description Of Live Window

    5.2 The Function Description of Live Window After ActiveX plug-in is installed, you should be able to see the live video from IP camera as below window. This section introduces the function buttons of live window. You can test the IP camera function from your Brower.
  • Page 34 6. Screen: Display video of IP camera on the screen. 7. Streaming: Choice the video streaming on the screen. 8. View: Click this icon to display the video of IP camera. 9. Play Mode: Click this icon to choice the display speed or video quality will be priority first.
  • Page 35 5-2. The Network setup Function Description Click “ Setup “ icon to start setup the parameters of IP camera. You can configure basic IP camera settings like data transfer protocol and data storage folder…etc. Information: Information: Click this button to check the current Mac number, Firmware version, model, and also allow you entry the camera name on the “Device name:”...
  • Page 36 Device Management: Click this button to setup the parameters of IP camera and the detail description as below: IP Setting: Click this button to modify the current Internet protocol with IPv4 or IPv6, IP address, enable/disable DHCP and DNS IP address. Get IP address automatically: Select this option to obtain an available dynamic IP address assigned by the DHCP server each time the camera is connected to the LAN.
  • Page 37 3. The Multicast sends a stream to the multicast group address and allows multiple clients to acquire the stream at the same time by requesting a copy from the multicast group address. 4. Before utilizing this function, you have to enable the Multicast function of your router and configure the gateway of the network.
  • Page 38 4. Select PPPoE and enter the user name and password provided by your ISP. 5. Click Save to enable the setting and then the Network Camera will reboot. 6. Disconnect the power to the Network Camera; remove it from the LAN environment.
  • Page 39 From the Time Zone drop-down menu to select the Time Zone in which the speed dome locates. Use DST: If there is the habit of adjusting clocks forward in your country in certain time period of a year, you can turn this function on. The time will be adjusted automatically when the Daylight Saving Time (DST;...
  • Page 40 The following are the main benefits of a QoS-aware network. The ability to prioritize traffic and guarantee a certain level of performance to the data flow. The ability to control the amount of bandwidth each application may use, and thus provide high reliability and stability on the network Requirements for QoS To utilize QoS in a network environment, the following requirements must be met:...
  • Page 41 Enable UPnP presentation: Select this option to enable UPnP presentation for your Network Camera so that whenever a Network Camera is presented to the LAN, shortcuts of connected Network Cameras will be listed in My Network Places You can click the shortcut to link to the web browser Currently, UPnP is supported by Windows XP or later.
  • Page 42 SMTP: The system can be configured to send an Email notification to all designated receivers if an alarm event is detected, e.g., motion detection event, video loss, tamper-proof, etc. Before you start, please configure the DNS Server settings before using the Email function.
  • Page 43 Transport Mode: Enable SSL function; please check the SSL if it is required by the SMTP server. Receiver email address: Entry the receiver email address and then, click to Save icon to save the settings. You can check the “ Upload snapshot “ icon to attached a photo with the email.
  • Page 44 routers, switches, bridges, hubs, computer hosts, printers, IP telephones, network cameras, web server, and database. Before configuring SNMP settings on this page, please enable your NMS first. This section allows you to setup the SNMP V1 & V2. Select this option and enter the names of Read/Write community and Read Only community according to your NMS settings You also can setup the trap for the SNMP.
  • Page 45 Bonjour: Click this button to enable/disable the Bonjour function. Media Configuration: Click this button to setup the media parameters of IP camera and the detail description as below: Streaming: Configuring Video streaming settings as below: Source Resolution: Select video main streaming resolution from the drop menu.
  • Page 46 H.264 encode. Audio Encode: There are G7.11 u Law /a Low compression. G.711ulaw selectable. Resolution: Choice the video streaming resolution for display and recording. I-Frame interval: It is the least compressible but doesn't require other video frames to decode. Less number of I-Frame intervals will get less size of video streaming, but the video quality will be worse when image change rate is high.
  • Page 47 Image setup: Click this button to setup the image parameters. Setup set the image quality of the IP Camera, including brightness, contrast, saturation, sharpness, etc. The detail deception as below: Profile mode: Auto: The video will auto switch to “Day Mode” or “ Night Mode” base on the “D/N Mode”...
  • Page 48 Basic setup: Adjust the video parameters such as Brightness, Saturation, Sharpness and mirror function. .If you turn the Mirror function on, the image will be flipped. It is like the image in the mirror. The flip direction can be set to off, horizontal and vertical mirror position. Noise reduction: The noise reduction function processes the noise between two frames besides processing the noise in one frame.
  • Page 49 Flickless: Set the Video Standard to 50Hz(PAL) or 60Hz(NTSC) according to the video system in your country, Wrong frequency will show the scrolling lines on the video. IRIS: Provides auto and fixed mode, the value of iris speed needs to be adjusted manually.
  • Page 50 Privacy Mask: Privacy mask enables you to cover certain areas on the live video to prevent certain spots in the surveillance area from being live viewed and recorded. Enable Privacy mask function, click and drop the left button of Mouse for setup up the mask. Allow setup several mask areas, but the total areas cannot exceed 5% of image.
  • Page 51 Multicast: Multicast settings for streams: Click the items to display the detailed configuration information. Select the Always multicast option to enable multicast for streams. The unicast video transmission delivers a stream through point-to-point transmission; multicast, on the other hand, sends a stream to the multicast group address and allows multiple clients to acquire the stream at the same time by requesting a copy from the multicast group address Therefore, enabling multicast can effectively save Internet bandwidth.
  • Page 52 Device I/O : Click this button to setup the audio in, RS-485 and Alarm I/O. Audio setup: Click this button to setup the audio recording, it supports the gain from 1-100, the value is bigger and audio volume is higher. There are 2 audio codec (G7.11 u-Low and a-Low modes).
  • Page 53 Alarm output: Setup the name of alarm output; define the mode (NC or NO) and trigger period. (0 ms: Continue trigger) Alarm Trigger: You can setup the image motion trigger and sensor alarm trigger from this section. The detail process show as below: Motion alarm: Enable Motion detection function and you can setup the trigger schedule and detection area.
  • Page 54 Alarm trigger: The alarm trigger almost same as Motion alarm, please refer the description of Motion alarm section. Vibration Alarm: The vibration Alarm almost same as Motion alarm, please refer the description of Motion alarm section. Recording: Click this button to setup the type of triggered recording, storage media and schedule recording.
  • Page 55 Recording: Enable the” Schedule” recording and you can select “Continue recording “, “ Start recording when network failed” and “ Schedule recording “ mode. As for the “ Start recording when network failed” that will save the video clips on the SD card, please add the SD card when you enable this recording mode.
  • Page 56 setup volume of Keep days. Make sure the size of storage media allow to save video clips which setup volume of “Keep days” mode. Record path: Select the recording media via FTP server or SD card. To configure record settings, please make sure that you have the network storage device within the network or the SD card inserted in your IP camera.
  • Page 57 Snapshot path: Select the snapshot media via FTP server or SD card. To configure record settings, please make sure that you have the network storage device within the network or the SD card inserted in your IP camera. Snapshot Policy: This application special for some application which need to regulator to snapshot photo at a interval period.
  • Page 58 Account: Setup and add the new authorized users from this section. Group: Define the privilege of Group user, there are three levels Group: Administer, Operator and Media user. User: Click this button to create a new user or delete/ modify available user. There are three user accounts, Media user, Operator and Administer.
  • Page 59 Reboot: There are 2 choices to reboot the IP Camera; one is menu, the other by schedule setting. Click the “Reboot” icon and the IP camera will reboot, this process will take 1-2 minutes. Enable the “Auto reboot” icon, you can setup the reboot schedule to reboot the IP camera at a specific time.
  • Page 60 Even Log: Click this icon to search the even log, you can entry the specific period and event then click “Search “ icon. The even log detail information will display on the window. System upgrade: Click this button to upgrade IP camera’s firmware. Click ‘Browse’...

  • Page 61: Osd Menu Function Features

    6 OSD Menu Functions...
  • Page 62 LANGUAGE The language for the on-screen menus is Selectable. To change the display language: Press Iris Open to enter selection. All on-screen menus are changed to the selected language.
  • Page 63 SYSTEM INFORMATION The user can check the dome system information as required. The system information includes: Dome ID, dome address, baud rate, protocol, temperature, voltage, alarm info, dome title, version, date, time, and temperature scale. Use the following steps to display the System information screens: 1.
  • Page 64 DISPLAY SETUP Display setup allows the user to define the way to display the dome titles on the monitor. The displayed titles are listed as follows: DOME TITLE: Indicate dome PRESET: Indicate the dwell time for preset title MOTION: Indicate the dwell time for auto function titles (auto scan/auto cruise/pattern tour) ZONES: Indicate the dwell time for zone titles DATE/TIME: Display the current date and time...
  • Page 65 IR LED The user can open and close the IR LED manually and set up the IR LED work mode under this OSD mean. (Under normal operation mode, the user can press IRIS OPEN and IRIS CLOSE to adjust the IR LED power): 1) CONTROL MODE: AUTO: IR LED will be opened or closed automatically according to the light conditions.
  • Page 66 status. 7) SENSITIVITY: When the AUTO CONTROL is on, the user can set up the sensitivity to detect the moving objects. 8) ENHANCED MODE: Under normal status, press IRIS OPEN to enhance the IR LED power, when it is turned to maximum, press IRIS OPEN continuously for 2 seconds to enter the enhanced mode.
  • Page 67 IDLE IDLE setting means if there is no command for the dome for a period of time, the dome will run the actions as defined. 1) TIME: Move the cursor to “TIME” and press IRIS OPEN to enter, and move the joystick up and dome to select among 30 sec, 1 min, 5 min, 10 min and 30 min.
  • Page 68 3) ALARM The dome system has 2alarm inputs and 1 alarm output. (Option0. When an alarm is received, an input signal to the dome triggers the user defined action (such as presets, patterns, etc.), and at meantime the alarm output signals is activated. ALARM NO.: Move the cursor to the ALARM NO.
  • Page 69 PRIVACY MASK Privacy mask allows the user to mask the privacy areas with black frame. The user can set up 8 privacy masks at most. MASK NO.: Move the cursor here and press IRIS OPEN to enter the setup of Mask Number of the privacy zone, ENABLE: To enable or disable this privacy mask function.
  • Page 70 CLOCK The dome can display the data and time. And the user could enter this CLOCK menu to set up the DATE and TIME. DATE: Move the cursor here and press IRIS OPEN to enter. Move the joystick left and right to choose the date position and move it up and dome to adjust the figures.
  • Page 71 PASSWORD The dome features password protection function to prevent unanthorized changes to the dome settings. If the PASSWORD function is enabled, the operator can not access any dome setting without entering a valid password. EDIT PASSWORD: Move the cursor here and press IRIS OPEN to enter.
  • Page 72 DOME TITLE The user can set up the dome title to define each camera. Dome title support up to 12 characters. Move the cursor according the left steps and select INPUT. Press IRIS OPEN to enter. 1) Move the joystick left and right to position “←”, and press IRIS OPEN to delete the character at“←”.
  • Page 73 SOFT ADDRESS SET The use can set up the SOFT ADDRESS, SOFT PROTOCOL and SOFT BAUD RATE under this menu here to activate the soft address function. And then the defined dome address by dip switch will be disabled. 1) Move the cursor to INPUT (under DOME ID) and press IRIS OPEN to enter the mode of setting dome ID, Move the joystick to position the cursor beside :0 1 2 3 4 5 6 7 8 9”...
  • Page 74 The user can set up the auxiliary output to trigger other devices from an alarm or a controller. Move the cursor to AUX and press IRIS OPEN to enter to select “ON” or “OFF” to enable or disable this function.
  • Page 75 SOFT LIMIT The user can set up the soft limit to define the left and right boundaries for the pan movement. SOFT LIMIT: Move the cursor here and press IRIS OPEN to enter. Move the joystick to select “ON” or “OFF”...
  • Page 76 DOME SPEED To make a selection of the dome speed, the user can enter this menu to set up. Move the cursor to DOME SPEED and press IRIS OPEN to enter. Move the joystick to select the dome speed when doing the pan movement. Move the cursor to BACK/EXIT and press IRIS OPEN to run the command of BACK or EXIT.
  • Page 77 POWER ON ACTION The user can define the dome action when power Move the cursor to POWER ON ACTION and press IRIS OPEN to enter the mode of setup. NONE: No action. (Default) PRESET: Dome goes to preset. (Default as Preset SCAN: Starts auto scan (Default Scan 1) SEQ: Runs auto cruise (Default Cruise 1) PATTERN: Dome runs pattern (Default Pattern 1)
  • Page 78 CAMERA The dome can automatically recognize the main camera modules in the market. For the cameras it cannot recognize, the user can set up here. CAMERA: Move the cursor here and press IRIS OPEN to enter the setup mode. Move the joystick up and down to select the camera types.
  • Page 79 COMMUNICATION TEST The dome can do self diagnosis for the communications between keyboard and speed dome. The test needs to match with our TESTING SOFTWARE DOMETK100. If the self testing is successfully finished via the software, the system will show up the testing results as left diagram.
  • Page 80 OTHERS The user can set up TEMP MODE, INTERNAL FAN, PRESET FREEZE, STOP TIME. MENU OFF TIME and NORTH ZERO here under the menu of “OTHERS” TEMP MODE: To set up the control mode of dome fans and heaters. It includes three modes of AUTO, FAN HIGH SPEED and FAN LOW SPEED.
  • Page 81 CAMERA The user can make adjustment for the cameras under this menu. FOCUS MODE: AUTO FOCUS allows the camera lens to remain in focus during zooming in, zooming out and pan/tilt movement. Move the cursor here and press IRIS OPEN to enter. Setup the mode: AUTO”...
  • Page 82 CAMERA ADVANCED The use can set up more detailed parameters of camera here under the menu of CAMERA ADVANCED. WB: To set up the white balance of the camera. Options include AUTO, MANUAL. INDOOR and OUTDOOR. The use can select different mode according the different locations.
  • Page 83 PRESET The dome supports 220 presets. Please check the following steps to set up a preset. 1) PRESET NO.: Move the cursor here and press IRIS OPEN to enter the setup of Preset Number. Move the joystick to select a preset number (1-64 and 100-255) and press IRIS OPEN to confirm.
  • Page 84 AUTO SCAN The dome supports 8 groups of auto scan. Please check the following steps to set up a scan. 1) SCAN NO.: Move the cursor here and press IRIS OPEN to enter the setup of SCAN Number. Move the joystick to select a preset number (1-8) and press IRIS OPEN to confirm.
  • Page 85 AUTO CRUISE (SEQUENCE) The dome supports 8 groups of auto cruise and each cruise supports 32 presets. . Please check the following steps to set up cruise. 1) SEQ NO.: Move the cursor here and press IRIS OPEN to enter the setup of Sequence Number. Move the joystick to select a preset number (1-8) and press IRIS OPEN to confirm.
  • Page 86 PATTERN TOUR The dome supports 4 pattern tours and each pattern cover at most 10 Minutes of 500 commands. Please check the following steps to set up a pattern. 1) PATTERN NO.: Move the cursor here and press IRIS OPEN to enter the setup of Pattern Number.
  • Page 87 ZONES The use can set up zone title when the camera moves to a defined location, which will make it much easier for the user to identify the location. The dome supports 8 zone titles. Please check the following steps to set up a zone 1) ZONE NO.: Move the cursor here and press IRIS OPEN to enter the setup of Zone Number.
  • Page 88 TIMING ACTION TIMING ACTION allows the user to set up the actions of the dome in 7 days (each day with 8 timing segments). When fishing the setup, the dome will do the actions according to the setup motion during the defined time segment. NO.: Here shows the day within a week.
  • Page 89 MOTION DETECT The user can set up 8 motion detection scenes (each scene with 4 detecting areas) under this menu. The alarm output will be triggered when moving objects enter these detecting areas SCENE NO.: Move the cursor here and press IRIS OPEN to enter the setup of Scene Number.
  • Page 90 the detecting function, for how long it will last before the aux output will be closed. The time ranging 1-60 Sec. h) START: Move the cursor here and press IRIS OPEN to start the function of motion detection.
  • Page 91 AUTO TRACKING (Optional) Under the auto tracking mode, the dome will auto track the moving objects entering the scene. When the object is moving out of the scene, the dome will return to a preset position as defined after the defined time.
  • Page 92 RESTART The dome allows the user to reset its settings remotely under this menu. Move the cursor here and press IRIS OPEN to enter. Select “OK” or “CANCEL” to continue the reset or cancel the reset.
  • Page 93 FACTORY DEFAULTS FACTORY DEFAULTS will allow the user to recover all the setting to factory default setting. Move the cursor here and press IRIS OPEN to enter. Select “OK” or “CANCEL” to continue the reset or cancel the reset.

  • Page 94: Troubleshooting

    7 Troubleshooting Before you send this IP Camera back to your dealer when you found this IP Camera is not working properly, please checks the table as below to save your time. Problem Possible solution(s) Can’t Check the IP address and port number is correct or not connect to Make sure the entry User name/Password is correct.
