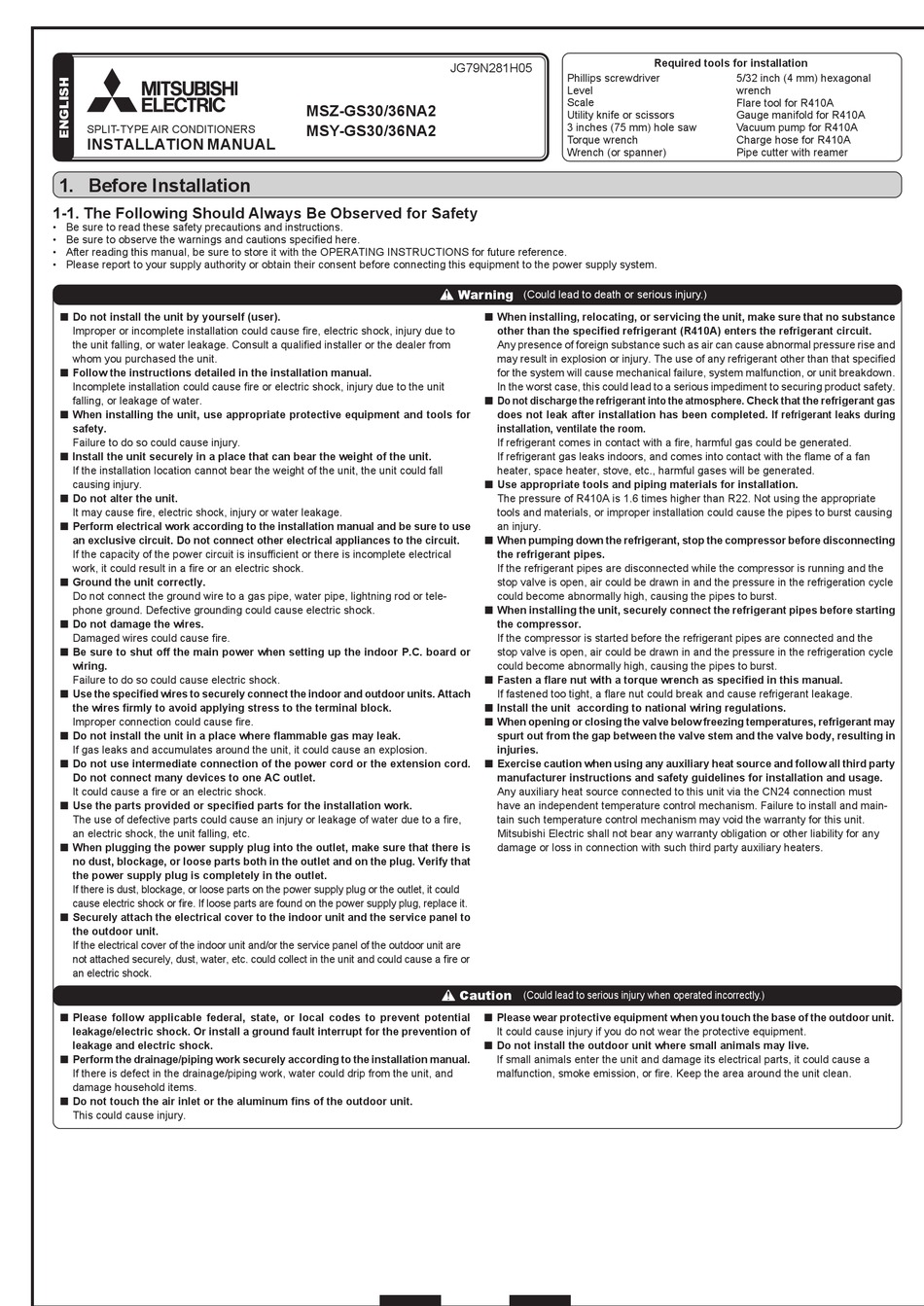

SPLIT-TYPE AIR CONDITIONERS
INSTALLATION MANUAL
1. Before Installation
1-1. The Following Should Always Be Observed for Safety
• Be sure to read these safety precautions and instructions.
• Be sure to observe the warnings and cautions specifi ed here.
• After reading this manual, be sure to store it with the OPERATING INSTRUCTIONS for future reference.
• Please report to your supply authority or obtain their consent before connecting this equipment to the power supply system.
Do not install the unit by yourself (user).
Improper or incomplete installation could cause fi re, electric shock, injury due to
the unit falling, or water leakage. Consult a qualifi ed installer or the dealer from
whom you purchased the unit.
Follow the instructions detailed in the installation manual.
Incomplete installation could cause fi re or electric shock, injury due to the unit
falling, or leakage of water.
When installing the unit, use appropriate protective equipment and tools for
safety.
Failure to do so could cause injury.
Install the unit securely in a place that can bear the weight of the unit.
If the installation location cannot bear the weight of the unit, the unit could fall
causing injury.
Do not alter the unit.
It may cause fi re, electric shock, injury or water leakage.
Perform electrical work according to the installation manual and be sure to use
an exclusive circuit. Do not connect other electrical appliances to the circuit.
If the capacity of the power circuit is insuffi cient or there is incomplete electrical
work, it could result in a fi re or an electric shock.
Ground the unit correctly.
Do not connect the ground wire to a gas pipe, water pipe, lightning rod or tele-
phone ground. Defective grounding could cause electric shock.
Do not damage the wires.
Damaged wires could cause fi re.
Be sure to shut off the main power when setting up the indoor P.C. board or
wiring.
Failure to do so could cause electric shock.
Use the specifi ed wires to securely connect the indoor and outdoor units. Attach
the wires fi rmly to avoid applying stress to the terminal block.
Improper connection could cause fi re.
Do not install the unit in a place where fl ammable gas may leak.
If gas leaks and accumulates around the unit, it could cause an explosion.
Do not use intermediate connection of the power cord or the extension cord.
Do not connect many devices to one AC outlet.
It could cause a fi re or an electric shock.
Use the parts provided or specifi ed parts for the installation work.
The use of defective parts could cause an injury or leakage of water due to a fi re,
an electric shock, the unit falling, etc.
When plugging the power supply plug into the outlet, make sure that there is
no dust, blockage, or loose parts both in the outlet and on the plug. Verify that
the power supply plug is completely in the outlet.
If there is dust, blockage, or loose parts on the power supply plug or the outlet, it could
cause electric shock or fi re. If loose parts are found on the power supply plug, replace it.
Securely attach the electrical cover to the indoor unit and the service panel to
the outdoor unit.
If the electrical cover of the indoor unit and/or the service panel of the outdoor unit are
not attached securely, dust, water, etc. could collect in the unit and could cause a fi re or
an electric shock.
Please follow applicable federal, state, or local codes to prevent potential
leakage/electric shock. Or install a ground fault interrupt for the prevention of
leakage and electric shock.
Perform the drainage/piping work securely according to the installation manual.
If there is defect in the drainage/piping work, water could drip from the unit, and
damage household items.
Do not touch the air inlet or the aluminum fi ns of the outdoor unit.
This could cause injury.
JG79N281H05
MSZ-GS30/36NA2
MSY-GS30/36NA2
Warning
Caution
Required tools for installation
Phillips screwdriver
Level
Scale
Utility knife or scissors
3 inches (75 mm) hole saw
Torque wrench
Wrench (or spanner)
(Could lead to death or serious injury.)
When installing, relocating, or servicing the unit, make sure that no substance
other than the specifi ed refrigerant (R410A) enters the refrigerant circuit.
Any presence of foreign substance such as air can cause abnormal pressure rise and
may result in explosion or injury. The use of any refrigerant other than that specifi ed
for the system will cause mechanical failure, system malfunction, or unit breakdown.
In the worst case, this could lead to a serious impediment to securing product safety.
Do not discharge the refrigerant into the atmosphere. Check that the refrigerant gas
does not leak after installation has been completed. If refrigerant leaks during
installation, ventilate the room.
If refrigerant comes in contact with a fi re, harmful gas could be generated.
If refrigerant gas leaks indoors, and comes into contact with the fl ame of a fan
heater, space heater, stove, etc., harmful gases will be generated.
Use appropriate tools and piping materials for installation.
The pressure of R410A is 1.6 times higher than R22. Not using the appropriate
tools and materials, or improper installation could cause the pipes to burst causing
an injury.
When pumping down the refrigerant, stop the compressor before disconnecting
the refrigerant pipes.
If the refrigerant pipes are disconnected while the compressor is running and the
stop valve is open, air could be drawn in and the pressure in the refrigeration cycle
could become abnormally high, causing the pipes to burst.
When installing the unit, securely connect the refrigerant pipes before starting
the compressor.
If the compressor is started before the refrigerant pipes are connected and the
stop valve is open, air could be drawn in and the pressure in the refrigeration cycle
could become abnormally high, causing the pipes to burst.
Fasten a fl are nut with a torque wrench as specifi ed in this manual.
If fastened too tight, a fl are nut could break and cause refrigerant leakage.
Install the unit according to national wiring regulations.
When opening or closing the valve below freezing temperatures, refrigerant may
spurt out from the gap between the valve stem and the valve body, resulting in
injuries.
Exercise caution when using any auxiliary heat source and follow all third party
manufacturer instructions and safety guidelines for installation and usage.
Any auxiliary heat source connected to this unit via the CN24 connection must
have an independent temperature control mechanism. Failure to install and main-
tain such temperature control mechanism may void the warranty for this unit.
Mitsubishi Electric shall not bear any warranty obligation or other liability for any
damage or loss in connection with such third party auxiliary heaters.
(Could lead to serious injury when operated incorrectly.)
Please wear protective equipment when you touch the base of the outdoor unit.
It could cause injury if you do not wear the protective equipment.
Do not install the outdoor unit where small animals may live.
If small animals enter the unit and damage its electrical parts, it could cause a
malfunction, smoke emission, or fi re. Keep the area around the unit clean.
5/32 inch (4 mm) hexagonal
wrench
Flare tool for R410A
Gauge manifold for R410A
Vacuum pump for R410A
Charge hose for R410A
Pipe cutter with reamer
