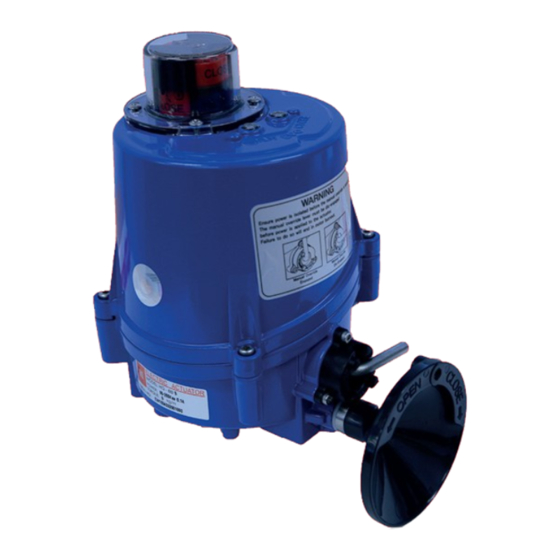

- Page 1 Installation & Operating Manual HQ Series 1/4 Turn Electric Actuator Albion Valves (UK) Ltd www.albionvalvesuk.com Email: sales@albionvalvesuk.com Tel: 01226 729900 HQ5 Rev 1...
-
Page 2: Table Of Contents
Contents INTRODUCTION Purpose Safety Notices PRODUCT IDENTIFICATION 2.1 Product Identification 2.1.1 Marking Initial Inspection Storage GENERAL INFORMATION AND FEATURES General Information 3.1.1 Performance 3.1.2 Standard Technical Data 3.1.3 HQ-005 Optional Technical Data (Optional) 3.1.4 Duty Cycle 1) 3.1.5 Torque Control 3.1.6 Manual Override 3.1.7 Lubrication External Parts for Standard Models Internal Parts for Standard Models... -
Page 3: Product Identification
DANGER: Refers to personal safety and alerts the user to danger or harm. The hazard or unsafe practice will result in severe injury or death. WARNING: Refers to personal safety. Alerts the user to potential danger. Failure to follow warning notices could result in personal injury or death. CAUTION: Directs the user’s attention to general precautions that, if not followed, could result in personal injury and/or equipment damage. -
Page 4: Storage
Storage Actuators must be stored in a clean, cool and dry area. The unit should be stored with the cover installed and the conduit openings sealed. Storage must be off the floor, covered with a sealed dust protector. When actuators are to be stored outdoor, they must be stored off the ground, high enough to prevent from being immersed in water or buried in snow. 3. -
Page 5: Duty Cycle 1)
Extended Rotation (0-270°) 3.1.4 Duty Cycle Duty cycle rated IEC60034 – S4 70% Exceeding the actuator’s rated duty cycle may cause thermal overload. Note: ) Type of duty according to VDE 0530 / IEC 60034-1 Short – time duty S2 Intermittent duty S4 The operation time at a constant load is short, The duty is a sequence of identical cycles... -
Page 6: Lubrication
3.1.7 Lubrication HQ5 electric actuator is a totally enclosed unit with permanent lubricated gear train (Moly EP Grease). Once installed, further lubrication should not be required. However, periodic preventative maintenance will extend the operating life of the actuator. 3.2 External Parts for Standard Models External Parts 1. -
Page 7: Installation
4. Installation Pre-installation for using in General Service Verify the actuator’s nameplate to ensure correct model number, torque output, operating speed, voltage and enclosure type before installation or use. It is important to verify that the torque output of the actuator is appropriate for the torque requirements of the valve and that the duty cycle of the actuator is appropriate for the intended application. -
Page 8: Limit Switch Setting
Note: Make sure both the actuator and valve are fully closed. DANGER: HAZARDOUS VOLTAGE. Make sure all incoming power is disconnected before performing the mounting. 4.3 Limit Switch Setting • Manually rotate the hand wheel of the actuator to fully closed position •... -
Page 9: Maintenance
5. Maintenance Maintenance CAUTION: • Turn off all power before attempting to perform maintenance on the actuator. • POTENTIALLY HIGH PRESSURE VESSEL. Before removing or disassembling your actuator, ensure that the valve or other actuated device is isolated and not under pressure. Under the normal conditions, maintenance should be carried out at six month intervals. -
Page 10: Tools
Tools • Metric Allen Key (Hex Wrench) × 1 • Screw Driver × 1 • Metric Spanner × 1 • Wrench 200mm × 1 • Wrench 300mm × 1 • Wire Stripper Long Nose × 1 • Multi-meter (AC, Dc, Resistance) × 1 •... - Page 11 (GREEN = Fully Charged AMBER = Average charge RED = Low charge) Note: For more information regarding this product, please contact Albion Valves (UK) Ltd. Please refer to the website for the latest wiring diagram & data sheet showing additional dimension data.
