  • Page 1 User Manual engineered by...
  • Page 2 IMPORTANT: Always power down your Sound Bullet after use. Leaving the device on until the battery is fully depleted may cause irreversible damage, resulting in the device being unable to power on again.
  • Page 3 Sound Bullet. Conceived and designed to streamline your workflow, the Sound Bullet is your pocket-sized tool for confirming audio inputs, outputs and anything in between. Using your Sound Bullet to prevent and locate faults quickly and effectively will help you and your sound team ensure a solid and reliable signal chain.

  • Page 4: Year Warranty

    2 Year Warranty Sonnect guarantees the function of the Sound Bullet for a period of two years from the date of purchase. If the product becomes defective or malfunctions within two years of purchase, Sonnect will either repair the product free of charge or replace it.

  • Page 5: Declaration Of Conformity

    Declaration of Conformity CE Compliance Statement We, the manufacturer, do hereby declare that this device is compliant with the limits of the European Council directive on the approximation of the laws of the member states relating to electromagnetic compatibility according to Directive 2014/30/EU and European Low Voltage Directive 2014/35/EU.

  • Page 6: Product Overview

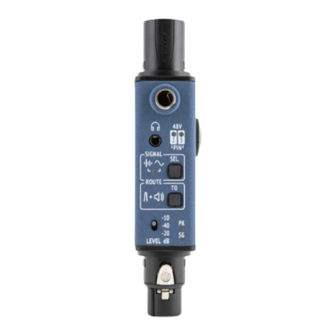

    Product Overview Signal Generator When switched on, the Sound Bullet generates pink noise, which is routed to the output XLR by default. A 1 kHz sine wave can be selected by pressing the button (1). Press the button (2) to route the generator to the 1/4”...
  • Page 7 Speaker/headphones output The internal speaker (5) reproduces signals present on the input XLR or the 1/4” jack. The speaker and headphones output (6) share the same internal amplifier whose output level is adjusted by the side thumbwheel. If a 3.5mm jack (headphones) is plugged into the headphone port, the speaker mutes and its output is routed to the headphones.

  • Page 8: Conceptual Diagram

    XLR Cable Tester An XLR cable can be plugged into either end of the Sound Bullet to conduct a continuity test of the 3 XLR cores (8). To enter (and exit) this function, hold the button for 2 seconds. The Sound Bullet will automatically cycle through the pins.

  • Page 9: Examples Of Use

    Examples of Use Line-check a multicore The Sound Bullet can test lines of a multicore line system connected to the inputs of a sound console. Activating Phantom Power on the input channels desired to be checked will allow for simultaneous test of all three cores of the XLR line.
  • Page 10 The provided 1/4” jack-jack adaptor allows you to quickly plug the Sound Bullet straight into the hi-Z input of a DI Box. Simply switch on the Sound Bullet, which will start to generate pink noise. Direct the generator to the 1/4” jack by pressing .
  • Page 11 Troubleshoot pedalboards The Sound Bullet can be used as a quick diagnostic tool to troubleshoot FX pedalboards. Press the button to switch between sending and receiving audio via the 1/4” jack. This will allow you to quickly inject a signal into the input (9) of FX pedals or listen to their outputs (10).
  • Page 12 Sound Bullet. The input meter on the Sound Bullet will give you indication of signal presence ‘ ’ or of the signal being very loud, ‘...
  • Page 13 Battery The LED by the USB-C port indicates the charging state while the Sound Bullet is being charged. The LED lights up red while the battery is charging, and turns off when it’s fully charged. The function LED (11) next to the...

  • Page 14: Technical Specs

    350 Ω 600 Ω Input 3 kΩ 600 Ω / 3.5 kΩ fixed: 44 - 52 V P48 detection flash: 24 - 44 V Cable-tester DC 3.3 V Warning: the Sound Bullet shouldn’t be used to test party-line intercom systems.
  • Page 15 This User Manual is also available digitally on our website. Please visit sonnect.com/support...
  • Page 16 Get in touch! www.sonnect.com hello@sonnect.com v.4.2web...
