Summary of Contents for SONNECT Sound bullet

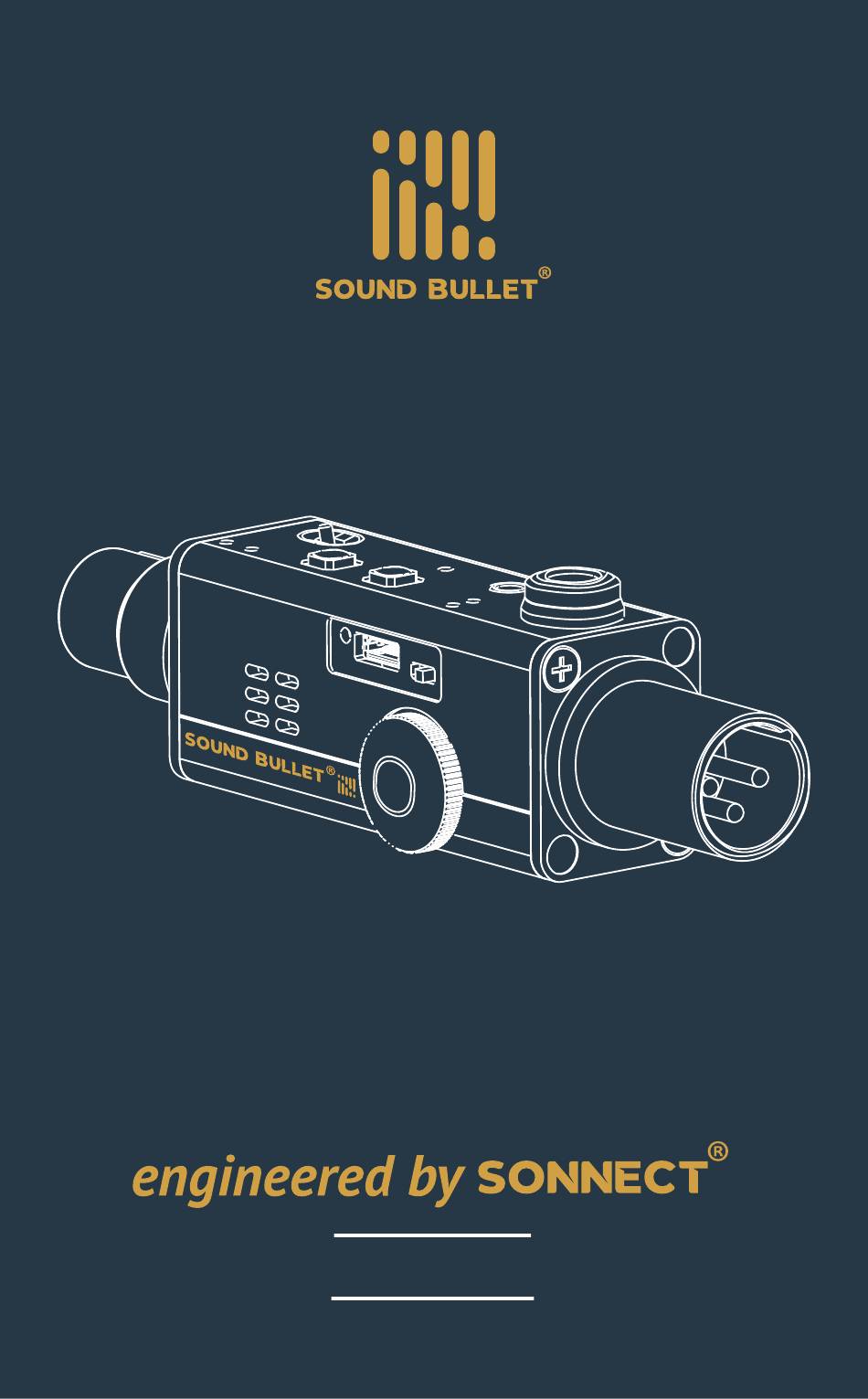

- Page 1 User Manual...
- Page 2 Sound Bullet. It is conceived for applications ranging from live entertainment audio installation to studio recording, broadcast and television. I really hope you enjoy using your Sound Bullet. Thanks,...
-
Page 3: Year Warranty
Bullet for a period of (2) two years from the date of purchase. If the product becomes defective, or malfunctions, within two years of purchase Sonnect Audio will either repair the product free of charge or replace it (pending inspection of goods and proof of purchase). -
Page 4: Declaration Of Conformity
Declaration of Conformity CE Compliance Statement We, the manufacturer, do hereby declare that this device is compliant with the limits of the European Council Directive on the approximation of the laws of the member states relating to electromagnetic compatibility according to RL2004/108/EG and European Low Voltage Directive RL2006/95/EG. -

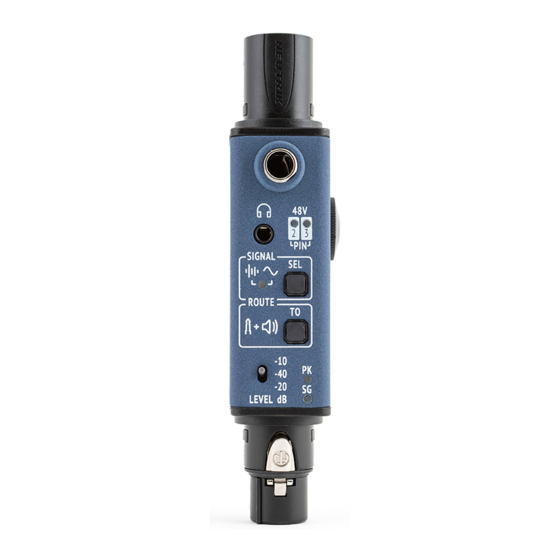

Page 5: Product Overview
-10, -20 and -40 dBu. 2. 48V check When plugged into a balanced input of a sound console, the Sound Bullet checks for Phantom Power, which is individually metered on pins 2 and 3. Two dedicated LEDs will illuminate according to the DIN 45596 voltage standard (48V ±4V). - Page 6 Mini-Jack output level. 4. XLR Input Metering Audio signals present on the female XLR of the Sound Bullet are metered for level in order to detect an incoming signal in loud environments. Two LEDs will illuminate according to the RMS amplitude of the signal.
-
Page 7: Conceptual Diagram
5. XLR Cable Tester An XLR cable can be plugged into either end of the Sound Bullet in order to conduct a continuity test on the XLR pins 1, 2 and 3. To enter (and exit) this function, press and hold the SEL button for 2 seconds. -
Page 8: Examples Of Use
Examples of Use Line-check a multicore The Sound Bullet can test a multicore line system connected to the inputs of a sound console. Activating Phantom Power on the input channels desired to be checked will allow for a complete test of all three cores of the XLR line. - Page 9 As a confirmation, you’ll hear pink noise coming out of the speaker* , along with the function LED turning blue. With the Jack adaptor insterted, plug the Sound Bullet into the DI box and check for pink noise being received at the mixing console. INPUT...
- Page 10 Examples of Use Troubleshoot FX pedalboards The Sound Bullet can be used as a quick diagnostic tool to troubleshoot FX pedalboards. Press the TO button to switch between sending and receiving audio via the 1/4” Jack. This will allow you to quickly inject a signal into the input of an FX pedal or listen to its output.
- Page 11 Check IEM or recording feeds With your Sound Bullet it is possible to test a hardwired IEM line, or a recording feed coming from a sound console or outputs from any device, for example a loudspeaker system processor. When the Sound Bullet is switched on, signals present on the female XLR or 1/4”...
- Page 12 Battery indications The LED by the Micro-USB port will indicate the charging state while the Sound Bullet is being charged. The LED will light up red while the battery is charging, and will turn off when the battery is fully charged.
-
Page 13: Technical Specifications
Technical Specifications Typical Values and Tolerances 1/4” unbal Jack 1 kHz Tone -40, -20, -10 ±1dB -40, -20, -10 ±1dB Output (dBu) Pink Noise -40, -20, -10 ±1dB -40, -20, -10 ±1dB Output (dBu) ”SG” Meter -25 dBu Threshold ”PK” Meter +10 dBu Threshold Ouput... - Page 14 GET IN TOUCH www.sonnectaudio.com hello@sonnectaudio.com...
