- Page 1 90CM CERAMIC 3 CAVITY INSTRUCTION RANGE COOKER MANUAL COOKER C90RCCCBL MODEL/S C90RCCCS C90RCCTBL C90RCCTCRM V 1.0 C90RCCTA...
- Page 2 INSTRUCTION MANUAL You’ll soon be enjoying your new Creda Range Cooker! It all begins here, with your instructions. Don’t worry, there’s nothing too technical coming up. Just simple, step-by-step guidance to get you up and running quickly. Sound good? Then let’s get started.
-
Page 3: Table Of Contents
INSTRUCTION MANUAL Contents — PAGE Safety Information Getting to Know Your Appliance Installation Advice Using Your Appliance General Oven and Cooking Tips Care and Maintenance Product Support... -
Page 4: Safety Information
Range cooker IMPORTANT: Carefully unpack and examine the appliance for any damage. If you think there is a defect, do not use the appliance and contact Creda Product Support on 01759 487836. Packaging materials should be collected together and disposed of immediately as they may be harmful to children. - Page 5 INSTRUCTION MANUAL WARNING: The appliance and its accessible parts become hot during use. Care should be taken to avoid touching heating elements. Children less than 8 years of age shall be kept away unless continuously supervised. WARNING: NEVER try to extinguish a cooking fire with water. Instead switch off the appliance and cover flame e.g with a lid or a fire blanket.
- Page 6 INSTRUCTION MANUAL Electrical Safety 1. Have an authorized electrician set grounding equipment. Our company shall not be responsible for the damages that shall be incurred due to using the product without grounding according to local regulations. 2. The circuit breaker switches of the oven shall be placed so that end user can reach them when the oven is installed.
- Page 7 Take care not to let sugary foods or fruit juices make contact to the hot cooking zones. The ceramic glass surface may be stained by these. TO MAINTAIN THE EFFICIENCY AND SAFETY OF YOUR APPLIANCE, WE RECOMMEND YOU ALWAYS USE OUR AUTHORISED SERVICE AGENTS AND ORIGINAL SPARE PARTS. FOR ASSISTANCE CALL CREDA PRODUCT SUPPORT 01759 487836...
-
Page 8: Getting To Know Your Appliance

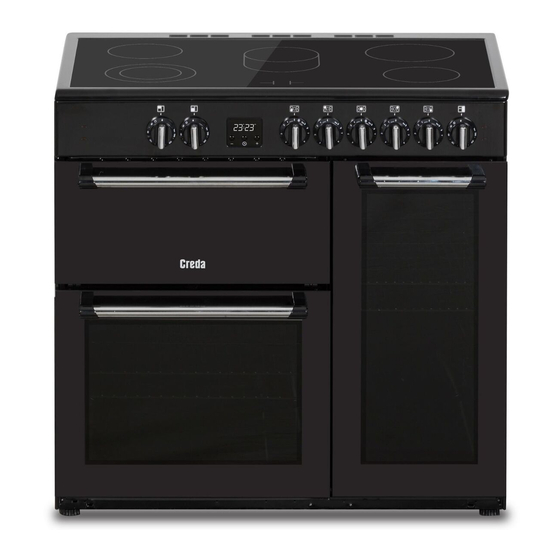

INSTRUCTION MANUAL Getting to Know Your Appliance You’ll be up and running in no time! Ready? Let’s begin... Please read these instructions carefully. They contain important information which will help you get the best from your freestanding cooker and ensure safe and correct installation and operation. If you require any further assistance, our technical experts are happy to help. - Page 9 INSTRUCTION MANUAL OVERVIEW 1. Glass Top Plate 2. Control Panel 3. LHS Grill 4. LHS Main Oven 5. RHS Oven LHS Grill control temperature control LHS main oven temperature control Digital timer Left front ceramic zone Left back ceramic zone Centre ceramic zone Right back ceramic zone Right front ceramic zone...
- Page 10 INSTRUCTION MANUAL Accessories * Not all accessories are included with your purchase...
- Page 11 INSTRUCTION MANUAL Installing your Freestanding Cooker Bringing it all together Installation requirements THIS COOKER MUST BE INSTALLED BY A QUALIFIED INSTALLER IN ACCORDANCE WITH LOCAL REGULATIONS IMPORTANT: CONTACT AN AUTHORISED SERVICE AGENT FOR INSTALLATION OF YOUR OVEN! First Use IMPORTANT: When using your oven for the first time your cooker may give off an unusual odour from the heating elements and insulation materials.
- Page 12 INSTRUCTION MANUAL WARNING: The kitchen furniture near the appliance must be heat resistant. WARNING: Do not install the appliance beside refrigerators or coolers. Heat radiated by the appliance increases the energy consumption of cooling devices. WARNING: Do not use the door and/or handle to carry or move the appliance Levelling Feet The height and level of the appliance can be adjusted by rotating the feet located underneath the appliance at each corner.
- Page 13 INSTRUCTION MANUAL Safety chain (supplied and mounted to oven) Stability hook Firmly fix chain to cooker rear Rear of cooker Kitchen wall...
-
Page 14: Using Your Appliance
INSTRUCTION MANUAL USING YOUR APPLIANCE Using the Oven • When your oven is operated first time, an odor will be spread out which will be sourced from using the heating elements. In order to get rid of this, operate it for 45 minutes while it is empty. To make cooking in your oven;... - Page 15 INSTRUCTION MANUAL Using The Hob Heating Place 140 mm Heating Place 140 x 250 mm Heating Place 180 mm Heating Place 120/180 mm Heating Place 140 mm Residual heat indicator 1. You operate the hob with the ring switches on the control panel of oven. This switch regulates the energy to reach desired temperature set by you.
- Page 16 INSTRUCTION MANUAL Electrical Connection ⚫ Your oven requires 40 Amp fuse for mono phase or 3x16 Amp fuse or 3 phase supply according to electrical power for cooker section has 4 ceramic heater and oven section has electric models. Installation by a qualified electrician is mandatory.
- Page 17 INSTRUCTION MANUAL Oven Functions Grill Fan Oven Grill: The top central heating elements comes on. The extremely high and direct temperature of the grill makes it possible to brown the surface of meats and roasts while locking the juices in to keep them tender. The grill is also highly recommended for dishes that require a high temperature on the surface: beef steaks, veal, rib steak, fillets, hamburgers etc.
- Page 18 Minus button Plus button Time of day adjustment button SCREEN SYMBOLS Oven status indication • On: Cooking or ready for cooking. • Off: No cooking. Minute minder status indication • On: Minute minder alarm active. • Flashing: Minute minder adjustment mode, adjustment possible by buttons or current minute minder alarm completed.
- Page 19 It is also possible to use a minute-programmed alarm clock independent from the oven. The case where the time clock is behind or ahead is not a malfunction. The oven time clock may be put back or ahead according to mains frequency as it runs directly with mains voltage.
- Page 20 buttons, adjust the desired cooking duration. 3. After 6 seconds of the last button press or by pressing twice, the adjustment is completed. will be steady on the screen and the display shows the current time of day. FULL AUTOMATIC COOKING This cooking program is intented to perform a delayed cooking by programming the time of day, when the food should be ready.
-
Page 21: General Oven And Cooking Tips
INSTRUCTION MANUAL General Oven and Cooking Tips General Oven Tips The wire shelves should always be pushed firmly to the back of the oven. Baking trays with food cooking on them should be placed level with the front edge of the oven’s wire shelves. Other containers should be placed centrally. - Page 22 INSTRUCTION MANUAL In general… Pastry is too dry Increase the temperature by 10℃and reduce the cooking time. Pastry dropped Use less liquid or lower the temperature by 10℃. Pastry is too dark on top Place it on a lower rack, lower the temperature, and increase the cooking time. Cooked well on the inside but sticky on the outside Use less liquid, lower the temperature, and increase the cooking time.
- Page 23 INSTRUCTION MANUAL Selector Knob Food to be Weight Cooking Preheating Thermostat Cooking Time cooked (kg) Rack Position Time (mins) Knob Setting (mins) (from bottom) Duck 65–75 Roast Beef 70–75 Pork Roast 70–80 — Biscuits 15–20 Tarts 30–35 Fish 8–10 Grill Squid 6–8 Mackerel...
-
Page 24: Care And Maintenance
INSTRUCTION MANUAL Care and Maintenance Cleaning WARNING! Isolate the power supply to the appliance and make sure that the cooker is cool. Before cleaning your cooker or performing maintenance, make sure that the cooking mode selection knob and the cooking temperature selection knob is set to ‘OFF’. To extend the life of your cooker, it must be cleaned frequently. - Page 25 INSTRUCTION MANUAL Replacing the oven lamps ⚫ Disconnect the oven from the power supply at the fuse-box by means of the switch used to connect the appliance to the electrical mains; or unplug the appliance (gas) ⚫ Remove the glass cover of the lamp-holder by rotating anti-clockwise ⚫...
- Page 26 INSTRUCTION MANUAL TECHNICAL FEATURES AND PRODUCT SUPPORT. Outer width 900 mm Outer depth 600 mm outer height 900 mm 15 - 25 W Lamp power Main Grill Oven Oven Bottom heating element Top heating element Turbo heating element 1800 W 1800 W Grill heating element 1400 W...
- Page 27 INSTRUCTION MANUAL INSTALLATION OF THE OVEN DOORS Note: In order to re-place the oven door, perform the abovementioned steps in reverse.
- Page 28 INSTRUCTION MANUAL Cleaning and Maintenance of the Oven Doors Drop-Down door Glass Remove the profile by pressing the plastic latches on both left and right sides as shown in figure 3 and pulling the profile towards yourself as shown in figure 4 Then remove the inner-glass as shown in figure 5 If required, middle glass can be removed in the same way.
-
Page 29: Product Support
INSTRUCTION MANUAL Product Support Troubleshooting If you have a problem with your appliance, check the table below before calling service. You may be able to avoid a service call by and avoid unnecessary inconvenience and expense. For cooking problems, refer to Handling Baking Problems. Problem Causes What to Do... - Page 30 INSTRUCTION MANUAL Handling Rules Do not use the door and/or handle to carry or move the appliance. Carry out the movement and transportation in the original packaging. Pay maximum attention to the appliance while loading/unloading and handling Make sure that the packaging is securely closed during handling and transportation. Protect from external factors (such as humidity, water, etc.) that may damage the packaging.
- Page 31 Local call rates apply* Lines open 9am-5:30pm Monday to Friday *Calls to Creda enquiry lines may attract a charge and set up fee from residential lines depending on your call plan/tariff. Mobile and other providers costs may vary, see www.bt.com/pricing for details.
- Page 32 • Specifications are subject to change without notice. • Creda disclaim any liability for loss or damage arising from the breakdown of the product. • This guarantee is in addition to and does not diminish your statutory or legal rights.
- Page 33 Declaration of conformance to product standards This appliance conforms to all relevant standards applicable to domestic appliances sold in the UK. Disposal This appliance/fitting is marked according to the European directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE). By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.
- Page 34 This page is intentionally blank.
- Page 35 This page intentionally blank...
