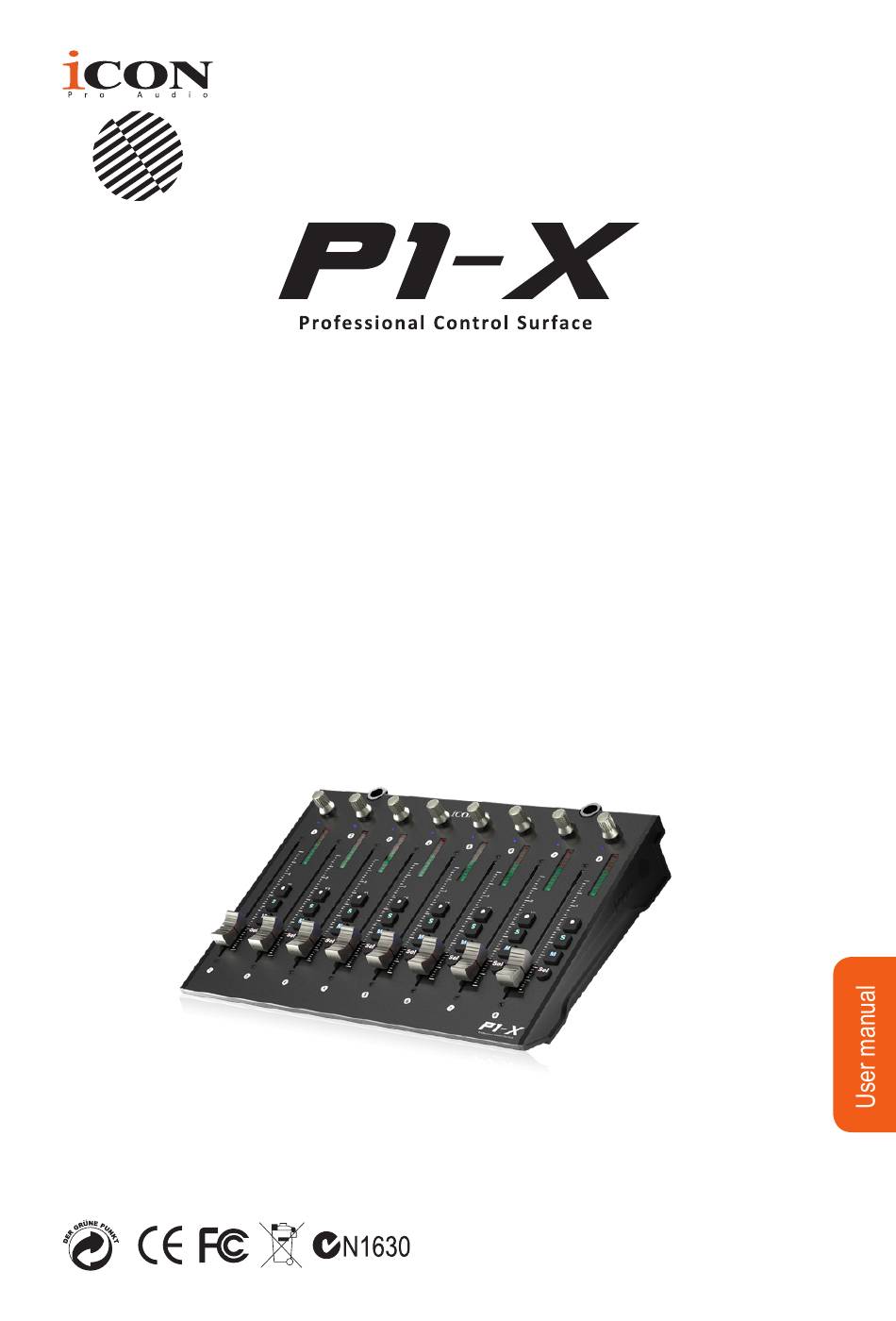

ICON P1-X User Manual

Professional control surface
Hide thumbs
Table of Contents

Advertisement

Quick Links

The future of DAW controllers is here!
Extend the revolution!
Presenting the extender for the P1-M, the new shining star of mid-
sized MIDI DAW control surfaces! Extend your P1 system with 8
12 bit ALPs faders, 8 endless, smooth action rotary encoder knobs
highly advanced software and
and 32 channel buttons. Supported by
intuitive,
intelligent design, the P1-X extender is further expandable with
the D-4 display unit and further P1-X units.
Luxuriate in an extendable, outstanding quality mixing experience at a
reasonable price!

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the P1-X and is the answer not in the manual?

Questions and answers

Related Manuals for ICON P1-X

Summary of Contents for ICON P1-X

  • Page 1 32 channel buttons. Supported by intuitive, intelligent design, the P1-X extender is further expandable with the D-4 display unit and further P1-X units. Luxuriate in an extendable, outstanding quality mixing experience at a reasonable price!
  • Page 2 The lightning flash with an arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of uninsulated hazardous voltage within the device's enclosure, which may be of sufficient magnitude to induce a risk of electric shock to persons. The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and...

  • Page 3: Table Of Contents

    Features Pt.2 ................ 7 Top Panel Layout ..............8 Rear Panel Layout ............. 10 Getting Started with the P1-X ..........11 Launching the P1-X in Every Day Use ....... 14 Installing iMap for the Mac ..........15 Installing iMap for Windows ..........18 .................

  • Page 4: Introduction

    Introduction Firstly, congratulations on your purchase of the ICON Pro Audio P1-X MIDI DAW controller extender for the P1-M. In these pages, you'll find a detailed description of the features of the P1-X and a full list of specifications. Please register the product on our website at the link below www.iconproaudio.com/registration...

  • Page 5: Register Your Icon Pro Audio Product To Your Personal Account

    Register your ICON Pro Audio product to your personal account 1. Check the serial number of your device Please go to http://iconproaudio.com/registration or scan the QR code below. Input your device’s serial number and the other information on the screen. Click “Submit”.

  • Page 6: Features Pt. 1

    This intelligent, intuitive and highly attractive system will suit anyone's aesthetic and feature requirements. The professional feel, design and functionality of the P1-X and the P1-M will bring you closer to your music, improve your workflow and heighten your experience. Welcome to the revolution!

  • Page 7: Features Pt.2

    Features Pt.2 ● Functions as an extender for the iCON Pro Audio P1-M MIDI DAW controller ● 8x touch-sensitive motorized faders with 12-bit resolution ● Extremely hardwearing, durable and versatile ● On-board 2 inch TFT display showing channel name, control values, channel colors etc.

  • Page 8: Top Panel Layout

    Top Panel Layout NOTE: The P1-M is a universal DAW controller (i.e. not designed for one specific DAW). Functions will operate slightly differently between DAWs. Please refer to your DAW manual for each function. 1. Faders The eight ergonomically designed, motorized faders are generally used for controlling the track volume of the DAW.
  • Page 9 3. Knobs The eight smooth, noiseless, endless rotary encoder knobs are generally used for controlling the track pan position, aux send levels and EQ of your DAW. You may also use them to adjust specific parameters within plug-ins and virtual instruments, (as your DAW software allows). The push-button action of the knob can be used to change modes of operation within the DAW (this is DAW dependent) and the rotating action of the knob can be used to change parameters of PAN, EQ, plug-in values etc.

  • Page 10: Rear Panel Layout

    Rear Panel Layout 1. USB C port Functions as a MIDI port to your computer and compatible software. 2. 12V/2.5A power adapter port Connect the power adaptor provided, here. (Note: the P1-M is not able to work without the provided power adaptor connected.

  • Page 11: Getting Started With The P1-X

    Firstly, let's get one thing very clear; You do NOT need to allocate DAWs to the P1-X so that it recognizes which is DAW#1 is, DAW #2 is and so on. You've already set that up on the P1-M. This will be communicated to the P1-X.
  • Page 12 DAWs so that the P1-X recognizes them and the DAW/s recognize the P1-X, along with the P1-M. This is done is the same way as the P1-M. In some DAW's you might add the P1-X as another instance of 'Mackie Control', in others you may need to add the P1-X as a 'Mackie extender'.
  • Page 13 Because we have set up Cubase to respond to DAW control button '2' on the P1-M, we are going to select 'MIDIIN2 (P1-X V1.01)' when connecting the P1-X. Please also note, (although this is specific to Cubase), that users should use Mackie Control in the usual way to set up their devices in Cubase 12 onwards and not Cubase's MIDI Remote Manager.

  • Page 14: Launching The P1-X In Every Day Use

    - this ensures that the speed of communication is fast and unhampered by secondary factors. The iMAP acts as a kind of 'bridge' between the P1-M main unit and any P1-X extenders you may be using and ensures cohesion. The 'Lock' function, when used in conjunction with a P1-X extender unit for example, will work as expected.

  • Page 15: Installing Imap For The Mac

    By “dragging and dropping” the “P1-M” icon into the “Applications” folder, you can create an “iMap” shortcut on your Mac’s desktop. There is one iMAP for both the P1-M and P1-X - you can swap between Note: the two vesions by clicking the "title".
  • Page 16 P1-M P1-X iMap P1-M P1-X iMap Installer 3. Click “Continue”. P1M_P1X_iMap P1-M P1-X iMap _Mac_Setup_V1.00. V1.00.pkg 4. Read the license P1-M P1-X iMap P1-M P1-X iMap agreement. Click P1-M P1-X iMap Installer “Continue”. P1-M P1-X iMap P1M_P1X_iMap P1-M P1-X iMap _Mac_Setup_V1.00.
  • Page 17 P1-M P1-X iMap P1-M P1-X iMap P1-M P1-X iMap P1-M P1-X iMap 7. Enter your username and password. Click “Install software” P1-M P1-X iMap P1-M P1-X iMap P1-M P1-X iMap 8. Click “Close” after installing your iMAP software. 9. Click on the shortcut to...

  • Page 18: Installing Imap Tm For Windows

    There is one iMAP for both the P1-M and P1-X - you can swap between the Note: two versions by clicking the "title". Please follow the procedures below step-by-step to install your iMap software.
  • Page 19 M P1-X iMap M P1-X iMap. M P1-X desktop M P1-X Please uncheck the box if you do not want to place a shortcut icon on your -M P1-X iMap desktop for iMap ; otherwise click “Next”. P1-M P1-X iMap V1.00 Installation P1-M P1-X iMap V1.00 Installation...

  • Page 20: The Imap Tm

    Please note that you must click on the 'title' of the iMAP to change the controller you are programming. In order to change the programming of the P1-X, click the title 'P1-M' to change it to 'P1-M' and vice versa. Sending your own MIDI messages You may adjust "Pitch”, “Note”, “CC”, “Channel”...
  • Page 21 Using Virtual Instruments Some users like to use DAW controllers to control the parameters of Virtual Instruments. It must be noted from the outset that this is entirely DAW and Virtual Instrument-dependent. Some Virtual Instruments have limited (and sometimes no) functionality.

  • Page 22: Other Functions In Imap

    Other Functions in iMap™ 1. “Save file” button Click this button to save your current settings for the P1-X. The file is an. “imap” file. 2. “Load file” button Click this button to load a previously saved “. imap” setting file for your P1-X.

  • Page 23: Firmware Upgrade

    Firmware upgrade P1-X functional firmware upload procedure IMPORTANT: CLICK THE "TITLE" OF THE IMAP TO SWAP BETWEEN THE P1-M AND P1-X VERSIONS. ALWAYS CHECK YOU ARE UPGRADING FIRMWARE FOR THE CORRECT DEVICE. Warning: The firmware upload process MUST be completed and not interrupted during the file upload, otherwise the firmware may not be rewritten again.
  • Page 24 Step1: Connect the P1-X using a USB C connection. Press the “MIDI Device” button at the top to select your connected P1-X as the “MIDI In and Out” device in the pull-down menu? Click ‘Firmware update’. Note: If your connected name “P1-X” does not appear on the pull-down menu, select “USB Audio”...
  • Page 25 Step 3: Click the “Start” button. Step 4: Allow the firmware upgrade process to complete. Step 5: Press ‘ok’ once the firmware update has been completed...

  • Page 26: Ableton Live

    Mackie Control iCON P1-M V1.02 iCON P1-M V1.02 Mackie ControlXT iCON P1-X V1.01 iCON P1-X V1.01 Input: MackieControl Input(iCON P1-M V1.02) Input: MackieControlXT Input(iCON P1-X V1.01) Output: MackieControl Output(iCON P1-M V1.02) Output: MackieControlXT Output(iCON P1-X V1.01) Microsoft GS Wavetable Synth...

  • Page 27: Audition

    Audition Audition iCON P1-M V1.02 Port 1...
  • Page 28 P1-M V1.02 Port 1 iCON P1-M V1.02 Port 1 iCON P1-X1 V1.01 Port 1 iCON P1-X1 V1.01 Port 1...

  • Page 29: Bitwig

    Bitwig iCON P1-M V1.02 iCON P1-X V1.01 iCON P1-M V1.02 iCON P1-X V1.01...

  • Page 30: Cakewalk

    P1-X MIDIIN2(iCON MIDIIN2(iCON V1.0 P1-X P1-X MIDIIN3(iCON MIDIIN3(iCON V1.0 P1-X P1-X MIDIIN4(iCON MIDIIN4(iCON V1.0 P1-M P1-M iCON V1.02 iCON V1.02 P1-X P1-X V1 MIDIOUT2(iCON MIDIOUT2(iCON P1-X P1-X V1 MIDIOUT3(iCON MIDIOUT3(iCON P1-X P1-X V1 MIDIOUT4(iCON MIDIOUT4(iCON iCON V1.01 P1-X iCON V1.01...
  • Page 31 V1.01 P1-X iCON V1.01 P1-M P1-M iCON V1.02 iCON V1.02 P1-X P1-X iCON V1.01 iCON V1.01...

  • Page 32: Cubase/Nuendo

    Cubase 12 Pro Cubase/Nuendo iCON P1-M V1.02 iCON P1-M V1.02 iCON P1-X V1.01 iCON P1-X V1.01...

  • Page 33: Digital Performer 11

    Digital Performer Digital Performer 11 P1-M P1-M iCON V1.02 iCON V1.02 P1-X P1-X iCON V1.01 iCON V1.01...

  • Page 34: Fl Studio

    FL Studio iCON P1-X V1.01 iCON P1-X V1.01...

  • Page 35: Logic Pro

    Logic Pro iCON P1-X1 V1.01 iCON P1-X1 V1.02 iCON P1-M V1.01 iCON P1-M V1.02...

  • Page 36: Luna

    Luna Luna iCON P1-M V1.02 iCON P1-M V1.02 iCON P1-M V1.02 iCON P1-M V1.02 iCON P1-X1 V1.01 (2) iCON P1-X1 V1.01 (2) iCON P1-X2 V1.01 (2) iCON P1-X2 V1.01 (2) iCON P1-X3 V1.01 (2) iCON P1-X3 V1.01 (2) iCON P1-M V1.02 iCON P1-M V1.02...

  • Page 37: Mixbus 32C

    Mixbus32 Mixbus 32C iCON Platform M + with Platform X+ on left P1-X1 iCON V1.01 P1-X1 iCON V1.01 P1-M iCON V1.02 P1-M iCON V1.02...

  • Page 38: Pro Tools

    Pro Tools Pro Tools P1X V1.01 P1-X1 V1.01 P1-X1 V1.01 P1-X1 V1.01 P1-X1 V1.01 P1-M V1.02 P1-M V1.02...

  • Page 39: Reaper

    Reaper Reaper iCON P1- M V1.02 iCON P1- X V1.01...
  • Page 40 P1- M V1.02 iCON P1- X V1.01 iCON P1- M V1.02 iCON P1- X V1.01...

  • Page 41: Reason

    Reason Reason iCON P1-M V1.02 iCON P1-X V1.01 iCON P1-M V1.02 iCON P1-X V1.01...

  • Page 42: Samplitude

    Samplitude Samplitude iCON P1-X V1.01 iCON P1-X V1.01 Microsoft GS Wavetable Synth iCON P1-X V1.01 iCON P1-X V1.01...

  • Page 43: Studio One

    Studio One Studio One iCON P1-M V1.02 iCON P1-M V1.02 iCON P1-M V1.02 iCON P1-M V1.02 iCON P1-X V1.01 iCON P1-X V1.01...
  • Page 44 P1-X V1.01 iCON P1-X V1.01 iCON P1-M V1.02 iCON P1-M V1.02 iCON P1-X V1.01 iCON P1-X V1.01...

  • Page 45: Tracktion Waveform

    Tracktion Waveform Waveform iCON P1-M V1.02 iCON P1-X2 V1.01 iCON P1-M V1.02 iCON P1-X2 V1.01 iCON P1-X V1.01 iCON P1-X V1.01 iCON P1-M V1.02 iCON P1-M V1.02 iCON P1-X2 V1.01 iCON P1-X2 V1.01...

  • Page 46: Hardware Connections

    Hardware Connections PC/MAC SPD-01...

  • Page 47: Expanding Your P1-X

    Expanding your P1-X D-4 Display Unit The P1-X's display capabilities are expandable with the D-4 display unit. ● Extremely compact and durable ● Extremely simple installation for the P1-X MIDI DAW controller with magnetic fixtures - simply slot in! ●...
  • Page 48 The P1-X is expandable, not only with the very fetching D-4 display unit, but with further P1-X extender units! As we know, each unit consists of 8 12 bit faders, 8 smooth-action endless rotary encoder knobs, and 4 buttons per channel including rec, mute and solo. Each unit gives...

  • Page 49: Specifications

    Specifications Connector: To computer USB connector Power supply: 12V/2. 5A DC Current consumption: 2. 0A or less Weight: 1.509kg (3.33lb) Dimensions: 300(L) x 204(W) x 61(H)mm 15. 9”(L) x 8”(W) x 2. 4”(H)

  • Page 50: Services

    Pack the unit in its original packaging including end card and box. This is very important. If you have lost the packaging, please make sure you have packed the unit properly. ICON is not responsible for any damage that occurs due to non-factory packing.
  • Page 51 天猫官方旗舰店 抖音号 哔哩哔哩 微信公众号 官方售后QQ B站iCONProAudio 4006311312.114.qq.com 天猫店iconproaudio旗舰店 抖音iCON艾肯 微信号iCON-PRO 中国地区用户 Twitter Instagram Facebook Youtube www.twitter.com/iconproaudio www.instagram.com/iconproaudio www.facebook.com/iconproaudio www.youtube.com/iconproaudio Support Dashboard Website www.iconproaudio.com support.iconproaudio.com iconproaudio.com/dashboard/...
