- Page 1 NÜVE SANAYİ MALZEMELERİ İMALAT VE TİCARET A.Ş. FN 300 - FN 400 - FN 500 FN 400 P – FN 500 P DRY HEAT STERILIZERS/OVENS USER’S MANUAL 1984 Z14.K 25 236 Rev. No: 07 Rev. Date: 06/2017...
- Page 2 TEL: +(90) 312 399 28 30 (pbx) FAX: +(90) 312 399 21 97 E-mail: sales@nuve.com.tr WARRANTY CERTIFICATE 1. Nüve warrants that the equipment delivered is free from defects during material and workmanship. This warranty is provided for a period of two years. The warranty period begins from the delivery date.
- Page 3 Information contained in this document is the property of Nüve. It may not be duplicated or distributed without its permission. Lifetime of the device is 10 years. PLEASE REGISTER ONLINE TO VALIDATE WARRANTY: To register your warranty online, please visit our web page www.nuve.com.tr and fill in Warranty Registration Form.
-
Page 4: Table Of Contents
TROUBLESHOOTING ....................... 15 ERROR CODES EXPLANATIONS ................15 SECTION 8 ..........................17 ELECTRICAL CIRCUIT DIAGRAMS ..................17 10.1 FN 300 ELECTRICAL CIRCUIT DIAGRAMS ............17 10.2 FN 400 ELECTRICAL CIRCUIT DIAGRAMS ............. 18 10.3 FN 500 ELECTRICAL CIRCUIT DIAGRAMS .............. 19 10.4... -
Page 5: Section 1

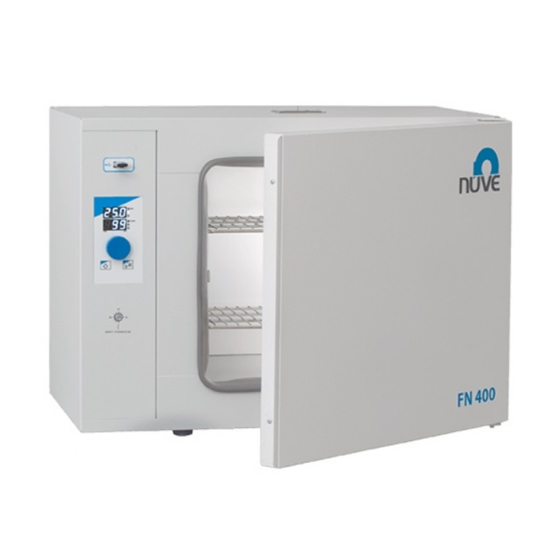

Differently from FN 300/400/500, inner sides of FN 400P and FN 500P are made of stainless steel and their heaters are circular heaters which provide the homogeneity of the temperature by the circulation fans placed on their centers. -
Page 6: Section 2
2.2 OPTIONAL ACCESSORIES R 01 014 Al. shelf for FN 300 R 01 136 Mesh type shelf for FN 400 ... -
Page 7: General Presentation
2.3 GENERAL PRESENTATION Fıgure 1: Inner side of FN 400 P / 500 P... -
Page 8: Section 3
1. Control panel 8. Shelf carrier holder 2. Safety thermostat 9. Shelf carrier 3. On / Off switch 10. Circulation fan 4. Ventilation hole 11. Heater 5. Shelf 12. Heater protecting sheet 6. Chamber gasket 13. Input USB 7.Mains supply inlet and the fuses 14. -
Page 9: Mains Supply
The instruments, which will be dried up and heated, should not be combustible and explosive, especially please kindly check that. IF MENTIONED WARNINGS ARE NOT CONSIDERED, NUVE WILL NOT BE RESPONSIBLE FROM THEIR RESULTS. SECTION 4 OPERATING PRINCIPLES 4.1 SWITCHING ON... -
Page 10: Control Panel
4.2 CONTROL PANEL 6. “Operating the program” lamp 1. Temperature display 11. Back / Alarm mute button 2. Time display 7. Data transfer lamp 3. Encoder button 8. Alarm led 9. “End of the program” lamp 4. Start / Stop button 5. -
Page 11: Preparation Of User Settings
02-Time Display This display shows the values set for time during program preparation. Also; this display shows he time values in the control of the settings. 03-Encoder Button The encoder button has two physical movements. The button turn clockwise and anticlockwise to increase or decrease the temperature and time values of the program. -
Page 12: Op Operator Menu Parameters
Lift your hand when you see "oP" on the temperature display and again press the encoder button. If the device has a menu protection password, password screen “oPS” will come on the temperature display. TEMPERATURE You enter the set password to turn the encoder button right and left. - Page 13 By pushing the encoder button select SET menu. See that second LED flashes in the temperature display, again push the encoder button. See the parameter flashing on the temperature display. By turning the encoder button set operating temperature value. Push the encoder button and save set value. See the parameter flashing on the temperature display.
-
Page 14: Warni̇ng
See that second LED flashes in the time display, again push the encoder button. See the parameter flashing on the time display. By turning the encoder button set operating time value (01 minute to 99 hours 54 minutes or Hold). Push the encoder button and save set value. -
Page 15: Completion Of The Work
COMPLETION OF THE WORK See that the program is over (See “End” and “End of the program lamp”). Take the samples out. Be careful while handling the samples after the operation as they can be hot. Wipe the chamber surface if needed when the chamber is cold enough. ... -
Page 16: Section 6
SECTION 6 DISPOSAL MANAGEMENT CONCEPT The currently valid local regulations governing disposal must be observed. It is in the responsibility of the user to arrange proper disposal of the individual components. Applicable local regulations for disposal have to be carefully observed. The instruments and electronic accessories (without batteries, power packs etc.) must be disposed off according to the regulations for the disposal of electronic components. - Page 17 This error code appears if any probable power cut causes when the sterilization phase “EoF” flashes and the audible alarm sounds on the temperature display. IN CASE OF ANY ERROR, THE PROGRAM İS STOPPED AUTOMATİCALLY AND İMMEDİATELY. PLEASE CONTACT TO AN AUTHORIZED NUVE AGENT TO SEEK TECHNICAL HELP IF AN ERROR OCCURS.
-
Page 18: Section 8
SECTION 8 ELECTRICAL CIRCUIT DIAGRAMS 10.1 FN 300 ELECTRICAL CIRCUIT DIAGRAMS... -
Page 19: Fn 400 Electrical Circuit Diagrams
10.2 FN 400 ELECTRICAL CIRCUIT DIAGRAMS... -
Page 20: Fn 500 Electrical Circuit Diagrams
10.3 FN 500 ELECTRICAL CIRCUIT DIAGRAMS... -
Page 21: Fn 400P - 500P Electrical Circuit Diagrams
10.4 FN 400P - 500P ELECTRICAL CIRCUIT DIAGRAMS... -
Page 22: Section 9
SECTION 9 WARNING LABELS FN 500 - FN 500P FUSE (2×10A) GROUNDED PLUG FN 400 - FN 400P FN 300 FUSE ( 2×4A) FUSE (2×3A)
