Supermicro X6DHP-8G Addendum

(Read the information listed below before using this product.)

PLLSEL Select (Memory Speed Select):

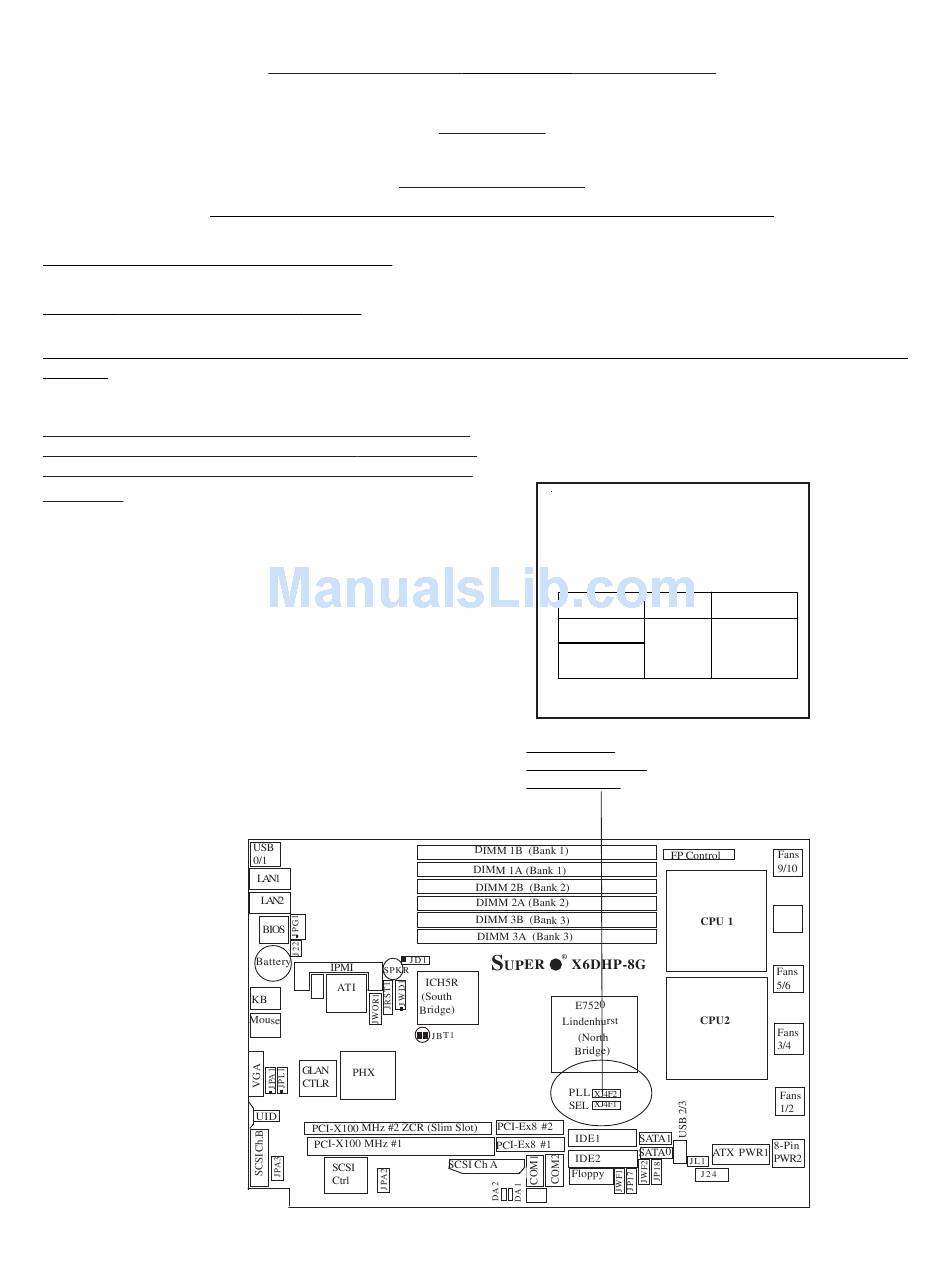

Jumpers XJ4F1/XJ4F2 (PLLSEL Select): These jumpers allow the user to select PLLSEL (Memory Speed). Make
sure that the jumper settings are set correctly according to your memory speed before you power on the system.
(*Warning!! If these jumpers are not set correctly according to your memory speed, video display failure may
occur!!!)
(*Note: the default setting is "Closed" for both jumpers to
enable DDR Memory at 333MHz. However, if your memory
speed is 266MHz, please make sure to set both jumpers
to "Open".)
Addendum to the
Attention!!

Important Notice!!

X6DHP-8G motherboard
PLLSEL Select
Jumper Settings
(XJ4F1/XJ4F2)
DDR
*333 MHz
266MHz
(*Default:Closed-333MHz)
XJ4F1/XJ4F2
(PLLSEL: Memroy
Speed Select)
XJ4F1 XJ4F2
Closed Closed
Open Open
Fans
7/8
Add-X6DHP-8G Rev. 1.0a-06/10/05
