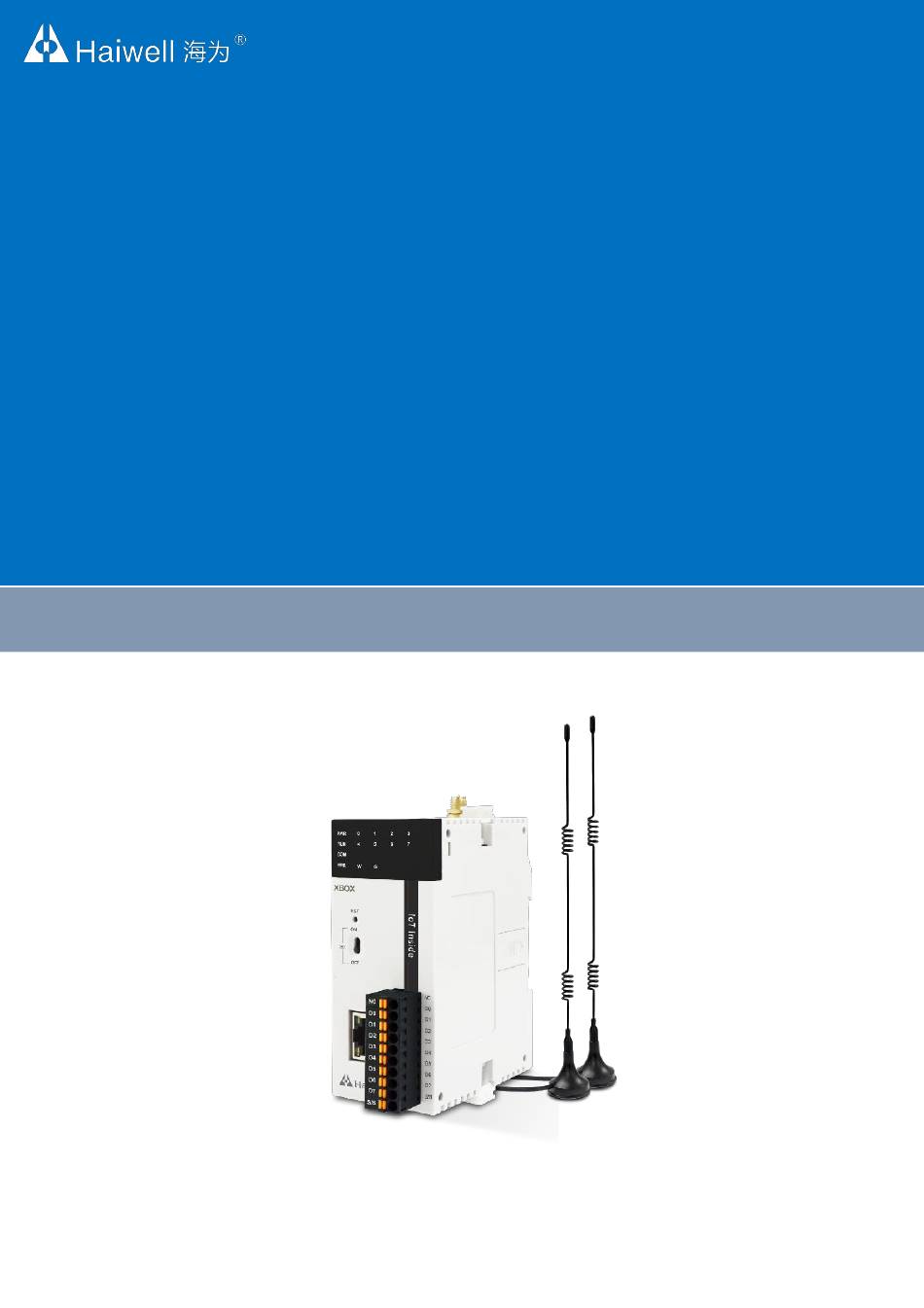

- Page 1 IoT Cloud Box User Manual User Manual of Haiwell IoT Cloud XBOX IoT Cloud Box User Manual Xiamen Haiwell tehnology Co., Ltd. en.haiwell.com...
-
Page 2: Table Of Contents
IoT Cloud Box User Manual Contents 1. Product Introduction ............................3 1.1 Main Functions ................................3 1.2 Functional Characteristics ............................3 2. Product List ..............................3 3. Specification of Product Parameters ......................3 4. Cloud box Software ............................4 5. Appearance and interface diagram ......................5 6. -
Page 3: Product Introduction
1.1 Main Functions Cloud XBOX is an Internet of things terminal. We call it " Haiwell Cloud HMI without screen", which can be easily managed by mobile app and cloud website. It is an industrial automation monitoring and management equipment which runs in an embedded system software, Haiwell SCADA. -
Page 4: Cloud Box Software
Programming software Haiwell Cloud SCADA 4. Cloud box Software The cloud box needs to be used with the Haiwell SCADA software. Please download it via the download center of the official website: en.haiwell.com. Haiwell Cloud services can be used by visiting the Haiwell Cloud website http://cloud.haiwell.com, and it is ... -
Page 5: Appearance And Interface Diagram
IoT Cloud Box User Manual 5. Appearance and interface diagram The Cloud XBOX main view The Cloud XBOX right view Interface definition: 6. DI/DO port Items Input type Non-voltage contact or NPN/PNP ON/OFF current ON：3.5mA or higher; OFF：1.5mA or lower Input resistance Approx. -
Page 6: Installation And Operation
②There should be enough space between the bottom of HMI and other devices, which helps to avoid the damages caused by poor heat dissipation. 7.1.2 Installation procedure 35mm DIN rail is required to mount Haiwell cloud box. Hook the cloud box onto the DIN rail and push up the latch to lock the device. 7.2 Antenna installation 4G are optional functions of Haiwell cloud box while WiFi is standard function. -
Page 7: Reset
Step 2: Hold reset button for more than 3 seconds. When three indicators fast flash, release the button. After hearing 3 beeps, the cloud box is successfully reset. Thank you for choosing Haiwell products. If you have any comments or suggestions on our products or services, please let us know! Website: www.haiwell.com Copyright © 2005 Xiamen Haiwell Technology Co., Ltd.
