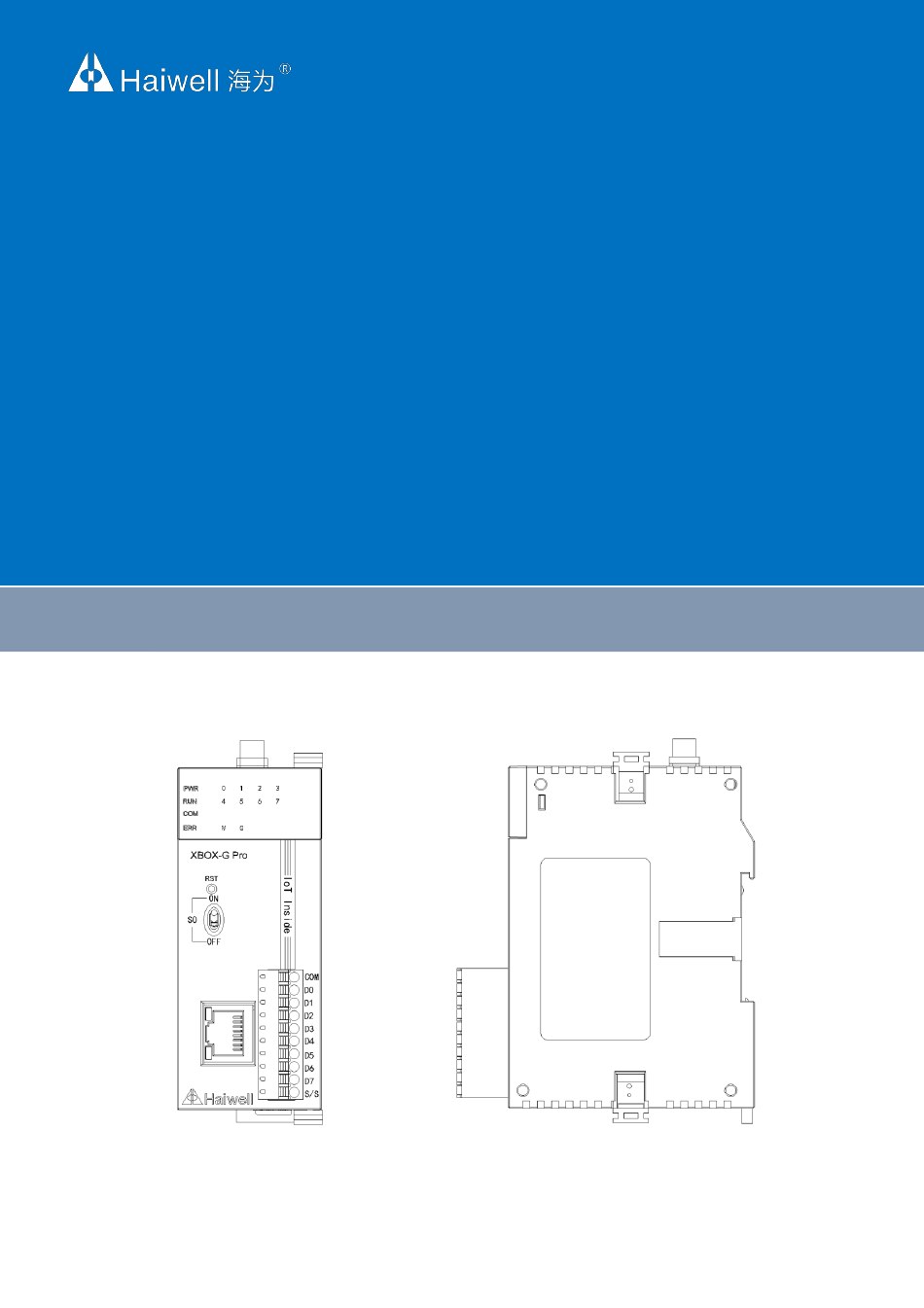

- Page 1 Haiwell XBOX User Manual Cloud XBOX Cloud XBOX User Manual Xiamen Haiwell tehnology Co., Ltd. en.haiwell.com...
-
Page 2: Table Of Contents
6. Cloud XBOX device DIDO interface ..........................5 二、 Software usage description............................6 1. Mobile APP Quick Access to the Cloud XBOX ......................6 1.1 Cloud XBOX default Factory Information ......................6 1.2 Mobile APP Connect Cloud XBOX Hot spot ..................... 6 1.3 Mobile APP access Cloud XBOX ........................ -
Page 3: 一、 Product Description
1.1 Main Functions Cloud XBOX is an Internet of things terminal. We call it " Haiwell Cloud HMI without screen", which can be easily managed by mobile app and cloud website. It is an industrial automation monitoring and management equipment which runs in an embedded system software, Haiwell SCADA. -
Page 4: Specification Of Product Parameters
In line with the RoHS 4. Cloud XBOX Software ⚫ The Cloud XBOX needs to be used with the Haiwell SCADA software. Please download it via the download center of the official website: en.haiwell.com. ⚫ Haiwell Cloud services can be used by visiting the Haiwell Cloud website http://cloud.haiwell.com, and it is recommended that you download Haiwell Cloud APP. -
Page 5: Cloud Xbox Appearance And Interface Diagram
6. Cloud XBOX device DIDO interface Haiwell Cloud Box XBOX comes with 8 optically isolated digital IO points, which can be connected to external switch contacts. The DI interface supports source and sink input, and the DO interface is relay output. It supports AC/DC <250V, current <5A,... -
Page 6: 二、 Software Usage Description
⚫ The Wi-Fi hotspot is turned on by default. The mobile phone can be connected to the device through WIFI. ⚫ The default hot spot name is XBOX-(front 6 digits PN code) - (last 5 digits PN code). The default password is empty. -
Page 7: Cloud Xbox Background Settings Through Mobile App
1.4 Cloud XBOX background settings through mobile APP Enter the project interface of access Cloud XBOX, click , you can enter the background setting interface of Cloud XBOX and set the background information. 2. Cloud access 7 / 38... -
Page 8: Cloud Binding Machine Owner
APP, and scan the QR code to add the device. The cloud setting interface pops up the device bind confirmation prompt XBOX, click [OK] to bind the owner successfully， click [Cancel] to cancel the binding as the owner. - Page 9 ⚫ Ordinary users Log in the cloud app, enter the [Cloud] interface, click the button in the upper left corner of the main interface, scan the QR code and add the device. ⚫ Binding whitelist After a normal user adds a device and apply for binding, also the application is approved, it can become a whitelist. The binding application needs to be approved by the auditor.
-
Page 10: Reset
3. Reset During the use of the device, you can restore the Cloud XBOX to the initial state by restoring the factory settings. The operation method is as follows: Click on the RST button of the Cloud XBOX and hear the “beep” sound, indicating that the button is normal. -
Page 11: Cloud Xbox Connection Settings
The factory default IP address is “192.168.1.112”。 Step 1: Connect the mobile phone or computer to the cloud XBOX hot spot. After connecting the hot spot successfully, access the cloud XBOX trough the local device of Haiwell Cloud APP. Click access the background setting interface;... -
Page 12: Project Operation
Step 1: Open the SCADA software and create a new project; Step 2: In the pop-up New Project dialog box, select the operating platform. Since the XBOX has two models, the XBOX and the XBOX Pro, the project type in this example is the XBOX, so choose the XBOX. - Page 13 XBOX_IO variables will also be generated in the variable column to manage the relevant point variables of XBOX; Among them: S: Is the variable associated with the SPDT switch on the front of the XOBX fuselage; 13 / 38...
-
Page 14: Device Manager
⚫ Operational project After the project is successfully downloaded, wait for the Cloud XBOX to reboot. After the reboot is successful, the start-up screen is automatically displayed. The user can access the Cloud XBOX and operate the project through the Haiwell cloud application or browser. - Page 15 Enter the device manager, click [Local Manager, select the device according to the IP address set by the device, click [Manage], enter the current device manager, you can operate the current device, as shown below: ⚫ Cloud Manager Step 1: Enter the device manager and click [Cloud Manager] to select the phone login and email login. Tip: Device administrators and owners can manage current devices through the cloud manager.
- Page 16 Step 2: The user enters the correct account number and password. Click [Login] to enter the device manager, select the device, click [Manage], enter the current device manager, and operate the current device, as shown below: 16 / 38...
-
Page 17: Performing Device Management
6.2 Performing Device Management ⚫ Download project Step 1: Click [Download Project] to enter the confirmation download interface. Step 2: In the confirmation download interface, you can choose whether to keep power outage, whether to keep operation record, whether to keep users, whether to keep the history and alarm records and whether to keep the recipe. After the setting is completed, click [OK];... - Page 18 Step 1: Click [Offline Update], select the firmware package, and click [Open]; Step 2:Enter the offline update confirmation page and click [Update]; Step 3: Wait for the update to complete, the prompt XBOX "Update Successed" pops up, click [OK]. ⚫ Update device time Click [Update Device Time] to update the system time of the device.
- Page 19 ⚫ Detecting device version Click 【Detecting device version】. It can to check the software and hardware information of device currently. ⚫ History record upload Click [history record upload]. enter the history record upload interface. ① Split the history file Step 1: click [splitting the file], it can split the history record file for most recent period of time. 19 / 38...
- Page 20 Step 2： waiting for history record file successfully and pop up the “ split success” prompt XBOX. Then click the [OK], there will add new split history file currently in history record file list. ② Upload history file Step 1: Select the history file in the history file list, enter the history file storage path, and click [Upload Select File];...
- Page 21 Step 2: Wait for the history file to be uploaded successfully. The “History upload successed” prompt XBOX will pop up. Click [OK]. After the upload is successful, the current history file is marked as “Uploaded”. ③ Delete history file Step 1: Select the history file in the history file list and click [Delete Select] Step 2: Pop up the Confirm Delete File prompt XBOX and click [Yes] Step 3: Wait for the history file to be deleted successfully.
-
Page 22: Background Setting
⚫ Restart device Step 1: Click [Restart Device], pop-up confirmation restart prompt XBOX click [Yes]; Step 2: Wait for the device to restart. After the restart is successful, the “Restart device success!” prompt XBOX is displayed, and click [OK]. 7. Background setting... -
Page 23: Network
Select [Static IP] for the network type, enter the correct IP address, subnet mask, default gateway, and DNS, click [Save]. After the verification is passed, the cloud XBOX Cloud XBOX device can connect to the network through Ethernet. ⚫ WIFI Settings Click [WIFI Settings] to enter the WIFI settings interface to support network connection via WIFI. - Page 24 Turn on the personal hotspot switch, set the hotspot name and password, and then it can share the WIFI hotspot for other users. Set the hotspot name, click “WIFI name”, a hotspot name input XBOX pops up. 24 / 38...
- Page 25 Set password, click “Password”, a password input XBOX pops up, click the upper left corner of the input XBOX switch between the plaintext and ciphertext of the password. Enter the password, click [Enter], and click [Save] to save the added password information.
- Page 26 With 4G The switch of 4G function is off by factory default. Enter the Cloud XBOX background setting interface, click [network setting], enter the Ethernet setting interface, and open [4G switch], then 4G function can be normally used. 1、Turn on the WIFI hotspot, turn off the 4G wireless routing, and connect the hotspot to the mobile phone，the cloud app can access the local device normally , but cannot access the cloud device or access the external network.
- Page 27 Close routing mode Enter the Cloud XBOX background settings interface, click [Network], enter the route configuration interface, click "Settings", click "Close routing", a prompt "This mode will close the route, confirm the routing mode is closed" Click "OK", it is set to close routing "Close routing"...
- Page 28 4G routing mode Enter the Cloud XBOX background settings interface, click [Network], enter the routing configuration interface, click "Settings", click "4G Routing Mode", a prompt "Will this turn off WIFI, confirm switching to this mode?", click "ok" to set the 4G routing mode.
- Page 29 In the "Client" mode, the network is provided by the hotspot connected by WIFI. At this time, the Cloud XBOX is equivalent to a router. The Cloud XBOX is connected to the wired network, and then connected to the device through the wire to provide the network to the device.
-
Page 30: Settings
7.3 Settings ⚫ Settings ➢ Terminal name setting Enter the Cloud XBOX background setting interface, click [Settings], in the [Settings] interface, you can see [Terminal name], click [Set], enter the new machine name, and click [Save]. 30 / 38... - Page 31 ➢ Beep setting Enter the Cloud XBOX background setting interface, click [Settings], and open the [Beep] function in the [Display and Sound] interface. After the setting is successful, the buzzer will respond when the user clicks the Cloud XBOX button.
- Page 32 ➢ Time setting Enter the Cloud XBOX background setting interface, click [Settings], click [Modify] in the [Time Settings] interface, enter the time and date setting interface, after completing the setting, click "ok" to set the system time. ⚫ Security ➢...
- Page 33 Set up the XBOX LAN access password Enter the XBOX background setting interface of the cloud box, click [Local Settings], and click [Set Password] under the LAN access of the [Security Settings] interface to set the LAN access password. After the setting is successful, the user can use the mobile phone cloud APP and the LAN PC terminal Password verification is required to access and use the connection network engineering function.
- Page 34 MQTT Proxy Enter the XBOX background setting interface of the cloud box, click [Local Settings], and click [MQTT Proxy] function under the LAN access of the [Other Settings] interface. After enabling, the terminal device can be used as a small MQTT server. For specific usage, please refer to MQTT user manual.
-
Page 35: Information
The user enters the Cloud XBOX background setting interface, click [Information], select [Reboot], and then reboot the Cloud XBOX device. You can also reboot the device through the Device Manager. For the operation method, please refer to the Device Manager. - Instructions for reboot the device. -
Page 36: Cloud Settings
Log in to the cloud app, go to the [Device] interface, click the button in the upper left corner of the main interface, and scan the QR code to add the device. The confirmation binding prompt XBOX pops up on the device. Click [OK], the device is added successfully, and the user can access the device remotely. -
Page 37: Multi-Language Setting
7.6 Multi-language setting Enter the Cloud XBOX background setting interface. Click the Language Settings button at the top right of the screen to switch the system language. The device supports both Simplified Chinese and English. -
Page 38: Exit Background Settings
In the Cloud XBOX background setting interface, click [Back] to exit the background setting and enter the project running interface. Thank you for choosing Haiwell products. If you have any comments or suggestions on our products or services, please let us know! Website: www.haiwell.com Copyright © 2005 Xiamen Haiwell Technology Co., Ltd.
