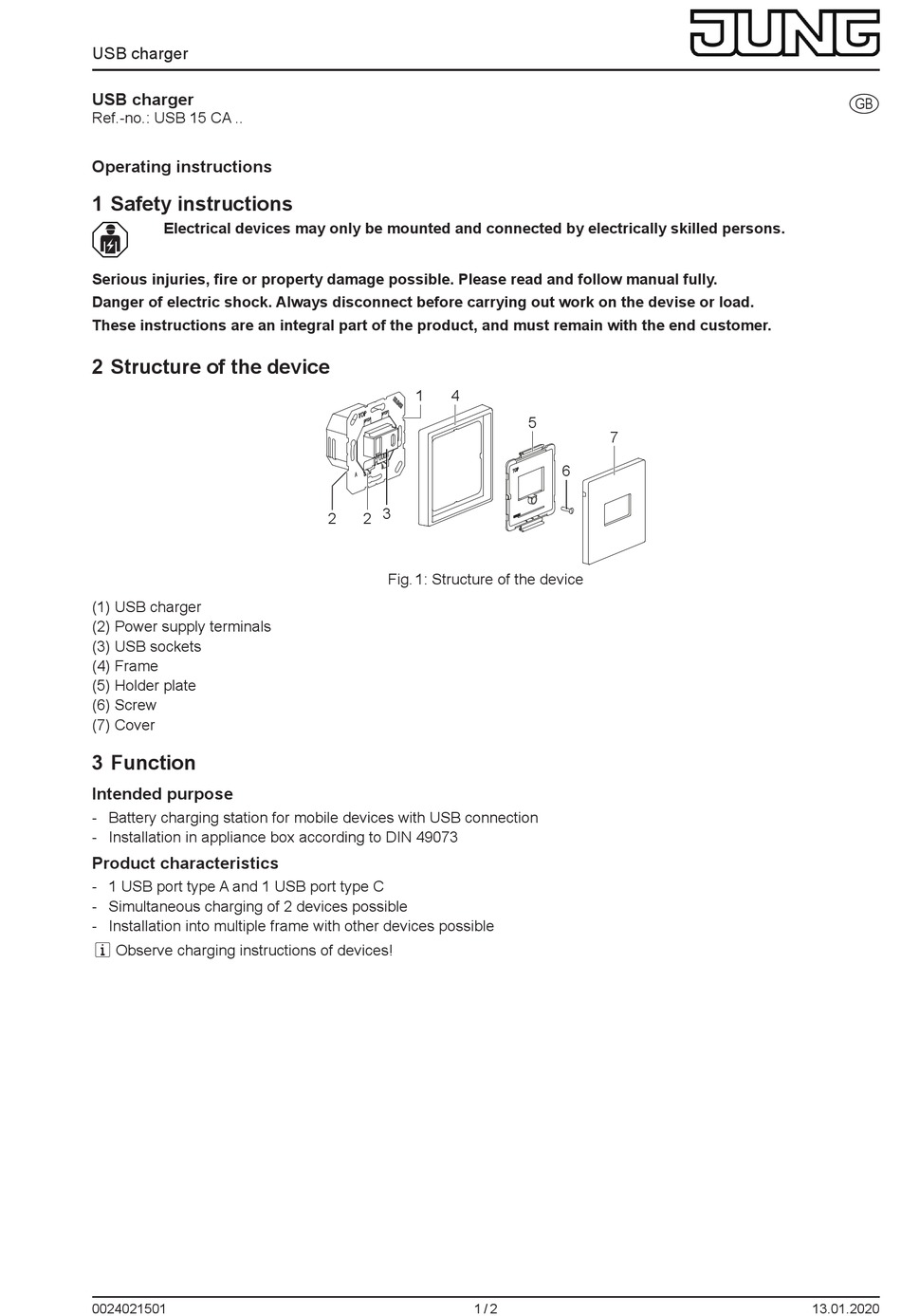

Jung USB 15 CA Series Operating Instructions

USB charger
USB charger
GB
Ref.-no.: USB 15 CA ..
Operating instructions

1 Safety instructions

Electrical devices may only be mounted and connected by electrically skilled persons.
Serious injuries, fire or property damage possible. Please read and follow manual fully.
Danger of electric shock. Always disconnect before carrying out work on the devise or load.
These instructions are an integral part of the product, and must remain with the end customer.

2 Structure of the device

1 4
5
7
6
2 3
2
Fig. 1: Structure of the device
(1) USB charger
(2) Power supply terminals
(3) USB sockets
(4) Frame
(5) Holder plate
(6) Screw
(7) Cover

3 Function

Intended purpose
- Battery charging station for mobile devices with USB connection
- Installation in appliance box according to DIN 49073
Product characteristics
- 1 USB port type A and 1 USB port type C
- Simultaneous charging of 2 devices possible
- Installation into multiple frame with other devices possible
i Observe charging instructions of devices!
0024021501 1 / 2 13.01.2020
