Jung USB3-2 Series Operating Instructions

USB charger
USB charger
Ref.-no.: USB3-2..
Operating instructions

1 Safety instructions

Electrical devices may only be mounted and connected by electrically skilled persons.
Serious injuries, fire or property damage possible. Please read and follow manual fully.
Danger of electric shock. Always disconnect before carrying out work on the devise or load.
These instructions are an integral part of the product, and must remain with the end customer.

2 Structure of the device

(1) USB charger
(2) Power supply terminals
(3) USB sockets
(4) Frame
(5) Cover

3 Function

Intended purpose
- Battery charging station for mobile devices with USB connection
- Installation in appliance box according to DIN 49073
Product characteristics
- Simultaneous charging of 2 devices possible.
- Installation into multiple frame with other devices possible.
i Observe charging instructions of devices!

4 Information for electrically skilled persons

Installation and electrical connection
DANGER
Electric shock from touching live parts in the installation environment.
An electric shock can be fatal.
Before working on the device, disconnect the power and cover live parts in the area.
0024019800
(1) (3)
(2)

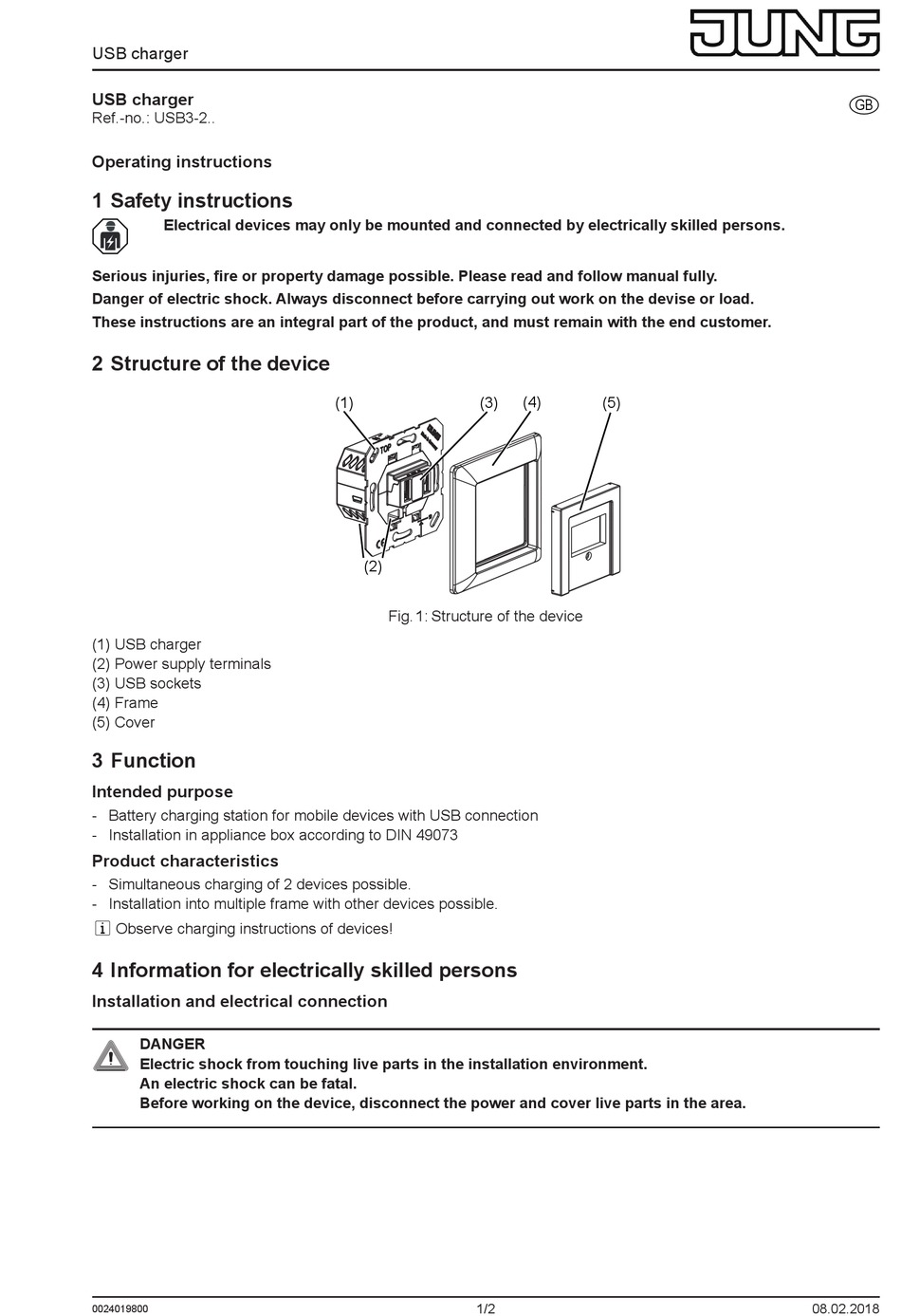

Fig. 1: Structure of the device
1/2
(4)
(5)
