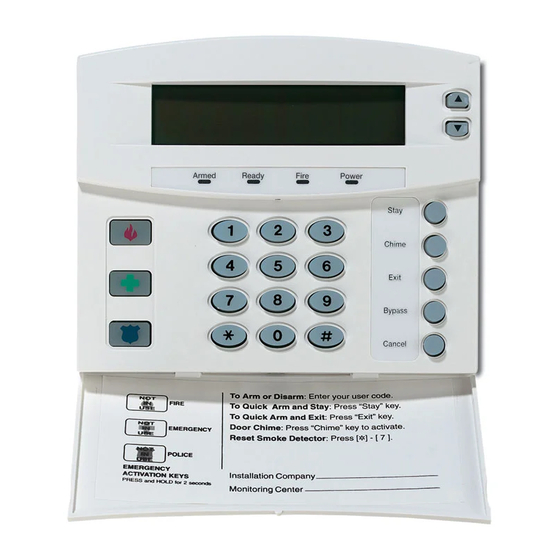

NX148-E LCD KEYPAD

TABLE OF CONTENTS

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NX148-E and is the answer not in the manual?

Questions and answers

Related Manuals for CADDX NX148-E

Summary of Contents for CADDX NX148-E

  • Page 1: Table Of Contents

    NX148-E LCD KEYPAD TABLE OF CONTENTS GLOSSARY OF TERMS ..................3 UNDERSTANDING THE LIGHTS..............4 KEYPAD FUNCTIONS..................5 ARMING YOUR SYSTEM IN THE “AWAY” MODE........5 MAKING YOUR SYSTEM READY TO ARM ..........5 ARMING YOUR SYSTEM IN THE “STAY” MODE ......... 6 USING THE QUICK ARM................
  • Page 2 THIS MANUAL IS FURNISHED TO HELP YOU UNDERSTAND YOUR SECURITY SYSTEM AND BECOME PROFICIENT IN ITS OPERATION. ALL USERS OF YOUR SECURITY SYSTEM SHOULD READ AND FOLLOW THE INSTRUCTIONS AND PRECAUTIONS IN THIS BOOKLET. FAILURE TO DO SO COULD RESULT IN THE SECURITY SYSTEM NOT WORKING PROPERLY.

  • Page 3: Glossary Of Terms

    GLOSSARY OF TERMS Abort Delay: An option that allows a delay in reporting to the central station. Authority Level: The level of access an individual has when using an alarm panel. Central Station: Location where alarm data is sent during an alarm report. Chime Feature: An option that allows the keypad to sound a ding-dong whenever an entry/exit door is opened.

  • Page 4: Understanding The Lights

    UNDERSTANDING THE LIGHTS Armed Light The armed light is “on” when the system is armed. The armed light is “off” when it is disarmed. The armed light will flash when there has been an alarm during the previous arm cycle. The bypass light is “on”...

  • Page 5: Keypad Functions

    KEYPAD FUNCTIONS ARMING YOUR SYSTEM IN THE “AWAY” MODE AWAY is utilized when the user is going away from the premise and wants the interior protected. Listed below are the steps to arm in the AWAY Mode: Step 1 Close all protected doors and windows. T Ready light will be on or flashing when all protected 6\VWHP5HDG\...

  • Page 6: Arming Your System In The "Stay" Mode

    ARMING YOUR SYSTEM IN THE “STAY” MODE STAY is utilized when the user is inside the premise and wants protection around the perimeter. The steps to arm in the STAY Mode are as follows: Step 1 Close all protected doors and windows. T Ready light must be on or flashing (force armed) when all protected zones and sensors are secure.

  • Page 7: Using The Quick Arm

    USING THE QUICK ARM The Quick Arm feature may be used if it is enabled. Quick Arm will allow the user to arm the security system in the AWAY mode by pressing the [EXIT] key. The system can be quick armed in the STAY mode by pressing the [STAY] key. This feature is used for ARMING ONLY, and will not disarm the security system.

  • Page 8: Cancel / Abort Feature

    CANCEL / ABORT FEATURE (Optional, if programmed) The cancel light will flash during an abort delay time. If a code is entered followed by the [CANCEL] key while this light is flashing, all abortable reports will stop the communication process. NOTE: The abort feature must be enabled. Entering a code followed by the [CANCEL] key during or after an alarm report to the central station will cause the cancel light to come on.

  • Page 9: Group Bypass

    If you do not know the number of the zone you wish to bypass, Procedure #2 use the following steps: Press U Step 1 The description for zone 1 will be displayed. Use the x y scroll keys to browse through the custom descriptions Step 2 for the zones in this system.

  • Page 10: Function Menu

    Auxiliary Key - If programmed, you can activate the auxiliary alarm by pressing the Emergency Activation [Auxiliary] key for two seconds. If your system is connected to a monitoring center, an emergency report could be sent to that center. This key should only be pressed in an emergency situation requiring response by emergency personnel.

  • Page 11: View Zone Status

    VIEW ZONE STATUS Step 1 Press U x . The LCD Screen will display the zone status. Step 2 Use the up and down scroll keys to browse through the descriptions. The LCD Screen will display the list of all zones in sequential order by zone number.

  • Page 12: Display Test Function

    DISPLAY TEST FUNCTION This function will perform a test of the LCD display. No alarms or reports will be sent. Step 1 Press U 5 . The test will be performed and all of the display pixels and LED indicators will flash until another key is pressed. Step 2 Press any key to end the test.

  • Page 13: Changing User Codes

    CHANGING USER CODES Press U Step 1 5 . The LCD Screen will prompt for a code. Step 2 Enter [master code]. The LCD Screen will prompt for a user number. NOTE: For partitioned systems, if you are changing the code of another person, you must have access to all partitions, or at least all of the partitions to which the other person has access.

  • Page 14: Reset Function

    PROMPT ž DO NOT CHANGE THIS SEGMENT! Outputs used? Open / Close Rprt? Bypass enable? (These are for use by a professional installer only.) Arm / Disarm? Master code? 0=No 1=Yes Sched arm only? Your keypress will apply to the user code you entered in Arm only? Step 3.

  • Page 15: Reading The Event Log

    READING THE EVENT LOG The control panel has an event log that can be retrieved using a master code. This log contains a listing of the events along with date, time, and partition where the event occurred. To view the log, press U Step 1 0 .

  • Page 16: Setting The System Clock

    SETTING THE SYSTEM CLOCK Step 1 Enter U The LCD Screen will prompt for a code. Step 2 Enter [master code]. The time and date will be displayed with the current hour flashing. Step 3 Use the x scroll keys to select the proper hour. Step 4 Press the U key to move to the minutes, day of week, date, month, and year.

  • Page 17: Partitioned Systems Operation

    PARTITIONED SYSTEMS OPERATION This system is is not partitioned. If your system is multi-partitioned and the keypad resides in one partition, your keypad will provide the status of the zones in your partitioning by using the screen messages described earlier in this manual. The Master Mode of operation allows you to temporarily access any partition (providing your code is authorized) within the system and to perform functions in other partitions.
  • Page 18 This display is reflecting all 8 areas are 5HDG\ 5HDG\ Ready, and Area 5 is disarmed. NOTE: If a $UPHG $UPHG number is flashing on the Armed line, that area is armed Instant . If a number is flashing on the Ready line, that area is ready to be Force Armed .
  • Page 19 Enter a code that is a valid arm/disarm code for the area you wish to operate. The following display will appear on the LCD screen. ³'LVDUP 'LVDUP  Only the areas authorized by this code will appear.  $UP $UP ...

  • Page 20: Keypad Control Tones (Beeps)

    KEYPAD CONTROL TONES (BEEPS) A sounder is built into the keypad and may sound for any of the following reasons: Beeps for all keypresses. Sounds a continuous tone during the Entry delay time. Pulses when a day zone is violated while the system is disarmed. Pulses when a FIRE zone has a trouble condition.

  • Page 21: Service Display

    SERVICE DISPLAY The following message will be displayed periodically if the security system requires service. Call your service provider promptly if this message is observed. 6HUYLFH5HTXLUHG 6HUYLFH5HTXLUHG 7\SHUIRUKHOS IRUKHOS 2 . One or more of the following fault If you see this display, press messages will be displayed.
  • Page 22 ([SDQVLRQ ([SDQVLRQ An auxiliary reporting device has failed $X[FRPPIDLO $X[FRPPIDLO to communicate. ([SDQVLRQ ([SDQVLRQ A box containing an expansion device %R[WDPSHU %R[WDPSHU has been opened. ([SDQVLRQ ([SDQVLRQ An expansion power supply has a low /RZ%DWWHU\ /RZ%DWWHU\ battery. ([SDQVLRQ ([SDQVLRQ A short circuit of an expansion devices’ 2YHUFXUUHQW 2YHUFXUUHQW power supply has occurred.

  • Page 23: Appendix A - Event Log

    APPENDIX A - EVENT LOG NOTE: Your system may not have all of the features listed in this table. DISPLAY DESCRIPTION Transmitter The transmitter has a low battery. TXlobat Low Battery ZN Lost Zone Lost A wireless or multiplexed zone device is not reporting to the control.
  • Page 24 DISPLAY DESCRIPTION End Download Download session is ended. End Dnld Cancel System is disarmed and the Cancel button was Cancel pressed within 5 minutes of an alarm. Gnd Flt Ground Fault A short to ground has been detected. Manual Test Bell and/or communicator test while system is in Man Test disarmed condition.

  • Page 25: Emergency Evacuation Plans

    EMERGENCY EVACUATION PLANS An emergency evacuation plan should be established for an actual fire alarm condition. For example, the following steps are recommended by the National Fire Protection Association and can be used as a guide in establishing an evacuation plan for your building.
  • Page 26 NX148-E USERS MANUAL NX148EUA00 REV A (11-27-00)
