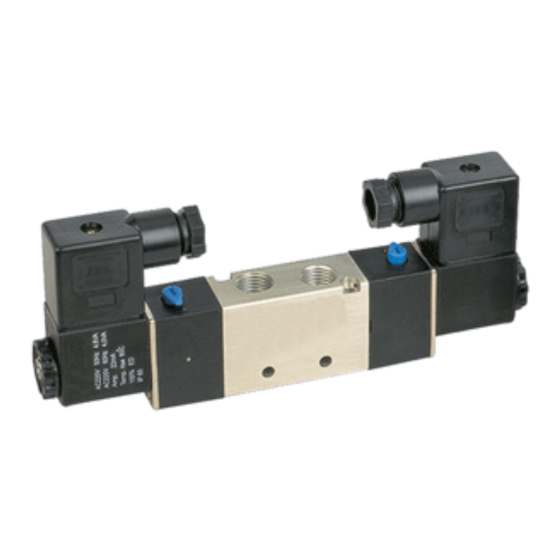

4V130E-430E SERIES AIR PILOT VALVE
Valve Model
Port & Mounting
Action & Motion
Double Solenoid, Spool Design, 3 Position, Exhaust Center, Response Time <20ms
Operating Pressure
Port Sizes
Operating Temp.
C
v
SFCM @ 100PSI
Manual Override
Electrical Connection
Working Medium
Coil Insulation &
Protection Class
Coil Duty Cycle
Coil Voltage Options
Coil Power
Coil Locking Nut
Valve Body Material
Seal Material
Lubrication
4V130E-1/8
4V230E-1/4
1/4 (in/outlet)
1/8 NPT
1/8 (exhaust)
0.67
0.89
25
53
40 micron filtered air or inert gas
Options: 12, 24 VDC; 24,110/120, 220/240 VAC (50/60Hz)
2.5W
4V330E-3/8
Body Ported
21-115 PSI
3/8 (in/outlet)
1/4 (exhaust)
14 to 140 °F
1.68
80
Detentable
Grommet, DIN
IP 65, Class F
100% ED
3/4.8W
M8X0.75 Threads
Anodized Aluminum
NBR (Buna N)
Not Required
4V430E-1/2
1/2 NPT
2.79
160
1
