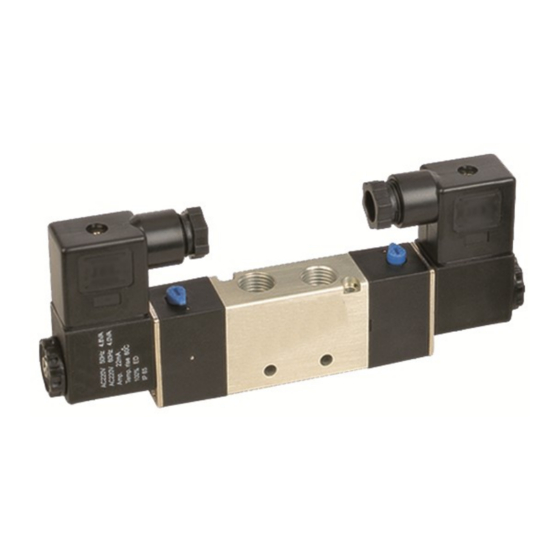

4V130P-430P SERIES AIR PILOT VALVE
Valve Model
Port & Mounting
Action & Motion
Double Solenoid, Spool Design, 3 Position, Pressure Center, Response Time <20ms
Operating Pressure
Port Sizes
Operating Temp.
C
v
SFCM @ 100PSI
Manual Override
Electrical Connection
Working Medium
Coil Insulation &
Protection Class
Coil Duty Cycle
Coil Voltage Options
Coil Power
Coil Locking Nut
Valve Body Material
Seal Material
Lubrication
4V130P-1/8
4V230P-1/4
1/4 (in/outlet)
1/8 NPT
1/8 (exhaust)
0.67
0.89
25
53
40 micron filtered air or inert gas
Options: 12, 24 VDC; 24,110/120, 220/240 VAC (50/60Hz)
2.5W
4V330P-3/8
Body Ported
21 to 115 PSI
3/8 (in/outlet)
1/4 (exhaust)
14 to 140 °F
1.68
80
Detentable
Grommet, DIN
IP 65, Class F
100% ED
3/4.8W
M8X0.75 Threads
Anodized Aluminum
NBR (Buna N)
Not Required
4V430P-1/2
1/2 NPT
2.79
160
1
Advertisement
Table of Contents
Related Manuals for STC 4V130P Series
Summary of Contents for STC 4V130P Series
- Page 1 4V130P-430P SERIES AIR PILOT VALVE Valve Model 4V130P-1/8 4V230P-1/4 4V330P-3/8 4V430P-1/2 Port & Mounting Body Ported Action & Motion Double Solenoid, Spool Design, 3 Position, Pressure Center, Response Time <20ms Operating Pressure 21 to 115 PSI 1/4 (in/outlet) 3/8 (in/outlet) Port Sizes 1/8 NPT 1/2 NPT...
- Page 2 4V130E-430E SERIES SOLENOID VALVE DIMENSIONS...
- Page 3 4V130E-430E SERIES SOLENOID VALVE DIMENSIONS...
- Page 4 4-Way 2 Solenoid 3 Position Valve Models 4V130-4V430 C, P, E Installation Procedure Note: This valve is designed for air flow only. Warning: Do NOT over tighten the nut holding the coil to the armature tube. Over tightening may result in damage to the welded joint.
- Page 5 SOP: 4V100-400 Installation of 3V100-400 and 4V100-400 Solenoid Valves Connect the 3V100-400 3 way valve Connect the 4V100-400 4 way valve inlet and out as shown in the diagram : inlet and out as shown in the diagram : P= Air Supply Port P = Air Supply Port A = Outlet A Port A = Outlet A Port...
- Page 6 STC Installation and Operation Procedure 4V130P-430P Series Solenoid Valves 4V130P-430P (Pressure Center, 4 way, 3 Position valve) EA P VALVE POSITION 1 Operations: When Valve is in Position 1, Port P is connected to Port A. Port B is connected to Port EB.
- Page 7 STC’s option. Purchaser has thirty (30) days to return the goods after STC has agreed to accept the return. All freight charges on returned material shall be paid by the Purchaser.
