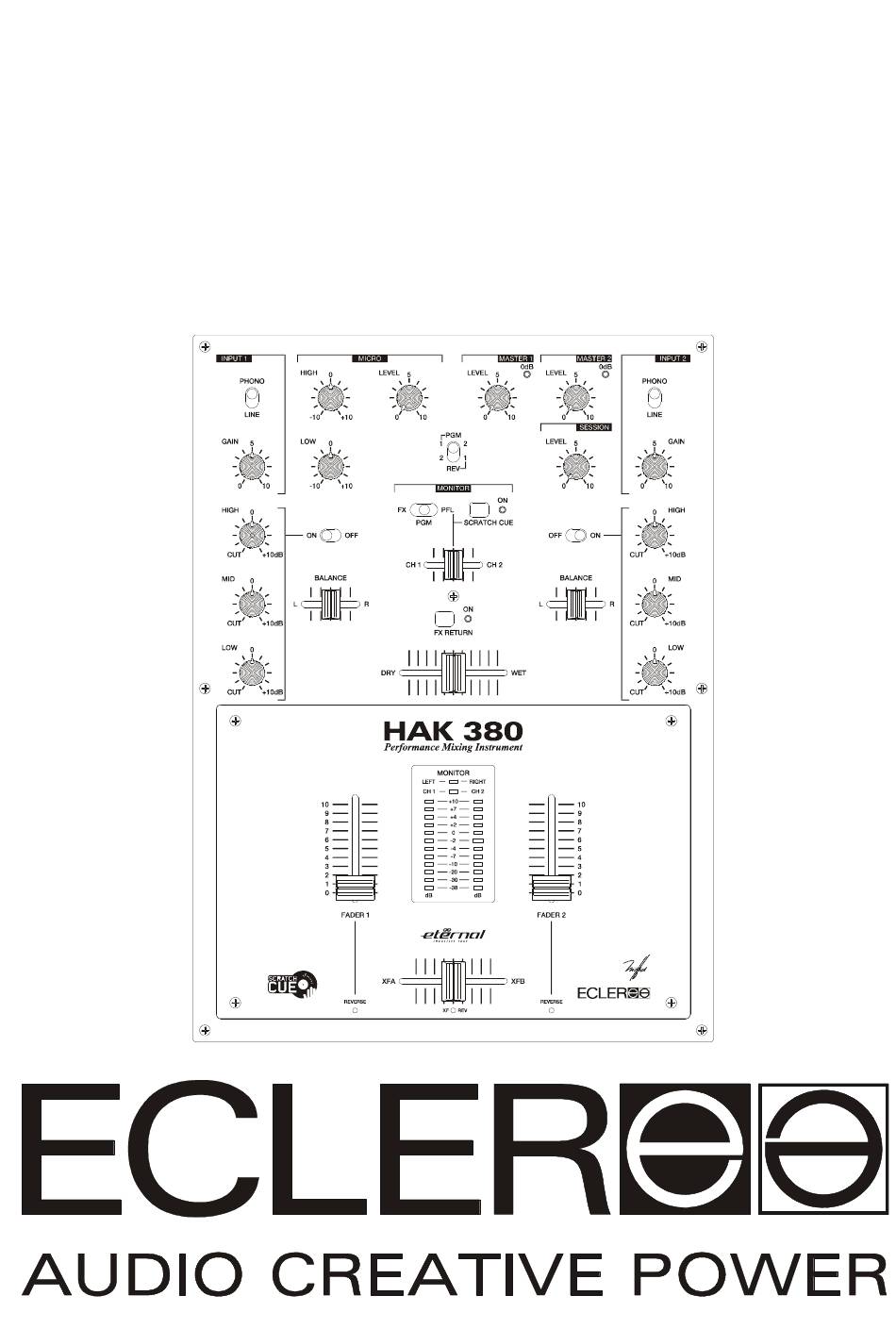

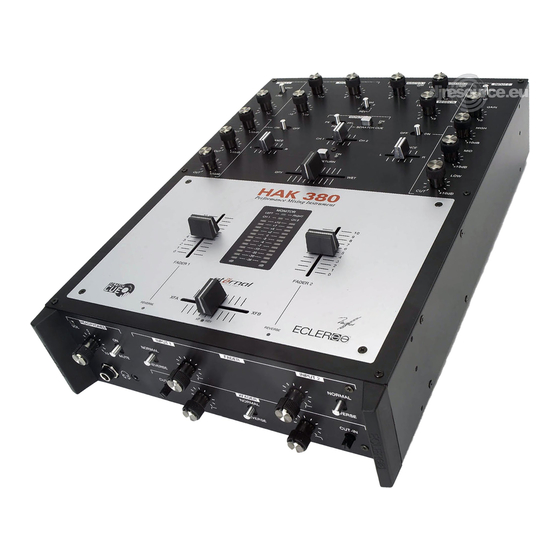

  • Page 1 HAK380 SERVICE MANUAL...
  • Page 2 SERVICE MANUAL HAK380 INDEX - BLOCK DIAGRAM - SCHEMATICS - COMPONENTS LOCATION SCHEMA - TESTING AND QUALITY CONTROL - TECHNICAL CHARACTERISTICS - WIRING DIAGRAM - CONFIGURATION DIAGRAM - MECHANICAL DIAGRAM - PACKING DIAGRAM...
  • Page 8 47u/16 C144 FCCE10000000 47u/16 C145 FCCE10000000 47u/16 C146 FCCE25047000 47u/50 C147 FCCE25047000 47u/50 C148 FCCE10000000 47u/16 C149 FCCE10000000 47u/16 C150 FCCE10000000 47u/16 C151 FCCE10000000 47u/16 C152 FCXCD1100000 C153 FCXCD1100000 C154 FCXCD1100000 C155 FCXCD1100000 C156 40-0158-0101 M03-05 HAK380.xls 1 of 20...
  • Page 9 FCXCD4001000 C200 FCCE25047000 47u/50 C201 FCCE25047000 47u/50 C202 FCXCD4001000 C203 FCXCD4001000 C204 FCXCD4001000 C205 FCXCD4001000 C206 FCXCD4100000 100n C207 FCXCD4100000 100n C208 FCXCD4100000 100n C209 FCXCD4100000 100n C210 FCCE10000000 47u/16 C211 FCCE10000000 47u/16 C212 40-0158-0101 M03-05 HAK380.xls 2 of 20...
  • Page 10 100n C256 FCXCD4100000 100n C257 FCXCD4100000 100n C258 FCXCD4100000 100n C259 FCXCD4100000 100n C260 FCCE10000000 47u/16 C261 FCCE10000000 47u/16 C262 FCCE10000000 47u/16 C263 FCCDK2001000 C264 FCCE10000000 47u/16 C265 FCCDK2001000 C266 FCCDK2001000 C267 FCCDK2001000 C268 40-0158-0101 M03-05 HAK380.xls 3 of 20...
  • Page 11 FCXCD4100000 100n C313 FCCE10000000 47u/16 C314 FCCE10000000 47u/16 C315 FCXCD4100000 100n C316 FCCE10000000 47u/16 C317 FCCE10000000 47u/16 C318 FCCE10000000 47u/16 C319 FCCE10000000 47u/16 C320 FCXCD1330000 C321 FCXCD1330000 C322 FCCE10000000 47u/16 C323 FCCE10000000 47u/16 C324 40-0158-0101 M03-05 HAK380.xls 4 of 20...
  • Page 12 C369 FCCE10000000 47u/16 C370 FCCE25010000 10u/50 C371 FCXCD4100000 100n C372 FCCE10000000 47u/16 C373 FCCE10000000 47u/16 C374 FCCE10000000 47u/16 C375 FCCE10000000 47u/16 C376 FCCE25047000 47u/50 C377 FCCE25047000 47u/50 C378 FCXCD4100000 100n C379 FCXCD4100000 100n C380 40-0158-0101 M03-05 HAK380.xls 5 of 20...
  • Page 13 C425 FCXCD4100000 100n C426 FCXCD4100000 100n C427 FCXCD4100000 100n C428 FCXCD4100000 100n C429 FCXCD4100000 100n C430 FCXCD4100000 100n C431 FCXCD4100000 100n C432 FCXCD4100000 100n C433 FCXCD4100000 100n C434 FCCE25010000 10u/50 C435 FCXCD4100000 100n C436 40-0158-0101 M03-05 HAK380.xls 6 of 20...
  • Page 14 FCXCD1220000 C482 FCCE10000000 47u/16 C483 FCCI01032000 Printed Board 11.1032 CI101 FCXDDSB14000 SB140 D101 FCLEDSMD1000 TLMKE340 D102 FCLEDSMD3500 TLMB3100 D103 FCXDDBAS2800 BAS28 D104 FCXDDBAS2800 BAS28 D105 FCXDDBAS2800 BAS28 D106 FCLEDSMD2000 TLMH3100 D107 FCLEDSMD2000 TLMH3100 D108 40-0158-0101 M03-05 HAK380.xls 7 of 20...
  • Page 15 IC104 FCIC07401000 TL074 IC105 FCIC07401000 TL074 IC106 FCIC07401000 TL074 IC107 FCIC07401000 TL074 IC108 FCIC07401000 TL074 IC109 FCIC07401000 TL074 IC110 FCIC07201000 TL072 IC111 FCIC20180000 SSM2018T IC112 FCIC20180000 SSM2018T IC113 FCIC20180000 SSM2018T IC114 FCIC20180000 SSM2018T IC115 40-0158-0101 M03-05 HAK380.xls 8 of 20...
  • Page 16 J102 FRBASR060100 YKC21-3035 J103 FCBASR060000 YKC21-3035 J104 FCCTM0005000 B5B-EH-A J105 FCCTM0003000 B3B-EH-A J106 FCCTM0005000 B5B-EH-A J107 FCCTM1012000 S12B-EH J108 FCCTM0006000 B6B-EH-A J109 FCBASR060000 YKC21-3035 J110 FCCTM0008000 B8B-EH-A J111 FCBASR060000 YKC21-3035 J112 FCBASR060000 YKC21-3035 J113 40-0158-0101 M03-05 HAK380.xls 9 of 20...
  • Page 17 FCXR55100000 100k0 R103 FCXR55100000 100k0 R104 FCXR55100000 100k0 R105 FCXR55100000 100k0 R106 FCXR55100000 100k0 R107 FCXR55100000 100k0 R108 FCXR55100000 100k0 R109 FCXR55100000 100k0 R110 FCXR55100000 100k0 R111 FCXR55100000 100k0 R112 FCXR52178000 R113 FCXR52178000 R114 40-0158-0101 M03-05 HAK380.xls 10 of 20...
  • Page 18 R159 FCXR54237000 23k7 R160 FCXR54237000 23k7 R161 FCXR54237000 23k7 R162 FCXR54162000 16k2 R163 FCXR54162000 16k2 R164 FCXR54162000 16k2 R165 FCXR54162000 16k2 R166 FCXR54348000 34k8 R167 FCXR54348000 34k8 R168 FCXR54348000 34k8 R169 FCXR54348000 34k8 R170 40-0158-0101 M03-05 HAK380.xls 11 of 20...
  • Page 19 R215 FCXR55100000 100k0 R216 FCXR54196000 19k6 R217 FCXR54196000 19k6 R218 FCXR54196000 19k6 R219 FCXR54196000 19k6 R220 FCXR54681000 68k1 R221 FCXR54681000 68k1 R222 FCXR54681000 68k1 R223 FCXR54681000 68k1 R224 FCXR54100000 10k0 R225 FCXR54100000 10k0 R226 40-0158-0101 M03-05 HAK380.xls 12 of 20...
  • Page 20 R272 FCXR64243000 24k3 0.5% R273 FCXR64243000 24k3 0.5% R274 FCXR52562000 R275 FCXR52562000 R276 FCXR52562000 R277 FCXR54100000 10k0 R278 FCXR64243000 24k3 0.5% R279 FCXR64243000 24k3 0.5% R280 FCXR64243000 24k3 0.5% R281 FCXR64243000 24k3 0.5% R282 40-0158-0101 M03-05 HAK380.xls 13 of 20...
  • Page 21 R327 FCXR55100000 100k0 R328 FCXR55100000 100k0 R329 FCXR54215000 21k5 R330 FCXR54215000 21k5 R331 FCXR54215000 21k5 R332 FCXR54215000 21k5 R333 FCXR54215000 21k5 R334 FCXR54215000 21k5 R335 FCXR54215000 21k5 R336 FCXR54215000 21k5 R337 FCXR54100000 10k0 R338 40-0158-0101 M03-05 HAK380.xls 14 of 20...
  • Page 22 R383 FCXR55100000 100k0 R384 FCXR55100000 100k0 R385 FCXR54237000 23k7 R386 FCXR54237000 23k7 R387 FCXR55100000 100k0 R388 FCXR55100000 100k0 R389 FCXR55100000 100k0 R390 FCXR55100000 100k0 R391 FCXR51750000 75.0 R392 FCXR51750000 75.0 R393 FCXR55100000 100k0 R394 40-0158-0101 M03-05 HAK380.xls 15 of 20...
  • Page 23 R437 FCPR21703110 50kBx2 R438 FCPR21707000 50kBx2 R439 FCPR21703110 50kBx2 R440 FCPR21703110 50kBx2 R441 FCPR21707000 50kBx2 R442 FCXR63178000 1k78 0.5% R443 FCXR53100000 R444 FCXR53100000 R445 FCXR53100000 R446 FCXR53100000 R447 FCXR53100000 R448 FCXR53100000 R449 FCXR53100000 R450 40-0158-0101 M03-05 HAK380.xls 16 of 20...
  • Page 24 FCXR52562000 R495 FCXR55464000 464k R496 FCXR52562000 R497 FCXR53383000 3k83 R498 FCXR53383000 3k83 R499 FCXR53383000 3k83 R500 FCXR53383000 3k83 R501 FCXR54100000 10k0 R502 FCXR53464000 4k64 R503 FCXR53464000 4k64 R504 FCXR53464000 4k64 R505 FCXR53464000 4k64 R506 40-0158-0101 M03-05 HAK380.xls 17 of 20...
  • Page 25 R551 FCXR51750000 75.0 R552 FCXR53215000 2k15 R553 FCXR53215000 2k15 R554 FCXR53215000 2k15 R555 FCXR53215000 2k15 R556 FCXR54316000 31k6 R557 FCXR54316000 31k6 R558 FCXR54261000 26k1 R559 FCXR54261000 26k1 R560 FCXR55100000 100k0 R561 FCXR55100000 100k0 R562 40-0158-0101 M03-05 HAK380.xls 18 of 20...
  • Page 26 Spacer M3x13 SP101 FCSEPCI02000 Spacer M3x13 SP102 FCSEPCI02000 Spacer M3x13 SP103 FCSEPCI02000 Spacer M3x13 SP104 FCSEPCI02000 Spacer M3x13 SP105 FCSEPCI02000 Spacer M3x13 SP106 FCSEPCI02000 Spacer M3x13 SP107 FCSEPCI02000 Spacer M3x13 SP108 FCSEPCI02000 Spacer M3x13 SP109 40-0158-0101 M03-05 HAK380.xls 19 of 20...
  • Page 27 WI110 FC4J00635000 1006.03.50 WI111 FC4I00515000 1005.01.50 WI112 FC4L00825000 1008.02.50 WI113 FC4K00720000 1007.02.00 WI114 FC4I00520000 1005.02.00 WI115 FC4I00520000 1005.02.00 WI116 FC4R00220000 1002.02.00 WI117 FC4I00515000 1005.01.50 WI118 FC4I00515000 1005.01.50 WI119 FC4I00515000 1005.01.50 WI120 FCCRIS010000 10MHz X101 40-0158-0101 M03-05 HAK380.xls 20 of 20...

  • Page 28: Verification Process

    QUALITY CONTROL All mechanical parts should be visually revised, in order to detect scratches on the unit's painting; all screws should be on their place, correctly tight and unmarked. Check out the unit's general presentation. 51-0171-0100 M03-05 HAK380.doc 1 of 6...
  • Page 29 HAK380 MIXING CONSOLE – VERIFICATION PROCESS WITH MUSIC. Input sensitivities: LINE -10dB PHONO -45dB MICRO -50dB MICRO ATT. -30dB SESSION RETURN INSERT LED levels: MASTER 1 MASTER 2 Output levels: OUT 1 0dB/+6dB (Bal) OUT 2 0dB/+6dB* SEND INSERT AURICULARES 200mW /200Ω...
  • Page 30 When (58) is turned to the right, the crossfader transitions are much more faster. Leave again the XFADER’s NORMAL/REVERSE (59) selection knob to NORMAL, and slide the crossfader to its central position. Repeat this procedure completely on channel 2. 51-0171-0100 M03-05 HAK380.doc 3 of 6...
  • Page 31 • When turned to WET, the unit sends signal from RETURN to the output. Now the output should carry music signal. • Release the FX RETURN selection knob (42). 51-0171-0100 M03-05 HAK380.doc 4 of 6...
  • Page 32 Both led bars of the VU-meter are active. The LEFT-RIGHT indicating led (45) should be on. • Verify the VOLUME control of the headphone section (PHONES). • Verify the MUTE function switch (54). 51-0171-0100 M03-05 HAK380.doc 5 of 6...

  • Page 33: Function Diagram

    FUNCTION DIAGRAM 51-0171-0100 M03-05 HAK380.doc 6 of 6...

  • Page 34: Technical Characteristics

    Kill Filters 200Hz (cut frequency at -6dB) HIGH 6.5kHz Slope 12dB/oct in all the cases 200Hz & 6.5kHz Phantom voltage +18VDC/5mA max. Mains 90-264 VAC 47-63 Hz Power consumption 38VA Dimensions 265x360x80mm Weight *Internally selectable 53-0078-0100 M03-05 HAK380.doc 1 of 1...
  • Page 35 Heat Shrink code: FCMC00TR1000 16.1030.00.80 16.1029.00.80 16.1088.02.50 STICK THE ADHESIVE CLIP TO THE CHASSIS SIDEWALL CABLE TIE FCBRID18R000 FERRITE CORE 17/9.5/13...
  • Page 37 1 FRBASRE30100 MAINS SOCKET W/SWITCH 2xFUSE=500mA 25 2 FRBOT07X9010 BUTTON 7X9 CHROME 26 4 FRBOTD003000 HAK FADER KNOB 27 3 FRBOTD004000 LITTLE FADER KNOB CHROME 28 1 FRLEXHAK3800 FADERS FRONT PANEL 29 2 GENERIC FADER/XFADER 2X100K 45MM ECLER Jordi Folch 060531 M03-05 HAK380 ECLER...
  • Page 38 1 FCCONX017500 MAINS CABLE 3x1 1 FCETI0951140 PRODUCT LABEL PACK (ONE FOR EACH UNIT) 1 FCETIECL1000 ECLER STICKER 300x50 1 FCFUNMAN0000 USER MANUAL BAG 1 FCMANHAK3800 USER MANUAL HAK380 1 FCTARJG00000 WARRANTY CARD 1 GENERIC ELECTRONIC XFADER 2X100K 45MM ECLER Jordi Folch 060224...
