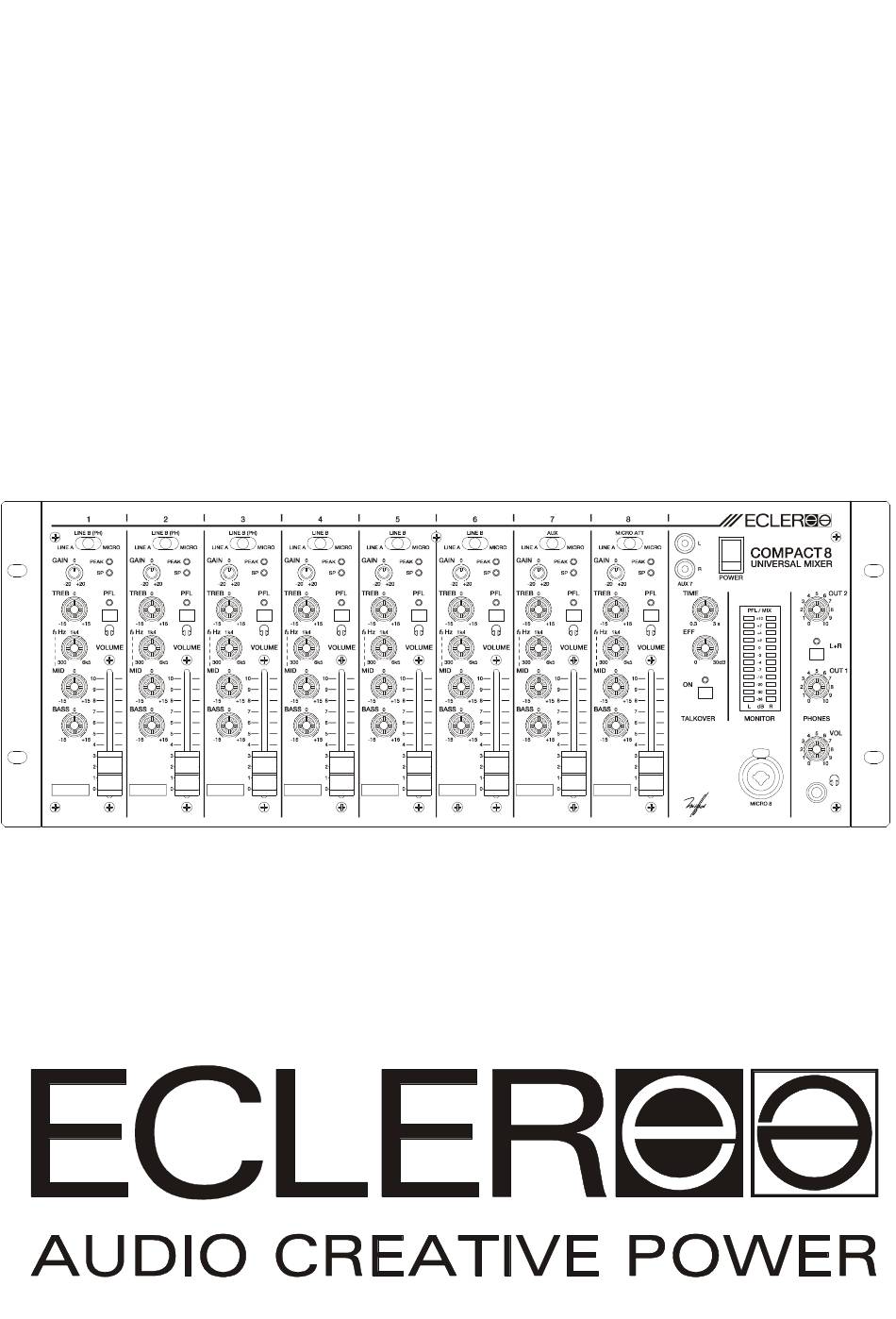

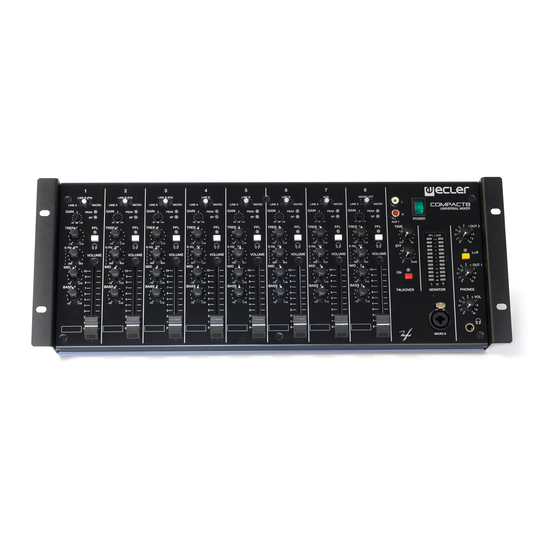

  • Page 1 COMPACT 8 SERVICE MANUAL...
  • Page 2 SERVICE MANUAL COMPACT 8 INDEX - BLOCK DIAGRAM - SCHEMATICS - COMPONENTS LOCATION SCHEMA - TESTING AND QUALITY CONTROL - TECHNICAL CHARACTERISTICS - WIRING DIAGRAM - CONFIGURATION DIAGRAM - MECHANICAL DIAGRAM - PACKING DIAGRAM...
  • Page 12 FCXCD4100000 100n C146 FCXCD4100000 100n C147 FCXCD4100000 100n C148 FCXCD4100000 100n C149 FCXCD4100000 100n C150 FCXCD4100000 100n C151 FCXCD4100000 100n C152 FCCE10000000 47u/16 C153 FCCE10000000 47u/16 C154 FCCE10000000 47u/16 C155 FCCE10000000 47u/16 C156 40-0161-0101 M07-05 COMPACT 8.xls 1 of 28...
  • Page 13 FCCDK1010000 C10n C202 FCCDK1010000 C10n C203 FCCDK1010000 C10n C204 FCCDK5027000 C27n C205 FCCDK5027000 C27n C206 FCCDK5027000 C27n C207 FCCDK5027000 C27n C208 FCCE10000000 47u/16 C209 FCCE10000000 47u/16 C210 FCCE10000000 47u/16 C211 FCCE10000000 47u/16 C212 40-0161-0101 M07-05 COMPACT 8.xls 2 of 28...
  • Page 14 FCCDK1003300 C3n3 C258 FCCDK1003300 C3n3 C259 FCCDK1003300 C3n3 C260 FCCE10000000 47u/16 C261 FCCE10000000 47u/16 C262 FCCE10000000 47u/16 C263 FCCE10000000 47u/16 C264 FCCE25010000 10u/50 C265 FCCE25010000 10u/50 C266 FCXCD4100000 100n C267 FCXCD4100000 100n C268 40-0161-0101 M07-05 COMPACT 8.xls 3 of 28...
  • Page 15 FCCE10000000 47u/16 C314 FCXCD4100000 100n C315 FCXCD4100000 100n C316 FCXCD4100000 100n C317 FCXCD4100000 100n C318 FCCDK1033000 C33n C319 FCCDK1033000 C33n C320 FCCDK1033000 C33n C321 FCCDK1033000 C33n C322 FCCDK1002200 C2n2 C323 FCCDK1002200 C2n2 C324 40-0161-0101 M07-05 COMPACT 8.xls 4 of 28...
  • Page 16 C368 FCCE10000000 47u/16 C369 FCCE10000000 47u/16 C370 FCCE10000000 47u/16 C371 FCCE10000000 47u/16 C372 FCCE10000000 47u/16 C373 FCCE10000000 47u/16 C374 FCXCD1150000 C375 FCXCD1150000 C376 FCXCD1150000 C377 FCXCD1150000 C378 FCXCD4100000 100n C379 FCXCD4100000 100n C380 40-0161-0101 M07-05 COMPACT 8.xls 5 of 28...
  • Page 17 FCCE10000000 47u/16 C426 FCCE10000000 47u/16 C427 FCCE10000000 47u/16 C428 FCXCD4100000 100n C429 FCXCD4100000 100n C430 FCXCD4100000 100n C431 FCXCD4100000 100n C432 FCCE10000000 47u/16 C433 FCCE10000000 47u/16 C434 FCCE10000000 47u/16 C435 FCCE10000000 47u/16 C436 40-0161-0101 M07-05 COMPACT 8.xls 6 of 28...
  • Page 18 47u/16 C481 FCCE10000000 47u/16 C482 FCCE25010000 10u/50 C483 FCCE25010000 10u/50 C484 FCXCD4100000 100n C485 FCXCD4100000 100n C486 FCXCD4100000 100n C487 FCXCD4100000 100n C488 FCXCD4100000 100n C489 FCXCD4100000 100n C490 FCXCD1330000 C491 FCXCD1330000 C492 40-0161-0101 M07-05 COMPACT 8.xls 7 of 28...
  • Page 19 FCCE10000000 47u/16 C538 FCCE10000000 47u/16 C539 FCXCD2100000 100p C540 FCXCD2100000 100p C541 FCXCD2100000 100p C542 FCXCD2100000 100p C543 FCXCD2100000 100p C544 FCXCD2100000 100p C545 FCXCD2100000 100p C546 FCXCD2100000 100p C547 FCCE05000000 220u/10 C548 40-0161-0101 M07-05 COMPACT 8.xls 8 of 28...
  • Page 20 FCLEDSMD2000 TLMH3100 D108 FCLEDSMD2500 TLMY3100 D109 FCLEDSMD2500 TLMY3100 D110 FCXDDBAS2800 BAS28 D111 FCXDDBAS2800 BAS28 D112 FCXDDBAS1600 BAS16 D113 FCXDDBAS1600 BAS16 D114 FCLEDSMD3000 TLMG3100 D115 FCLEDSMD3000 TLMG3100 D116 FCLEDSMD2000 TLMH3100 D117 FCLEDSMD2000 TLMH3100 D118 40-0161-0101 M07-05 COMPACT 8.xls 9 of 28...
  • Page 21 FCLEDSMD3000 TLMG3100 D164 FCLEDSMD3000 TLMG3100 D165 FCLEDSMD3000 TLMG3100 D166 FCLEDSMD3000 TLMG3100 D167 FCLEDSMD3000 TLMG3100 D168 FCLEDSMD3000 TLMG3100 D169 FCIC4580E000 NJM4580E IC101 FCIC4580E000 NJM4580E IC102 FCIC4580E000 NJM4580E IC103 FCIC4580E000 NJM4580E IC104 FCIC4580E000 NJM4580E IC105 40-0161-0101 M07-05 COMPACT 8.xls 10 of 28...
  • Page 22 IC151 FCIC07201000 TL072 IC152 FCIC07201000 TL072 IC153 FCIC07201000 TL072 IC154 FCIC07201000 TL072 IC155 FCIC4580E000 NJM4580E IC156 FCIC07201000 TL072 IC157 FCOPTVTL5000 VTL 5C8 IC158 FCOPTVTL5000 VTL 5C8 IC159 FCIC07201000 TL072 IC160 FCIC07201000 TL072 IC161 40-0161-0101 M07-05 COMPACT 8.xls 11 of 28...
  • Page 23 FCBASX100000 YKF52-5003 J157 FCBASX100000 YKF52-5003 J158 FCCTM0003000 B3B-EH-A J159 FCBASJ020000 YKB21-5009 J160 FCCHK0068000 68uH L101 FCCHK0068000 68uH L102 FCIND0040000 220uH L103 FP0289300000 Shielding Plate MP100 FP0289300000 Shielding Plate MP101 FP0289300000 Shielding Plate MP102 40-0161-0101 M07-05 COMPACT 8.xls 12 of 28...
  • Page 24 FCXR53511000 5k11 R138 FCXR53511000 5k11 R139 FCXR53511000 5k11 R140 FCXR54464000 46k4 R141 FCXR54464000 46k4 R142 FCXR54464000 46k4 R143 FCXR54464000 46k4 R144 FCXR55100000 100k0 R145 FCXR55100000 100k0 R146 FCXR55100000 100k0 R147 FCXR55100000 100k0 R148 40-0161-0101 M07-05 COMPACT 8.xls 13 of 28...
  • Page 25 FCXR52100000 100.0 R194 FCXR53348000 3k48 R195 FCXR53348000 3k48 R196 FCXR55100000 100k0 R197 FCXR53348000 3k48 R198 FCXR55100000 100k0 R199 FCXR53348000 3k48 R200 FCXR55100000 100k0 R201 FCXR53348000 3k48 R202 FCXR53348000 3k48 R203 FCXR53348000 3k48 R204 40-0161-0101 M07-05 COMPACT 8.xls 14 of 28...
  • Page 26 FCXR55464000 464k R250 FCXR53562000 5k62 R251 FCXR55464000 464k R252 FCXR53562000 5k62 R253 FCXR55464000 464k R254 FCXR53562000 5k62 R255 FCXR55464000 464k R256 FCPR21707000 50kBx2 R257 FCPR21707000 50kBx2 R258 FCXR53562000 5k62 R259 FCXR55464000 464k R260 40-0161-0101 M07-05 COMPACT 8.xls 15 of 28...
  • Page 27 FCXR53464000 4k64 R306 FCXR54215000 21k5 R307 FCXR54215000 21k5 R308 FCXR54215000 21k5 R309 FCXR54215000 21k5 R310 FCXR55100000 100k0 R311 FCXR55100000 100k0 R312 FCXR55100000 100k0 R313 FCXR55100000 100k0 R314 FCXR55464000 464k R315 FCXR55287000 287k R316 40-0161-0101 M07-05 COMPACT 8.xls 16 of 28...
  • Page 28 FCXR55100000 100k0 R362 FCXR55100000 100k0 R363 FCXR55100000 100k0 R364 FCXR53825000 8k25 R365 FCXR53825000 8k25 R366 FCXR55100000 100k0 R367 FCXR55100000 100k0 R368 FCXR52100000 100.0 R369 FCXR52100000 100.0 R370 FCXR55100000 100k0 R371 FCXR55100000 100k0 R372 40-0161-0101 M07-05 COMPACT 8.xls 17 of 28...
  • Page 29 FCXR54100000 10k0 R418 FCXR54100000 10k0 R419 FCXR53316000 3k16 R420 FCXR54100000 10k0 R421 FCXR53316000 3k16 R422 FCXR54100000 10k0 R423 FCXR53316000 3k16 R424 FCXR54100000 10k0 R425 FCXR53316000 3k16 R426 FCXR54215000 21k5 R427 FCXR54215000 21k5 R428 40-0161-0101 M07-05 COMPACT 8.xls 18 of 28...
  • Page 30 FCXR53464000 4k64 R474 FCXR54316000 31k6 R475 FCXR54316000 31k6 R476 FCXR54316000 31k6 R477 FCXR54316000 31k6 R478 FCXR55100000 100k0 R479 FCXR54316000 31k6 R480 FCXR54316000 31k6 R481 FCXR55100000 100k0 R482 FCXR54316000 31k6 R483 FCXR54316000 31k6 R484 40-0161-0101 M07-05 COMPACT 8.xls 19 of 28...
  • Page 31 FCXR55464000 464k R530 FCXR54100000 10k0 R531 FCXR53316000 3k16 R532 FCXR54100000 10k0 R533 FCXR53316000 3k16 R534 FCXR54100000 10k0 R535 FCXR53316000 3k16 R536 FCXR54100000 10k0 R537 FCXR53316000 3k16 R538 FCPR21703100 50kBx2cc R539 FCXR54100000 10k0 R540 40-0161-0101 M07-05 COMPACT 8.xls 20 of 28...
  • Page 32 FCXR55287000 287k R584 FCXR53100000 R585 FCXR53100000 R586 FCXR53100000 R587 FCXR53100000 R588 FCXR54196000 19k6 R589 FCXR52825000 R590 FCXR54196000 19k6 R591 FCXR52825000 R592 FCXR55100000 100k0 R593 FCXR55100000 100k0 R594 FCXR55383000 383k R595 FCXR55383000 383k R596 40-0161-0101 M07-05 COMPACT 8.xls 21 of 28...
  • Page 33 FCXR55464000 464k R642 FCPR21707000 50kBx2 R643 FCPR21707000 50kBx2 R644 FCXR53562000 5k62 R645 FCXR55464000 464k R646 FCXR53562000 5k62 R647 FCXR55464000 464k R648 FCXR53562000 5k62 R649 FCXR55464000 464k R650 FCXR53562000 5k62 R651 FCXR55464000 464k R652 40-0161-0101 M07-05 COMPACT 8.xls 22 of 28...
  • Page 34 100k0 R697 FCXR55100000 100k0 R698 FCXR55100000 100k0 R699 FCXR55100000 100k0 R700 FCXR55464000 464k R701 FCXR55287000 287k R702 FCXR55287000 287k R703 FCXR55464000 464k R704 FCXR55287000 287k R705 FCXR55287000 287k R706 FCXR53100000 R707 FCXR53100000 R708 40-0161-0101 M07-05 COMPACT 8.xls 23 of 28...
  • Page 35 FCXR53100000 R751 FCXR55237000 237k R752 FCXR55100000 100k0 R753 FCXR55100000 100k0 R754 FCXR53316000 3k16 R755 FCXR53100000 R756 FCXR53100000 R757 FCRJC5220000 R758 FCRJC5220000 R759 FCXR55100000 100k0 R760 FCXR53100000 R761 FCXR53100000 R762 FCXR53100000 R763 FCXR53100000 R764 40-0161-0101 M07-05 COMPACT 8.xls 24 of 28...
  • Page 36 FCXR54100000 10k0 R810 FCXR54100000 10k0 R811 FCXR54100000 10k0 R812 FCXR54100000 10k0 R813 FCXR54100000 10k0 R814 FCXR54100000 10k0 R815 FCXR54100000 10k0 R816 FCXR54100000 10k0 R817 FCXR54100000 10k0 R818 FCXR54100000 10k0 R819 FCXR54100000 10k0 R820 40-0161-0101 M07-05 COMPACT 8.xls 25 of 28...
  • Page 37 75.0 R863 FCXR53215000 2k15 R864 FCXR53215000 2k15 R865 FCXR53100000 R866 FCXR53100000 R867 FCXR53100000 R868 FCXR53100000 R869 FCXR53100000 R870 FCXR53100000 R871 FCXR53100000 R872 FCXR53100000 R873 FCINTAP13000 8019L S101 FCINTAP13000 8019L S102 FCINTAP13000 8019L S103 40-0161-0101 M07-05 COMPACT 8.xls 26 of 28...
  • Page 38 FCSEPCI02000 Spacer M3x13 SP120 FCSEPCI02000 Spacer M3x13 SP121 FCSEPCI02000 Spacer M3x13 SP122 FC1I11430000 1114.03.00 WI101 FC4K00720000 1007.02.00 WI102 FC4K00720000 1007.02.00 WI103 FC4K00720000 1007.02.00 WI104 FC4K00720000 1007.02.00 WI105 FC4K00720000 1007.02.00 WI106 FC4K00720000 1007.02.00 WI107 40-0161-0101 M07-05 COMPACT 8.xls 27 of 28...
  • Page 39 PARTS LIST: PRINTED CIRCUIT 11.1045.03.00 Code Description Reference FC1I11430000 1114.03.00 WI108 FC4K00720000 1007.02.00 WI109 FC4K00720000 1007.02.00 WI110 FC0C01220000 1012.02.00 WI111 FC0C01220000 1012.02.00 WI112 FC4I00510000 1005.01.00 WI113 40-0161-0101 M07-05 COMPACT 8.xls 28 of 28...
  • Page 42 PARTS LIST: Printed Board 11.0914 Code Description Reference FCCIM0914000 Printed Board 11.0914 CI101 FCCTM1005000 S5B-EH J101 FXPOTD600150 RS60N 10kB R101 40-0161-0100 M07-05 COMPACT 8.xls 1 of 1...

  • Page 43: Verification Process

    M07-05 COMPACT 8 ECLER J. Colomines 051128 author: date: project: product: approved: title: VERIFICATION PROCESS 51.0156 01.00 num: version: BURNING TEST Leave the unit connected to its nominal mains voltage during 24 hours. SAFETY VERIFICATION TESTS Preliminary: Unplug the unit to be tested from the mains outlet.
  • Page 44 COMPACT 8 MIXING CONSOLE – VERIFICATION PROCESS WITH MUSIC. Input sensitivities: LINE A LINE B AUXILIAR PHONO -40dB MICRO -50dB MICRO ATT. -30dB LED levels: LED SP -40dB LED CLIP +10dB Output levels: OUT 1 0dB/+6dB* (Bal) OUT 2 0dB/+6dB* AURICULARES 200mW /200Ω...
  • Page 45 VERIFICATION Connect the mixing console to the 230Vac mains socket. Turn ON the main power switch and check it’s LED, as it should light up. The unit’s output signal will be checked at it’s REC output. Before applying any input signal, verify that when manipulating and switching the input selection knobs (LINE A - LINE B (PHONO) –...
  • Page 46 Repeat this procedure on all the input channels. Input 7 has additionally a front side RCA-type input connection, and input 8 has also a front-side combo-type XLR+JACK connection to use with a microphone. Verify output OUT 1 (bal). • Change the output checking connection to OUT 1 (bal), verify the sound quality, the OUT 1 volume control sweep (scratch-noise and attenuation).

  • Page 47: Technical Characteristics

    0 / -30 dB Signal Present indicators LINE -40dB MICRO -90dB Clip indicators +10dB Phantom voltage +18VDC/5mA max. Mains 90-264VAC 47-63Hz Power consumption 33VA Dimensions Panel 482,6x177mm Depth 221,6mm Weight 5,2kg (*) Internally selectable 53-0077-0100 M07-05 COMPACT 8.doc 1 of 1...

  • Page 50: Mechanical Diagram

    1 FRBASRE20680 MAINS SOCKET AC013 W/FUSE 500mA 29 8 FRBOTDES0600 STANDARD FADER KNOB NOTE: TO VIEW GENERAL AND GROUND CABLES POSITION, SEE WIRING DIAGRAM NUMBER 31.0214 11 mm Jordi Folch 060208 M07-05 COMPACT8 ECLER drawn: date: project: product: approved: title: MECHANICAL DIAGRAM 30.0219 01.01...

  • Page 51: Packing Diagram

    2 FCCANT125000 PACKING REINFORCEMENT 1 FCCONX017500 MAINS CABLE 3x1 1 FCETI0504000 STICKERS FOR INPUTS LABELLED 1 FCETI0951140 PRODUCT LABEL PACK (ONE FOR EACH UNIT) 1 FCETIECL1000 ECLER STICKER 300x50 1 FCFUNMAN0000 USER MANUAL BAG 1 FCMANCOMP800 USER MANUAL COMPACT8 4 FCPIE1125500 RUBBER FOOT...
