CAMDEN CX-DE502SO Installation Instructions

D o o r Ac t iv a ti o n D e v i c e s
CX-DE502SO Remote Annunciator
INSTALLATION INSTRUCTIONS
THIS PACKAGE INCLUDES:
(1) Foam Gasket
(2) #6-32 Tamperproof screws

1. GENERAL DESCRIPTION

CAMDEN DOOR CONTROLS CX-DE502SO LED Sounder Annunciator is
designed for industrial and commercial applications, where both audible
and visual indication is required. The RGB LED is capable of visually
displaying three distinct colors for designated states: red, green and
yellow.
The faceplate is Stainless Steel with a piezo and tri-colour LED. This unit
requires 12/24V AC/DC to operate.

2. APPLICATION

Camden LED Annunciator with sounder is ideal for applications that
require a visual and audible indicator such as a remote annunciator
station for delayed egress locks, emergency call or access control
alarms. It can be surface or flush mounted. Camden LED Annunciator is
designed to be controlled by delayed egress maglocks, automatic doors,
emergency call systems and other low voltage systems.

3. WIRING

Device Wire Color
Red
Green
RGB LED
White
Sounder Red
Black
PWR PWR
+ -
+ -
(2) #6-32 1" SS FLT HD screws
(1) Tamper proof driver
Connection
+ 12 VDC
+12 VDC
Negative
+ 12 VDC
Negative
CX-DE1200 Delayed Egress Wiring
Ex-Trig Reset R-Exit
GRN Rly
RED Rly
C
NO C NC NO NC
NO

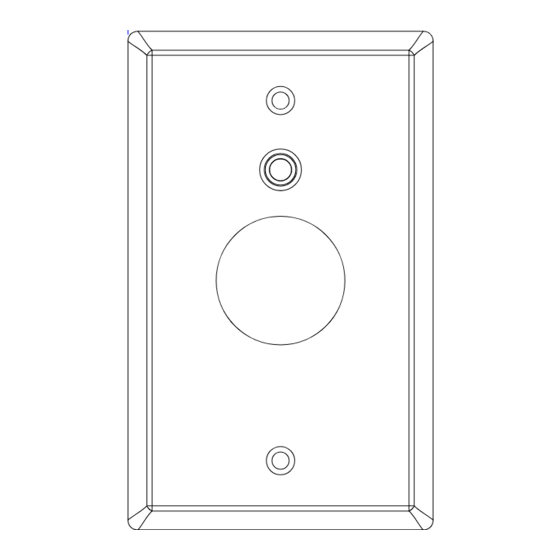

4. FRONT AND SIDE - CX-DE502SO

3
''
2
4
3
''
2
4
[69.9mm]
[69.9mm]
Bypass
C NO
C NO C
NO C
1
4 ''
1
4 ''
[7.1mm]
[7.1mm]
4 1 2 ''
4 1 2 ''
[114.3mm]
[114.3mm]
DPS Bond-S
C NC NO C
NO NC
RED
WHT
GRN
RED
B
BLK
1
''
4
1
''
[5.3mm]
4
[5.3mm]
1''
[24.6mm] 1''
[24.6mm]
CX DE502SO
Remote
Audible-
Visual Station
Page 1 of 2
