FT Technologies Acu-Res Acu-Vis 2.0 User Manual page 5

1.2 Acu-Vis 2.0 Software Operation: Digital RS485 Sensors
Acu-Vis 2.0 opens on the Connect display window - press the green 'CONNECT' button to begin a user session,
the program will detect the wind sensor if it is powered up and operating normally. If the sensor is in Continuous
Update mode Acu-Vis 2.0 will disable it (and provide an option at the end of the session to re-enable it).
1. The Acu-Test cable serial number
2. About Window: FT Technologies contact information and software build versions
3. Language selection options: English, French, Chinese, Spanish, Japanese and Korean

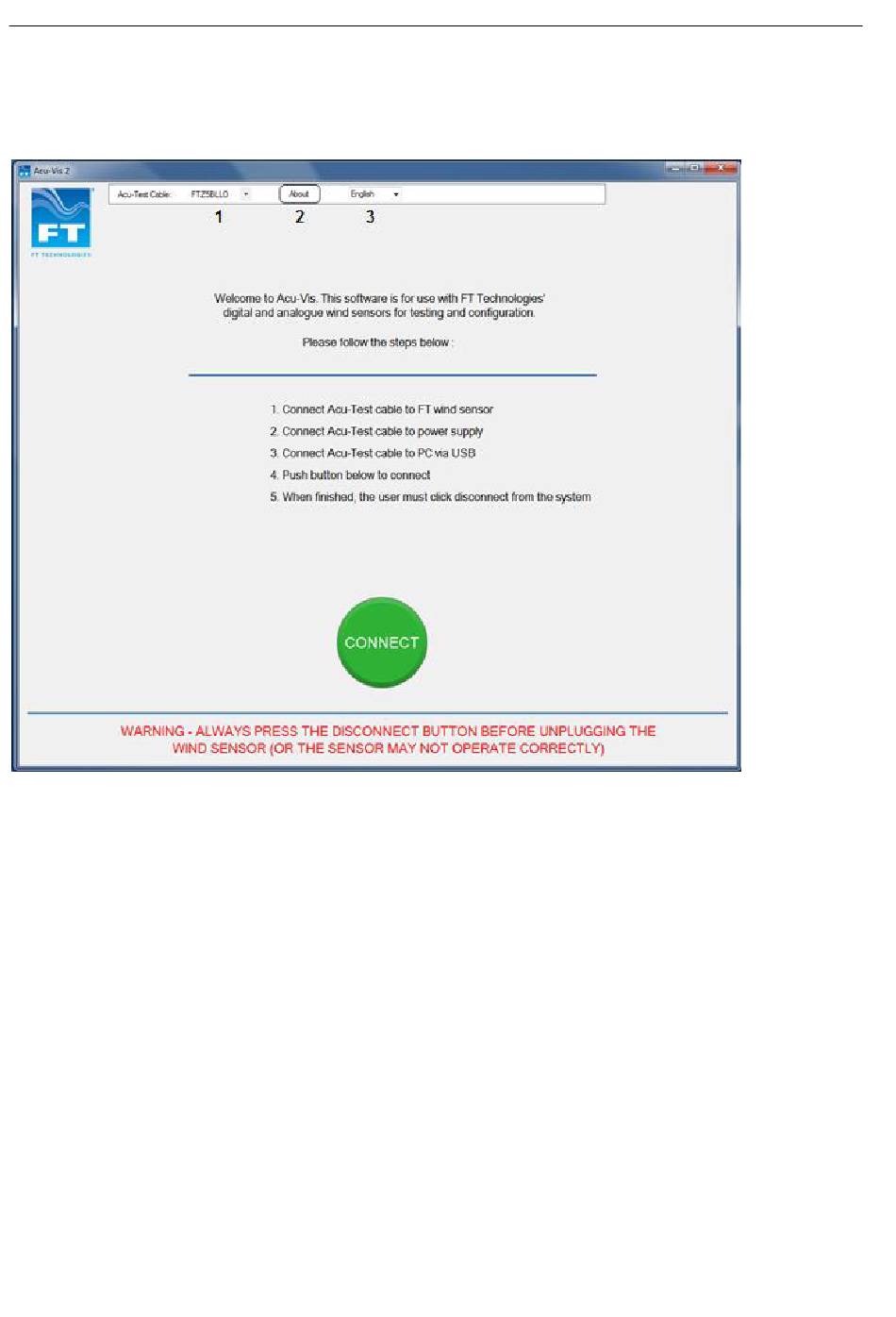

Figure 5: The Acu-Vis Home Screen
