Interface Description - Epcom EP20-TB-4G User Manual

 Linkage between uplink and downlink gain, keeping uplink and downlink balanced.

MTBF can be up to 100,000 hours

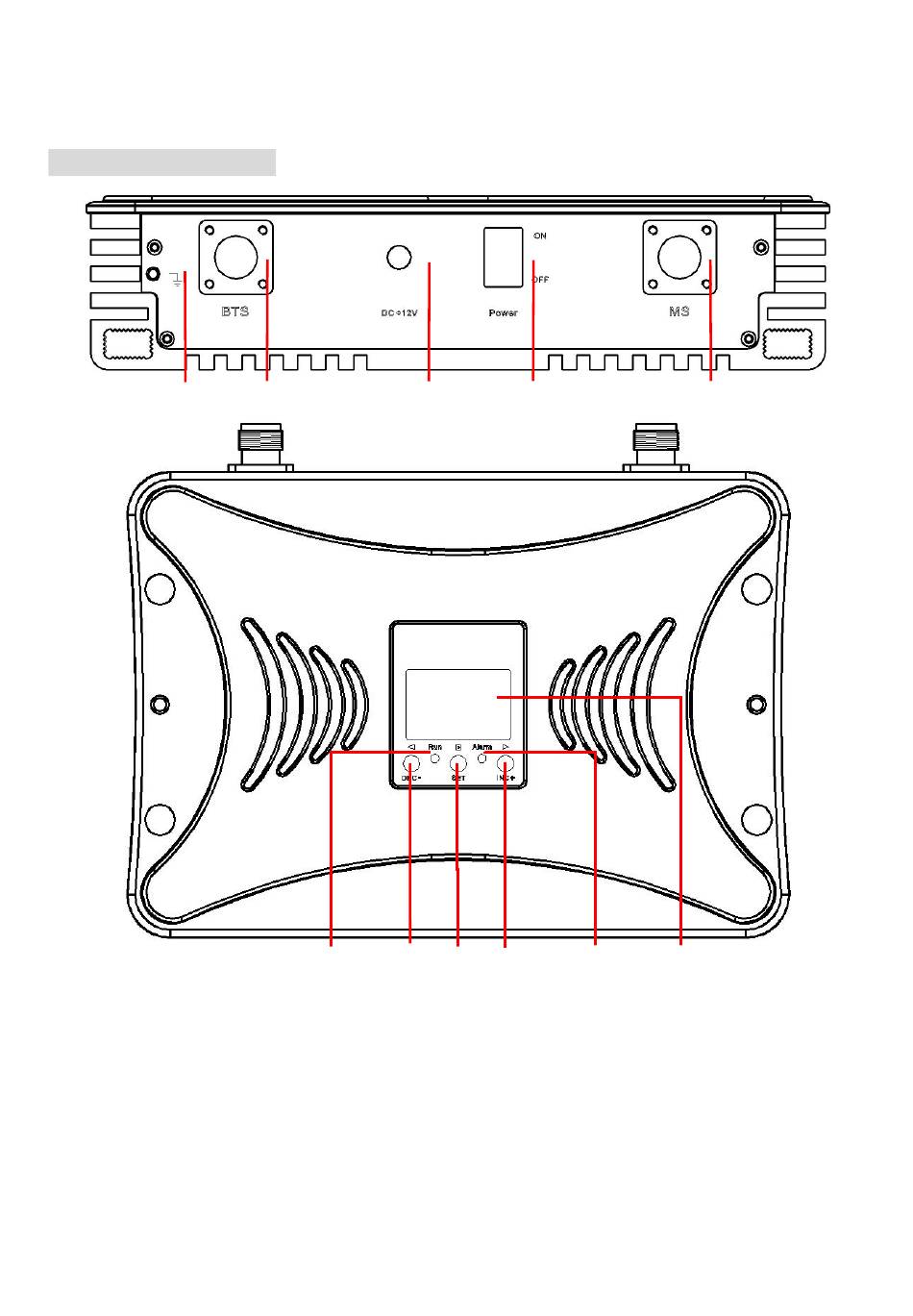

Interface Description

A C D B
E
G
K J I
H
F
 A: N - Female Connector to outdoor antenna
 B: N - Female Connector to indoor antenna
 C: DC power supply plug-in
 D: Power switch
 E: Grounding screw
 F: Push to increase gain value
 G: Push to decrease gain value
 H: Push to select or to next line
 I : LCD Screen
