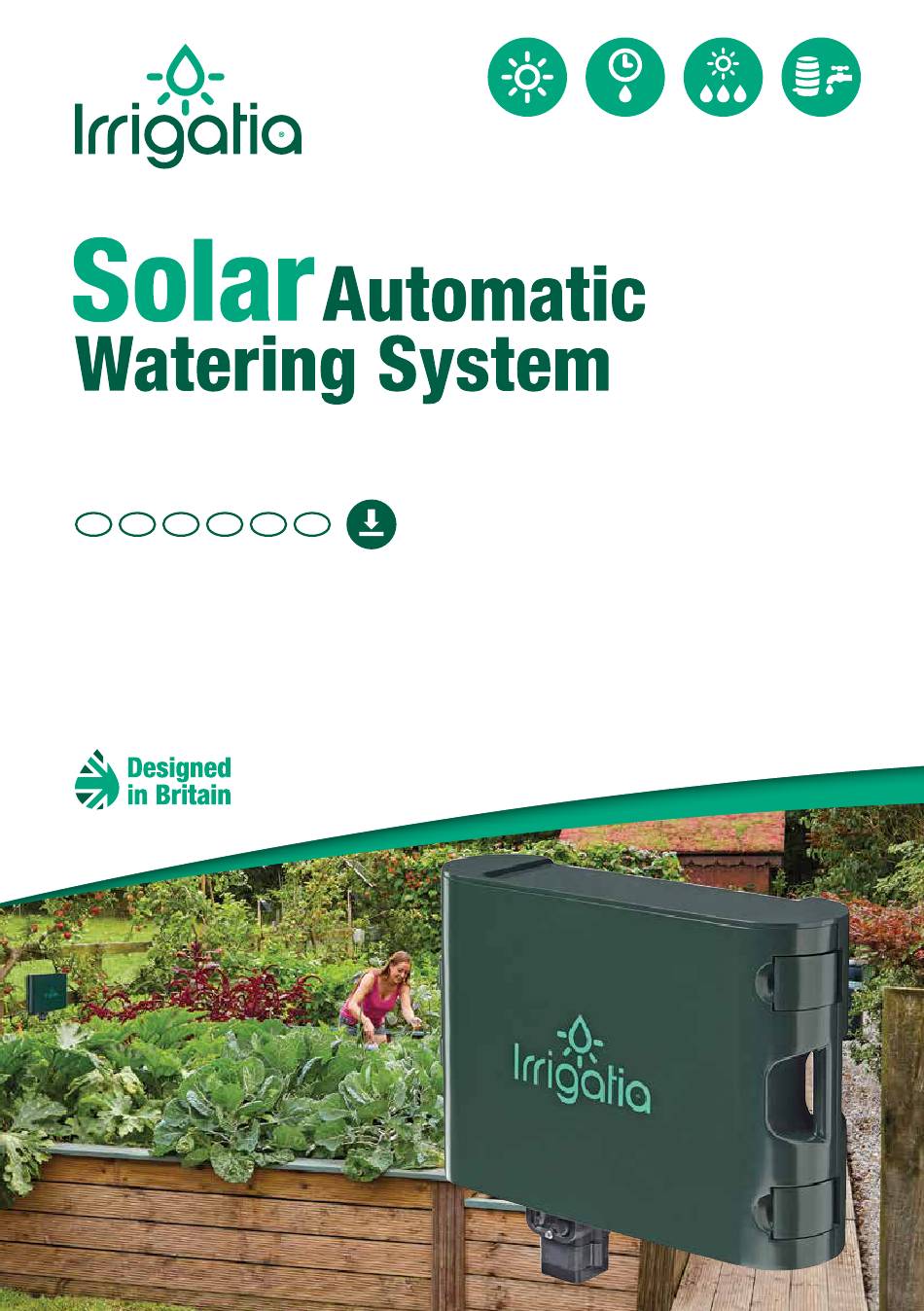

- Page 1 SOLAR WATERS EVERY MORE SUN = USE WITH A POWERED 3 HRS MORE WATER WATER TANK OR TAP Instructions: Irrigatia Tank Series irrigatia.com/tank-series...
- Page 2 Contents Tank series controller Water level sensor Solar Panel with 5m 1 x inline filter + with main pump and lead (model shown is 2 x 13mm adaptors secondary feed pump the C120) 1 x foot strainer + 1 x 25m roll of 1 x 2.5m 3.5mm tube 1 x 4mm punch 2 x 13mm adaptors &...
- Page 3 User Instructions for Irrigatia Tank Series Standard Set-up Figure 1 1. Tank 2. Foot strainer 3. Isolation valve 4. Pump 5. Inline filter 6. Solar panel 7. Regulating valve 8. Anti-siphon device 9. Valved connector for ext kits 10. Nipple connector...
- Page 4 The kit is supplied with a choice of water pumps. than the diaphragm pump. As it is submerged it does not require priming. In a typical situation it will deliver 50% Internal diaphragm pump. (fig 1) This pump delivers more water per week from the same amount of solar about 1.5lpm at 3 bar pressure and is ideal for use where power, but it will be at a lower pressure which reduces the the outlets are 2 –...
- Page 5 Foot Strainer Standard Pump Top entry Vertical Resting on tank bottom (see fig 5) Figure 5 Water Level Sensor The water level sensor should be secured so that the is a nuisance it can be silenced by unplugging it from the higher probe is at least 3cm higher than the water inlet.
- Page 6 15m of small bore tube.) Cut and join the pipe using nipple to connect with the distribution pipe. the tees to make a network which reaches all of the plants. Remember the rules for even watering apply especially where there are more than 12 drippers per outlet, see: irrigatia.com/how-it-works/principles-of-good-installation...
- Page 7 Starting up Battery case Open regulating and isolation valves (3&7 in drawings) fully – handle in line with tube. Ensure there is water flow to the pump. Circuit board Open the case. Main pump • Unplug the feed pump from the circuit board – marked as pump 2 on the board.
- Page 8 Detailed instructions can be found at: irrigatia.com/how-it-works/setuptank-series SOL-C60 SOL-C120 SOL-C180 60x 120x 120x 120x 240x 50x 120m 180x 180x 360x 75x 180m For further information on this or any of the other products in our range, please visit: www.irrigatia.com...
