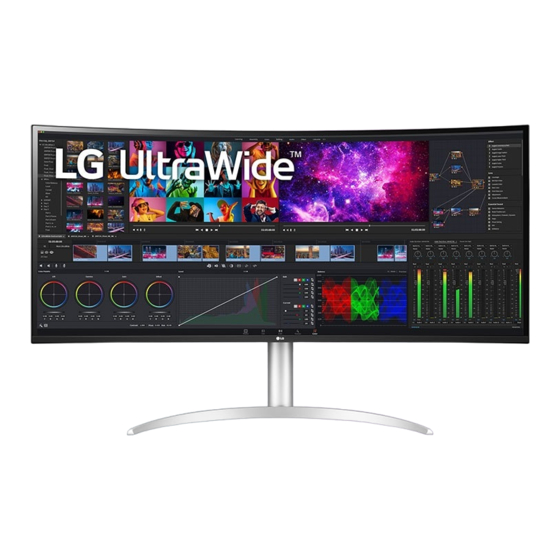

LG 38BQ85C Owner's Manual

Hide thumbs Also See for 38BQ85C:

Advertisement

Quick Links

Download this manual
* LG LED Monitor applies LCD screen with LED backlights.
Please read this manual carefully before operating your set and
retain it for future reference.
38BQ85C
Questo manuale d'istruzione è fornito da trovaprezzi.it. Scopri tutte le offerte per
cerca il tuo prodotto tra le
migliori offerte di Monitor
OWNER'S MANUAL
LED LCD MONITOR
(LED Monitor*)
Copyright © 2021 LG Electronics Inc. All Rights Reserved.
LG 38BQ85C-W
o
www.lg.com

Advertisement

loading

Related Manuals for LG 38BQ85C

Summary of Contents for LG 38BQ85C

  • Page 1 Monitor OWNER’S MANUAL LED LCD MONITOR (LED Monitor*) * LG LED Monitor applies LCD screen with LED backlights. Please read this manual carefully before operating your set and retain it for future reference. 38BQ85C www.lg.com...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS LICENSE Each model has different licenses. Visit www.lg.com for more information on the license. LICENSE ............2 The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of OPEN SOURCE SOFTWARE NOTICE HDMI Licensing Administrator, Inc.

  • Page 3: Open Source Software Notice

    Supported Drivers and Software LG Electronics will also provide open source code to you on CD-ROM for a charge covering the cost of performing such distribution (such as the cost of media, shipping, and handling) upon email request to opensource@lge.com.
  • Page 4 Product and Button Description Moving and Lifting the Monitor When moving or lifting the monitor, follow these instructions to prevent the monitor from being scratched or damaged and to ensure safe transportation, regardless of its shape or size. • Place the monitor in the original box or packing material before attempting to move it. •...
  • Page 5 Installing on a Table Adjusting the Stand Height • Lift the monitor and place it on the table in an upright position. Place the monitor at least 100 mm away from Place the monitor mounted on the stand base in an upright position. the wall to ensure sufficient ventilation.
  • Page 6 Adjusting the Angle Using the Kensington Lock The connector for the Kensington security system is located at the bottom of the monitor. Place the monitor mounted on the stand base in an upright position. For more information on installation and usage, refer to the Kensington lock owner’ s manual or visit the website Adjust the angle of the screen.
  • Page 7 Alternatively, please refer to the manual for how to install and set up a tilting wall mounting bracket. NOTE • A non-VESA standard screw may damage the product and cause the monitor to fall. LG Electronics is not liable for any accidents relating to the use of non-standard screws. 100 mm •...
  • Page 8 • Installing the monitor on the ceiling or on a slanted wall may result in the monitor falling off, which could lead to injury. Use an authorized LG wall mount and contact the local dealer or qualified personnel. • Applying excessive force when tightening screws may cause damage to the monitor. Damage caused in this way will not be covered by the product warranty.

  • Page 9: Using The Monitor

    USING THE MONITOR DisplayPort Connection Transmits digital video and audio signals from your PC to the monitor. • Illustrations in this manual may differ from actual product. NOTE Press the tact key button, go to Settings Input, and then select the input option. •...
  • Page 10 Connecting LAN Connecting AV Devices LAN connection HDMI Connection Connect the router or switch to the monitor. HDMI transmits digital video and audio signals from your AV device to the monitor. NOTE NOTE • • The LAN cable is sold separately. Using a DVI to HDMI / DP (DisplayPort) to HDMI cable may cause compatibility issues.
  • Page 11 Connecting Peripherals Headphones Connection Connect peripherals to the monitor via the headphones port. USB Device connection NOTE The USB port on the product functions as a USB hub. • Peripheral devices are sold separately. • Depending on the audio settings of the PC and external device, headphones and speaker functions may be NOTE limited.

  • Page 12: User Settings

    USER SETTINGS NOTE • Your monitor’ s OSD (On Screen Display) may differ slightly from that shown in this manual. Activating the Main Menu Press the joystick button on the bottom of the monitor. Move the joystick up/down and left/right to set the options. Press the joystick button once more to exit the main menu.
  • Page 13 Main Menu Features Main Menu Description Input Sets input mode. Power Off Power Off Turns off the monitor. Settings Configures the screen settings. Exit Input Settings Picture Mode Sets the picture mode. Exit Exits the main menu. Picture Mode Menu Settings To view the OSD menu, press the joystick button at the bottom of the monitor and then enter the Settings.
  • Page 14 Quick Settings Settings > Quick Settings Description Brightness Adjusts the brightness of the screen. Auto Brightness Optimizes the brightness automatically for surrounding illuminance. Contrast Adjusts the contrast of the screen. Adjusts the volume. Volume NOTE • You can adjust Mute / Unmute by moving the joystick button to in the Volume menu. Set your own color temperature.
  • Page 15 Input Settings > Input Description Input List Selects the input mode. When automatic input switch is set to On, display will automatically switch to new input when connected. Auto Input Switch Enables Auto Input Switch. Disables Auto Input Switch. Adjusts the aspect ratio of the screen. Aspect Ratio Full Wide Displays the video in widescreen, regardless of the video signal input.
  • Page 16 Picture NOTE • The Picture Mode that can be set depends on the Input signal. [Picture Mode on SDR (Non-HDR) signal] Settings > Picture Description Custom Allows the user to adjust each element. Vivid Heightens contrast, brightness and sharpness to display vivid images. HDR Effect Optimizes the screen for high dynamic range.
  • Page 17 [Picture Mode on HDR signal] Settings > Picture Description Custom Allows the user to adjust each element. Vivid Optimized the screen for HDR vivid colors. Cinema Optimized the screen for HDR video. This mode is optimized for FPS games.It is suitable for very dark FPS games. Picture Mode This mode is optimized for RTS Game.
  • Page 18 Settings > Picture Description Brightness Adjusts the brightness of the screen. Auto Brightness Optimizes the brightness automatically for surrounding illuminance. Contrast Adjusts the contrast of the screen. Sharpness Adjusts the sharpness of the screen. High Optimizes the screen for crystal clear images. Best for high-definition video or games. Optimizes the screen for comfortable viewing, with images at the middle level between the low and high modes.
  • Page 19 Settings > Picture Description Sets a response time for displayed pictures based on the speed of the screen. For a normal environment, it is recommended that you use Fast. For a fast-moving picture, it is recommended that you use Faster. Once Faster Mode is selected, Motion Blur may occur depending on the content.
  • Page 20 Settings > Picture Description Mode 1, The higher the gamma value, the darker the image becomes. Likewise, the lower the gamma value, the lighter the image Mode 2, becomes. Gamma Mode 3 Mode 4 If you do not need to adjust the gamma settings, select Mode 4. Set your own color temperature.
  • Page 21 General Settings > General Description Language Sets the menu screen to the desired language. USB Selection Select the USB upstream cable connection port to use USB hub of the monitor. Conserve energy by using luminance compensation algorithm. High Saves energy using the high-efficiency SMART ENERGY SAVING feature. Saves energy using the low-efficiency SMART ENERGY SAVING feature.
  • Page 22 Settings > General Description Set Input Compatibility Version to the same version as the connected external device. (HDMI: 2.0 and 1.4; DP: 1.4 and 1.2) Input Compatibility Version To use the HDR function, set to HDMI: 2.0; DP: 1.4. This feature lets you set the sound generated from Buzzer when your monitor powers on. Buzzer Enables your monitor's Buzzer.

  • Page 23: Troubleshooting

    TROUBLESHOOTING Nothing is displayed on the screen. • Is the monitor's power cord plugged in? Check if the power cord is correctly plugged into the power outlet. • Is the power LED on? Check the power cable connection and press the power button. •...
  • Page 24 Have you installed the display driver? Be sure to install the display driver from the display driver CD (or diskette) that comes with your display. Or, you can also download the driver from our web site: http://www.lg.com. • Make sure to check if the graphics card supports Plug and Play function.

  • Page 25: Product Specification

    PRODUCT SPECIFICATION Color Depth 8-bit / 10-bit color is supported. Max Resolution 3840 x 1600 @ 60 Hz HDMI Recommended Resolution 3840 x 1600 @ 60 Hz Resolution Max Resolution 3840 x 1600 @ 60 Hz DisplayPort/USB-C Recommended Resolution 3840 x 1600 @ 60 Hz Power Rating 19.5 V 10.0 A...
  • Page 26 Factory Support Mode (Preset Mode, PC) HDMI Preset Mode Horizontal Frequency (kHz) Vertical Frequency (Hz) Polarity (H/V) Remarks 640 x 480 31.469 59.94 800 x 600 37.879 60.317 1024 x 768 48.363 1920 x 1080 66.587 59.934 1920 x 1600 98.68 59.95 3840 x 1600...
  • Page 27 DisplayPort/USB-C Preset Mode Horizontal Frequency (kHz) Vertical Frequency (Hz) Polarity (H/V) Remarks 640 x 480 31.469 59.94 800 x 600 37.879 60.317 1024 x 768 48.363 1920 x 1080 66.587 59.934 1920 x 1600 98.68 59.95 3840 x 1600 98.75 59.99 3840 x 1600 48.69...
  • Page 28 ® This device can be used in all regions. Read the owner's manual (CD) carefully and keep it at hand. Please note that the This Product qualifies for ENERGY STAR label attached to the product provides information for technical support. Changing the factory default configuration and settings or enabling certain optional features and functionalities may increase energy consumption beyond the limits required for ENERGY ®...
