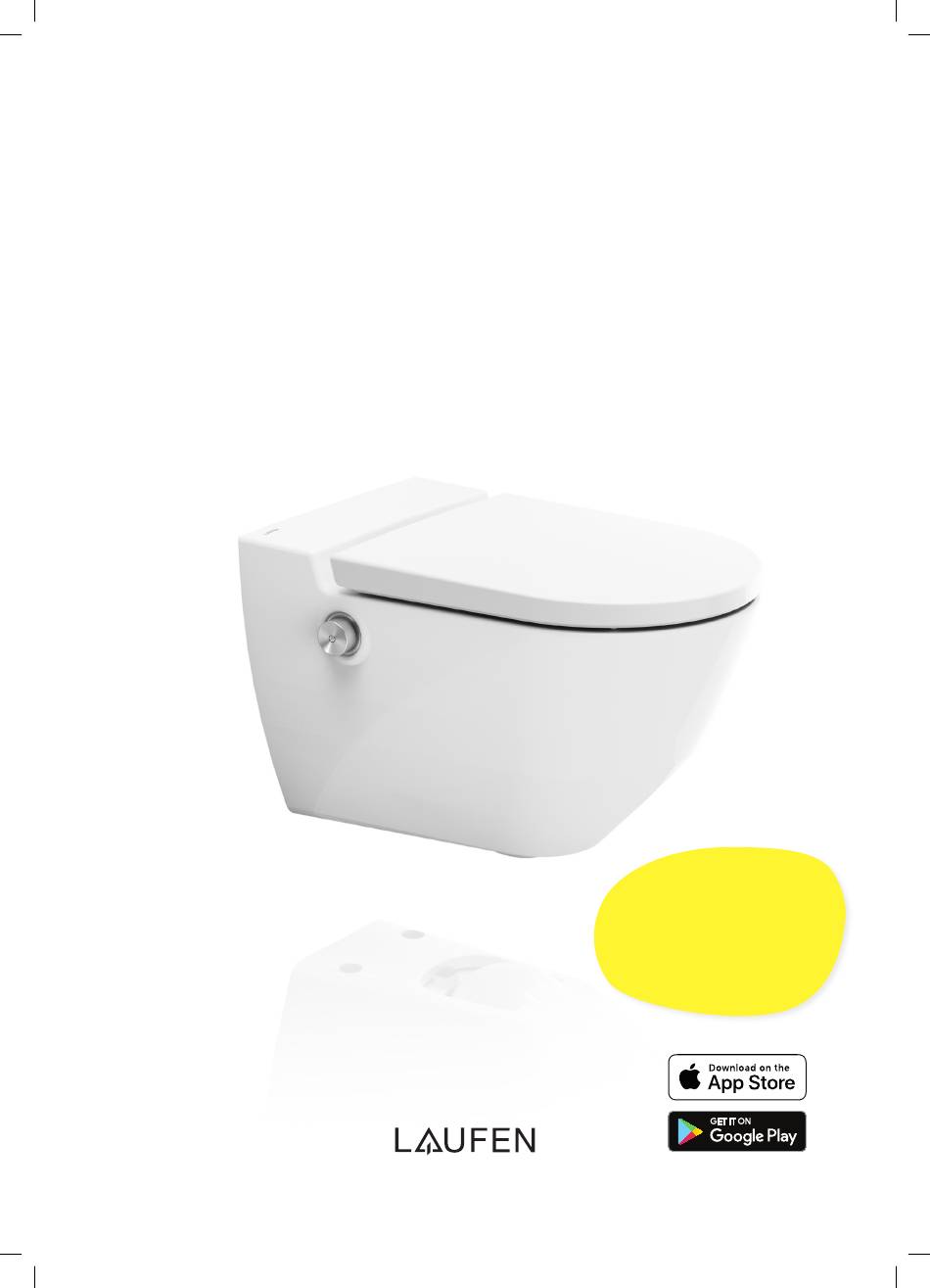

- Page 1 LAUFEN CLEANET NAVIA OPERATING MANUAL YEAR’S GUARANTEE Register your shower toilet now! www.laufen-cleanet.com Laufen_Cleanet_Navia_manual_EN.indd 1 Laufen_Cleanet_Navia_manual_EN.indd 1 29.10.21 09:45 29.10.21 09:45...
-
Page 2: Table Of Contents
CONTENTS SAFETY AND WARNING NOTICES INTRODUCTION Notices Shower toilet: LED indicator light OVERVIEW OF YOUR NAVIA SHOWER TOILET Shower toilet Controller with rotary button Laufen App OPERATING THE SHOWER TOILET Rear shower 4.1.1 Jet intensity 4.1.2 Shower jet position 4.1.3... -
Page 3: Safety And Warning Notices
Any other kind of use is not permitted. Glowing cigarettes or other burning objects must not be thrown into the WC bowl. Laufen shall not accept liability for damage that occurs as a result of connecting the appliance incorrectly, misuse, or inappropriate use. -
Page 4: Introduction
Icons 30. October 2017 | Laufen Icons app © Kein Icon f ür P2 App 2 INTRODUCTION 30. October 2017 | Laufen Icons app © Fö hn Laufen Gegenüberstellung Icons Laufen Laufen Kein Icon mehr Gegenüberstellung Icons Gegenüberstellung Icons... -
Page 5: Overview Of Your Navia Shower Toilet

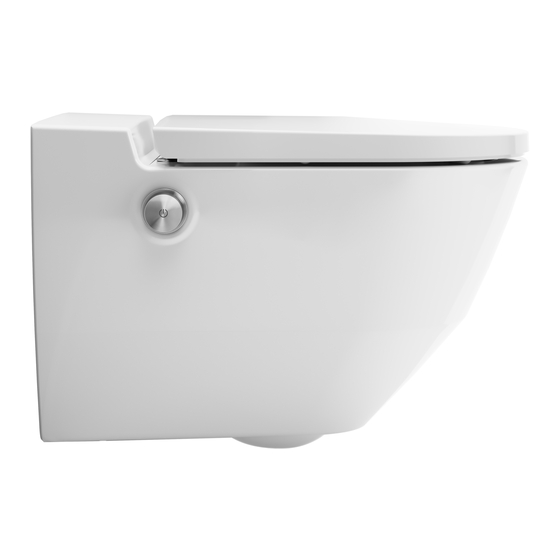

3 OVERVIEW OF YOUR NAVIA SHOWER TOILET SHOWER TOILET Descaling agent opening Controller with rotary button Main switch LED indicator light Laufen_Cleanet_Navia_manual_EN.indd 5 Laufen_Cleanet_Navia_manual_EN.indd 5 29.10.21 09:45 29.10.21 09:45... -
Page 6: Controller With Rotary Button
Shower jet position Oscillation LAUFEN APP Your shower toilet can be operated easily with the Laufen app for iPhone and Android, including useful special functions. For further descriptions, see section 4.2. An active internet connection is not required. Laufen App... -
Page 7: Operating The Shower Toilet
4 OPERATING THE SHOWER TOILET Your Laufen shower toilet can be operated using either the controller with rotary button or via the Laufen app. Laufen Gegenüberstellung Icons Controller with Laufen Laufen rotary button Laufen Gegenüberstellung Icons Laufen Gegenüberstellung Icons Gegenüberstellung Icons... -
Page 8: Rear Shower
4 OPERATING THE SHOWER TOILET REAR SHOWER While you are sitting on the shower toilet, briefly press the controller on the right side to start the rear shower. If you need to stop the shower prematurely, press the controller again. If you wish to shower again, press the controller while the shower arm is retracting at the end of the first showering procedure. -
Page 9: Lady Shower
4 OPERATING THE SHOWER TOILET LADY SHOWER When seated on the shower toilet, press the rotary button on the right-hand side and hold it down for approx. 2 seconds to start the lady shower. To stop the Lady shower prematurely, simply press the button again. -
Page 10: Selecting Special Functions Using The App
WATER HARDNESS n mehr K ein Icon mehr The Laufen app allows you to store the hardness of your mains water in order to ensure K ein Icon mehr K ein Icon mehr an optimum interval for the automatic descaling programme. -
Page 11: Maintenance And Cleaning
5 MAINTENANCE AND CLEANING CLEANING THE SEAT AND COVER UNIT The seat and cover are integrated in a single unit because of the lowering system. The seat and cover unit can be removed to make the shower toilet easier to clean. Simply lift the seat and cover to a vertical position, use a coin to release the locking screws and pull the seat and cover from the hinge at both sides. -
Page 12: Suitable Cleaning Agents And Equipment, Cleaning Tips
Pointed objects such as scrapers designed for mechanical cleaning ORDERING CONSUMABLES Article no. You can order the following consumables 6 descaling tablets for 2 applications 8.9260.4.000.000.1 on www.laufen-cleanet.com or from Nozzle and cover ring 8.9260.6.000.000.1 specialist dealers. Rotary button 8.9260.8.000.000.1 Cover for descaling opening 8.9260.7.000.000.1... -
Page 13: Descaling
5 MAINTENANCE AND CLEANING DESCALING The Laufen shower toilet incorporates an integral descaling program for descaling water-carrying components. Your appliance detects the need for descaling and informs you (red LED indicator light) accordingly. When the descaling message appears, you can continue using the shower toilet in the usual way until descaling is actually performed. -
Page 14: Changing The Nozzle
All seals on the nozzle must always be greased after cleaning. If you would prefer to replace the nozzle, replacement nozzles can be purchased from Laufen or specialist dealers. Carefully attach the cleaned or new nozzle. Press the controller while simultaneously turning it backwards, to move the shower arm backwards. -
Page 15: Changing The Cover Ring
If the cover ring becomes covered in limescale or scratched, it can be replaced with a new one. Replacement cover rings can be purchased from Laufen or specialist dealers. You will require a special tool to replace the cover ring. The tool is supplied with the new cover ring. -
Page 16: Troubleshooting
Switch off the main switch under the appliance, wait approximately 1 minute then switch it on again. Jet is weak or no Intensity setting of shower jet Increase the intensity of the shower jet using the Laufen 4.1.1 Kein Icon mehr water emerges. -
Page 17: Disposal And Environment
DISPOSAL AND ENVIRONMENT The Laufen shower toilet complies with the requirements of EU Directive “Restriction of Hazardous Substances” (2002 / 95 / EC). It is largely free of hazardous substances such as lead, cadmium, mercury, and chromium VI. Correct disposal of old appliances Waste electrical equipment often contains materials that are still usable. At the same time, however, they also contain many hazardous substances that guarantee the operational reliability and safety of the equipment. -
Page 18: Technical Data Cleanet Navia
8 TECHNICAL DATA CLEANET NAVIA Rated voltage 230 V (AC) Mains frequency 50 Hz Power consumption during operation (max.) 1 150 W Protection level IPX4 Protection class Water flow pressure range 0.1 to 1 MPa or 1 to 10 bar Seat and cover load (max.) 150 kg Storage temperature range 1 to +60 °C Operating temperature range... -
Page 19: Legal Notice
Any obligation on the part of Laufen originates from the respective warranty conditions, which also include the complete and decisive warranty obligation of Laufen. - Page 20 WWW.LAUFEN-CLEANET.COM Laufen_Cleanet_Navia_manual_EN.indd 20 Laufen_Cleanet_Navia_manual_EN.indd 20 29.10.21 09:45 29.10.21 09:45...
