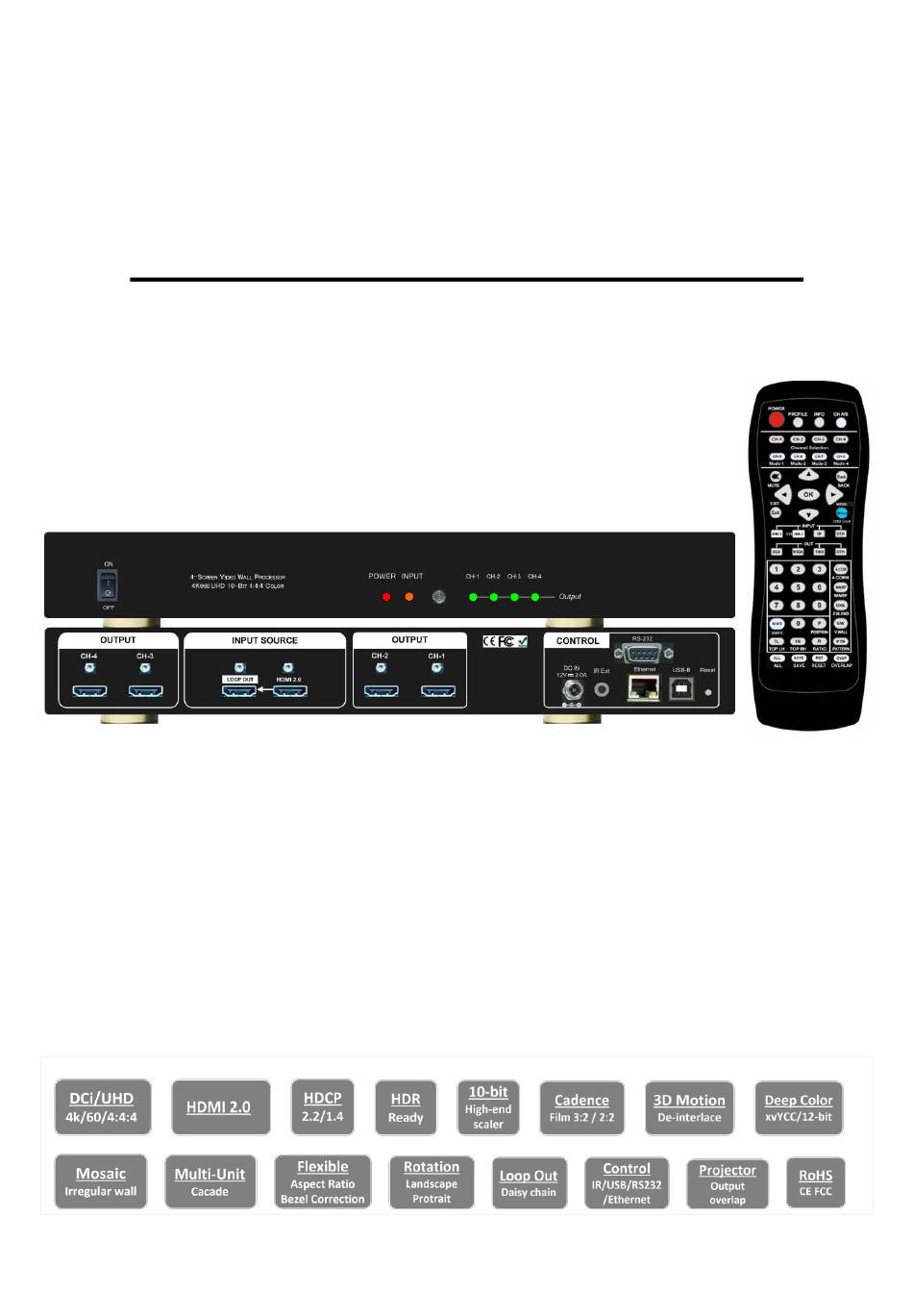

- Page 1 AV-BOX VWC-46L Quick User Guide 4 Channel 4K/60 video wall controller Technical support: E-mail: i@av-box.ru Tel: +7 (499) 705-68-88, 8 804 333-18-83 Skype: av-box.russia Version: 1.1 av-box.ru...
-
Page 2: Table Of Contents
Table of Contents Disclaimer/Copyright statement......................Warranty/RMA and FCC/CE statement....................Introduction……………………………………………………………………………........Feature................................ Quick User Guide....................……........Content in the packing box........................How to use IR Remote Controller......................System Setup procedures........................Step 1 – Connecting The Inputs..………………………………………….…......... Step 2 – Connecting the Outputs............…………........Step 3 –... -
Page 3: Warranty/Rma And Fcc/Ce Statement
This information contained in this document is protected by copyright. All rights are reserved by AV-BOX. AV-BOX reserves the right to modify this document without any obligation to notify any person or entity of such revision. Copying, duplicating, selling, or otherwise distributing any part of this document without signing a non-disclosure agreement with an authorized representative of AV-BOX is prohibited. -
Page 4: Introduction
Introduction AV-BOX VWC-46L is 4 channel 4k/60 fps Video Wall controller. It is simplified version of VWC-46 with 1x HDMI 2.0 input, 1x HDMI 2.0 loop-out port for daisy chain connection and 4 synchronized HDMI outputs. Each output has independent image rotation/flip, scaling, cropping and color adjustment to allow great freedom in creating video wall with variable display scales and styles. -
Page 5: Quick User Guide
IR receiver is on Front Panel. One 3.5ø mm audio connector for IR extender is located at Back Panel of VWC-46L. 1.8m IR extension cable is equipped in the packing. User can add audio cable to extend the distance up to more than 20 meters. -
Page 6: System Setup Procedures
System Setup Procedures Step 1 – Connecting The Inputs Please connect signal source to HDMI input port. User can also apply DVI-D signal but required DVI to HDMI adapter. Raw signal Loop Out HDMI Input source from HDMI input source connector Step 2 –... -
Page 7: Step 3 - Hdmi Loop Out For Multiple Units Connection And Monitoring
User can connect any Loop Out signal to any HDMI input port in the next processing module or other devices. User can connect up to10 units of VWC-46L through daisy chain connection. The daisy chain connection number is related to source resolution and the quality of HDMI connection cables—poor cable will have less connection number and good cable can connect more units in daisy chain connection. -
Page 8: Step 4 - System Connection And Power On
Power on the system after finishing all connections to avoid system damage by floating voltage among devices. When VWC-46L power is switched on, the booting time is about 19 seconds and the Input & Output LEDs on front panel will stay “Lighted” for the channel with correct input source and output monitor connections after finishing booting process. -
Page 9: Step 6 - Input Source / Output Resolution Selection & Led Indicators
Green LED will light up Power on, Flashing: OSD Lock will light up VWC-46L has only one HDMI input port. System default input is HDMI. No need to change. The output resolution selection will apply to two output channels at the same time. For instance, CH1 &... - Page 10 User can also get into OSD menu to do output resolution settings: [Image Properties] [ Output Mode] Select output resolution Input green LED will light up when each processing module has detected input signal. Green LED will light up when VWC-46L has detected the monitor in each output. Power LED: ...
-
Page 11: Step 7 - Conventional Video Wall Settings
UHDWall Manager PC tool are available for Ethernet configuration. [Zoom] Use [Zoom] to split the display in horizontal and vertical directions. AV-BOX will cut the image into different sections. Maximum split image is 15 in both horizontal and vertical directions. -
Page 12: Overlap] - Bezel Compensation And Position Alignment
For No. monitor: For No. monitor: Horizontal Pan = 3 Horizontal Pan = 3 Vertical Pan = 1 Vertical Pan = 2 [Overlap] – Bezel Compensation and Position Alignment [Overlap] adjustment changes the cropping area of the image so that image position in each monitor will be shifted. -
Page 13: Irregular / Asymmetric Video Wall Setting
User can use monitors with different dimensions, bezel size and resolution as display devices. No data base for monitor is required and it allows user to have installation position deviation. All of these factors can be corrected by AV-BOX video wall settings. ... - Page 14 Test pattern applied to video wall Test pattern downloaded from AV-BOX website Split the content by [Zoom] Set [Horizontal Zoom] = 2, [Vertical Zoom] = 2 in all channels. If TV2 & TV3 dimension is small, user can set TV2 & TV3 [Horizontal Zoom]=4 and [Horizontal Pan]: TV2=3, TV3=2, so that user can reduce the image position adjustment range.
- Page 15 Max. video wall Video wall display borders center line Before TV2 & TV3 After TV2 & TV3 image 90 degrees image 90 degrees rotation. rotation. Set standard position as reference in horizontal and vertical directions User should determine Horizontal & Vertical image sizes and reference position so that all monitors have criteria for image position adjustment.
-
Page 16: Square Asymmetric Video Wall Setup Procedures
After decrease TV2 After decrease TV1 [Overlap] value at Right [Overlap] value at Top Edge Edge After decrease TV3 After decrease TV4 [Overlap] value at Left [Overlap] value at Bottom Edge Edge, then it is finished. Square Asymmetric Video Wall Setup Procedures ... - Page 17 Step 3: Determined image center, marked with paper tape. Step 4: Set standard Position Reference in horizontal and vertical directions Horizontal Position Reference is determined by TV2 & TV3 and Vertical Position Reference is determined by TV1 &...
- Page 18 TV2: increase [Overlap] value in Top Edge and decrease [Overlap] value in Bottom Edge to align Horizontal lines to match TV1 TV3: increase [Overlap] value in Bottom Edge and decrease [Overlap] value in Top Edge to align Horizontal lines to match TV4 TV4: increase [Overlap] value in Right Edge and decrease [Overlap] value in Left Edge to align Vertical lines to match TV2 ...
-
Page 19: Flexible Aspect Ratio Adjustment
10 Flexible Aspect Ratio Adjustment User can use Video Wall [Overlap] function to change the aspect ratio of the image with black borders or to stretch the image in specific direction to compensate the aspect ratio difference between video wall and the content. -
Page 20: Step 8 - Save System Settings Through Remote Controller
Draw the image into video wall and keep some blanking borders at some edges. 13.2 If the signal is from PC, user can set customized EDID in AV-BOX to let PC output the right output resolution. Some PC may not follow AV-BOX EDID resolution and require customized output setting... -
Page 21: Easy Settings In Multiple Unit Application
14.2 Setup by Ethernet User can connect all VWC-46L in one Ethernet (or WiFi) Router (or switch hub) Lan ports and set different Static IP address for each Box, then use WebGui virtual keys or UHDWall Manager PC tool to control each VWC-46L independently. -
Page 22: Uhdwall Manager Pc Tool
UWM Manager is a PC tool executed through PC. User needs to download this tool from AV- BOX website. Once user connects VWC-46L with PC through Ethernet or USB and open UWM Manager, user can access UWM and execute all operation similar to OSD menu through PC... -
Page 23: System Structure And Control
RS232 and Ethernet are available for system control. They can be used simultaneously to provide the most flexibility in system control. 15.1 System Structure: VWC-46L is 4 channel processor. The structure is separate into two Groups: channel 1-2 is Group A and channel 3-4 is Group B. -
Page 24: Osd Command Execution In Group A & Group B
Level 1 control can only be executed from CH-1. Please connect monitor to CH-1 for system settings. [Options] [Setting] [Box ID]: each VWC-46L has one Box ID for RS232 control. [Options] [Setting][Network]: RS232 and Ethernet settings [Profile] [Load] [Index] In RC-700 remote controller, it will apply to Group A and Group B separately. -
Page 25: Edid Setting
If set [Standby Time] at 60, the system will get into Standby Mode after 60 seconds when no input signal is detected. The output signals from VWC-46L will also be terminated at the same time. If VWC-46L detects input signal again, it will automatically turn on the system again. -
Page 26: Ethernet Setting (Please See More Details In Section 14.2)
User can use < > OSD direction keys to access the position for the modification and ˄ ˅ OSD direction keys to change the IP address settings. If WiFi router is connected, VWC-46L can be controlled through WiFi by PC, mobile phone or iPad. ... -
Page 27: Limitations In Image Flip And Rotation
HDCP compliant issues: If the input source or the monitors are not HDCP compliant, it is possible to stop VWC-46L from negotiating HDCP link and show intermittent, abnormal or no image. Bit Rate or resolution issues: check if signal source and connecting cables can provide right resolution and data rate supported by VWC-46L. -
Page 28: Technical Support
Apart from what is detailed in User Guide, maintenance should be carried out by competent technician assigned by AV-BOX. If VWC-46L is physically damaged, it should be returned for repair using AV- BOX RMA procedures. If the unit is opened by user, it will lose the right for warranty protection. -
Page 29: Specifications
Specifications 10-bit processor, frame rate conversion. Input: 1x HDMI 2.0b, HDCP: 2.2/1.4. 3D motion adaptive de-interlace. Output: 4x HDMI up to 1080P & WUXGA. Frame lock for synchronized outputs. 1x HDMI 2.0 loop out ports from adjacent HDMI input ... -
Page 30: Revision History
Revision History Revision Date Originator Comments AV-BOX V1.1 2018-04-04 First version...
