www.homlicon.com

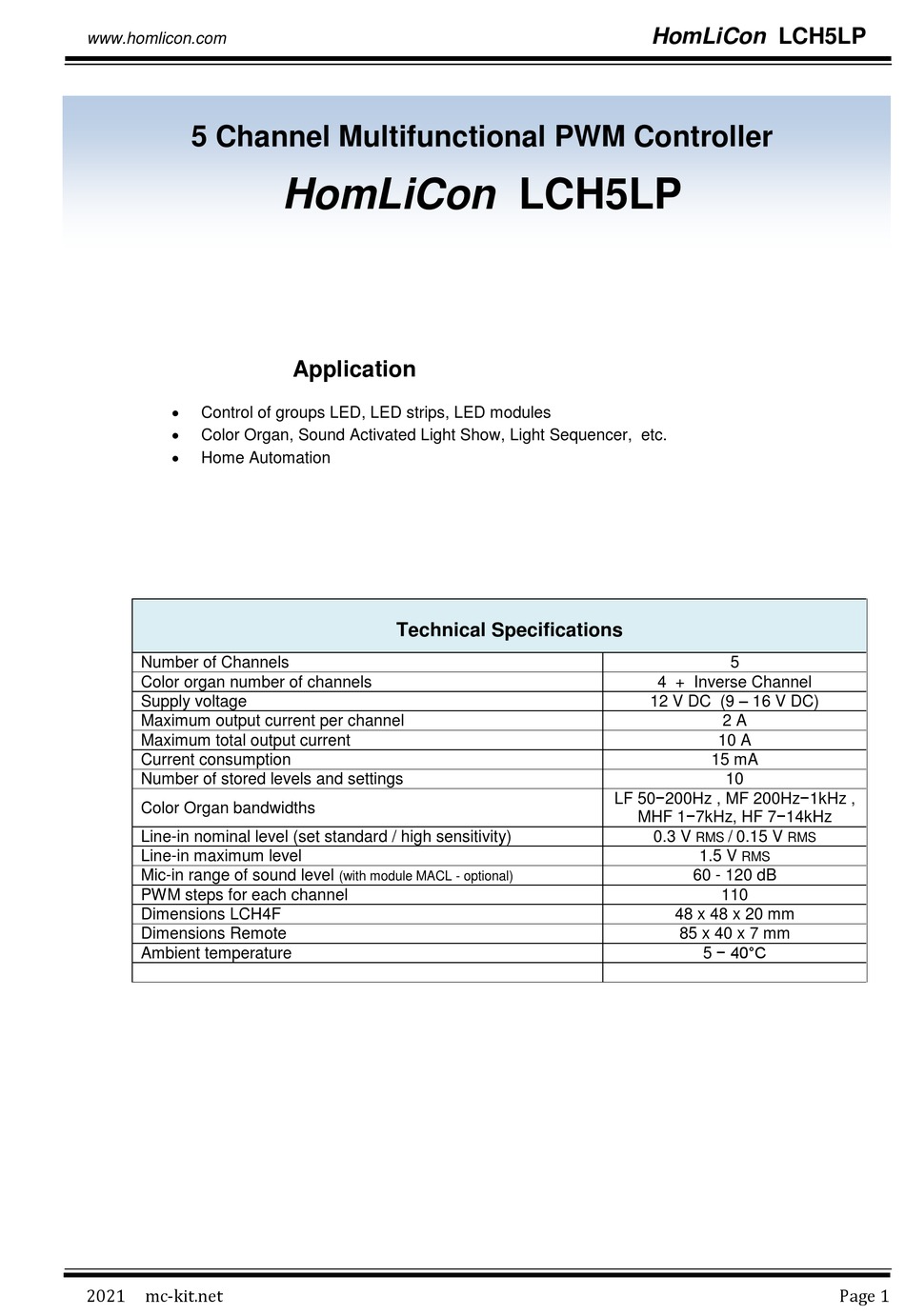

5 Channel Multifunctional PWM Controller
Control of groups LED, LED strips, LED modules
Color Organ, Sound Activated Light Show, Light Sequencer, etc.
Home Automation
Number of Channels
Color organ number of channels
Supply voltage
Maximum output current per channel
Maximum total output current
Current consumption
Number of stored levels and settings
Color Organ bandwidths
Line-in nominal level (set standard / high sensitivity)
Line-in maximum level
Mic-in range of sound level
PWM steps for each channel
Dimensions LCH4F
Dimensions Remote
Ambient temperature
2021
mc-kit.net
HomLiCon LCH5LP
Application
Technical Specifications
(with module MACL - optional)
HomLiCon LCH5LP
5
4 + Inverse Channel
12 V DC (9 – 16 V DC)
2 A
10 A
15 mA
10
LF 50−200Hz , MF 200Hz−1kHz ,
MHF 1−7kHz, HF 7−14kHz
0.3 V
/ 0.15 V
RMS
1.5 V
RMS
60 - 120 dB
110
48 x 48 x 20 mm
85 x 40 x 7 mm
5 − 40°C
RMS
Page 1
Advertisement
Related Manuals for HomLiCon LCH5LP
Summary of Contents for HomLiCon LCH5LP
- Page 1 HomLiCon LCH5LP www.homlicon.com 5 Channel Multifunctional PWM Controller HomLiCon LCH5LP Application Control of groups LED, LED strips, LED modules Color Organ, Sound Activated Light Show, Light Sequencer, etc. Home Automation Technical Specifications Number of Channels Color organ number of channels 4 + Inverse Channel 12 V DC (9 –...
-
Page 2: Controller Features
HomLiCon LCH5LP www.homlicon.com Controller Features Control of all settings and functions through the remote control included in the kit. Three main modes: Color Organ, Sound Activated Light Show Light Sequencer Lighting Switch with a press of a button between the previously saved custom 10 groups, different levels for all channels or Light Show settings. - Page 3 HomLiCon LCH5LP www.homlicon.com Basic operations and wired diagram Light Show basic operations All operations and settings are performed by the included IR remote control. More info in Button Description section: Turns OFF all channels / Turns ON the saved functions for button 9...
- Page 4 HomLiCon LCH5LP www.homlicon.com Table of the Factory Pre Stored Light Show Functions (You can change these settings) № Program Button Function Signal input – Light Show without sound sync. (Light Sequencer) - AUTO Program Program 1 Light Show – Color organ classic...
- Page 5 HomLiCon LCH5LP www.homlicon.com Wiring diagram and description − The supply voltage 12V DC must be connected to the terminal blocks marked terminals of the LED strips / modules must be connected together in a terminal outside the controller and a single wire from this connection must be connected to the terminal marked + L on the controller.
- Page 6 HomLiCon LCH5LP www.homlicon.com Stored Functions - Settings and Operation All operations and settings are performed by the included IR remote control. Stored Functions - Easy Switching Between Different Levels and Settings Buttons 1, 2, 3, 4 and 5 are used for control of the corresponding channels in Lighting mode or as part of the ten buttons for stored functions.
- Page 7 HomLiCon LCH5LP www.homlicon.com Lighting mode - Channels control Setting the levels for the channels The controller is in lighting mode when the light show is OFF. Buttons 1, 2, 3, 4 and 5 are used for control of the corresponding channels or as part of the ten buttons for stored functions.
-
Page 8: Status Led Indication
HomLiCon LCH5LP www.homlicon.com Table of General Settings Settings changes can be made by successively pressing and releasing the following buttons: Switching certain channels of PWM or ON / OFF can be made by turning ON the necessary channels for ON/OFF mode and sequentially press and release the MENU, MENU , , 1. - Page 9 HomLiCon LCH5LP www.homlicon.com Light Show Control and Settings Turning ON / OFF Light Show Turn ON / OFF Light Show by pressing button Note: – When Light Show is activated by pressing button , the last saved settings will be activated instead of the last used settings by the function keys 0 to 9.
- Page 10 HomLiCon LCH5LP www.homlicon.com Setting maximum brightness levels for channels in Light Show and Inverse Channel Some colors LEDs are brighter than others. With this option, you have the ability to equalize brightness. You can equalize or adjust the light intensity for channels in Light Show and set the maximum level for inverse channel.
- Page 11 HomLiCon LCH5LP www.homlicon.com Table of the Factory Pre Stored Levels Sensitivity (You can change this settings) Frequency Button Line-In Line-In level displayed Microphone- Microphone-In level channel factory pre on the output channels In factory pre displayed on the output select stored level 2, 3.
- Page 12 HomLiCon LCH5LP www.homlicon.com THERE ARE TWO TYPES OF LIGHT SHOW ACCORDING TO THE NUMBER OF CHANNELS USED : 5.11 4 Channel Light Show (channels 2, 3, 4, 5) TABLE PROGRAMS OF 4 CHANNEL LIGHT SHOW № Programs with sound control...
- Page 13 HomLiCon LCH5LP www.homlicon.com 5.13 Table of General Settings for Light Show Settings changes can be made by successively pressing and releasing the following buttons: Disable Light Show MENU , Enable 3 channel Light Show - used channels 3, 4 and 5 MENU , Enable 4 channel Light Show - used channels 2, 3, 4 and 5.
- Page 14 HomLiCon LCH5LP www.homlicon.com Description of the remote control buttons More info in Button Description section: Turns OFF all channels / turns ON the saved functions for button 9. Save the present levels and Light Show settings in the non-volatile memory by...
- Page 15 HomLiCon LCH5LP www.homlicon.com Arrangement of the buttons on the remote control: Battery CR2025 (not included in kit) 2021 mc-kit.net Page 15...
- Page 16 HomLiCon LCH5LP www.homlicon.com Connecting additional modules and various loads 2021 mc-kit.net Page 16...
