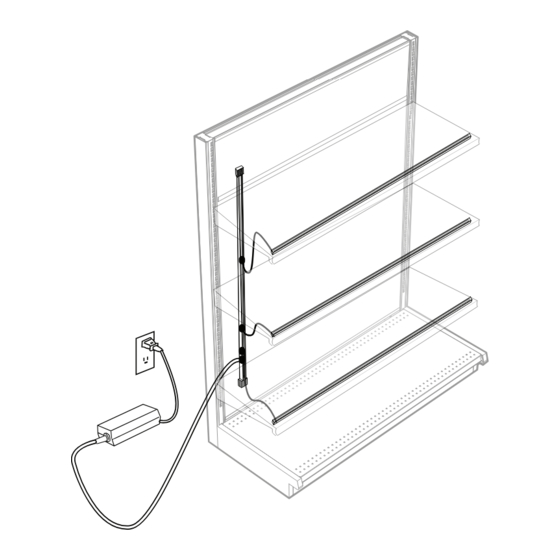

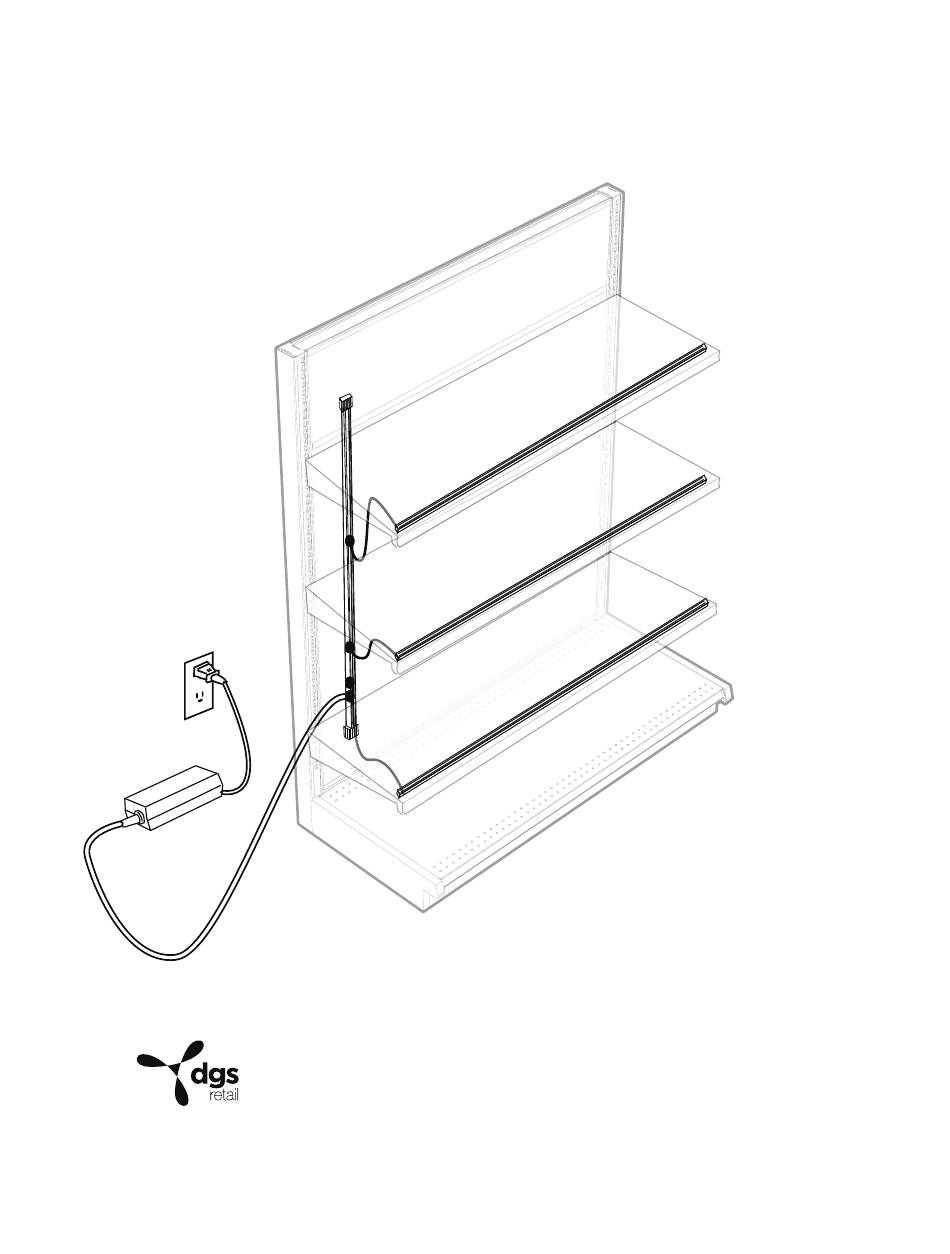

- Page 1 P3523 Gondola Shelving LED Lighting Kit - 3 Shelves Copyright © 2020 DGS Retail (800) 211-9646 Press 1 Assembly Instructions F0401...
-
Page 2: Parts List
Parts List Power Connector Strip Connector Power Supply and cord Power Track Magnetic LED Strip Mini Gripper Magnet Mount TAPE MEASURE Copyright © 2020 DGS Retail... - Page 3 Flip power track to remove tape backing. Position power track 4” right of uprite. 4” Connect power track to power supply. Snap into track and twist. Power Supply and cord 1X Power Connector 1X Copyright © 2020 DGS Retail...
- Page 4 Position 3 shelves 15” apart from one another in front of power track. 48” 48” Power 54” Track 3x 15” apart Magnetic LED Strip x3 Magnetic LED strip attaches under the shelf. Snap into track and twist to lock. Copyright © 2020 DGS Retail...
- Page 5 Mini Gripper Magnet Mount x3 Plug in unit. Copyright © 2020 DGS Retail...
