Primal Vantage FIELD & STREAM HEH01885 Instruction And Safety Manual

The lookout deluxe 16' ladder treestand

Advertisement

Quick Links

MODEL: HEH01885
(New version of HEH01813)

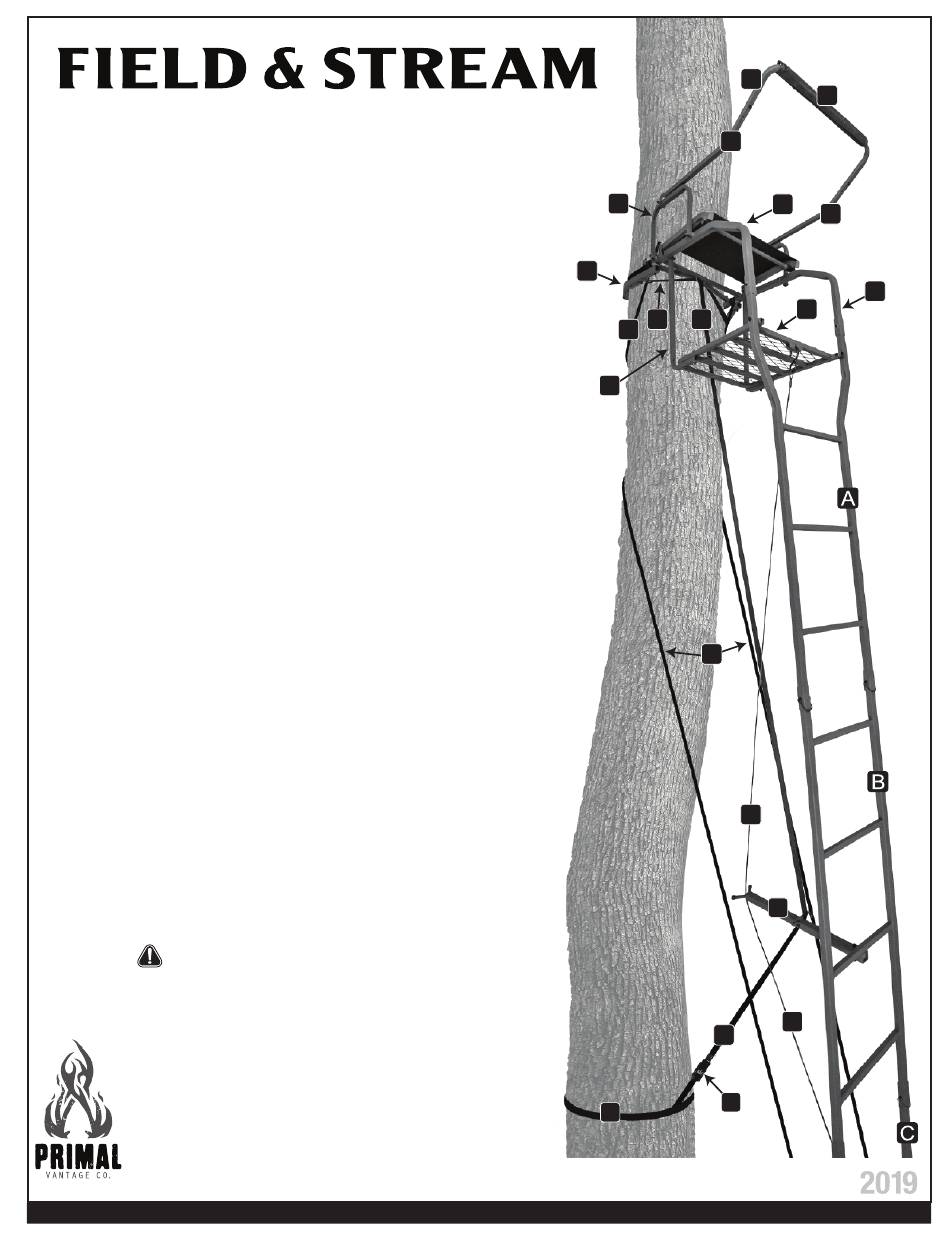

THE LOOKOUT DELUXE
16' LADDER TREESTAND
• Always Wear a Safety Harness with this Product
• Practice Using at Ground Level
• Weight Limit: 300 lbs.
• Tree Size: 9"-18" diameter
Instruction and
Safety Manual
W A R N I N G
Every year serious injury and death can occur from hunting related
accidents. To ensure your safety, please COMPLETELY read and follow
this safety manual and ALL warning labels BEFORE assembling, installing
or utilizing this product.
DO NOT USE THIS PRODUCT BEFORE FULLY UNDERSTANDING ALL
SAFETY WARNINGS AND INSTRUCTIONS. IF YOU HAVE QUESTIONS,
ARE UNSURE ABOUT ANY INFORMATION OR NEED ADDITIONAL
INFORMATION CONCERNING YOUR PRODUCT, CONTACT OUR
CUSTOMER SERVICE DEPARTMENT AT1-866-972-6168 OR VISIT
PRIMALVANTAGE.COM/FIELD-STREAM. KEEP AND MAINTAIN THIS
SAFETY AND INSTRUCTION MANUAL IN A SAFE LOCATION FOR
FUTURE REFERENCE.
Distributed by Primal Vantage Company Inc., 2407 W. Euclid Ave., Littleton, CO 80120
SAFETY MUST BE YOUR FIRST PRIORITY WITH THIS PRODUCT
N
M
O
J
U
R
W
P
W
T
R
S
V
Q
L
M
L
D
H
T
©2019 (rev. 1/19)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FIELD & STREAM HEH01885 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Primal Vantage FIELD & STREAM HEH01885

  • Page 1 PRIMALVANTAGE.COM/FIELD-STREAM. KEEP AND MAINTAIN THIS SAFETY AND INSTRUCTION MANUAL IN A SAFE LOCATION FOR FUTURE REFERENCE. ©2019 (rev. 1/19) Distributed by Primal Vantage Company Inc., 2407 W. Euclid Ave., Littleton, CO 80120 SAFETY MUST BE YOUR FIRST PRIORITY WITH THIS PRODUCT...
  • Page 2 Treestand Safety Warnings Please read the following instruction manual and warnings labels completely before utilizing this product. Failure to understand and execute the instructions and warnings may result in serious injury or death. In the event of an accident, have a plan for rescue, including the use of devices that may be easily reached while suspended.
  • Page 3 Treestand Safety Warnings NEVER adjust your stand while in use. Practice the attachment of this treestand at ground level before using in a hunting environment. ALWAYS ensure that you and your treestand are safely secured to a healthy tree. Your tree stand MUST be attached tightly to the tree and secured in place. If the stand is not secure, it may shift while in use, resulting in serious injury or death.
  • Page 4: Proper Care And Maintenance

    • We recommend replacing all hardware/cables/nuts/bolts/clips on your tree stand every two (2) years or sooner if inspection finds it necessary. Use only Primal Vantage approved replacement straps and parts. Use of any other straps or parts, will be viewed as a modification to the product. Any modification will void the warranties and relieve Primal Vantage from all liabilities.
  • Page 5: Parts List

    Ratchet Jaw Assembly Installation Strap (1) Quickclip (4) Tree Buckle (1) Cross Strap (2) Horizontal Jaw Assembly Strap (1) ©2019 (rev. 1/19) Distributed by Primal Vantage Company Inc., 2407 W. Euclid Ave., Littleton, CO 80120 Customer Service Department 1-866-972-6168 primalvantage.com/field-stream...
  • Page 6 Platform using 2-M8x55mm sleeved ends of each Handle Rail bolts on each side. to secure to Top Ladder Section. ©2019 (rev. 1/19) Distributed by Primal Vantage Company Inc., 2407 W. Euclid Ave., Littleton, CO 80120 Customer Service Department 1-866-972-6168 primalvantage.com/field-stream...
  • Page 7 Handle Rails and the Jaws underneath the ends of Handle Rails and attach using 2-M8x100mm bolts with spacers ©2019 (rev. 1/19) Distributed by Primal Vantage Company Inc., 2407 W. Euclid Ave., Littleton, CO 80120 Customer Service Department 1-866-972-6168 primalvantage.com/field-stream...
  • Page 8: Top View

    (The front of the Armrests has a rubber pad on top of it. Each Bushing will be placed between the Handle Rails and the Armrests.) ©2019 (rev. 1/19) Distributed by Primal Vantage Company Inc., 2407 W. Euclid Ave., Littleton, CO 80120 Customer Service Department 1-866-972-6168 primalvantage.com/field-stream...
  • Page 9 Then insert the bolt through the bracket of the Shooting Rail Arm and then through the bushing and armrest. Finally, add another washer and tighten the nut. 2019 ©2019 (rev. 1/19) Distributed by Primal Vantage Company Inc., 2407 W. Euclid Ave., Littleton, CO 80120 CUSTOMER SERVICE DEPARTMENT 1-866-972-6168 PRIMALVANTAGE.COM/FIELD-STREAM...
  • Page 10 Middle Ladder bottom section to Section . Secure using the middle section. 1-M8x45mm bolt 2019 ©2019 (rev. 1/19) Distributed by Primal Vantage Company Inc., 2407 W. Euclid Ave., Littleton, CO 80120 CUSTOMER SERVICE DEPARTMENT 1-866-972-6168 PRIMALVANTAGE.COM/FIELD-STREAM...
  • Page 11 W A R N I N G MAKE SURE ALL BOLTS ARE TIGHT BEFORE PROCEED- ING TO TRUSS ASSEMBLY 2019 ©2019 (rev. 1/19) Distributed by Primal Vantage Company Inc., 2407 W. Euclid Ave., Littleton, CO 80120 WWW.PRIMALTREESTANDS.COM CUSTOMER SERVICE DEPARTMENT 1-866-972-6168...
  • Page 12 Model: HEH01885 Ratchet Strap Instructions The Lookout Deluxe 16’ Ladder Treestand You MUST follow these instructions prior to installation Place looped end of Ratchet Insert Ratchet through loop. Pull to tighten. under platform. Place looped end of strap Insert strap through loop. Pull to tighten.
  • Page 13 Model: HEH01885 Installation Strap Instructions The Lookout Deluxe 16’ Ladder Treestand Insert end of strap through the loop. Pull to tighten. Continue with Place looped end of these steps to install the other strap under platform. strap on the other strap on the other side of the platform.
  • Page 14: Installation Instructions

    NOTE: 2019 Drawings are for illustration purposes only and may not depict actual product. ©2019 (rev. 1/19) Distributed by Primal Vantage Company Inc., 2407 W. Euclid Ave., Littleton, CO 80120 CUSTOMER SERVICE DEPARTMENT 1-866-972-6168 PRIMALVANTAGE.COM/FIELD-STREAM...
  • Page 15 NOTE: Drawings are for illustration purposes only and may not depict actual product. 2019 ©2019 (rev. 1/19) Distributed by Primal Vantage Company Inc., 2407 W. Euclid Ave., Littleton, CO 80120 PRIMALVANTAGE.COM/FIELD-STREAM CUSTOMER SERVICE DEPARTMENT 1-866-972-6168...
  • Page 16 DO NOT overtighten. See “Ratchet Strap Instruction” for correct operation of the Ratchet Strap. 2019 ©2019 (rev. 1/19) Distributed by Primal Vantage Company Inc., 2407 W. Euclid Ave., Littleton, CO 80120 CUSTOMER SERVICE DEPARTMENT 1-866-972-6168 WWW.PRIMALTREESTANDS.COM...
  • Page 17 NEVER use this tree stand on a dead, leaning, loose barked tree or on a utility pole as the tree may fall, break, or uproot and may result in serious injury or death. Primal Vantage Company Inc. 2407 W. Euclid Ave., Littleton, CO 80120 1-866-972-6168 Manufactured in the year 2019...
