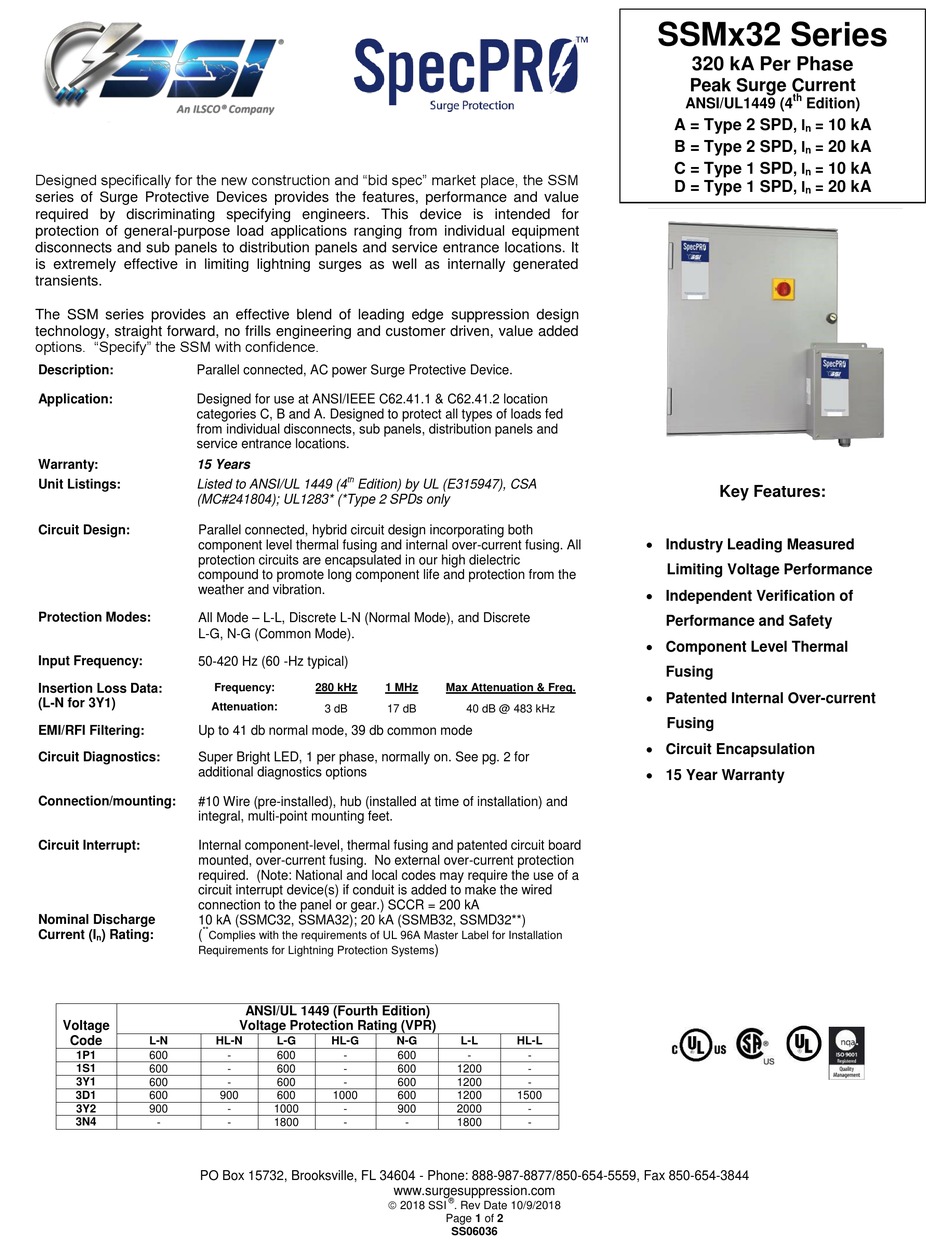

Ilsco SSI SpecPRO SSM 32 Series Manual

Designed specifically for the new construction and "bid spec" market place, the SSM
series of Surge Protective Devices provides the features, performance and value
required by discriminating specifying engineers. This device is intended for
protection of general-purpose load applications ranging from individual equipment
disconnects and sub panels to distribution panels and service entrance locations. It
is extremely effective in limiting lightning surges as well as internally generated
transients.
The SSM series provides an effective blend of leading edge suppression design
technology, straight forward, no frills engineering and customer driven, value added
options. "Specify" the SSM with confidence.

Description:

Parallel connected, AC power Surge Protective Device.

Application:

Designed for use at ANSI/IEEE C62.41.1 & C62.41.2 location
categories C, B and A. Designed to protect all types of loads fed
from individual disconnects, sub panels, distribution panels and
service entrance locations.

Warranty:

15 Years

Unit Listings:

Listed to ANSI/UL 1449 (4
(MC#241804); UL1283* (*Type 2 SPDs only

Circuit Design:

Parallel connected, hybrid circuit design incorporating both
component level thermal fusing and internal over-current fusing. All
protection circuits are encapsulated in our high dielectric
compound to promote long component life and protection from the
weather and vibration.
All Mode – L-L, Discrete L-N (Normal Mode), and Discrete

Protection Modes:

L-G, N-G (Common Mode).

Input Frequency:

50-420 Hz (60 -Hz typical)

Insertion Loss Data:

Frequency:
(L-N for 3Y1)
Attenuation:

EMI/RFI Filtering:

Up to 41 db normal mode, 39 db common mode

Circuit Diagnostics:

Super Bright LED, 1 per phase, normally on. See pg. 2 for
additional diagnostics options

Connection/mounting:

#10 Wire (pre-installed), hub (installed at time of installation) and
integral, multi-point mounting feet.
Circuit Interrupt:
Internal component-level, thermal fusing and patented circuit board
mounted, over-current fusing. No external over-current protection
required. (Note: National and local codes may require the use of a
circuit interrupt device(s) if conduit is added to make the wired
connection to the panel or gear.) SCCR = 200 kA
Nominal Discharge 10 kA (SSMC32, SSMA32); 20 kA (SSMB32, SSMD32**)
**
Current (I ) Rating: (
Complies with the requirements of UL 96A Master Label for Installation
n
Requirements for Lightning Protection Systems
Voltage
Code
L-N
1P1 600
1S1
600
3Y1 600
3D1 600
3Y2 900
3N4 -
PO Box 15732, Brooksville, FL 34604 - Phone: 888-987-8877/850-654-5559, Fax 850-654-3844
th
Edition) by UL (E315947), CSA
280 kHz 1 MHz
3 dB 17 dB
ANSI/UL 1449 (Fourth Edition)
Voltage Protection Rating (VPR)
HL-N L-G HL-G
- 600 -
- 600 -
- 600 -
900 600 1000
- 1000 -
- 1800 -
www.surgesuppression.com
 2018 SSI
Max Attenuation & Freq.
40 dB @ 483 kHz
)
N-G L-L HL-L
600 - -
600 1200 -
600 1200 -
600 1200 1500
900 2000 -
- 1800 -
®
. Rev Date 10/9/2018
Page 1 of 2
SS06036
SSMx32 Series
320 kA Per Phase
Peak Surge Current
th
ANSI/UL1449 (4 Edition)
A = Type 2 SPD
, I =
n
B = Type 2 SPD
, I =
n
C = Type 1 SPD
, I =
n
D = Type 1 SPD
, I =
n
Key Features:
 Industry Leading Measured
Limiting Voltage Performance
 Independent Verification of
Performance and Safety
 Component Level Thermal
Fusing
 Patented Internal Over-current
Fusing
 Circuit Encapsulation
 15 Year Warranty
10 kA
20 kA
10 kA
20 kA
