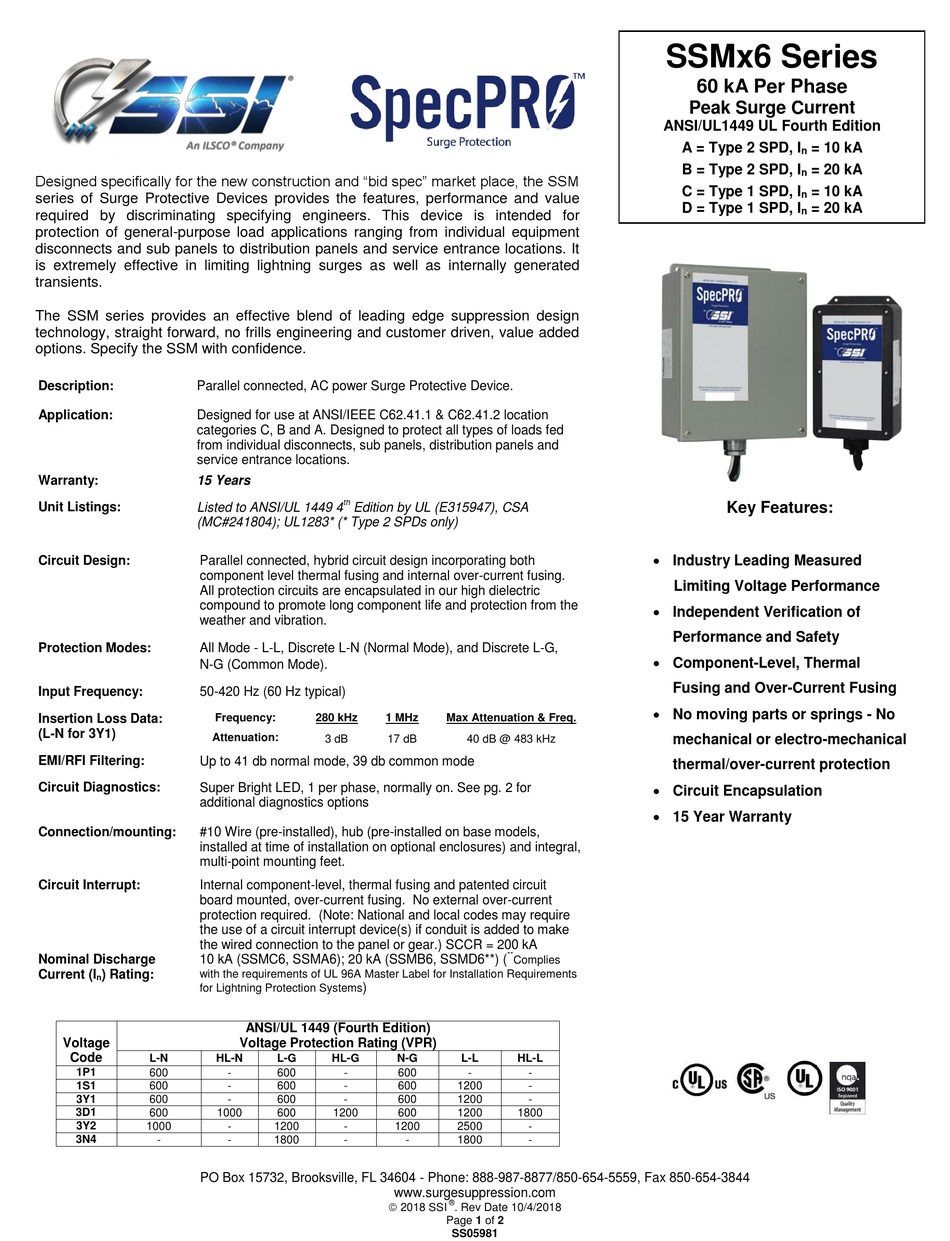

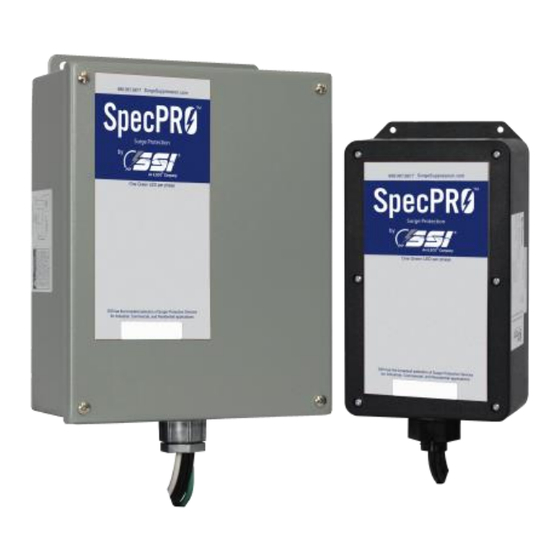

Ilsco SSI SpecPRO SSM 6 Series Manual

Designed specifically for the new construction and "bid spec" market place, the SSM
series of Surge Protective Devices provides the features, performance and value
required by discriminating specifying engineers. This device is intended for
protection of general-purpose load applications ranging from individual equipment
disconnects and sub panels to distribution panels and service entrance locations. It
is extremely effective in limiting lightning surges as well as internally generated
transients.
The SSM series provides an effective blend of leading edge suppression design
technology, straight forward, no frills engineering and customer driven, value added
options. Specify the SSM with confidence.
Description: Parallel connected, AC power Surge Protective Device.
Application:
Designed for use at ANSI/IEEE C62.41.1 & C62.41.2 location
categories C, B and A. Designed to protect all types of loads fed
from individual disconnects, sub panels, distribution panels and
service entrance locations.
Warranty: 15 Years
Unit Listings: Listed to ANSI/UL 1449 4
(MC#241804); UL1283* (* Type 2 SPDs only)
Circuit Design: Parallel connected, hybrid circuit design incorporating both
component level thermal fusing and internal over-current fusing.
All protection circuits are encapsulated in our high dielectric
compound to promote long component life and protection from the
weather and vibration.
Protection Modes: All Mode - L-L, Discrete L-N (Normal Mode), and Discrete L-G,
N-G (Common Mode).
Input Frequency: 50-420 Hz (60 Hz typical)
Insertion Loss Data:
(L-N for 3Y1)
Attenuation:
EMI/RFI Filtering:
Up to 41 db normal mode, 39 db common mode
Circuit Diagnostics: Super Bright LED, 1 per phase, normally on. See pg. 2 for
additional diagnostics options
Connection/mounting: #10 Wire (pre-installed), hub (pre-installed on base models,
installed at time of installation on optional enclosures) and integral,
multi-point mounting feet.
Circuit Interrupt:
Internal component-level, thermal fusing and patented circuit
board mounted, over-current fusing. No external over-current
protection required. (Note: National and local codes may require
the use of a circuit interrupt device(s) if conduit is added to make
the wired connection to the panel or gear.) SCCR = 200 kA
Nominal Discharge 10 kA (SSMC6, SSMA6); 20 kA (SSMB6, SSMD6**) (
Current (I ) Rating: with the requirements of UL 96A Master Label for Installation Requirements
n
for Lightning Protection Systems
Voltage
Code
L-N
1P1
600
1S1 600
3Y1 600
3D1
600
3Y2 1000
3N4
-
PO Box 15732, Brooksville, FL 34604 - Phone: 888-987-8877/850-654-5559, Fax 850-654-3844
th
Edition by UL (E315947), CSA
Frequency: 280 kHz 1 MHz
3 dB 17 dB
)
ANSI/UL 1449 (Fourth Edition)
Voltage Protection Rating (VPR)
HL-N L-G HL-G
- 600 -
- 600 -
- 600 -
1000 600 1200
- 1200 - 1200
- 1800 -
www.surgesuppression.com
 2018 SSI
Max Attenuation & Freq.
40 dB @ 483 kHz
**
Complies
N-G L-L HL-L
600 - -
600 1200 -
600 1200 -
600 1200 1800
2500 -
- 1800 -
®
. Rev Date 10/4/2018
Page 1 of 2
SS05981
SSMx6 Series
60 kA Per Phase
Peak Surge Current
ANSI/UL1449 UL Fourth Edition
A = Type 2 SPD, I = 10 kA
n
B = Type 2 SPD, I = 20 kA
n
C = Type 1 SPD, I = 10 kA
n
D = Type 1 SPD, I = 20 kA
n
Key Features:
 Industry Leading Measured
Limiting Voltage Performance
 Independent Verification of
Performance and Safety
 Component-Level, Thermal
Fusing and Over-Current Fusing
 No moving parts or springs - No
mechanical or electro-mechanical
thermal/over-current protection
 Circuit Encapsulation
 15 Year Warranty
