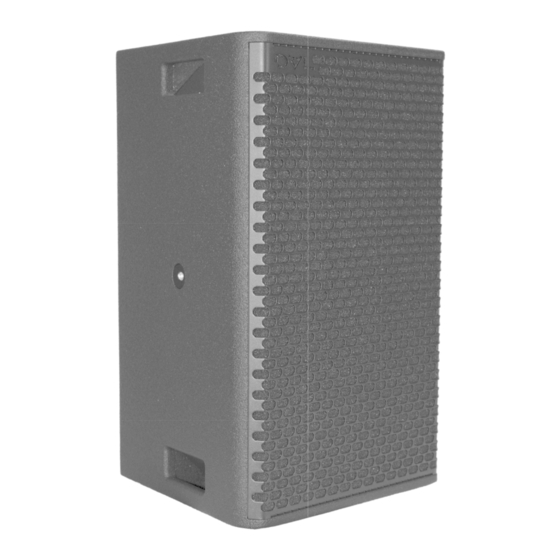

- Page 1 A C O U S T I C S S10N-TM80 | S10N-TM50 Professional Sound Reinforcement Loudspeaker System Operation Instructions © German Audio Engineering GmbH*An der Strusbek 1*22926 Ahrensburg – User Manual DAL S10N-TM v1.0...
-
Page 2: System Description
Appropriate control settings of a DAL Control & Drive System are provided for the different applications. The Variants providing different horizontal coverage angels of 80°x 50° (h x v S10N-TM80) an 50°x50° (h x v S10N-TM50). Please note that their horns are not interchangeable due to different passive frequency dividing networks. - Page 3 Notes On The Operating Instructions: Observe the explanations and notes in these operating instructions. If you lend or pass on this product to third parties, please refer to this operating manual, pass on this operating manual. This symbol in connection with the signal word "Beware" indicates a possibly dangerous situation.
-
Page 4: Intended Use And Application
Intended use and application General information: Operating Instructions DAL S10N-TM. The information in this operating manual is given to the best of our knowledge and is valid at the time of printing. We reserve the right to change specifications of the product at any time. German Audio Engineering does not guarantee the quality or suitability for use. -
Page 5: Safety Instructions
Safety instructions: Warning Loudspeakers have a permanent magnetic field. Persons with pacemakers must not be in the immediate vicinity of loudspeakers, as magnetic fields can lead to interference with pacemakers. When repairing loudspeakers, it must be ruled out that the magnetic components come into contact with persons wearing pacemakers. - Page 6 code: 1000408, Type: DAL Adapter plate M10 (8.) Fixing Points M4 (2x3) protective front grill. Protective front grill with foam backing order code: 1000477 DAL FGS10N (9.) Rubber Skids on floor monitor bottom (10.) Lashing Points M8 (2) (11.) Connector Panel (1+/1-) black, order code: 10000000002 Type DALL ASS-NL- 4-1 white.
-
Page 7: Technical Specifications
Acoustical Bandwidth (S10N-TM FR-Mode) with DAL DS-4S / DS-4M: 50Hz – 20HHz Acoustical Bandwidth (S10N-TM Cut-Mode) with DAL DS-4S / DS-4M: 80Hz – 20Hz Dispersion S10N-TM80 (h x v): typically 80° x 50°, rotatable horn Dispersion S10N-TM50 (h x v): typically 50° x 50°... -
Page 8: Technical Notes
Technical Notes Safety steels may be used only with the M10 threaded inserts. M6 or M8 threaded inserts in the rear are to be used exclusively with DAL original accessories or are designed as lashing points. After use, make sure that the countersunk screws belonging to the cabinet are screwed back into the threaded sleeves in order to maintain an air-tight system. -
Page 9: Test And Maintenance
surface and that the selected load points have a proven load-bearing capacity. Use approved stands and approved mounting accessories that are designed for the weight load. Additionally secure the ground stacked or flown speaker system before commissioning to prevent personal injury and property damage. Test And Maintenance The wiring of the loudspeaker components inside the cabinet is according to the diagram to the left. -
Page 10: Note On Disposal
Note on disposal Observe the applicable national regulations and rules for disposal. All products manufactured by German Audio Engineering GmbH are B2B products and are supplied to commercial customers. The adjacent symbol of the crossed-out trash bin can indicate that this product will be disposed of exclusively by German Audio Engineering GmbH.
