LED Strip RGB/CW/WW Zone RF Controller

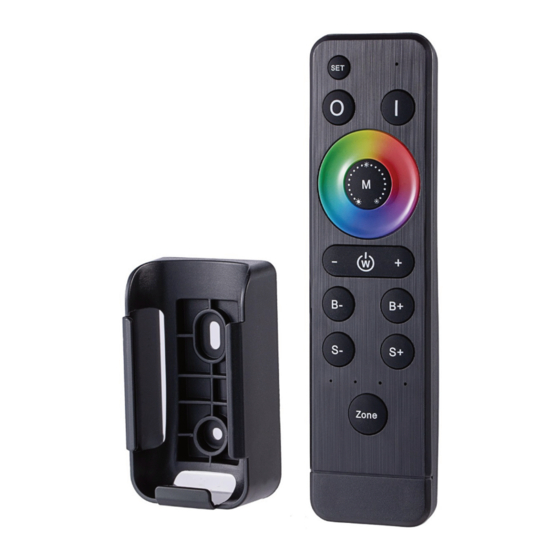

Wireless remote control for single- and multi-colored LEDs 12-24 V
No. 50531150 Set (receiver and remote control)
No. 50531155 Receiver
USER MANUAL
EN
Thank you for purchasing this LED control system. The 5-channel wireless
receiver is especially designed for control of single- and multi-colored
(CW+WW, RGB, RGBW) LED strips requiring an operating voltage of 12 V and
24 V direct current. The receiver is operated by wireless control (2.4 GHz) via
the remote control. 4 control zones are available. Multiple receivers can be
assigned to the zones as desired and controlled via the same remote control,
either separately or in groups. As the receivers forward the radio signal, a large
range can be covered and all color settings run in sync. The maximum power
consumption of a channel must not exceed 4 A and of all LEDs connected 20 A.
The connection must be made by skilled personnel only. Please read these
operating instructions carefully before using the product. They contain
important information for the correct use of your product. Please keep them for
future reference.
SAFETY INSTRUCTIONS
Only use the product according to the instructions given herein. Damages due to
failure to follow these operating instructions will void the warranty! We do not assume
any liability for any resulting damage.
We do not assume any liability for material and personal damage caused by improper
use or non-compliance with the safety instructions. In such cases, the
warranty/guarantee will be null and void.
Unauthorized rebuilds or modifications of the product are not permitted for reasons of
safety and render the warranty invalid.
This product is not a toy. Keep it out of the reach of children. Do not leave packaging
material lying around carelessly.
Keep this device away from rain and moisture. Indoor use only.
Protect the product against excessive humidity and heat. The recommended
temperature is -5 to +45°C.
Before taking into operation, check upon possible damages. If defective, the product
must not be taken into operation.
This product is maintenance-free, except for occasional cleaning. You can use a
slightly dampened cloth for cleaning. Never use alcohol or solvents.
Maintenance and service operations are only to be carried out by authorized dealers.
1 • EN
