EuroLite 50531129 User Manual

EuroLite 50531129 User Manual

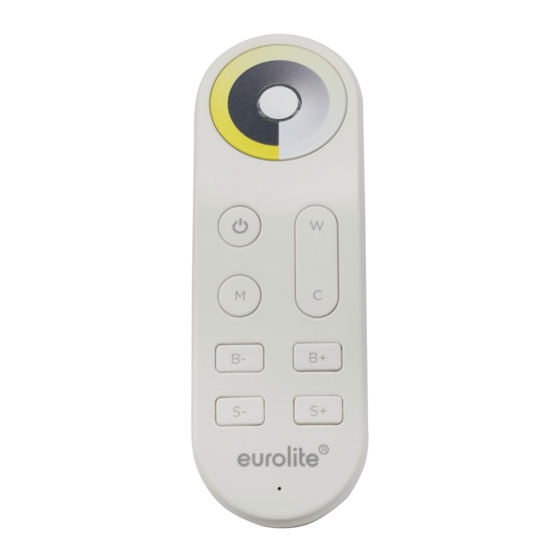

Led strip remote control. wireless remote control for 5in1 controller

Advertisement

Quick Links

Thank you for purchasing this 5in1 remote control. It is designed for wireless control (2.4 GHz) of
single- and multi-colored (CCT, RGB, RGBW, RGB+CCT) LED strips in combination with the
matching 5in1 controller. The range is 20 meters.
SAFETY INSTRUCTIONS
Please read these operating instructions carefully before using the product. They
contain important information for the correct use of your product. Please keep them for
future reference.
Only use the product according to the instructions given herein. Damages due to
failure to follow these operating instructions will void the warranty! We do not assume
any liability for any resulting damage.
We do not assume any liability for material and personal damage caused by improper
use or non-compliance with the safety instructions. In such cases, the
warranty/guarantee will be null and void.
Unauthorized rebuilds or modifications of the product are not permitted for reasons of
safety and render the warranty invalid.
This product is not a toy. Keep it out of the reach of children. Do not leave packaging
material lying around carelessly.
Keep this device away from rain and moisture. Indoor use only.
Protect the product against excessive humidity and heat. The recommended
temperature is -5 to +45°C.
Before taking into operation, check upon possible damages. If defective, the product
must not be taken into operation.
This product is maintenance-free, except for occasional cleaning. You can use a
slightly dampened cloth for cleaning. Never use alcohol or solvents.
Maintenance and service operations are only to be carried out by authorized dealers.
SETUP
1) A wall holder and accessories are supplied with the remote control. Either mount the holder to
the wall using the adhesive strip or the screws and dowels
2) For power supply of the remote control, insert two 1.5 V AAA batteries into the battery
compartment as indicated. If the remote is not used for a longer period, please remove the
batteries to prevent damage in case of battery leakage.
3) Follow the steps in chapter Wireless Connection to pair the remote control with the 5in1
controller.
1 • EN

Advertisement

loading
Need help?

Need help?

Do you have a question about the 50531129 and is the answer not in the manual?

Questions and answers

Summary of Contents for EuroLite 50531129

  • Page 1 Thank you for purchasing this 5in1 remote control. It is designed for wireless control (2.4 GHz) of single- and multi-colored (CCT, RGB, RGBW, RGB+CCT) LED strips in combination with the matching 5in1 controller. The range is 20 meters. SAFETY INSTRUCTIONS Please read these operating instructions carefully before using the product.
  • Page 2 OPERATION Single-color LEDs Dimmer ring On/off Brightness + (5 steps) Mode Brightness + (5 steps) Brightness + (1024 steps) Brightness + (1024 steps) Speed ‒ Speed + RF signal indicator Button Function Power on/off Adjusting brightness clockwise (127 level available) Dimmer ring Mode selection: flashing, fade Reduce brightness in 5 levels (1 %, 10 %, 30 %, 70 %, 100 %)
  • Page 3 OPERATION White LEDs with variable color temperature Color ring On/off Color temperature + Mode Color temperature ‒ Brightness ‒ Brightness + Speed ‒ Speed + RF signal indicator Button Function Power on/off Color ring Set color temperature between 100% cold white and 100% warm white Mode selection: flashing, 2-color flashing, fade, 2-color fade Increase color temperature in 5 steps (Keep button pressed to proceed quicker)
  • Page 4 OPERATION RGB LEDs Color ring On/off White Mode 6 basic colors Brightness ‒ Brightness + Speed ‒ Speed + RF signal indicator Button Function Power on/off Color ring Color selection (64 colors available) Mode selection (8 modes available, see table below) White light on/off Select 6 static colors (red, green, blue, yellow, purple, cyan) Reduce brightness in 1024 levels (keep button pressed to proceed quicker)
  • Page 5 OPERATION RGBW LEDs Color ring On/off White on/off Mode White brightness +/‒ Brightness ‒ Brightness + Speed ‒ Speed + RF signal indicator Button Function Power on/off Color ring RGB color selection (64 colors available) Mode selection (8 modes available, see table below) White light on/off Increase/decrease brightness of white light in 1024 levels (keep button pressed to proceed quicker)
  • Page 6 OPERATION RGBCW or RGB+CCT LEDs Color ring On/off White on/off Mode Color temperature +/‒ Brightness ‒ Brightness + Speed ‒ Speed + RF signal indicator Button Function Color ring Power on/off RGB color selection (64 colors available) Mode selection (8 modes available, see table below) White light on/off Increase/decrease color temperature in 5 steps (Keep button pressed to proceed quicker)
  • Page 7 WIRELESS CONNECTION Pairing the remote control with the 5in1 controller When paired, the controller can be controlled via the remote control. Step Procedure Remarks 1) If the controller has been paired before, it has to be reset to factory settings before it can be paired again. Connect the LEDs and switch on the 2) Provided that they are within the range 5in1 controller.
  • Page 8 WIRELESS CONNECTION Pairing multiple remote controls Each remote control is delivered with its own code preconfigured. If you use multiple remote controls, the code of one remote control needs to be copied to the other remote controls for them to operate in sync successfully. Step Procedure Remarks...
  • Page 9: Protecting The Environment

    TECHNICAL SPECIFICATIONS Application: DIM, CCT, RGB, RGBW, RGB+CCT Carrier frequency: 2.4 GHz Range: approx. 20 m Battery: 2 x 1.5V AAA LR03 Operating current: <25 mA Dimensions (LxWxH): 108 x 36 x 22 mm Weight: 55 g All information is subject to change without prior notice. PROTECTING THE ENVIRONMENT Disposal of old equipment When to be definitively put out of operation, take the product to a local recycling...
