Senco SCP40XP Operating Instructions Manual

Senco SCP40XP Operating Instructions Manual

Pneumatic concrete pinner

Advertisement

Quick Links

PNeumatiC CoNCrete PiNNer
Warnings for the safe use of this tool are included in this manual.
Los avisos para el uso seguro de esta herramienta están incluidos en este manual.
Les consignes pour l'utilisation en toute sécurité de cet outil se trouvent dans ce manuel.
KYOCERA-SENCO Industrial Tools, Inc.
8450 Broadwell Road
Cincinnati, OH 45244
1-800-543-4596
www.senco.com
operating instructions
NFD87J • Issued October 18, 2023 (Replaces 5/8/15)
SCP40XP
IMPORTANT:
Read before use.
© 2023 by KYOCERA-SENCO Industrial Tools, Inc.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SCP40XP and is the answer not in the manual?

Questions and answers

Summary of Contents for Senco SCP40XP

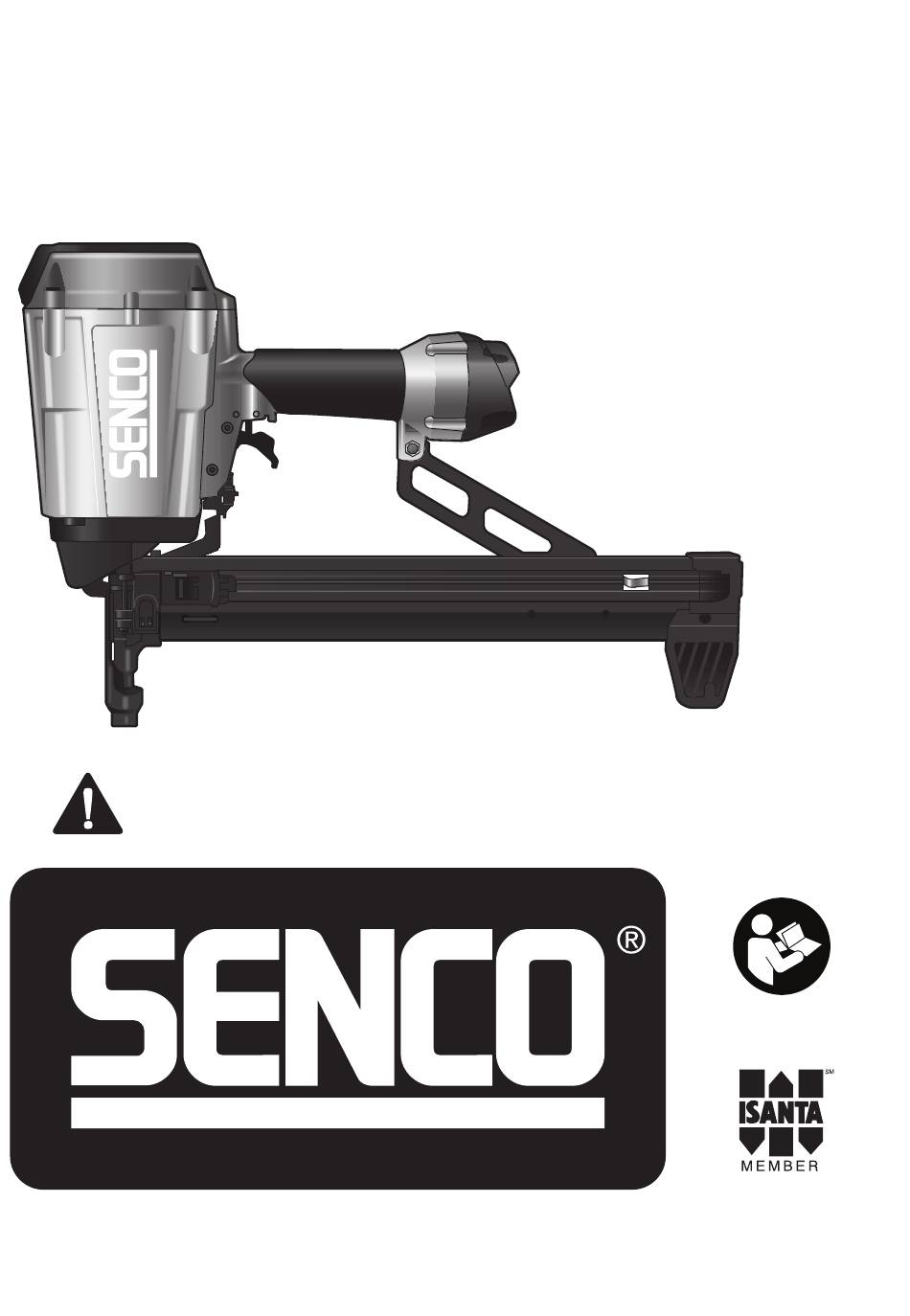

  • Page 1 Les consignes pour l’utilisation en toute sécurité de cet outil se trouvent dans ce manuel. IMPORTANT: Read before use. KYOCERA-SENCO Industrial Tools, Inc. NFD87J • Issued October 18, 2023 (Replaces 5/8/15) 8450 Broadwell Road Cincinnati, OH 45244 1-800-543-4596 www.senco.com © 2023 by KYOCERA-SENCO Industrial Tools, Inc.
  • Page 2: Table Of Contents

    table of Contents Employer’s Responsibilities ........................2 Safety Warnings ............................3 Maintenance ............................... 6 Functional Operation ..........................8 Tool Use ..............................9 Actuation System ............................9 Clearing Jam .............................. 9 Features ..............................9 Troubleshooting ............................10 Accessories .............................. 10 Technical Specifications ........................... 11 Fastener Specifications ..........................
  • Page 3: Safety Warnings

    Safety WarNiNgS Read and understand tool labels and manual. Failure to follow WARNING warnings will result in DEATH or SERIOUS INJURY. Save These Instructions. Personal Protective equipment Use safety equipment. Always wear ANSI Z87+ safety glasses with permanently attached side shields. Dust mask, non-skid safety shoes, hard hat, or hearing protection must be used for appropriate conditions.
  • Page 4 It is recommended that operators that are less experienced using pneumatic fastener driving tools choose a sequential mechanism until they become familiar with the tool and its operation. Please call Senco Customer Service to obtain an alternate trigger type in those tools that can be user modified to fit the application and/or level of operator experience.
  • Page 5 (7) MAX AIR PRESS. 120 PSI (8.3 BAR) operating Controls Do not use tool without danger label on tool. If label is missing, damaged or unreadable, contact your SENCO represen- tative to obtain a new label. Never use tool if safety element, trigger or springs have become inoperable, missing or damaged. Do not tamper with or remove safety element, trigger or springs.
  • Page 6: Maintenance

    Do not use tool if safety element or trigger sticks or binds. Squirt Senco pneumatic oil (5 to 10 drops) into the air inlet twice daily (depending on frequency of tool use). Other oils may damage O-rings and other tool parts.
  • Page 7 Safety WarNiNgS the employer, tool owner and tool operator: • are responsible for ensuring that the tools are kept in safe working order. • are responsible for ensuring that only qualified personnel shall repair the tool. • are responsible for ensuring that manufacturers tool maintenance instructions are available to personnel performing maintenance.
  • Page 9: Tool Use

    When approximately five nails remain in the magazine, the workpiece contact (safety element) will be locked in the undepressed position until more nails are loaded into the magazine. repairs other than those described here should be performed only by trained, qualified personnel. Contact SeNCo for information at 1-800-543-4596.
  • Page 10: Troubleshooting

    SENCO Replace safety Position follower behind fasten- Other problems Contact SENCO accessories SENCO offers a full line of accessories for your SENCO tools, including: • Air Compressors • Fittings • Lubricants • Hose • Safety Glasses •...
  • Page 11: Technical Specifications

    Tool size: Length 18.21" 462,5 mm Tool size: Width: Main Body 4.5" 114,4 mm Maximum Fastener Size 1 1/2" (38 mm) Length x .109" (2,8 mm) dia. shank fastener Specifications Senco faSTener code incheS W3050YXC 12,7 0.104"/0.118" W3075YXC 0.109" W3100YXC 25,4 0.109"...
  • Page 12: Limited Warranty

    KYOCERA-SENCO Industrial Tools, Inc. (“SENCO”) designs and constructs its products using the highest standards of material and workmanship. SENCO warrants to the original retail purchaser that the following products will be free from defects in material or workmanship for the warranty period...
