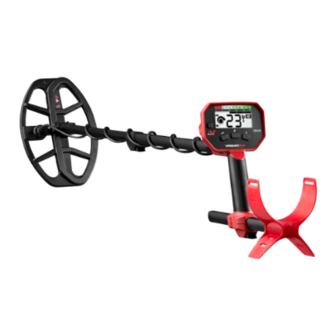

Minelab VANQUISH 340 Getting Started

ASSEMBLY
1
QUICK
START
1
TURN ON
WAIT FOR
2
5 SECONDS
3
GO DETECTING
CONTROLS
1
2
DISPLAY
6
7
8
2
5
4
SEARCH MODES
COIN
Find coins from around the
world while ignoring trash in
parks and at the beach.
5
3 4
12
11
9 10
GETTING STARTED WITH THE VANQUISH 340
3
6
JEWELLERY
Recover precious jewellery
no matter where it was lost.
CONTROLS
1 POWER ON/OFF
2 VOLUME ADJUST
3 SENSITIVITY ADJUST
4 SEARCH MODE
5 TARGET IDENTIFICATION GUIDE
minelab.com/vanquish
Translations of this Getting Started Guide and the full length VANQUISH
User Manual are available to download online.
×4
AA
7
ALL METAL
Detect all metal objects
including iron.
DISPLAY
6 BATTERY LEVEL
7 VOLUME LEVEL
8 SENSITIVITY LEVEL
9 TARGET IDENTIFICATION NUMBER
10 DEPTH GAUGE
11 SEARCH MODES
12 DISCRIMINATION SEGMENTS
4901-0450-1
