Seuic HS220 Reference Manual

Wireless scanner
Hide thumbs
Table of Contents

Advertisement

Quick Links

SEUIC
Reference Manual

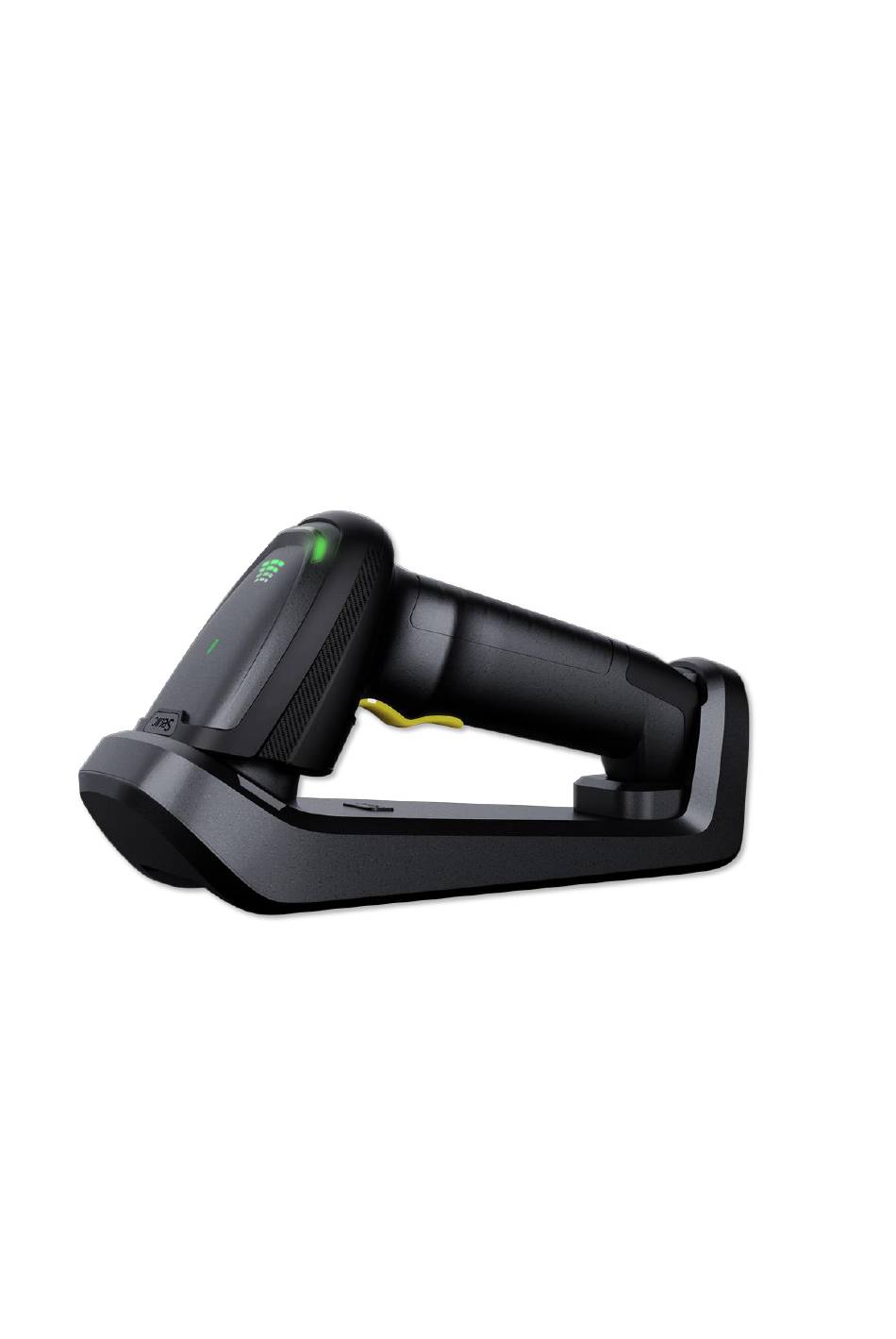

HS220 Wireless Scanner
User's Guide V1.0
SEUIC Technologies Co., Ltd.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HS220 and is the answer not in the manual?

Questions and answers

Related Manuals for Seuic HS220

Summary of Contents for Seuic HS220

  • Page 1 SEUIC Reference Manual HS220 Wireless Scanner User’s Guide V1.0 SEUIC Technologies Co., Ltd.
  • Page 2 HS220 Wireless Scanner Specifications Image Sensor 1280 * 800 COMS sensor with global shutter Camera Option High density Illumination LEDs Intelligent adjustable diffuse light(red/white) Aiming Cross-shape laser aimer Sensor Speed 60fps 1D: UPC/EAN, Code128, GS1-128, Code 39, Code 93, Interleaved 2 of 5, Support Symbologies Codabar, etc.
  • Page 3 IP51 (Water and Dust Resistant) 50 rounds of 3.9 ft./1.2m drops across the operating temperature range Mechanical Shock Shell Material Highly resistant industrial palstic ESD Protection ± 15kV Air discharge,± 8kV direct discharge Power Adapter 5.0V/2.0A Certificates CE、FCC、RoHS、UN38.3 SEUIC Technologies Co., Ltd.

  • Page 4: Table Of Contents

    ） ........................... 7 5.1 *C RADLE EFAULT 5.2 B .............................. 7 LUETOOTH MODE 5.3 B HID K ......................8 LUETOOTH EYBOARD ISCONNECTION 5.4 P ..................................8 AIRING 5.5 B HID T ........................8 LUETOOTH RANSMISSION PEED SEUIC Technologies Co., Ltd.
  • Page 5 ..........................17 UTPUT EQUENCE VERVIEW 9.4 O ........................... 17 UTPUT EQUENCE DITOR CHAPTER 10 DATA EDITING ............................18 10.1 P ............................ 18 REFIX UFFIX VERVIEW 10.1.1 Add a Carriage Return Suffix to all Symbologies ..................18 SEUIC Technologies Co., Ltd.
  • Page 6 ............................... 29 ATRIX 12.15 AZTEC C ..............................30 CHAPTER 13 OTHERS SETTING..........................31 13.1 S ID ..............................31 APPENDIX I：PROGRAMMING CHART ........................32 APPENDIX II： ASCII CONVERSION CHART ...................... 33 APPENDIX III: SAMPLE SYMBOLS ......................... 34 SEUIC Technologies Co., Ltd.

  • Page 7: Chapter 1 General Settings

    About This Manual： HS220 wireless scanners are factory programmed for the most common terminal and communications settings.You can change these settings in the following two ways： 1）By scanning menu barcodes 2）By sending serial commands to the scanner 3）An asterisk (*) next to an option indicates the default setting Chapter 1 General Settings 1.1 Restore the Scanner and the Cradle factory default settings...

  • Page 8: Show Scanner Software Revision Information

    Scan the code below to output the current bluetooth revision of the scanner. 1.9 Show Cradle Bluetooth Revision information Scan the code below to output the current bluetooth revision of the cradle. 1.10 Reset Cradle 1.11 Reset Scanner SEUIC Technologies Co., Ltd.

  • Page 9: Power Off

    USB COM Port Emulation Scan this code to program the scanner to regular RS232 based COM port. If you are using a Microsoft Windows PC, you will need to download a driver from Seuic 2.3 RS232 Serial Port Connection RS232 Interface All communication parameters between the scanner and terminal must match for correct data transfer through the serial port using RS-232 protocol.

  • Page 10: Rs232 Parity

    In Asynchronous mode,the scanner attempts to transmit every scanned bar code immediately; the scanner starts storing bar code data when it loses its connection to the cradle.Data transmission is triggered by reestablishing the connection with the cradle. Asynchronous mode SEUIC Technologies Co., Ltd.

  • Page 11: Batch Mode

    Chapter 4 Scanner(s) To Cradle Support 4.1 *Point-to-Point（Default） In Point-to-Point communication mode, the cradle allows one scanner to connect to it at a time。 *Point-to-Point 4.2 Multipoint-to-Point Multipoint-to-Point communication mode allows up to four scanners to pair to one cradle. Multipoint-to-Point SEUIC Technologies Co., Ltd.

  • Page 12: Lock Override

    A high beep followed by the blue LED of the cradle flashes once, and the blue LED of the wireless scanner stays on for 10 seconds indicates successful pairing. A high-high beep sequence indicates disconnection to cradle. SEUIC Technologies Co., Ltd.

  • Page 13: Unlinking The Scanner

    Your scanner can be paired with Bluetooth-capable devices,such as personalcom-puters, laptops, and tablets, so that scanned data appears on your device screen as though it was entered on the keyboard.In order to pair with the Bluetooth device: Bluetooth HID mode SEUIC Technologies Co., Ltd.

  • Page 14: Bluetooth Hid Keyboard Disconnection

    “HS220_SN”,SN is the last six digits of the SN number) 5.5 Bluetooth HID Transmission Speed Scan the code below to set the Bluetooth HID transmission speed,High-speed transmission is 6ms,Medium-speed transmission is 8ms(default),Low-speed transmission is 16ms. High-speed transmission *Medium-speed transmission Low-speed transmission Show transfer speed SEUIC Technologies Co., Ltd.

  • Page 15: Chapter 6 Output Settings

    The scanner sends key combinations for ASCII control characters for values 00-1F. Windows is the preferred mode. All keyboard country codes are supported. * Control + ASCII Mode Off Windows Mode Control + ASCII On 6.4 Show Decoding time *Decoding time Off Decoding time On SEUIC Technologies Co., Ltd.

  • Page 16: Scanner Power Time-Out Timer

    The beeper may be programmed On or Off in response to a good read. Turning this option off, only turns off the beeper response to a good read indication. Good read beep Off *Good read beep On SEUIC Technologies Co., Ltd.

  • Page 17: Beeper Duration - Good Read

    The number of LEDs of a bad read can be programmed from 1 - 9. Scan the barcode below and then scan a digit (1-9) barcode and the Save barcode on the Programming Chart inside the back cover of this manual. Number of Good Read Beeps/LED Flashes Save SEUIC Technologies Co., Ltd.

  • Page 18: Bad Read Led Control

    “NR” appears when a code cannot be read. If No Read is turned Off, the “NR” will not appear. *Off 7.11 User-Specified No read Output character If you want to set your own “No Read” Output characters, scan the barcode below. User-Specified On Read Characters Save SEUIC Technologies Co., Ltd.

  • Page 19: Chapter 8 Trigger Modes

    Save. Default = No Delay. User-Specified Good Read Delay Save 8.5 Reread Delay This sets the time period before the scanner can read the same barcode a second time. scan the barcode SEUIC Technologies Co., Ltd.

  • Page 20: Presentation Mode

    Save 8.9 Illumination Lights If you want the illumination lights on while reading a barcode, scan the Lights On barcode, below. However, if you want to turn just the lights off, scan the Lights Off barcode. SEUIC Technologies Co., Ltd.

  • Page 21: Illumination Colors

    It is convenient for users to align the barcode in advance to complete fast and accurate scanning Pre-Aiming Off *Aiming light on for 5s Aiming light on for 10s Aiming light on for 30s SEUIC Technologies Co., Ltd.

  • Page 22: Centering

    If you press and hold the trigger, aiming the scanner at a series of symbols, it reads unique symbols once, beeping (if turned on) for each read. The scanner attempts to find and decode new symbols as long as the trigger is pulled. SEUIC Technologies Co., Ltd.

  • Page 23: Multiple Symbols Number Set

    On the ASCII Conversion Chart, find the Hex value that represents the character(s) you want to match. Use the Programming Chart to read the alphanumeric combination that represents the ASCII characters. (00 is the Universal number, indicating all characters.) SEUIC Technologies Co., Ltd.

  • Page 24: Chapter 10 Data Editing

    10.1.3 To Add a Suffix Suffix Selections *Suffix Off Suffix On Add Suffix Save 10.1.4 Clear Prefix or Suffix（Not included the CR Suffix） Clear Prefix Clear Suffix 10.1.5 Data Formatting Data Formatter On Data Formatter Off SEUIC Technologies Co., Ltd.

  • Page 25: Intercharacter Delay

    Save Chapter 11 Exposure Mode settings 11.1 Exposure mode The following settings can be used to change the scanner exposure mode setting, and the factory default mode is Auto exposure mode. * Auto exposure Fixed exposure SEUIC Technologies Co., Ltd.

  • Page 26: Exposure Value Settings

    With this mode on, the illumination light is adjustable in according to the barcode reading background and text between auto exposure and fixed exposure value. Smart illumination On * Smart illumination off In the Smart illumination mode, you can set automatic exposure and fixed exposure Switching time. Default=2s 1.5s 2.5s SEUIC Technologies Co., Ltd.

  • Page 27: Chapter 12 Symbologies

    On, You can also scan the standard barcode, but it will reduce the decoding speed. * Video Reverse Off Video Reverse On *UPC/EAN Video Reverse Off UPC/EAN Video Reverse On *Code128 Video Reverse Off Code128 Video Reverse On *Code39 Video Reverse Off Code39 Video Reverse On SEUIC Technologies Co., Ltd.

  • Page 28: Codabar

    The scanner will only read Codabar barcodes printed with a check character, but will not transmit the check character with the scanned data. The scanner will only read Codabar barcodes printed with a check character, and will transmit this character at the end of the scanned data. Codabar Minimum Message Length SEUIC Technologies Co., Ltd.

  • Page 29: Code 39

    The scanner will only read Code39 barcodes printed with a check character, and will transmit this character at the end of the scanned data. 。 Code39 Minimum Message Length Scan the barcodes below to change the minimum message length, Minimum Default=1 Minimum Message Length Save SEUIC Technologies Co., Ltd.

  • Page 30: Interleaved 2 Of 5

    The scanner will only read Interleaved 2 of 5 barcodes printed with a check character, but will not transmit the check character with the scanned data. The scanner will only read Interleaved 2 of 5 barcodes printed with a check character, and will transmit SEUIC Technologies Co., Ltd.

  • Page 31: Code 93

    Code93 Maximum Message Length Scan the barcodes below to change the maximum message length, Maximum Default=80 Maximum Message Length Save 12.7 Code 128 Code 128 On or Off Code128 Off *Code128 On Code128 Minimum Message Length SEUIC Technologies Co., Ltd.

  • Page 32: Gs1-128

    *Parentheses Off Parentheses On GS1-128 Short Margin Scan the barcodes below to switch Short Margin options of GS1-128.Scan Short Margin On allows the scanner to decode in short margin condition. *Short Margin Off Short Margin On SEUIC Technologies Co., Ltd.

  • Page 33: Upc-A

    Default = On. * On ISBN Translate This selection causes EAN-13 Bookland symbols to be translated into their equivalent ISBN number format. Default = Off *ISBN Off ISBN On 12.11 EAN/JAN-8 EAN/JAN-8 On or Off SEUIC Technologies Co., Ltd.

  • Page 34: Pdf417

    Scan the barcodes below to change the minimum message length, Minimum Default=1 Minimum Message Length Save MicroPDF417 Maximum Message Length Scan the barcodes below to change the maximum message length, Maximum Default=366 Maximum Message Length Save SEUIC Technologies Co., Ltd.

  • Page 35: Qr Code

    Scan the barcodes below to change the minimum message length, Minimum Default=1 Minimum Message Length Save Data Matrix Maximum Message Length Scan the barcodes below to change the maximum message length, Maximum Default=3116 Maximum Message Length Save SEUIC Technologies Co., Ltd.

  • Page 36: Aztec Code

    DM Low Image proportion On Data Matrix ECC140 mode Users can scan the barcodes below to set for supporting Data Matrix with ECC140 Calibration level. Default=Off *ECC140 Off ECC140 On 12.15 AZTEC Code AZTEC On or Off SEUIC Technologies Co., Ltd.

  • Page 37: Chapter 13 Others Setting

    2 of 5 Codablock Japanese IATA 2 5 Post Code 11 KIX Post Telepen ？ Code 128 Korea Post UPC-A GS1-128 Matrix 2 5 UPC-E Code 32 < Maxicode No read Code 39 Micro PDF Symbology Chart SEUIC Technologies Co., Ltd.

  • Page 38: Appendix I：programming Chart

    Appendix I：Programming Chart Save SEUIC Technologies Co., Ltd.

  • Page 39: Appendix Ii： Ascii Conversion Chart

    Appendix II： ASCII Conversion Chart Char Char Char Char ‘ “ & ‘ < > ASCII Conversion Chart SEUIC Technologies Co., Ltd.

  • Page 40: Appendix Iii: Sample Symbols

    Appendix III: Sample Symbols Code 39 Code 128 UPC A EAN-13 Codabar UPC E PDF 417 Interleaved 2/5 Data Matrix QR Code SEUIC Technologies Co., Ltd.
  • Page 41 5 seconds Scan LEDs Scanner is on and ready to scan, or no power to scanner Green Led Decoding succeeded Red Led Decoding failed(off by default) Yellow Led Decoding succeeded,Transmission failed SEUIC Technologies Co., Ltd.
  • Page 42 2. Search for Bluetooth and pair again Incorrect Bluetooth mode Scan the "Bluetooth HID Mode" barcode, switch the Bluetooth mode to the Cradle mode, and then try to pair again SEUIC Technologies Co., Ltd.
  • Page 43 Please keep the USB data cable away from water and fire. Technical Support lease visit SEUIC's official website www.chinaautoid.net to download User Manual, SDK, different Apps or software in order to help you better use the device. 2020 SEUIC Company.
