Plant Water Status Console

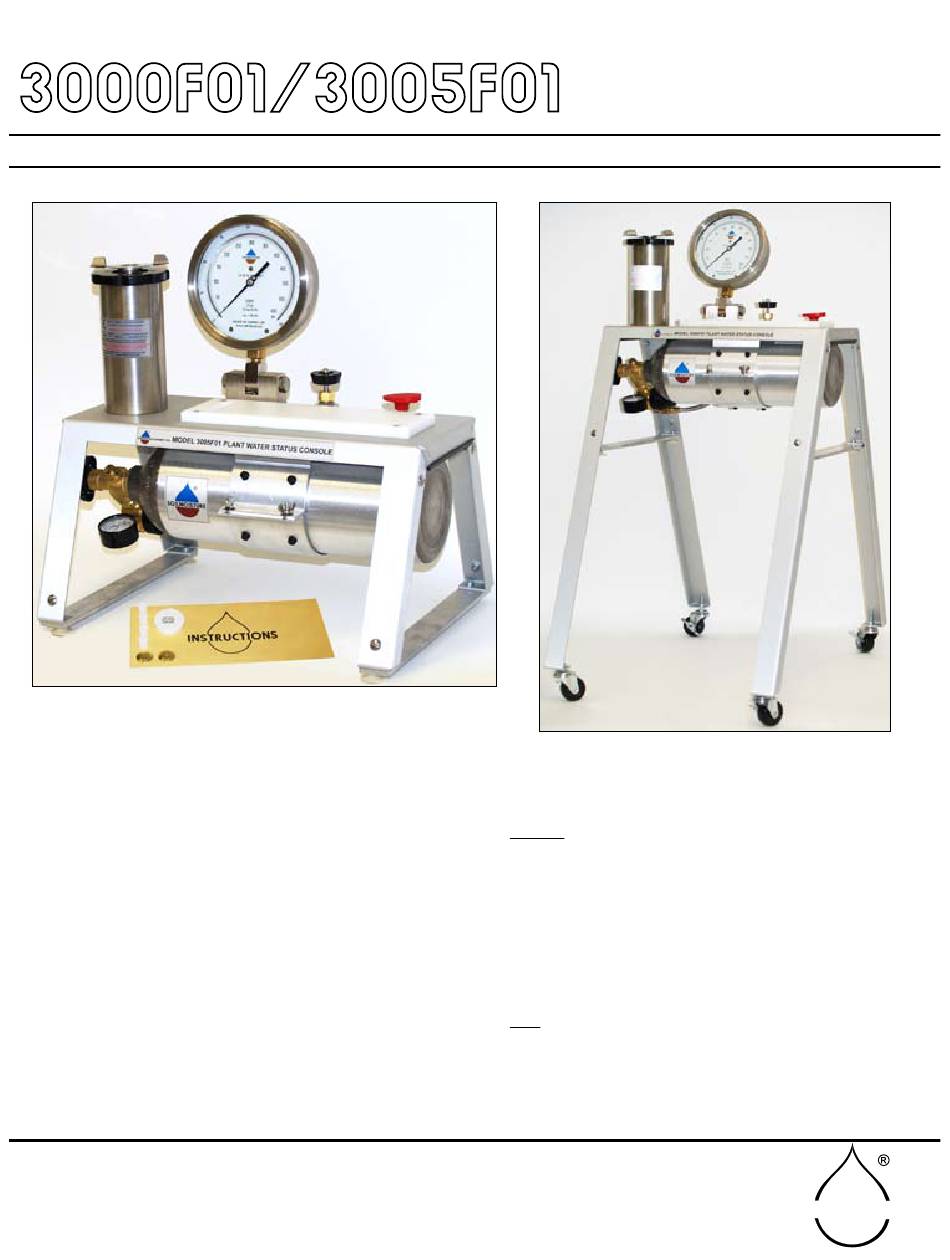

Fig. 01 - Model 3005F01 Plant Water Status Console - Table top
Model 3000F01
The Plant Water Status Console, Model 3000F01, is supplied without the compressed gas cylinder or the pres-
sure regulator, but does come with a 5-foot long, flexible, high pressure (3,000 psi working pressure) stainless
steel connecting hose to connect to your pressure source. One end of the connecting hose is sealed to the
pressure inlet of the console. The other end can be fitting with standard 1/4-inch pipe fittings to connect to your
regulated pressure source. We recommend you use brass pipe and tube fittings that have a 3,000 psi working
pressure. The regulated pressure that you supply to the console must not exceed the maximum pressure reading
of the pressure readout gauge of the console. For standard units this pressure is 600 psi.
Model 3005F01
The Plant Water Status Console, Model 3005F01, is supplied with a compressed gas cylinder and connected
pressure regulator for field operation. The pressure regulator has been set at the factory for the maximum operat-
ing pressure of the unit which, for standard units, is 600 psi.
SOILMOISTURE EQUIPMENT CORP.
P.O. Box 30025, Santa Barbara, CA 93105 U.S.A.
Telephone 805-964-3525 - Fax No. 805-683-2189
sales@soilmoisture.com - www.soilmoisture.com
OPERATING
INSTRUCTIONS

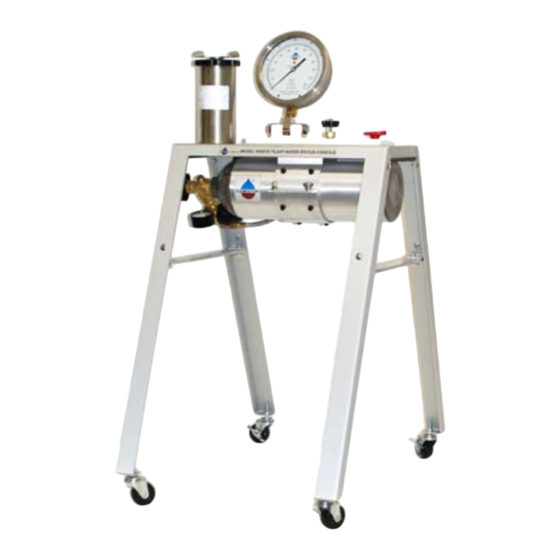

Fig. 02- Model 3005F01 Plant Water Status Console
(EXTENSION LEGS ATTACHED)
February 2011
SOILMOISTURE

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 3000F01 and is the answer not in the manual?

Questions and answers

Related Manuals for Soilmoisture Equipment 3000F01

Summary of Contents for Soilmoisture Equipment 3000F01

  • Page 1 (EXTENSION LEGS ATTACHED) Model 3000F01 The Plant Water Status Console, Model 3000F01, is supplied without the compressed gas cylinder or the pres- sure regulator, but does come with a 5-foot long, flexible, high pressure (3,000 psi working pressure) stainless steel connecting hose to connect to your pressure source. One end of the connecting hose is sealed to the pressure inlet of the console.

  • Page 2: Table Of Contents

    Soilmoisture Equipment Corp. (SEC) is not liable for any damages, actual or inferred, caused by misuse or improper handling of its products. SEC products are designed to be used solely as described in these product operating instructions by a prudent individual under normal operating conditions in applications intended for use by this product.

  • Page 3: General Specifications

    By stressing the plant, better crops can be produced and water use better managed. SOILMOISTURE EQUIPMENT CORP. P.O. Box 30025, Santa Barbara, CA 93105 U.S.A.

  • Page 4: Acquaint Yourself With The Parts

    PRESSURE GAUGE LEG EXTENSIONS (2 FRONT / 2 BACK) SUPPORT BAR Fig. 03 - Plant Water Status Console primary parts SOILMOISTURE EQUIPMENT CORP. P.O. Box 30025, Santa Barbara, CA 93105 U.S.A. SOILMOISTURE Telephone 805-964-3525 - Fax No. 805-683-2189 sales@soilmoisture.com - www.soilmoisture.com...

  • Page 5: Leg Extension Assembly

    Vaseline, to the “O” ring. Then, after the specimen holder is re- moved for the first time, it will enter and close. Fig. 05- Specimen Holder SOILMOISTURE EQUIPMENT CORP. P.O. Box 30025, Santa Barbara, CA 93105 U.S.A. SOILMOISTURE Telephone 805-964-3525 - Fax No. 805-683-2189...

  • Page 6: Gauge

    (Fig.07). A zero pointer position adjusting screw is provided for zeroing the pointer in the event it is jarred out of place. Fig. 07- Test gauge with swivel base SOILMOISTURE EQUIPMENT CORP. P.O. Box 30025, Santa Barbara, CA 93105 U.S.A. SOILMOISTURE Telephone 805-964-3525 - Fax No.

  • Page 7: Prepboard

    PRESSURIZE EXHAUST Fig. 09- Metering valve settings Fig. 10- Control valve settings SOILMOISTURE EQUIPMENT CORP. P.O. Box 30025, Santa Barbara, CA 93105 U.S.A. SOILMOISTURE Telephone 805-964-3525 - Fax No. 805-683-2189 sales@soilmoisture.com - www.soilmoisture.com...
  • Page 8 TANK TANK MOUNTING BRACKET SEALING VALVE PRESSURE REGULATOR PRESSURE GAUGE Fig. 12 - Parts under chassis SOILMOISTURE EQUIPMENT CORP. P.O. Box 30025, Santa Barbara, CA 93105 U.S.A. SOILMOISTURE Telephone 805-964-3525 - Fax No. 805-683-2189 sales@soilmoisture.com - www.soilmoisture.com...

  • Page 9: How To Use And/Or Operate Unit

    Tighten the sealing knob further, if necessary, to be sure that the sealing sleeve is sealing properly around the stem. Fig. 13 - Stem insertion into the specimen holder SOILMOISTURE EQUIPMENT CORP. P.O. Box 30025, Santa Barbara, CA 93105 U.S.A. SOILMOISTURE Telephone 805-964-3525 - Fax No. 805-683-2189...
  • Page 10 Fig. 14 - Observing the cut petiole of the sample ple. SOILMOISTURE EQUIPMENT CORP. P.O. Box 30025, Santa Barbara, CA 93105 U.S.A. SOILMOISTURE Telephone 805-964-3525 - Fax No. 805-683-2189...
  • Page 11 After exhausting the pressure, turn the control valve again to the ‘OFF” position. SOILMOISTURE EQUIPMENT CORP. P.O. Box 30025, Santa Barbara, CA 93105 U.S.A.

  • Page 12: General Care And Maintenance

    The compressed gas cylinder can be refilled with gas while it is still mounted to the console after the regulator has been removed. Fig. 17 - Disconnect the bracket SOILMOISTURE EQUIPMENT CORP. P.O. Box 30025, Santa Barbara, CA 93105 U.S.A. SOILMOISTURE Telephone 805-964-3525 - Fax No.

  • Page 13: How To Refill The Compressed Gas Cylinder

    "face up" position when the storage tank is oriented properly. Fig. 19 - Angle of the pressure regulator SOILMOISTURE EQUIPMENT CORP. P.O. Box 30025, Santa Barbara, CA 93105 U.S.A. SOILMOISTURE Telephone 805-964-3525 - Fax No. 805-683-2189...

  • Page 14: Helpful Hints During Normal Use

    Fig. 20 - Zero adjust SOILMOISTURE EQUIPMENT CORP. P.O. Box 30025, Santa Barbara, CA 93105 U.S.A. SOILMOISTURE Telephone 805-964-3525 - Fax No. 805-683-2189...

  • Page 15: Use And Application Of Product Options

    Grommets to protect the Grommet when the knob is tightened, thereby providing equal pressure over the entire surface of the Grommet. The Support Washers also prevent the Grommet from being pushed out of the specimen holder when pressurized. SOILMOISTURE EQUIPMENT CORP. P.O. Box 30025, Santa Barbara, CA 93105 U.S.A. SOILMOISTURE Telephone 805-964-3525 - Fax No.
  • Page 16 Model 3015G4 Specimen Holder Assembly DESIGNED TO ACCEPT ROUND PETIOLES FROM 1/32”DIA. TO 1/2” DIA. Fig. 23 - Replacement parts for Model 3015G4 Specimen Holder Assembly SOILMOISTURE EQUIPMENT CORP. P.O. Box 30025, Santa Barbara, CA 93105 U.S.A. SOILMOISTURE Telephone 805-964-3525 - Fax No. 805-683-2189...
  • Page 17 SLOT 1.15” X .050 G2 Series Complete Grommet Kit NOTE: The 3017G2 Series Grommets can only be used with the G2 Specimen Holder. SOILMOISTURE EQUIPMENT CORP. P.O. Box 30025, Santa Barbara, CA 93105 U.S.A. SOILMOISTURE Telephone 805-964-3525 - Fax No. 805-683-2189...
  • Page 18 Model 3015G2 Specimen Holder Assembly DESIGNED TO ACCEPT BLADE-TYPE LEAVES UP TO 1” IN WIDTH. Fig. 26 - Replacement parts for Model 3015G2 Specimen Holder Assembly SOILMOISTURE EQUIPMENT CORP. P.O. Box 30025, Santa Barbara, CA 93105 U.S.A. SOILMOISTURE Telephone 805-964-3525 - Fax No. 805-683-2189...

  • Page 19: Notes

    NOTES SOILMOISTURE EQUIPMENT CORP. P.O. Box 30025, Santa Barbara, CA 93105 U.S.A. SOILMOISTURE Telephone 805-964-3525 - Fax No. 805-683-2189 sales@soilmoisture.com - www.soilmoisture.com...

  • Page 20: Replacement Parts And Accessories List

    NOTES SOILMOISTURE EQUIPMENT CORP. P.O. Box 30025, Santa Barbara, CA 93105 U.S.A. SOILMOISTURE Telephone 805-964-3525 - Fax No. 805-683-2189 sales@soilmoisture.com - www.soilmoisture.com...
  • Page 21 NOTES SOILMOISTURE EQUIPMENT CORP. P.O. Box 30025, Santa Barbara, CA 93105 U.S.A. SOILMOISTURE Telephone 805-964-3525 - Fax No. 805-683-2189 sales@soilmoisture.com - www.soilmoisture.com...
  • Page 22 3020G4DK1 COMPLETE SUPPORT SET for all 3019G4D round hole series 3020G4UTK1 COMPLETE 3019G4UT SUPPORT SET, for all specialized grommets. SOILMOISTURE EQUIPMENT CORP. P.O. Box 30025, Santa Barbara, CA 93105 U.S.A. SOILMOISTURE Telephone 805-964-3525 - Fax No. 805-683-2189 sales@soilmoisture.com - www.soilmoisture.com...
  • Page 23 With dealers throughout the world, you have convenience of purchase and assurance of after-sales service. © COPYRIGHT 2011 ALL RIGHTS RESERVED 0898-3000F01 SOILMOISTURE EQUIPMENT CORP. P.O. Box 30025, Santa Barbara, CA 93105 U.S.A. SOILMOISTURE Telephone 805-964-3525 - Fax No. 805-683-2189...
  • Page 24 PLANT WATER STATUS CONSOLE REPLACEMENT PARTS (cont.) AIR FLOW Fig. 27 - Replacement Parts SOILMOISTURE EQUIPMENT CORP. P.O. Box 30025, Santa Barbara, CA 93105 U.S.A. SOILMOISTURE Telephone 805-964-3525 - Fax No. 805-683-2189 sales@soilmoisture.com - www.soilmoisture.com...
