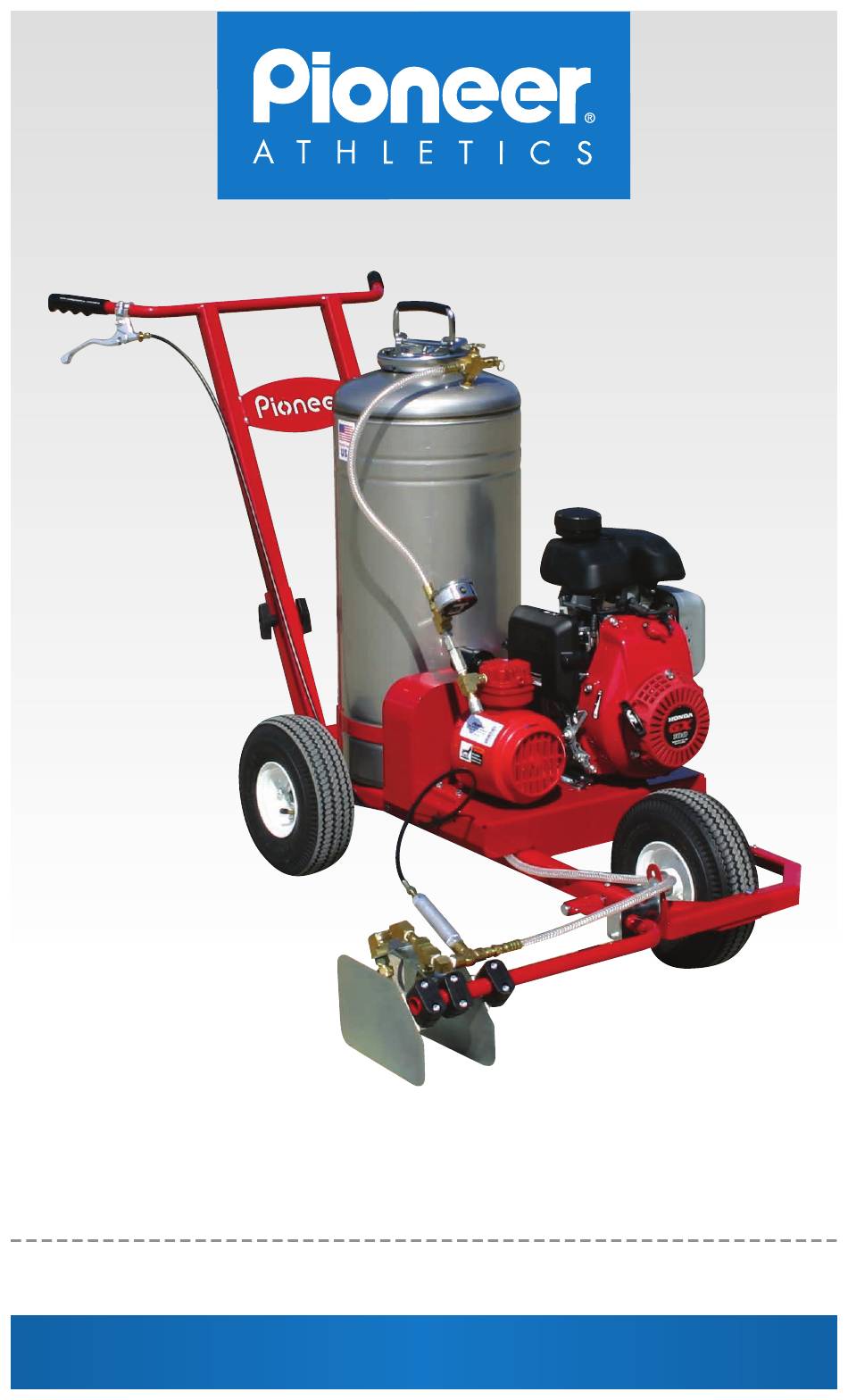

- Page 1 BRITE STRIPER 1600PS ® INSTRUCTION MANUAL AND PARTS LISTING 800-877-1500 | www.pioneerathletics.com...
- Page 2 Pioneer has created a Special Tune-Up Kit for the Brite to find the following Striper 1600PS that includes: helpful resources: ® Pioneer Athletics 2 Nozzle Tips Blog discussing the tips, tricks, technology, 2 Nozzle Screens research, tradeshows, and updates in the...
-
Page 3: Table Of Contents
TABLE OF CONTENTS Brite Striper 1600PS ® Assembly Instructions Removing from Shipping Carton ............2 Handle Assembly ................2 Tools Necessary for Assembly ............3 Adjustable Spray Box ..............2-3 Operation & Care Before Starting ................... 4 Care and Operation of Compressor ........... 5 Care and Operation of Paint Tank Unit .......... -
Page 4: Assembly Instructions
ASSEMBLY WARNING: ENGINE IS NOT SHIPPED WITH MOTOR OIL. If you have any questions concerning assembly or operation, please call our CUSTOMER SERVICE DEPARTMENT at: 800.877.1500 Assembly Instructions for Brite Striper 1600PS: ® Remove Brite Striper 1600PS ® – two people necessary to lift 1. -
Page 5: Tools Necessary For Assembly
ASSEMBLY Adjustable Spray Box Continued: Tools Required: 7/16” Socket and Ratchet 7/16” Open End Wrench 5/8” Open End Wrench Snap Ring Pliers or Screwdriver Hex Key Wrenches 1. Slide Adjustable Spray Box Bar on front axle. Align holes on Spray Box Support Bracket with holes on the front of the frame. -
Page 6: Before Starting
BEFORE STARTING The Brite Striper 1600PS is shipped Be sure ® WITHOUT ENGINE OIL to check the enclosed operating and maintenance instructions for proper oil. Follow filling directions. 1. Carefully read and follow instructions for starting and maintaining the engine (in a separate booklet furnished with your machine). 2. -
Page 7: Care And Operation Of Compressor
CARE AND OPERATION Care and Operation of Compressor: The piston-type compressor requires minimal maintenance. Pre-lubricated ball bearings provide for delivery of oil free air. APPLYING OIL TO ANY PART CAN RESULT IN REDUCED PERFORMANCE AND MAY VOID WARRANTY. The compressor is designed to release pressure at approximately 40 to 45 PSI. -
Page 8: Paint Tank Label
CARE AND OPERATION Care and Operation of Paint Tank Unit Continued: WARNING: RELEASE PRESSURE WITH PRESSURE RELEASE VALVE WHEN NOT IN USE. NEVER USE ANY TOOL TO REMOVE PUMP IF THERE IS PRESSURE IN THE TANK. FAILURE TO FOLLOW THIS INSTRUCTION MAY RESULT IN PERSONAL INJURY OR DAMAGE. -
Page 9: Operation Of Machine
OPERATION OF MACHINE 1. Check to make certain that brass bleed-off valve (located on cross fitting) is in closed position so air will not escape. 2. Make certain that your V-belt is tight. WARNING: NEVER OPERATE UNIT WITHOUT BELT GUARD IN PLACE. -
Page 10: Trouble Shooting & Parts Parts List & Parts Explosion Drawing
PARTS LIST Brite Striper Model 1600PS: ® KEY# PART# DESCRIPTION KEY# PART# DESCRIPTION 1503 0090 Hand Grip Cross Fitting 0125 1505 Paint Control Lever Bleed-off Valve 1102 1636 Paint Control Cable Pump Assembly 0119 0013 *Tank Gasket 13” Airline Hose 0311 0076 Rubber End for... - Page 11 PARTS LIST Brite Striper Model 1600PS: ® Obscured by Rear Wheel...
-
Page 12: Striping Tips
STRIPING TIPS 1. When striping, always have the machine in motion before opening the spray valve, thus eliminating a heavy “blob” of paint at the beginning. 2. If striping on an asphalt or concrete surface you may have a build- up of paint on the edges of your line. -
Page 13: Clean-Up Of The Paint Tank Unit
MAINTENANCE Clean-Up of the Paint Tank Unit: 1. Discharge remaining paint through drain hose (supplied with unit) into clean container. Cap container tightly for next use. 2. Shut off gas engine. 3. Release pressure in the paint tank with brass bleed-off valve WARNING: NEVER USE ANY TOOL TO REMOVE PUMP IF THERE IS PRESSURE IN THE TANK. -
Page 14: Clean-Up Tips
MAINTENANCE AND STORAGE Clean-Up of the Paint Tank Unit Continued: 12. A final step should then be to remove the nozzle caps and clean the nozzle tips and screens. This can easily be done by placing all three parts into a small can of soapy water and allowing them to soak for a few minutes. -
Page 15: Troubleshooting
TROUBLESHOOTING Athletic Field Marking Performance: STRIPER DOES NOT STRIPE A FULL LINE 1. Was paint strained? 2. Check paint level. 3. Check nozzle screen for clogs. Clean as needed. 4. Check nozzle tip for proper alignment – horizontal. 5. Check operating pressure – is air releasing through safety release valve on compressor? 6. - Page 16 TROUBLESHOOTING Paint Leaks: PAINT TANK LEAKS PAINT Check that fittings are tight. PUMP ASSEMBLY LEAKS PAINT THROUGH CENTER Check to be sure rubber end on bottom of pump assembly is not being held open by dry paint. PAINT LINE HOSE LEAKS PAINT Check paint line hose fitting —...
-
Page 17: Customer Service
CUSTOMER SERVICE Call our Customer Service Reps From 8:00am - 4:45pm (EST) 1-800-877-1500 Call us with any questions you may have concerning the care, assembly, operation, or maintenance of this product. Before you call be sure that unsatisfactory operation is not due to inadequate care or cleaning, abuse, or neglect. -
Page 18: Limited Warranty Information
LIMITED WARRANTY For a period of three years from date of purchase, PIONEER MANUFACTURING COMPANY will replace for the original PURCHASERS, any part or parts* of the line Striper (a five (5) year limited warranty against rust-out on stainless steel tanks), found upon examination by a PIONEER FACTORY-trained representative, to be defective in material or workmanship or both;... - Page 19 North America because Brite Stripe delivers an MVP performance every time. Brite Stripe is just another of many examples that to Pioneer Athletics, Ingredients Matter. GameDay Ultra-Friendly ® When it’s All on the Line.
- Page 20 Visit our website or call us for more information on the following athletic field and facility products: ULTRA-FRIENDLY ZERO-VOC PAINTS | SYNTHETIC TURF FIELD MARKING PAINTS AEROSOL AND BULK FIELD MARKING PAINTS | FIELD MAINTENANCE FACILITY MAINTENANCE | STENCILS, MATS, WALLPADS AND WINDSCREENS FIELD LAYOUT GUIDES | SPORTS ACCESSORIES | FIELD MARKING EQUIPMENT Phone: 800-877-1500 Check out our Blog!
