- Page 1 Harvard Trip Balance BA710 Impact Test Equipment Ltd www.impact-test.co.uk & www.impact-test.com User Guide User Guide...
- Page 2 Impact Test Equipment Ltd. Building 21 Stevenston Ind. Est. Stevenston Ayrshire KA20 3LR T: 01294 602626 F: 01294 461168 E: sales@impact-test.co.uk Test Equipment Web Site www.impact-test.co.uk Test Sieves & Accessories Web Site www.impact-test.com...

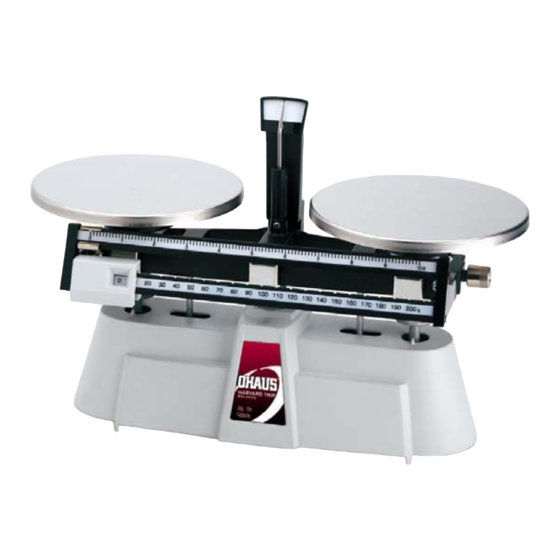

- Page 3 INTRODUCTION This manual covers Installation, Operation and Maintenance for the Harvard Trip balances: . To ensure proper operation of the Balance, please read this manual completely. DESCRIPTION The Harvard Trip Balance Series are precision weighing instruments, designed to provide years of service with virtually no maintenance. Harvard Trip Balances employ a two-pan design based on the classic Roberval balance principle.
- Page 4 UNPACKING AND ASSEMBLY INSTRUCTIONS Harvard Trip Balances are shipped as follows: • Completely assembled Balance • Instruction manual • Warranty card Your new precision Balance has been packed in a carton specifically designed to protect it during shipment. Follow these instructions and your Balance will be operational in just a few minutes.
- Page 5 Weighing Once the zero balance has been checked, proceed as follows: 1. Place the unknown mass on the left Platform. 2. Move the large Poise on the lower Beam to the right until it reaches the first notch which will cause the right Platform to drop. 3.
- Page 6 Specific Gravity Determination A Clamp and Rod Support, is an accessory used to elevate the Balance for suspending a specimen in water. The rod is inserted into the 1/2 inch recess on the underside of the Base. By means of a fine wire or thread, the specimen is attached to the Check Pin which connects the Platform Loop to the Check Rod.
- Page 7 4.7 / 2.1 Shipping weight (lb/kg) 5 / 2.3 PARTS INFORMATION If you require replacement parts or would like to purchase accessories, please call Impact Test Equipment - www.impact-test.co.uk ACCESSORIES Description Polypropylene footed scoop, (12" x 6" x 2.75" deep) and Counterweight...
- Page 8 LIMITED WARRANTY Products are warranted against defects in materials and workmanship from the date of delivery through the duration of the warranty period. During the warranty period the supplier will repair, or, at its option, replace any component(s) that proves to be defective at no charge, provided that the product is returned, freight prepaid, to the supplier.
