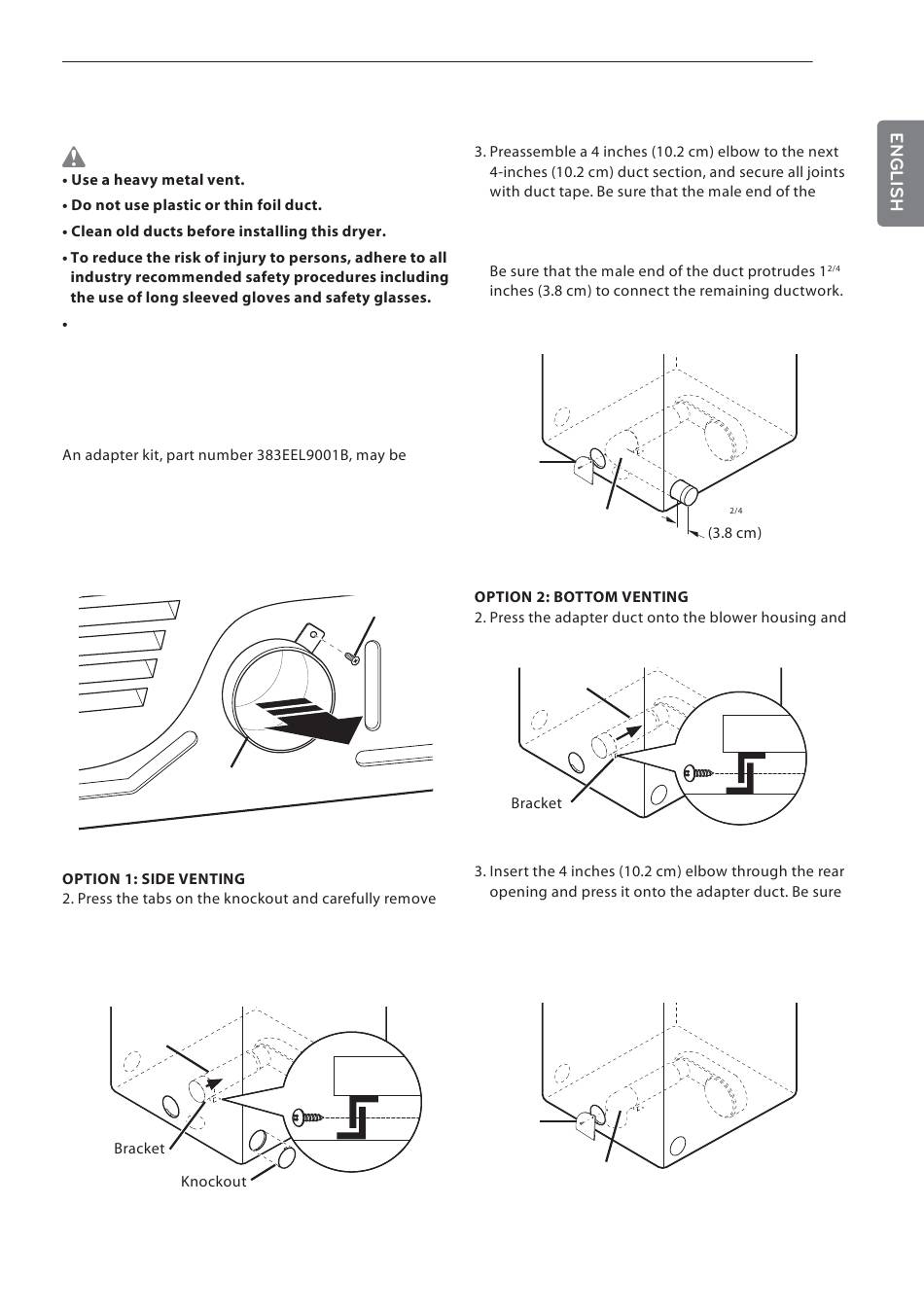

Installing the Side Vent Kit

WARNING
Failure to follow all of the safety warnings in this
manual could result in property damage, injury to
persons, or death.
Your new dryer is shipped to vent to the rear. It can also
be configured to vent to the bottom or side (right-side
venting is not available on gas models).
purchased from your LG retailer. This kit contains the
necessary duct components to change the dryer vent
location.
1. Remove the rear exhaust duct retaining screw. Pull
out the exhaust duct.
Rear
Exhaust Duct
the knockout for the desired vent opening (right-
side venting is not available on gas models). Press the
adapter duct onto the blower housing and secure to
the base of the dryer as shown.
Adapter
Duct
elbow faces AWAY from the dryer. Insert the elbow/
duct assembly through the side opening and press it
onto the adapter duct. Secure in place with duct tape.
Attach cover plate to the back of the dryer with
included screw.
Cover
Plate
Retaining
Screw
secure to the base of the dryer as shown.
that the male end of the elbow faces down through
hole in the bottom of the dryer. Secure in place with
duct tape. Attach the cover plate to the back of the
dryer with included screw.
Cover
Plate
INSTALLATION INSTRUCTIONS
Elbow
Adapter
Duct
Elbow
21
1 "
