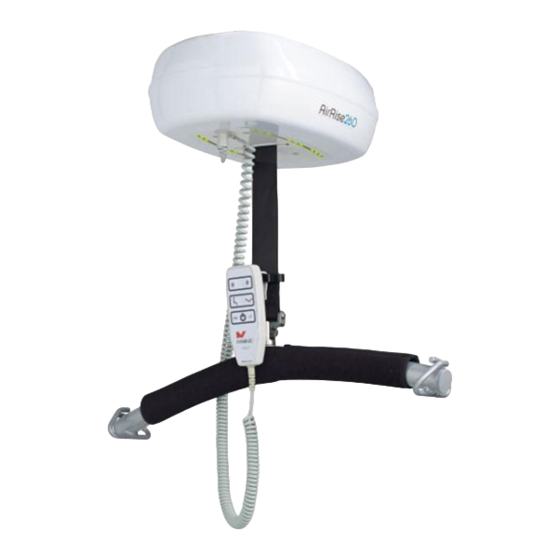

Summary of Contents for Innova AirRise260

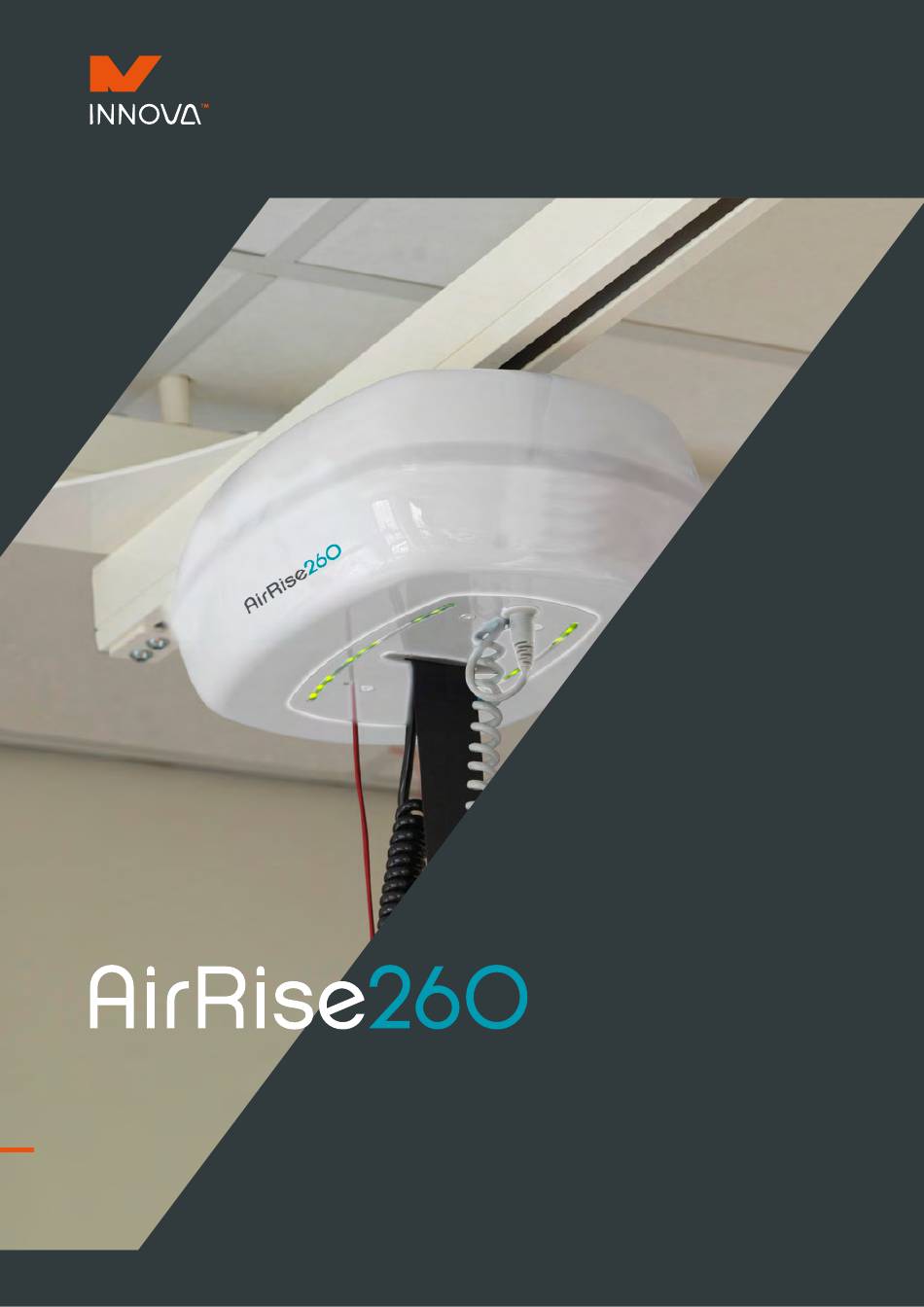

- Page 1 Yesterday’s challenge Today’s solution User Manual innova.uk.com...
- Page 2 www.innova.uk.com...
-
Page 3: Table Of Contents
Contents Purpose & Use Introduction About the manufacturer Unpacking & preparation Important advice & precautions Description & functions Description of the AirRise260 functions Using the AirRise260 Charging and battery life LED indicator lights Advanced battery protection system Emergency cord Hand control... - Page 4 Before we go any further, we just want to say thank you. The AirRise260™ hoist unit you have purchased is a lifter like no other. It’s the result of many careful refinements and meticulous attention to detail. Yet despite this, this product is incredibly robust, sturdy, and reliable, with an impressive safe working load of 260kg! The team at Innova™...
-
Page 5: About The Manufacturer
Who are Innova™? Innova™ has a combined experience of over 200 years within the healthcare sector. We’ve used these 200 years wisely. We’ve tested and used equipment time and time again; we’ve travelled the world; we’ve spoken to thousands of end users, carers, healthcare professionals, architects, designers, and care institutions. -
Page 6: Unpacking & Preparation
• If a defect appears prior to, during or after use the Innova™ team must be contacted for repairs and servicing • The emergency pull cord must not be removed • If accessories are rated with a lower weight limit than 200kg, this determines the... -
Page 7: Using The Airrise260 Tm
Before using the hoist, ensure that you have the correct type of sling with the correct fixings for the spreader bar. If you are unsure, you should always contact your Innova™ Dealer for advice. Innova™ shall not be liable for faults or accidents due to the use of an inappropriate lifting sling. Clip-fixing manual wishbone... - Page 8 A lifting sling with four to six lifting straps designed for mounting on hooks should be used when using an Innova™ loop fixing spreader bar. Place the straps from the lifting sling on the hooks on the lifting hanger. Start with the uppermost set of straps (from the back) and then take the lowest set of straps (from the legs).
-
Page 9: Charging And Battery Life
To ensure a long service life of the batteries, it is recommended to charge the hoist when not in use. To charge the AirRise260™, follow the following procedure: • Place the hand control in the wall charger (Figure 1) • Check if the indicator light lights up (Figure 2) • Leave hoist on charge for about 8 hours. -
Page 10: Led Indicator Lights
The batteries must be charged as described in section 2.3. Battery Protection Software Because the fully discharging of batteries shortens their life expectancy and also the capacity and ease of use, AirRise260™ is equipped with a system which protects the battery from complete discharge. In the “ORANGE... -
Page 11: Emergency Cord
There is also the option of a bedroom mode, with which the charging indicators switch off automatically after 2 minutes. Indicator light: In the middle of the letter ‘O’ in INNOVA™, there is an LED indicator light. This tells you when the hoist is charging. -
Page 12: Powered Spreader Bar Option
The use of a turntable makes it possible to use crossings in the rail trajectory. A turntable works automatically and turns both ways. If you hold AirRise260™ in the middle of the turntable for 2 seconds, it will automatically carry out a quarter-turn. -
Page 13: Track Switch Option
To make a turn in a continuous rail, a switch can be used (see below). The switch can be delivered in a right or left version. If you hold AirRise260™ in front of the switch and wait for 2 seconds, it will automatically change direction. -
Page 14: Transport
4.1 CLEANING: If the hoist casing needs cleaning, use a cloth with a little soapy water. 4.2 STORAGE: See Section 3.0. For long term storage Innova™ recommends that the hoist the batteries are disconnected. www.innova.uk.com... -
Page 15: Lifetime
AirRise260™ has a 1 year warranty as standard. To purchase an extended warranty package, please contact your Innova™ Dealer. Some wear parts, such as the belt, batteries, and wheels, are not covered by the warranty. There is a limited warranty on the hand control. -
Page 16: Technical Specification
Lifting velocity at 200kg load 5cm/sec Total weight without sling 14kgs Electrical connection of charger 220-230v Voltage/current between charger/hoist 29.4VDC, 0.5 Amp Charging time 8hrs Battery 24 Volt, 5.2 Amp 7.1 SAMPLE ROOM LAYOUTS: Charger to be installed in zones 2 or 3. www.innova.uk.com... -
Page 17: Certificates
• NEN 12182:2012 Service Schedule Servicing and maintenance must only be carried out by Innova’s approved service partners. Should servicing be carried out by non-approved companies, warranties will be rendered void. A LOLER test should be carried out every 6 months and recorded below. - Page 18 Yesterday’s challenge, Today’s solution For general enquiries please contact us at: 0845 034 1450 0845 034 1451 enquiries@innova.uk.com www.innova.uk.com...
