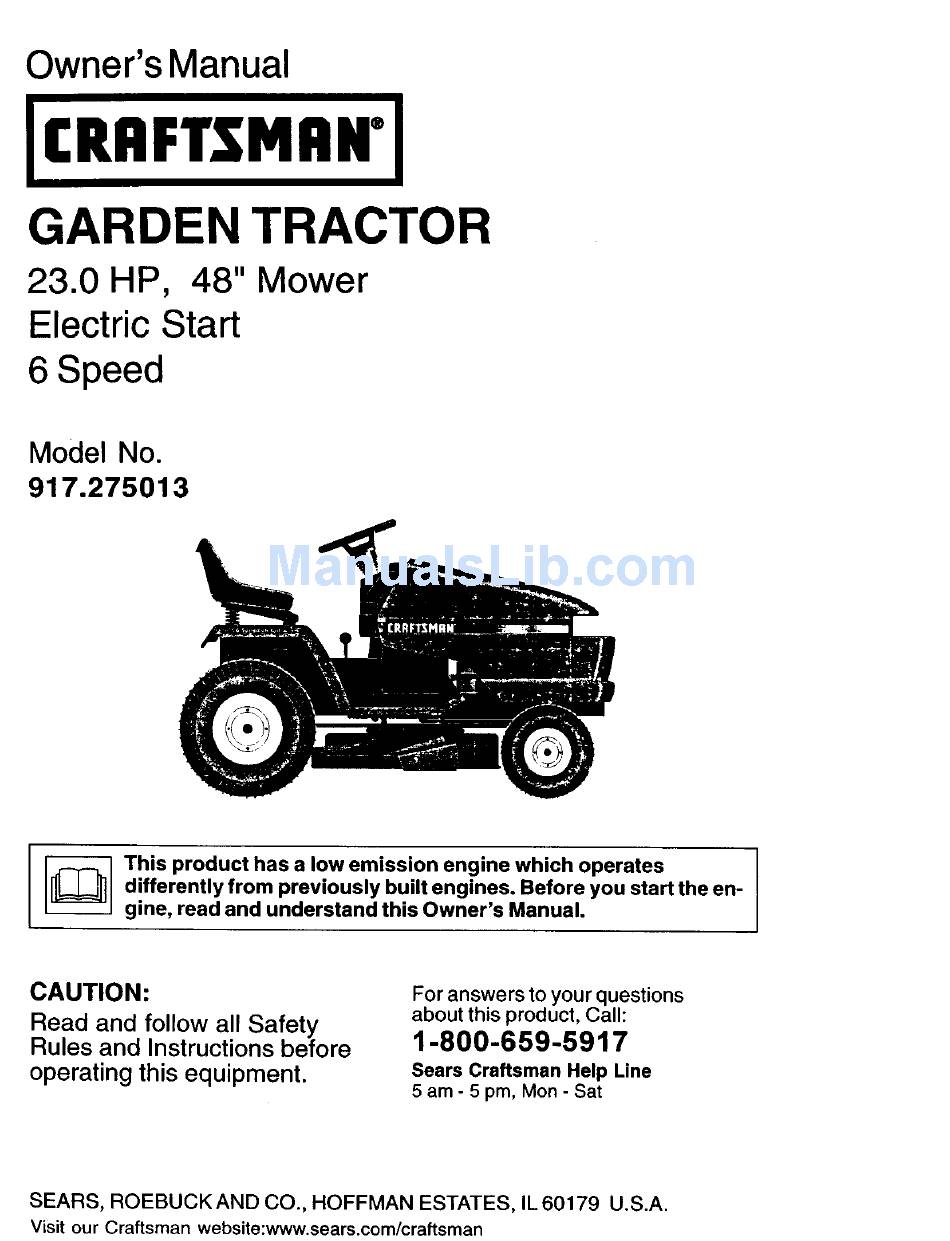

Owner's Manual
ICRIIFTSMIIN"I
GARDEN TRACTOR
23.0 HP, 48" Mower
Electric Start
6 Speed
Model No.
917.275013
I_
his product has a low emission
engine which operates
differently
from previously
built engines. Before you start the en-
gine, read and understand
this Owner's Manual.
CAUTION:
Read and follow all Safety
Rules and Instructions before
operating this equipment.
For answers to your questions
about this product, Call:
1-800-659-5917
Sears Craftsman Help Line
5 am - 5 pro, Mon- Sat
SEARS,
ROEBUCK
AND CO., HOFFMAN
ESTATES,
IL 60179
U.S.A.
Visit our Craftsman
website:www.sears.com/craftsman
Advertisement
Table of Contents
Related Manuals for Craftsman 917.275013
Summary of Contents for Craftsman 917.275013
- Page 1 Visit our Craftsman website:www.sears.com/craftsman built engines. Before you start the en- engine which operates this Owner's Manual. For answers to your questions about this product, Call: 1-800-659-5917 Sears Craftsman Help Line 5 am - 5 pro, Mon- Sat ESTATES, IL 60179 U.S.A.
- Page 2 Sears will replace the battery at no charge. IN-HOME warranty This charge will be waived if the Craftsman Sears location. For the nearest authorized Hoffman Estates, IL 60179 ... 20...
- Page 3 IMPORTANT: This cutting machine is capable of amputating hands and feet and throwing, objects. Failure to observe the following safety instructions could result in serious injury or death. ,_Look for this symbol to point out important safety precautions. It means CAUTION!!! BECOMEALERT?!! YOUR SAFETY IS INVOLVED.
- Page 4 • Mow up and down slopes, not across. • Remove obstacles such as rocks, tree limbs, etc. • Watch for holes, ruts, or bumps. Uneven terrain could overturn the machine. Tall grass can hide obstacles. • Use slow speed. Choose a low gear so that you will not have to stop or shift while on the slope.
- Page 5 • Be sure the area is clear of other people before mowing. Stop machine if anyone enters the area. • Never carry passengers or children even with the blades off. • Do not mow in reverse unless abso- lutely necessary. Always look down and behind before and while backing.
- Page 6 PRODUCT SPECIFICATIONS 5 Gallons Unleaded Capacity and Type: Regular SAE 10W30 Oil Type (above 32°F) API-SF-SJ): SAE 5W-30 (below 32°F) Oil Capacity: W/Filter: W/O Filter: Spark Plug: Champion ',Gap: .030") Ground Speed MPH): Reverse: Tire Pressure: Front: Rear: Charging System: 15 Amps @ 3600 RPM Battery: Amp/Hr:...
- Page 7 Video Cassette Mower Leveling Wrench Bubble FutureL_llpUs Keys (2) Keys "7 Slope Sheet...
- Page 8 Your new tractor has been assembled you begin. When right or left hand is mentioned this manual, it means, from your point of view, when you are in the operating position (seated behind the steering wheel). TO REMOVE TRACTOR FROM CARTON UNPACK CARTON...
- Page 9 9. Apply brake to stop tractor, set parking brake and place gearshift lever in neutral position. 10.Turn ignition key to "STOP" position. Continue with the instructions that follow. CHECK MOWER LEVELNESS For best cutting results, mower should be properly leveled. See =TO LEVEL MOWER HOUSING"...
- Page 10 These symbols may appear on your tractor or in literature supplied with the product, Learn and understand their meaning. I- ;I BATTERY CAUTION REVERSE FORWARD FAST SLOW WARNING ENG,NEO._I_ ENG.NEOFFI_I O,LPRESSURE_ L,G.TSON_) OVI,%_MP[_ FUEL CHOKE MOWER HEIGHT PARKING BRAKE UNLOCKED MOWER LIFT LOCKED...
- Page 11 KNOWYOUR TRACTOR READ THIS OWNER'S MANUAL YOUR TRACTOR Compare the illustrations with your tractor to familiarize yourself with the locations of various controls and adjustments. Ammeter Throttle Control Clutch/Brake Choke, Control Height Adjustment Knob Gear Shift Lever Our tractors conform to the safety standards American ATTACHMENT CLUTCH SWITCH: Used...
- Page 12 The operation of any tractor can result in foreign objects thrown into the eyes, which can result in severe eye damage. glasses or eye shields while operating your tractor or performing any adjustments or repairs. We recommend standard safety glasses or a wide vision safety mask worn over spectacles.
- Page 13 The cutting height range is approximately 1-1/2" to 4-1/2". The heights are mea- sured from the ground to the blade tip with the engine not running. These heights are approximate and may vary depending upon soil conditions, height of grass and types of grass being mowed. •...
- Page 14 TO TRANSPORT • Raise attachment lift to highest position with attachment lift control. • When pushing or towing your tractor, be sure gearshift lever is in neutral (N) posi- tion. • Do not push or towtractor at morethan (5) MPH. NOTE: To protect hood from damage when transporting your tractor on a truck...
- Page 15 • The attachments and ground drive can now be used. If the engine does not accept the load, restart the engine and allow it to warm up for one minute using the choke as described above. COLD WEATHER STARTING (50 ° F and below) 7.
- Page 16 MAINTENANCE SCHEDULE F,LL ,.O.T S R OUL S RV,C Check Brake Operation Check Tire Pressure Check Operator Presence and interlock Systems Check for Loose Fasteners Sharpen/Replace Mower Blades Lubrication Chart Check Battery Level Clean Battery and TerminaJs Check Transaxle Cooling Check V-Belts Check Engine...
- Page 17 TRACTOR Always observe safety rules when performing any maintenance. BRAKE OPERATION If tractor requires more than six (6) feet stopping distance at high speed in highest gear, then brake must be ad- justed. (See "TO ADJUST BRAKE" in the Service and Adjustments section of this manual).
- Page 18 • Keep battery and terminals clean. • Keep battery bolts tight. • Keep small vent holes open. • Recharge at 6-10 amperes for 1 hour. NOTE: The original equipment battery on your tractor is maintenance free. Do not attempt to open or remove caps or covers. Adding or checking level of electrolyte is not necessary, TO CLEAN BATI'ERYAND...
- Page 19 ENGINE OIL FILTER Replace the engine oil filter every season or every other oil change if the tractor is used more than 100 hours in one year. AIR FILTER Your engine will not run properly dirty air filter. Clean the foam pre-cleaner after every 25 hours of operation or every season.
- Page 20 WARNING: TO AVIOD SERIOUS INJURY, BEFORE PERFORMING SERVICE OR ADJUSTMENTS: 1. Depress clutch/brake pedal fully and set parking brake. 2. Place gearshift lever in neutral (N) position. Place attachment clutch in "DISENGAGED" 4. Turn ignition key to "STOP" and remove key. 5.
- Page 21 5. Install belt into electdc clutch pulley groove. 6. Place the suspension arms on outward pointing deck pins. Retain with double loop retainer spring with loops up as shown. Install front plate assembly to tractor suspension brackets and retain with single loop retainer springs as shown.
- Page 22 Check adjustment on right side of tractor. Position any blade so the tip is pointing straight forward. Measure distance "B" at front and rear tip of blade • Before making any necessary ments, check that both front links are equal in length. •...
- Page 23 TO REPLACE MOWER BLADE (SEC- ONDARY) DRIVE BELT Park the tractor on level surface. Engage parking brake. 1. Remove mower (See "TO REMOVE MOWER" in this section of manual). 2. Remove screws from R.H, and L.H, mandrel covers and remove covers. REMOVE MOWER DRIVE BELT (Refer to =TO REMOVE MOWER DRIVE BELT"...
- Page 24 TO ADJUST ATTACHMENT CLUTCH The electric clutch should provide years of service. The clutch has a built-in brake that stops the pulley within 5 seconds. Eventually, the internal brake will wear which may cause the mower blades to not engage, or, to not stop as required. Adjustments should be made by a Sears or other qualified service center.
- Page 25 Clutching Clutchin Above Engine Pulley V-Idler Belt Twists Belt Keeper TO ADJUST STEERING WHEEL ALIGNMENT If steering wheel crossbars are not horizontal (left to right) when wheels are positioned straight forward, remove steering wheel and reassemble with crossbar horizontal. Tighten securely. FRONT WHEEL TOE-IN ADJUSTMENT Front wheel toe-in is required for proper steering operation.
- Page 26 battery(A-B), taking care not to short against tractor chassis. Connect one end of the BLACK cable to the NEGATIVE (-) terminal (C) of fully charged battery. Connect the other end of the BLACK cable (D) to good chassis ground, away from fuel tank and battery. TO REMOVE CABLES, REVERSE ORDER - 1.
- Page 27 2. Check that speed control lever is against stop screw. If it is not, loosen casing clamp screw and pull throttle cable until lever is against screw. Tighten clamp screw securely. Adjusting Needle Stop Clamp Screw TO ADJUST CHOKE CONTROL The choke control has been preset at the factory and adjustment should not be necessary, check adjustment as de-...
- Page 28 Immediately prepare your tractor for storage at the end of the season or if the tractor will not be used for 30 days or more. _CAUTION: Never store the tractor with gasoline in the tank inside a building where fumes may reach an open flame or spark.
- Page 29 TROUBLESHOOTING CHART: See appropriate section in manual unless directed to Sears service center PROBLEM CAUSE Will not start 1. Out of fuel. 2. Engine not "CHOKED" properly. 3. Engine 4. Bad spark plug. 5. Dirty air filter. 6. Dirty fuel filter. Water in fuel.
- Page 30 TROUBLESHOOTING CHART: See appropriate section in manual unless directed to Sears service center CAUSE PROBLEM Cutting too much grass/too Lossofpower fast. Throttle in "CHOKE" position. Build-up of grass, leaves and trash under mower. Dirty air filter. Low oil level/dirty oi1. Faulty spark plug.
- Page 31 TROUBLESHOOTING CHART: See appropriate section in manual unless directed to Sears service center !PROBLEM CAUSE 1. Obstruction in clutch Mower blades will not rotate mechanism. 2, Worn/damaged drive belt. 3. Frozen idler pulley. 4. Frozen blade mandrel. 1. Engine speed too slow. Poor grass discharge 2.
- Page 33 CONNECTIONS NOTE: IF WIRING INSULATED CLIPS WERE REMOVED SERVICING OF UNIT. THEY SHOULD BE REPLACED PROPERLY SECURE YOUR WIRING. - MODEL NUMBER 917.275013 . ou to: IX: • 3EGO RPM SyS"_M CUTPUT 28 VOLTS _ PTO SWITCH POSITION CIRCUIT C+G,B+H C+F,B+E.A÷D...
- Page 34 TRACTOR - - MODEL NUMBER 917.275013 ELECTRICAL t 30...
- Page 35 TRACTOR - - MODEL NUMBER 917.275013 ELECTRICAL NOTE: All component dimensions 1 inch = 25.4 mm PART DESCRIPTION 144927 Battery 74760412 Bolt Hex Head 1/4-20 x 3/4 7603J Tray, Battery 145211 Bolt 1/4-20 x 7.5 Zinc 150109 Hold down Battery Dash Mount 145769 Nut Push Nylon 1/4"...
- Page 36 TRACTOR -- MODEL NUMBER 917.275013 CHASSIS AND ENCLOSURES is 5 _"_.,..._:_156 ___._ \ ""-7 /, >"'30...
- Page 37 TRACTOR -- MODEL NUMBER 917.275013 CHASSIS AND ENCLOSURES PART DESCRIPTION 180372 Rail, Freme RH 175282 Drawbar, Gt 73680700 Nut, Crownlock Hex 7/16-14U NC 163976x428 Dash YTGT 2 Cyl 157882 Dash, Lower Vgt One Piece 17720408 Screw, Thd Cut 1/4-20 x 1/2...
- Page 38 TRACTOR - - MODEL NUMBER 917.275013 GROUND DRIVE 39 _:_ 42 "''_...
- Page 39 Brake, Rod 19131616 Washer 13/32xl 71673 Cap, Plunger 137648 Rod, Parking Brake 149412 Spring, Drive Ground 121749X Washer 25/32 x1-1/4 x 16 Ga. - - MODEL NUMBER 917.275013 KEY PART 150035 74321016 178575 73931000 8883R 145170 138228 72110612 131494 STD541437...
- Page 40 TRACTOR - - MODEL NU MBER 917.275013 STEERING ASSEMBLY 1313" 33"...
- Page 41 TRACTOR -- MODEL NUMBER 917.275013 STEERING ASSEMBLY PART 159944X428 178557 6855M 161849 161848 6266H 121748X 12000029 121232X 74781044 136518 73901000 121749X STD551137 STD541537 145103 137347 175572 156011 163887X428 159945 155105 152927 STD523710 159946X428 3366R 17000612 104239X 138136 19111610 STD551131 STD523107...
- Page 42 TRACTOR - - MODEL NUMBER 917.275013 ENGINE KEY PAI_I" DESCRIPTION Engine (See Breakdown) Kohlar Model No. CV674-75544 Muffler 1497_3 1213_1X Pulley V-Idler 177748 Keeper Asm. Belt Engine 175287 Bushing 174605 Clutch Electric 143996 Pulley Engine VGT Elect Clutch 179115 Tank Fuel Rear 5.0 Yt/Gt...
- Page 43 TRACTOR - - MODEL NUMBER 917.275013 SEAT ASSEMBLY PART DESCRIPTION 18O598 Seat 180166 Bracket, Pivot Seat 140675 Strap, Fender 145006 Clip, Push In, Hinged STD541437 Nut, Crownlock 3/8-16 Unc 124181X Spring, Seat Cprsn 171877 Bolt 5/16-18Uncx 3/4 w/Seres 180186 Pan, Seat...
- Page 44 178482 Decal, Engine 177416 Decal, Fender, Craftsman 163204 Decal, FenderDanger 156439 Decal, Clutch/Brake 181249 Decal, V-Belt Drive Schematic 146047 WHEELS & TIRES - - MODEL NUMBER 917.275013 19 17 I_EY PARr 164884 175291 181498 149516 164065 138047 106202X 138311 179768X428...
- Page 45 TRACTOR - - MODEL NUMBER 917.275013 LIFT ASSEMBLY PART DESCRIPTION 121006X Rod Asm., Lever 180045 Shaft Asm., Lift Vgt 159189 Lever Asm., Lift Rh 12000022 E-Ring Truarc #5133-87 19292016 Washer 29/32 x 1-1/4 x 16 Ga. 7111O624 Bolt, Fin Hex 3/8-16 unc x1-1/2...
- Page 46 TRACTOR - - MODEL NUMBER 917.275013 MOWER DECK...
- Page 47 Washer 13/32x13/16x16Ga. 177968 Pulley, Idler, 48" Pdmary 174375 Pulley, Idler, Driven 165723 Spacer, Retainer 174373 Arm, Idler Secondary - - MODEL NUMBER 917.275013 PART DESCRIPTION 174343 Cover, Mandrel Deck Screw, Thdroll. 1/4-20 x 5/8 137729 180808 V-Belt, Mower, Secondary 174368...
- Page 48 TRACTOR - - MODEL NUMBER 917.275013 TRANSAXLE...
- Page 49 17580520 Bolt, Hex 5/16-18 UNC x 1-1/4 Oil Seal 6271H 13060200 Pipe Plug 1/4-!8 N.P.T. 4895H NeedleBeadng 4222R Needle Beadng 1529R Needle Beadng - - MODEL NUMBER 917.275013 KEY PART 8119M 4220R 4209R 4213R 4442R 4195R 4214R 4194R 7528R 420_FI...
- Page 50 TRACTOR - - MODEL NUMBER 917.275013 KOHLER ENGINE-MODEL NUMBER CV674, TYPE NUMBER 75544 CYLINDER HEAD, VALVE AND BREATHERJ --13 CRANKCASE • _L_--_ _----$...
- Page 51 Strap, breather 24-128-44-S Bracket, breather separator 24-112-12-S Spacer 24-294-06-S Fitting 24-326-13-S Hose, breather 24-326-14-S Hose, breather 25-237-14-S Clamp, hose (2) - - MODEL NUMBER 917.275013 CRANKCASE PART 24-032-01-S 24-294-13-S 24-380-13-S 24-067-13-S 24-067-14-S 24-874-09-S 24-874-10-S 24-874-11-S 24-874- t5-S 24-108-08-S 24-108-09-S 24-108-10-S...
- Page 52 TRACTOR - - MODEL NUMBER 917,275013 KOHLER ENGINE-MODEL NUMBER CV674, TYPE NUMBER 75544 BLOWER HOUSING AND BAFFLES I IGNITIONIELECTRICAL e---| _" AIR INTAKE...
- Page 53 24-176-82-S Hamess, wiring Lead, black (rect.-reg. 6" - 12 gauge insulated grip barrel eyelets) 24-113-18-S Decal, grass screen 25-454-03-S Tie, wire (3) - - MODEL NUMBER 917.275013 BLOWER HOUSING & BAFFLES PART 24-027-20-S 24-100-01-S 25-f39-16-S 24-f00-02-S M-545020-S M-545016-S M-551016-S M-645016-S...
- Page 54 TRACTOR-- MODEL NUMBER 917.275013 KOHLER ENGINE-MODEL NUMBER CV674, TYPE NUMBER 75544 ENGINE CONTROLS STARTING |V6_EM I > +y,. OIL PAN I LUBRICATION I 0--3 t0/_...
- Page 55 TRACTOR - - MODEL NUMBER 917.275013 KOHLER ENGINE-MODEL NUMBER CV674, TYPE NUMBER 75544 STARING SYSTEM PARt" DESCRtPTtON M-83g080-S Screw, hex. flange M8x1.25x80 (2) 25-098-08-S Starter, solenoid shift (Includes 4-7) M-841080-S Nut, hex. flange M8x1.25 25-435-04-S Kit, solenoid 25-755-33-S Kit, pinion drive (Includes...
- Page 56 TRACTOR - - MODEL NUMBER 917.275013 KOHLER ENGINE-MODEL NUMBER CV674, TYPE NUMBER 75544 EXHAUST CRANKSHAFT FUEL SYSTEMJ...
- Page 57 TRACTOR - - MODEL NUMBER 917.275013 KOHLER ENGINE-MODEL NUMBER CV674, TYPE NUMBER 75544 CRANKSHAFT PART DESCRIPTION 24-014-72-S Crankshaft (Includes 2) 52-139-09-S Plug, cup EXHAUST PART DESCRIPTION 24-041-02-S Gasket, exhaust (2) 25-072-04-S Stud, M8x1.25x33 (4) PA-75544 Replacement Engine 24 782 14...
- Page 59 SUGGESTED GUIDE FOR SIGHTING SLOPES FOR SAFE OPERATION down the face of slopes, never across the face. Do not mow ARNING: To avoid ssdous injury, operate your tractor up and , slopes greater than 15 degrees. Make turns gradually to prevent tipping or loss of control.
- Page 60 Get it fixed, at your home or ours! For repairof majorbrandappliances In your own home... no matterwhomade it no matterwhosoldit] 1-800-4-MY-HOME (1-800-469J_63) wwwm For repairof carry-in products likevacuums,lawnequipment, a nd eleclronics, callfor thenearestSears Parts and Repair Center. 1-800-488-1222 For the replacement parts,accessories and owner's manuals that you need to do-it-yourself,call Sears ParlsDirectS"! 1-800-366-PART (1-8(X)-366-7278)
