Mitchell uStreamTT2 User Manual

Belt-drive bluetooth turntable
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Belt-Drive Bluetooth Turntable
User Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the uStreamTT2 and is the answer not in the manual?

Questions and answers

Related Manuals for Mitchell uStreamTT2

Summary of Contents for Mitchell uStreamTT2

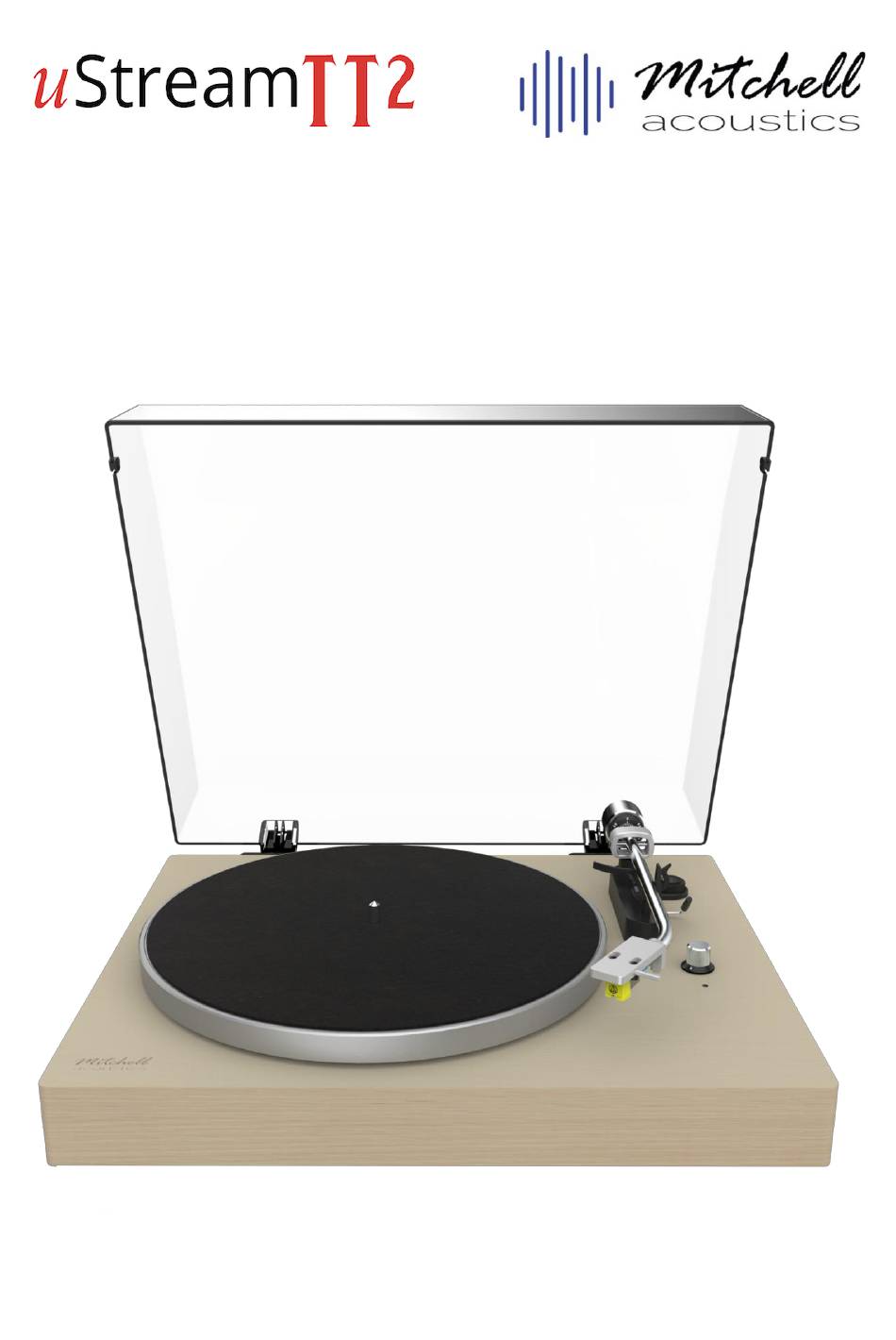

  • Page 1 Belt-Drive Bluetooth Turntable User Guide...

  • Page 2: Important Safety Instructions

    Important Safety Instruction CAUTION: To reduce the risk of fire or electric shock, do not expose this appliance to rain or moisture. WARNING: To prevent electric shock, do not use this (polarized) plug with an extension cord, receptacle or other outlet unless the blades can be fully inserted to prevent blade exposure. Important Safety Instructions 1.
  • Page 3 16. injury from tip-over. 17. Unplug the apparatus during lighting storms or when unused for 18. long periods of time. 19. Refer all servicing to qualified personnel. Servicing is required when the apparatus has been damaged in any way, such as power supply cord or plug is damaged, liquid has been spilled 20.

  • Page 4: Before Use

    Before Use Choose unit installation location carefully. Avoid placing it in direct sunlight or close to a source of heat. Also avoid locations subject to vibrations and excessive dust, cold or moisture. Keep away from sources that hum, such as transformers or motors. Do not open the cabinet as this may result in damage to the circuitry or electrical shock.

  • Page 5: Product Overview

    Product Overview Top view ITEM DESCRIPTION Spindle Place a record onto the spindle to play. Turntable Aluminum alloy turntable. Counterweight Turn to adjust the needle pressure. Anti-skate control Turn to adjust the inward tracking forces that occur with certain pick-up when the stylus nears the center of the record. Tone arm lifter Push forward and pull back to raise and lower tone arm.

  • Page 6: Setting Up Your Turntable

    Back view: ITEM DESCRIPTION Line-out jack Plug the included RCA cable into this jack. Make sure red to red and white to white. Make sure the pre-amp switch is “ON ” when the PRE-AMP connected external device is line input. When the ON/OFF switch connected external device is Phono input，...
  • Page 7 Installing the platter and turntable mat Note: The belt is preinstalled on the bottom of the metal platter. Make sure that the belt is not twisted, then use your thumb to stretch the belt until it reaches the round hole in the platter. Note: Make sure that you place the belt on the metal track and not on be section with teeth.
  • Page 8 Attaching and adjusting the counterweight The counterweight on the tone arm adjusts the needle pressure. If the pressure is too much, sound is distorted. If the pressure is too little, track skipping happens more frequently. Hold the counterweight with the black number ring on the counterweight towards you, and then slightly push the counterweight into the end of tone arm.
  • Page 9 Turn the counterweight so that the tone arm is horizontal. You can move the counterweight forward or backward on the tone arm. Hold the metal counterweight at the back of the tone arm. Hold the metal counterweight to keep it from moving, and then carefully rotate the front black number ring so that 0 is in the 12 o'clock position.

  • Page 10: Playing A Record

    Hold both the metal counterweight and black number ring together. Rotate them counter-clockwise one full circle, then set the ring to 0 so that 0 on the dial is in the 12 o’clock position. This will set the tone arm to 2.0 grams of downward force (the recommended tracking weight) for this needle.
  • Page 11 Note: When the end of the record is reached, the tone arm and rotation stop. When playing is completed, push the tone arm lifter forward to raise the tone arm, and then move the arm back to the tone arm rest. Push the tone arm lifter down to lower the tone arm.

  • Page 12: Usb Recording Operation

    Listening to music through the Line out jacks Plug the red and white connectors on the included RCA cable into the Line out jack on the back of your turntable, red to red and white to white. Plug the other end of the cable into your speakers, red to right speaker and white to left speaker.
  • Page 13 CAUTIONS: Do not remove or bend the stylus. Do not touch the needle to avoid injury your hand. Keep out of reach of children. Adjusting the anti-skating control When a record is playing, a small inward force (might cause skating) pull the tone arm towards the center of the record.

  • Page 14: Specification

    USB 2.0 full speed The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Mitchell Acoustics is under license. Other trademarks and trade names are those of their respective owners.

  • Page 15: Troubleshooting

    Troubleshooting Check this list for a possible trouble shooting solutions before calling for service. General PROBLEM SOLUTION My turntable doesn’t • Make sure that the power cord is connected to your turntable and turn on. a working power outlet. I don’t hear sound from •...
