Videotec WASPT Instruction Manual

Washer pump and 5 or 23 litre tank
Hide thumbs Also See for WASPT:
Table of Contents

Advertisement

Quick Links

Download this manual
ENGLISH
WASPT
Washer pump and 5 or 23 litre tank
EN
English - Instruction manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WASPT and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Videotec WASPT

Summary of Contents for Videotec WASPT

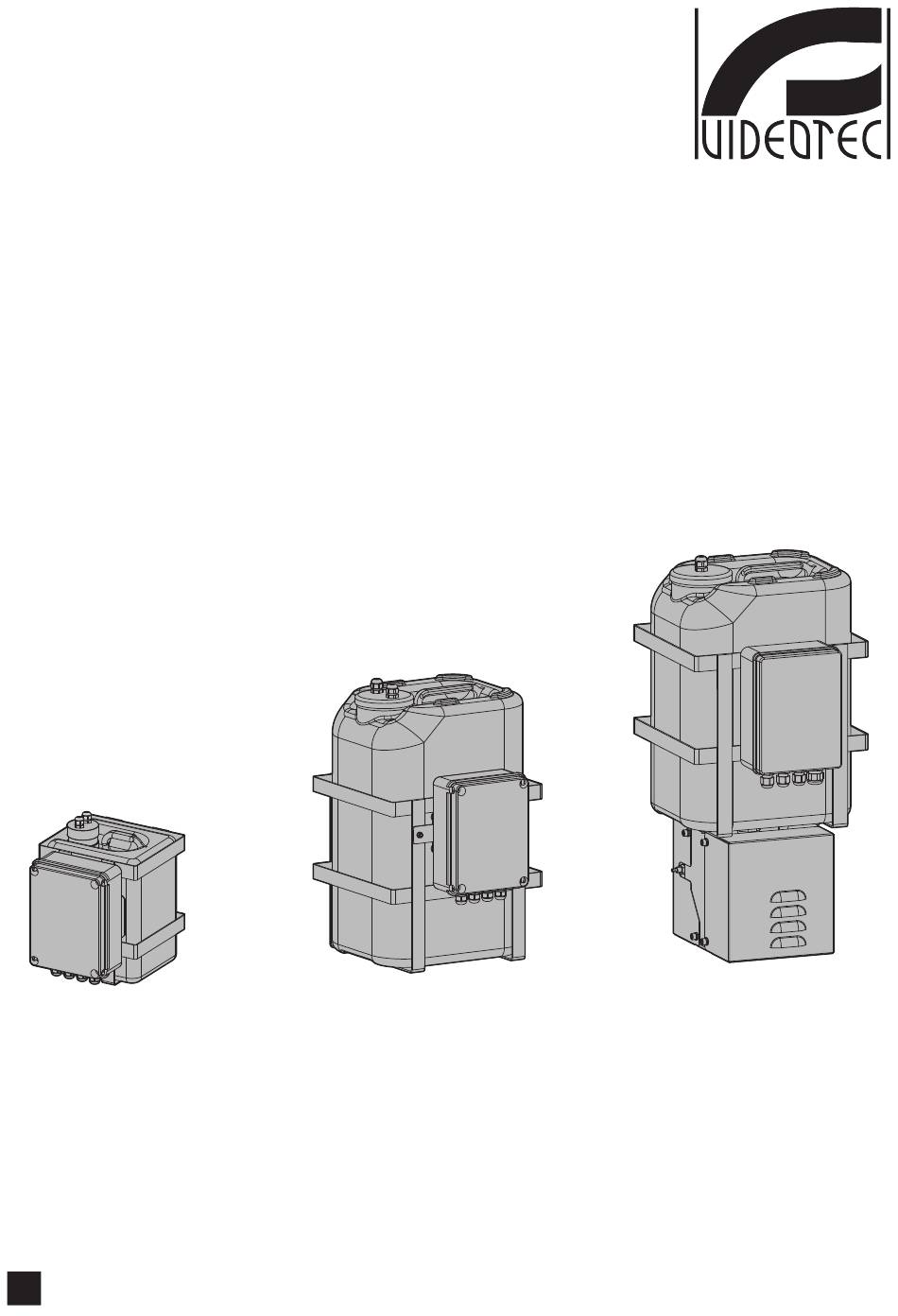

  • Page 1 ENGLISH WASPT Washer pump and 5 or 23 litre tank English - Instruction manual...

  • Page 3: Table Of Contents

    Contents E N G L I S H 1 About this manual ........................5 1.1 Typographical conventions ..............................5 2 Notes on copyright and information on trademarks ............5 3 Safety rules ..........................5 4 Product description and type designation ................6 4.1 Product marking label ................................
  • Page 4 7.1.1 Fuses replacement ....................................21 7.1.1.1 Replacing the fuse of the pump board ................................21 7.1.1.2 Replacing the fuse on the pump inlet .................................. 21 8 Information on disposal and recycling ................21 9 Technical data .........................22 9.1 Washer kit, tank of 5l (1.3gal), pump with 5m (16ft) delivery head ..............22 9.1.1 Mechanical........................................22 9.1.2 Electrical ........................................22 9.1.3 Environment ......................................22...

  • Page 5: About This Manual

    1 About this manual 3 Safety rules Read all the documentation supplied carefully CAUTION! The electrical system to which before installing and using this product. Keep the the unit is connected must be equipped manual in a convenient place for future reference. with a 20A max automatic bipolar circuit breaker.

  • Page 6: Product Description And Type Designation

    Check the contents to make sure they correspond with the list of materials as below: The Videotec WASPT is a wash kit consisting of a • Glass wash system water tank with an integrated pump for PTZ cameras •...

  • Page 7: Installation

    6 Installation Take the plug out of the tank, along with any pumps and level gauges. Remove the tank from the metal cage. Install the pump with 30m (98ft) pressure Attach the metal cage (01) firmly to a wall using the head in places protected from heavy rain.

  • Page 8: Choosing The Power Supply

    6.2 Choosing the power supply 6.4 Board description Depending on the version, the device can be BOARD DESCRIPTION provided with different power supply voltages. Their Connector Function value is shown on the product identification label. Power supply for the board Electrical connections must be performed Wiper with the power supply disconnected and...

  • Page 9: Connection Of The Board

    6.5 Connection of the board 6.5.2 Connection of the PTZ camera or stand-alone housing Electrical connections must be performed All the connections of terminal J9 must with the power supply disconnected and have very low safety voltage (sources of the circuit-breaker open. electrical energy class 1 (ES1)).
  • Page 10 EN - English - Instruction manual DESCRIPTION OF CONTACTS Contact Level switch Do not use Pump activation (dry contact) RL2A RL2A CONN 1, Cable: Cable: (pin 1) Green-Brown Green-Brown GND pump activation (dry contact) RL2B RL2B CONN 1, Cable: Cable: (pin 2) Green-White Green-White...

  • Page 11: Pump Manual Activation

    6.5.3 Pump manual activation 6.5.5 Wiper manual activation If the PTZ camera is used combined with If the PTZ camera has a wiper, ignore the the wash system, ignore the instructions instructions below and follow those in the below and follow those in the relevant relevant manual.

  • Page 12: Connecting The Power Supply

    6.6 Pump installation 6.5.7 Connecting the power supply Earth cable should be about 10mm longer Be very careful not to start the pump when than the other two, so that it will not be the tank is empty. disconnected accidentally if pulled. We recommend filling the tank with water The power supply cable must be covered at ambient temperature.

  • Page 13: Pump With 5M (16Ft) Delivery

    6.6.2 Pump with 5m (16ft) delivery Unscrew the knurled nut (01) from the delivery joint (02). Insert the knurled nut on the delivery pipe (03). Fill the tank with water and insert it in the metal Insert the end of the delivery pipe into the spinner cage.

  • Page 14: Washer Installation (Ulisse Range)

    6.7 Washer installation (ULISSE Shorten the semi-rigid washer pipe (01) as needed. Unscrew the nut (02) from the joint and slide it along range) the pipe. Insert the end of the pipe into the ogive (03). To fasten the base to the support, use the screws (05), the washers (06), the gaskets for screws (07) and the gasket (08).

  • Page 15: Washer Installation (Ulisse2)

    6.8 Washer installation (ULISSE2) Fasten the pipe to the washer support using the bracket (01), the screws (02) and the washers (03) supplied with the PTZ camera. Installation examples (6.13 Examples of washer installation, page 20). Block the joint using the clip (04) supplied with the PTZ camera.

  • Page 16: Washer Installation (Ulisse Compact Range)

    6.9 Washer installation (ULISSE 6.10 Washer installation (ULISSE COMPACT range) EVO range) Installation examples (6.13 Examples of Installation examples (6.13 Examples of washer installation, page 20). washer installation, page 20). Position the nozzle support bracket (01) in the 6.10.1 Washer installation on the PTZ appropriate groove (02) on the base and lock it using camera the 2 screws (03).

  • Page 17: Washer Installation On The Overturned Ptz Camera

    Identify the groove with the positioning pin (05) for Lock the nut to the coupling. fastening the bracket of the nozzle (07). Remove the fastening screw (06). Position the bracket of the nozzle (07) using the positioning pin (05) and fasten it with the previously removed screw (06).

  • Page 18: Washer Installation (Nvx Range)

    6.11 Washer installation (NVX Identify the groove with the positioning pin (08) for fastening the bracket of the nozzle (10). Remove range) the fastening screw (09). Position the bracket of the nozzle (10) using the positioning pin (08) and fasten Installation examples (6.13 Examples of it with the previously removed screw (09).

  • Page 19: Washer Installation (Nxptz Series2 Range)

    6.12 Washer installation (NXPTZ Unscrew the knurled nut (01) from the delivery joint (02). Insert the knurled nut on the delivery pipe (03). SERIES2 range) Insert the end of the delivery pipe into the spinner (04). Lock the nut to the coupling. Installation examples (6.13 Examples of washer installation, page 20).

  • Page 20: Examples Of Washer Installation

    6.13 Examples of washer installation Fig. 43 Example of washer installation on the PTZ camera. Fig. 45 Example of washer installation on pole. Fig. 44 Example of washer installation on wall. MNVCWASPT_2222_EN...

  • Page 21: Maintenance

    7 Maintenance If necessary, the pump input fuse can be replaced. The new fuse must comply with the directions given in the table. CAUTION! Device installation and maintaining must be performed by FUSE REPLACEMENT specialist technical staff only. Model Number Alternative 1 Alternative 2 Pump with 5m (16ft) delivery...
  • Page 22 9 Technical data 9.2 Washer kit, tank of 23l (6gal), pump with 5m (16ft) delivery The product has been designed to work head intermittently. 1 minute: ON. 15 minutes: OFF. 9.2.1 Mechanical 9.1 Washer kit, tank of 5l (1.3gal), Polyethylene tank, stainless steel cage pump with 5m (16ft) delivery Dimensions (WxHxL): 301x430x348mm (11.8x16.9x13.7in)
  • Page 23 EN61000-6-3, EN55032, (Class B), FCC Part 15 (Class B) EAC certification Outdoor installation (CE): EN60950-22 IP protection degree (EN60529): • IP66 EAC certification 9.3.5 Certifications - Marine applications Marine Certification: Lloyd's Register Marine Type Approval (only for the 11m (36ft) version in the WASPT series) MNVCWASPT_2222_EN...
  • Page 24 10 Technical drawings The indicated measurements are expressed in millimetres. Fig. 47 Water tank 5l (1.3gal), 5m (16ft) delivery. Fig. 48 Water tank 23l (6gal), 5m (16ft) delivery. MNVCWASPT_2222_EN...
  • Page 25 Fig. 49 Water tank 23l (6gal), 11m (36ft) delivery. Fig. 50 Water tank 23l (6gal), 30m (98ft) delivery. MNVCWASPT_2222_EN...
  • Page 26 Headquarters Italy VIDEOTEC s.r.l. Via Friuli, 6 - I-36015 Schio (VI) - Italy Tel. +39 0445 697411 - Fax +39 0445 697414 Email: info@videotec.com www.videotec.com MNVCWASPT_2222_EN...
