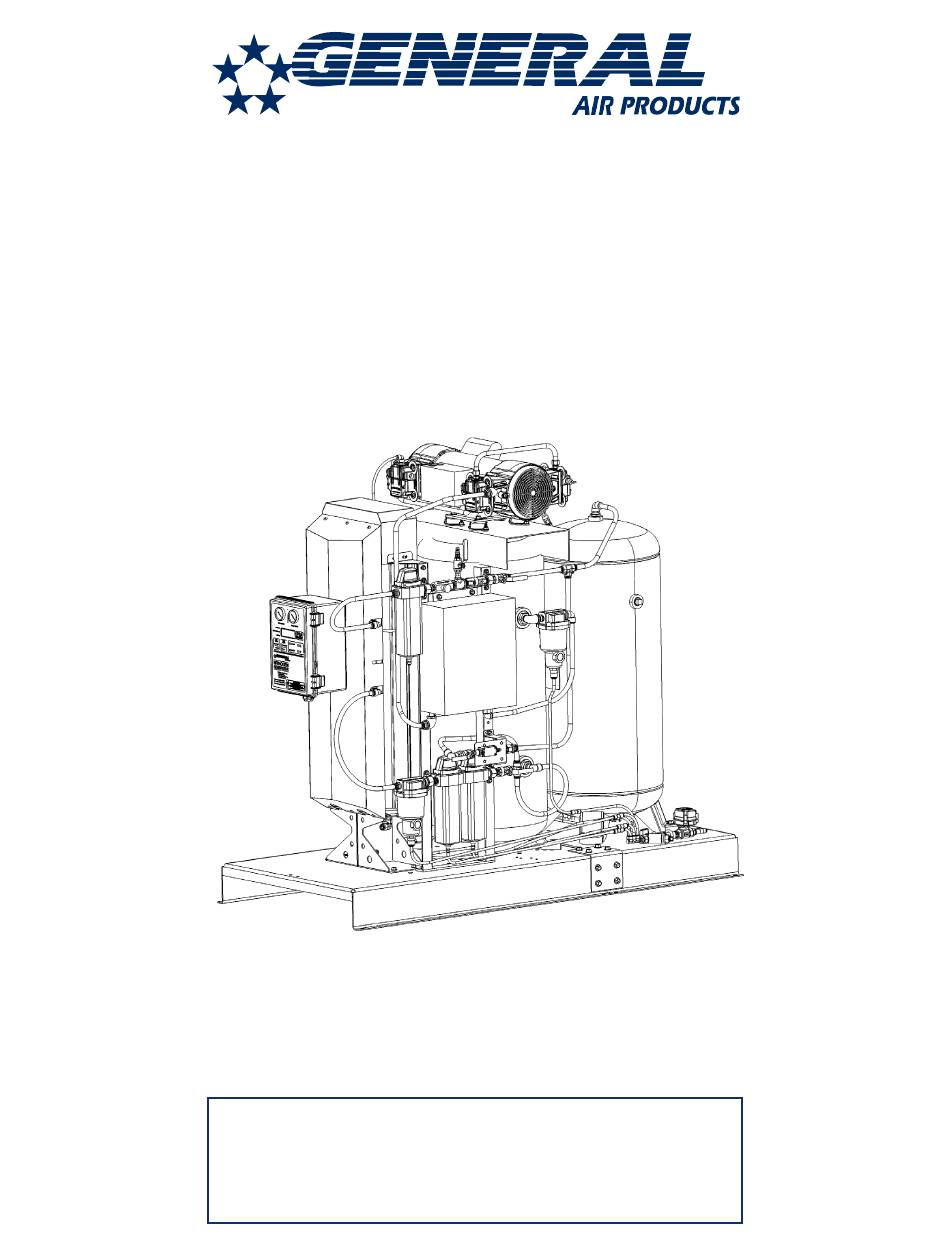

- Page 1 NGPSA Installation, Operation and Maintenance Manual 1-800-345-8207 Call or visit our web site for our complete product listing NGPSA OIM www.GeneralAirProducts.com REV: 0 (09/23)
- Page 2 1-800-345-8207...
-
Page 3: Table Of Contents
Table of Contents Section 1 Safety & Warnings ....................... 4 Important Notice to Users ........................4 Unpacking ............................... 4 General Safety Information ........................4 Section 2 System Overview ......................... 6 Piping and Instrumentation Diagram ......................7 General Arrangement Views ........................8 Section 3 Before Installation Begins .................... -
Page 4: Section 1 Safety & Warnings
Only competent personnel, who have been trained, qualified, and approved by General Air Products should perform commissioning, servicing, and repair procedures. When handling, installing, or operating this equipment, personnel must employ safe engineering practices and observe all related local regulations, health, and safety procedures, and legal requirements for safety. - Page 5 The warnings in this manual cover the most known potential hazards, but by definition cannot be all-inclusive. If the user employs an operating procedure, item of equipment, or a method of working that is not specifically recommended by General Air Products, the user must ensure that the equipment will not be damaged or become hazardous to persons or property. Nitrogen is not a poisonous gas.
-
Page 6: Section 2 System Overview
Product Outlet Pipe Sprinkler System Bypass Weight Outlet N2 Air Tank Designation Connection, Capacity (GAL.) Capacity (lbs.) Pressure Pressure (FNPT) (GAL.) (PSI) (PSI) NGPSA-1000 16880 1100 60-75 85-105 NGPSA-1700 24390 1700 60-75 85-105 NGPSA-2200 24390 2200 60-75 85-105 1-800-345-8207... -
Page 7: Piping And Instrumentation Diagram
Piping and Instrumentation Diagram 1-800-345-8207... -
Page 8: General Arrangement Views
2.2 General Arrangement Views NGPSA-1000 General Arrangement 1-800-345-8207... - Page 9 NGPSA-1700 General Arrangement 1-800-345-8207...
- Page 10 NGPSA-2200 General Arrangement 1-800-345-8207...
-
Page 11: Section 3 Before Installation Begins
Run a dedicated electrical circuit with an electrical disconnect switch to the install location. • NOTE: The NGPSA Nitrogen Generators may operate on numerous voltages and at different amperages as noted in the following table. Model Phase Amperage Voltage/Hz. Circuit Breaker Size (Amps) NGPSA-1000-2A SINGLE 12.3 208/60 NGPSA-1000-3A SINGLE 10.6 230/60 NGPSA-1000-2B THREE 10.2... -
Page 12: Section 4 Uncrating And Inspection
Section 4 Uncrating and Inspection On arrival, do a full inspection by checking all packages and crates in the shipment for damage. If damage is found, sign for the damage or refuse the shipment. Contact the carrier immediately and file a shipping damage claim with the carrier. Check to ensure all components are contained and no visible damage has occurred during shipping. -
Page 13: Section 5 Installation Of Nitrogen Generator
The NGPSA-1700 and NGPSA-2200 air tank and compressor must be mounted separate from the base. • Use the feet on the air tanks to anchor them to a level surface close to the Nitrogen Generator base. Floor mounting the NGPSA-1000 Floor mounting the generator (NGPSA-1700 & NGPSA-2200) Floor mounting the air tank (NGPSA-1700 &... - Page 14 Close the ½” nitrogen outlet shutoff valve on the nitrogen storage tank. See Section 2.2 General • Arrangement Views for reference. Use the supplied 10’ of ¼” OD tube to run the drain line from the base of the generator. See Section 2.2 •...
-
Page 15: Wiring
Use the supplied wiring cable from the electrical enclosure to connect to the motor. Follow the wiring instruction inside the motor wire cover. Take note of the voltage, the NGPSA-1700 & 2200 are dual voltage motors, ensure that the correct wiring instruction is followed. 5.2 Wiring Diagrams Figure 1. NGPSA-1000 wiring diagram 1-800-345-8207... - Page 16 Figure 2. NGPSA-1700 & 2200 wiring diagram Wiring location is inside the generator electrical enclosure. If you are installing a 3-phase unit, rotation direction will need to be checked for the air compressors. Flywheel rotation is counter-clockwise when looking at the fan end of the compressor as shown below. If rotation is not correct, then switch any two of the 3 wires (L1, L2, or L3) on the terminal blocks inside the electrical enclosure.
-
Page 17: Initial Air Fill
5.3 Initial Air Fill Before beginning, make sure the water supply to the sprinkler system is turned off and sprinkler piping has • been completely drained. Make sure all piping connections have been made according to installation instructions. • • Close all Air Maintenance Device (AMD) valves. - Page 18 Allow the sprinkler system to reach the required pressure. NOTE: This should finish in 30 minutes per the • required NFPA guidelines. • As soon as the sprinkler system supervisory pressure is reached, put the sprinkler system back into service by placing the AMD in the maintenance position (refer to the AMD manual for proper operation).
-
Page 19: Nitrogen Startup
9. Close the Nitrogen Test Port Valve and disconnect the Nitrogen Analyzer. Make sure to power off the Nitrogen Analyzer. 10. Do not leave the Nitrogen Test Port Valve open. 11. The system is now in operation. For purging instructions, see the Purge Valve Manual. Model NGPSA-1000 NGPSA-1700 NGPSA-2200 Time from 60-75psig @ 2 minutes 45 seconds... -
Page 20: Section 6 Nitrogen Control Module
Section 6 Nitrogen Control Module The Nitrogen Control Module is an embedded processor with an LCD display used to control the nitrogen generator and provide useful information on alarm, compressor operating hours and cycles, and nitrogen operation. 6.1 Main Display When cycling power to the controller, the initial display will provide the user with the most useful information. - Page 21 When pressing the UP and DOWN ARROW buttons on the controller, the LCD display will scroll through all the information available on the generator. Figure 2 below is an example of what will be shown when scrolling through the display. Figure 4.
-
Page 22: Section 7 Nitrogen Generator Alarms/Troubleshooting
Section 7 Nitrogen Generator Alarms/Troubleshooting The nitrogen generator has 4 alarms. If an alarm is activated, the bottom row of the LCD display will show the text “ALARM ACTIVE”. The active alarm will remain on the bottom row of the LCD display even when scrolling through the other displays. - Page 23 Alarm 1 – Compressor Overload Issue: The motor overload has tripped due to excessive current. Solution: Turn power OFF to the nitrogen generator. Check overload setting. Reset the thermal overload located at the bottom of the compressor contactor. Measure amperage of motor - check for excessive amp draw.
-
Page 24: Section 8 Process Piping System Leak Check
Section 8 Process Piping System Leak Check If no leak could be found in the nitrogen generator and the unit reaches its desired pressures in the allotted time, this indicates the sprinkler system piping system may have a leak larger than the unit can handle in nitrogen generating mode. - Page 25 Part Replacement Part Number NITROGEN ANALYZER NGP-PSN2 N2 ANALYZER SENSOR ELEMENT F/NGP OIL-LESS MINOR REPAIR KIT(1 PER CYL) (NGPSA-1000 ONLY) OLP-MRK-2.75 CYLINDER REPAIR KIT (1 PER CYL) (NGPSA-1000 ONLY) OLP-CRK-2.75 MOTORIZED VALVE G-JFMSV00010 OIL-LESS COMPRESSOR INTAKE FILTER ELEMENT (1 PER CYL)
-
Page 26: Filter Replacement
Filter Replacement Isolate the nitrogen generator and relieve pressure. Disconnect the power to the nitrogen generator. Unscrew the filter bowl from the filter body. This can be done without disconnecting the drain line. Remove the element by pulling the filter out. Clean the filter body and bowl with a clean rag. -
Page 27: Section 10 Normal Operating Parameters
Section 10 Normal Operating Parameters The NGPSA System uses a two-tank system design to deliver high purity nitrogen. The pressure transducer on the air storage tank controls the air compressor by turning it on and off between 85-105 PSI. Another pressure transducer on the nitrogen tank controls the nitrogen shutoff valve in the N2 PSA generator. -
Page 28: Section 11 Nitrogen Analyzer Instructions
Section 11 Nitrogen Analyzer Instructions Component Description The 3 ½ digit liquid crystal display (LCD) provides direct readout of nitrogen concentrations in the range of 0 - 105.0% (100.1% - 105.0% used for calibration 3 ½ Digit Display determination purposes). The digits also display error codes and calibration codes as necessary. -
Page 29: Calibration Errors And Error Codes
11.3 Calibration Errors and Error Codes The nitrogen purity analyzer has a self test feature built into the software to detect faulty calibrations, oxygen sensor failures, and low operating voltage. Refer to the following table for an explanation of error codes and possible actions to take. Code Meaning Corrective Action... -
Page 30: Changing The Oxygen Sensor
11.5 Changing the Oxygen Sensor Should the oxygen sensor require changing, the device will indicate this by presenting “Cal Err lo” on the display after initiating a calibration. To change the oxygen sensor, begin by removing the three screws from the back of the device. A #1 Phillips screwdriver is required to remove these screws. -
Page 31: Section 12 Warranty Policy
All costs of transportation of product, labor or parts claimed not to areas. While General Air Products, Inc. attempts to assure that its be as warranted and, of repaired or replaced parts to or from factory products comply with such codes, it cannot guarantee compliance, shall be borne by purchaser. - Page 32 General Air Products, Inc. 118 Summit Drive Exton, PA 19341 P: 610-524-8950 F: 610-524-8965...
