Summary of Contents for Mastervolt MAGIC 12/12-20

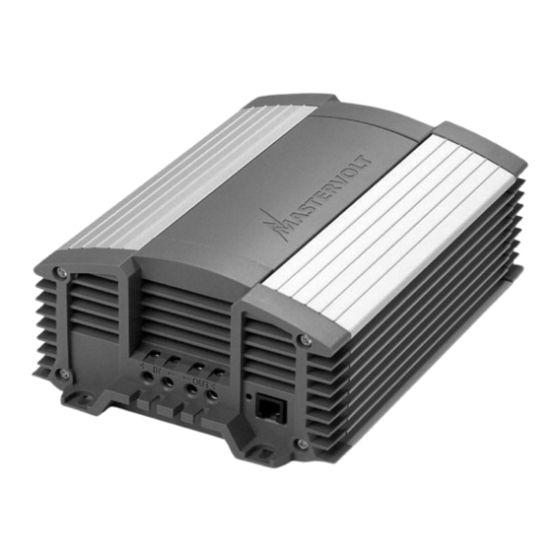

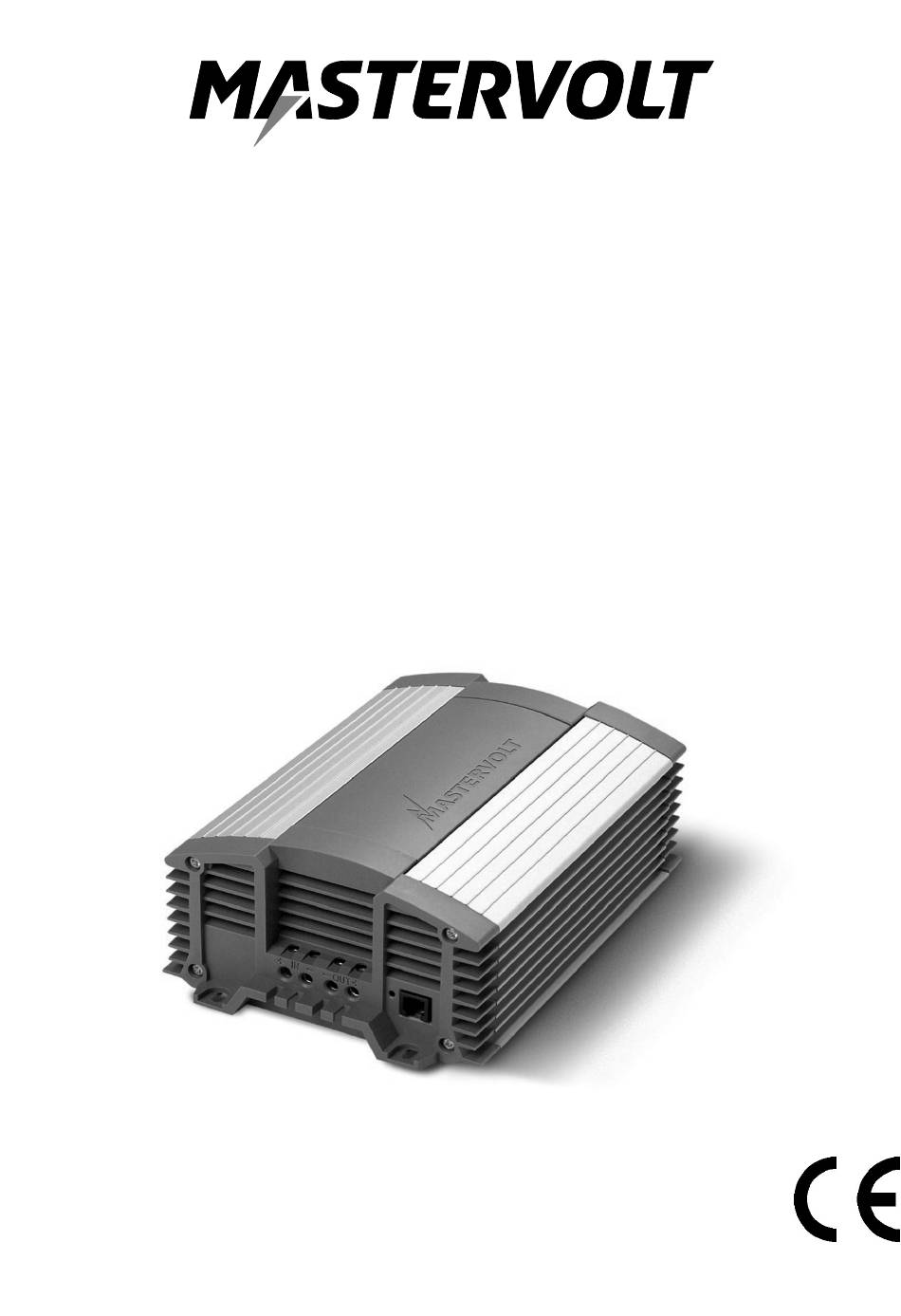

- Page 1 USERS MANUAL MAGIC 12/12-20, 12/24-10 24/12-20, 24/24-20 DC-DC converter 10000002796/03 Copyright © 2018 Mastervolt...
- Page 2 Product description Safety regulations and measures The DC-DC converter MAGIC converts a DC-voltage into 1. Install the converter according to the stated another stabilized DC-voltage with a full galvanic isolation instructions. between the input and output. 2. Never use the converter at a location where there is danger of gas or dust explosions.
- Page 3 20.0V), if the input voltage is too high (default 16.0V Guarantee terms or 32.0V), in case of overload or short-circuit. The Mastervolt guarantees that this converter was built contact is also deactivated when the MAGIC is switched according to the legally applicable standards and off.
- Page 4 INSTALLATION 1A: STABILIZED VOLTAGE SUPPLY 1 2 3 4 1 2 3 4 DIP switch setting: U-out = 13.6V U-out = 27.2V U-out= 0V / 13.6V or 0V / 27.2V Load – - Stabilized DC-power supply / single stage 12V/24V charger INSTALLATION 1B: STABILIZED VOLTAGE SUPPLY WITH REMOTE SWITCH Remote switch function ON...
- Page 5 INSTALLATION 2A: 3-STEP BATTERY CHARGER 1 2 3 4 12V battery charger, DIP switch setting: 3 stage charger. 3-STEP CHARGE, I= 80% 24V battery charger, 3-STEP CHARGE, I= 80% - Automatic 3-step battery charger Load – – 12V/24V 12V/24V INSTALLATION 2B: 3-STEP BATTERY CHARGER WITH REMOTE SWITCH 1 2 3 4 12V battery charger, 3-STEP CHARGE, I= 80% Remote switch function ON...
- Page 6 INSTALLATION 3A: 12/36, 24/36 OR 24/48 CONVERTER DIP switch setting: Model MAGIC 12/24-10 MAGIC 24/12-20 MAGIC 24/24-20 U-battery U-out U-battery + 27.2V U-battery + 13.6V U-battery + 27.2V I-out - A 12/36, 24/36 or 24/48V converter without galvanic isolation. U-out= 0V / Ubatt+13.6V 0V / Ubatt+27.2V Load...
-
Page 7: Dip Switch Settings
INSTALLATION 4: DIMMER 1 2 3 4 U-out = 4.0…13.0V Dimmer and remote switch function ON DIP switch setting: U-out = 8.0…26.0V Dimmer and remote switch function ON Rear side U-out= 4.0…13.0V / 8.0…26.0V – 12V/24V Dimmer configuration for 12 or 24V halogen lights with remote switch function DIP SWITCH SETTINGS Default: OFF 3 12V→... - Page 8 DIMENSIONS 81 [3.2] [0.3] 227 [8.9] 203 [8.0] [0.25] [0.25]...
- Page 9 SPECIFICATIONS MAGIC Model MAGIC 24/12-20A MAGIC 24/24-20A MAGIC 12/12-20A MAGIC 12/24-10A Part no. 81300100 81300200 81300400 81300300 Nominal input voltage Input range, full output specifications 19-32V DC 19-32V DC 11-16V DC 11-16V DC Input range, three step charger mode 24-32V DC 24-32V DC 12-16V DC 12-16V DC...
-
Page 10: Ec Declaration Of Conformity
EC DECLARATION OF CONFORMITY Manufacturer: Mastervolt Declare under our sole responsibility that: Product: 81300100 MAGIC 24/12 81300200 MAGIC 24/24 81300400 MAGIC 12/12 81300300 MAGIC 12/24 Is in conformity with the following provisions of the EC: 2004/108/EC EMC directive. The following harmonized standards have been applied: •...
